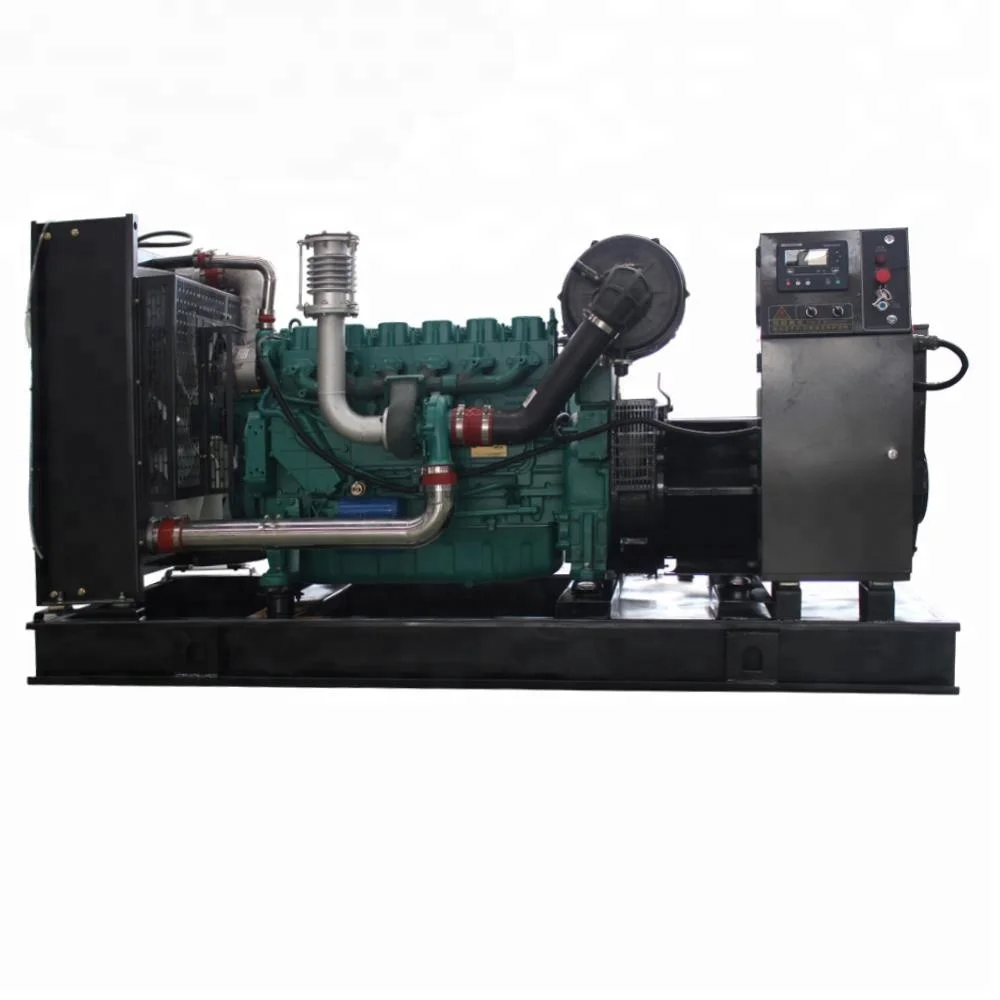

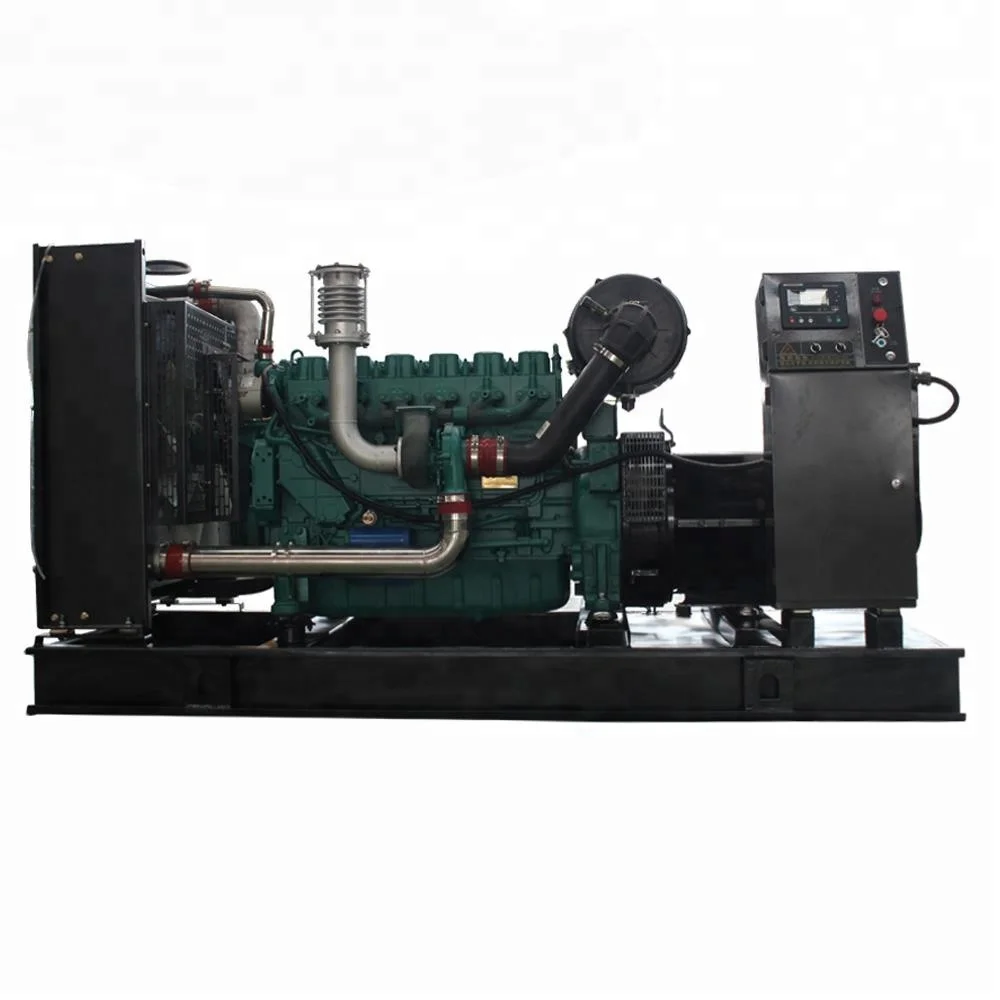

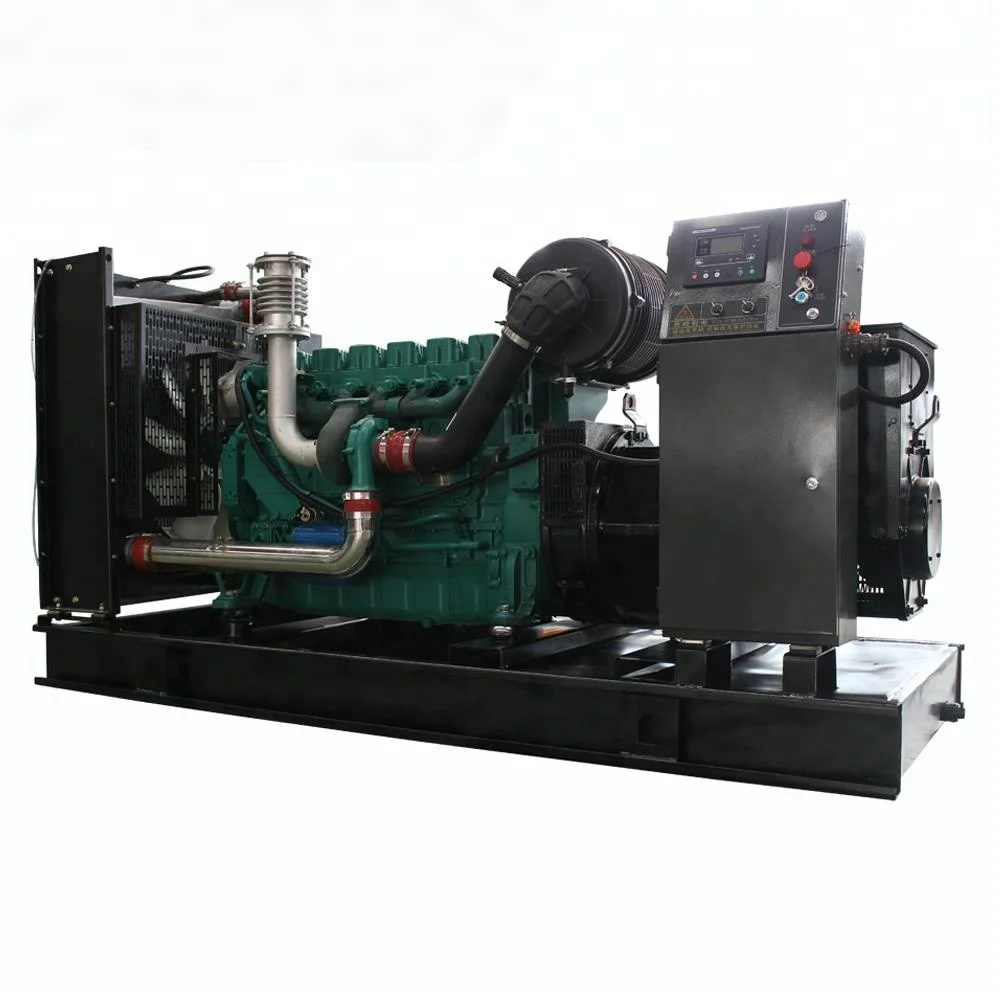

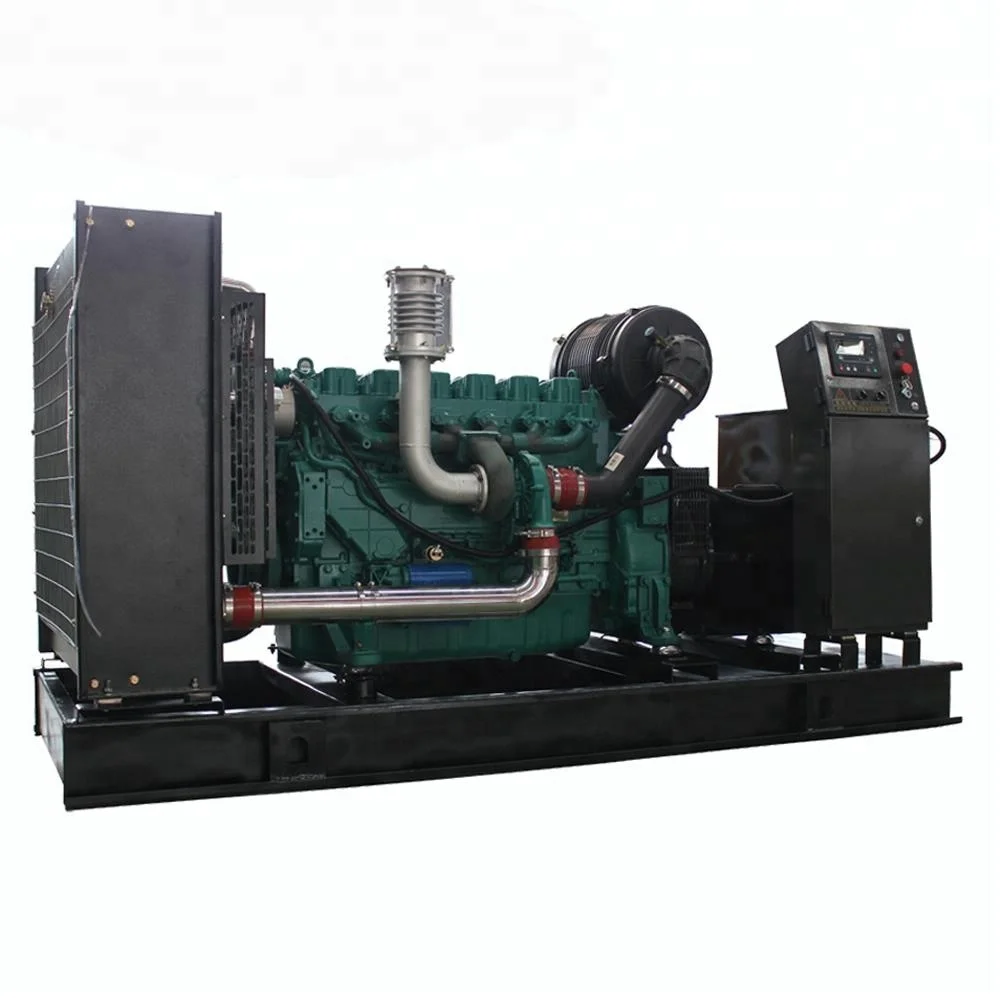

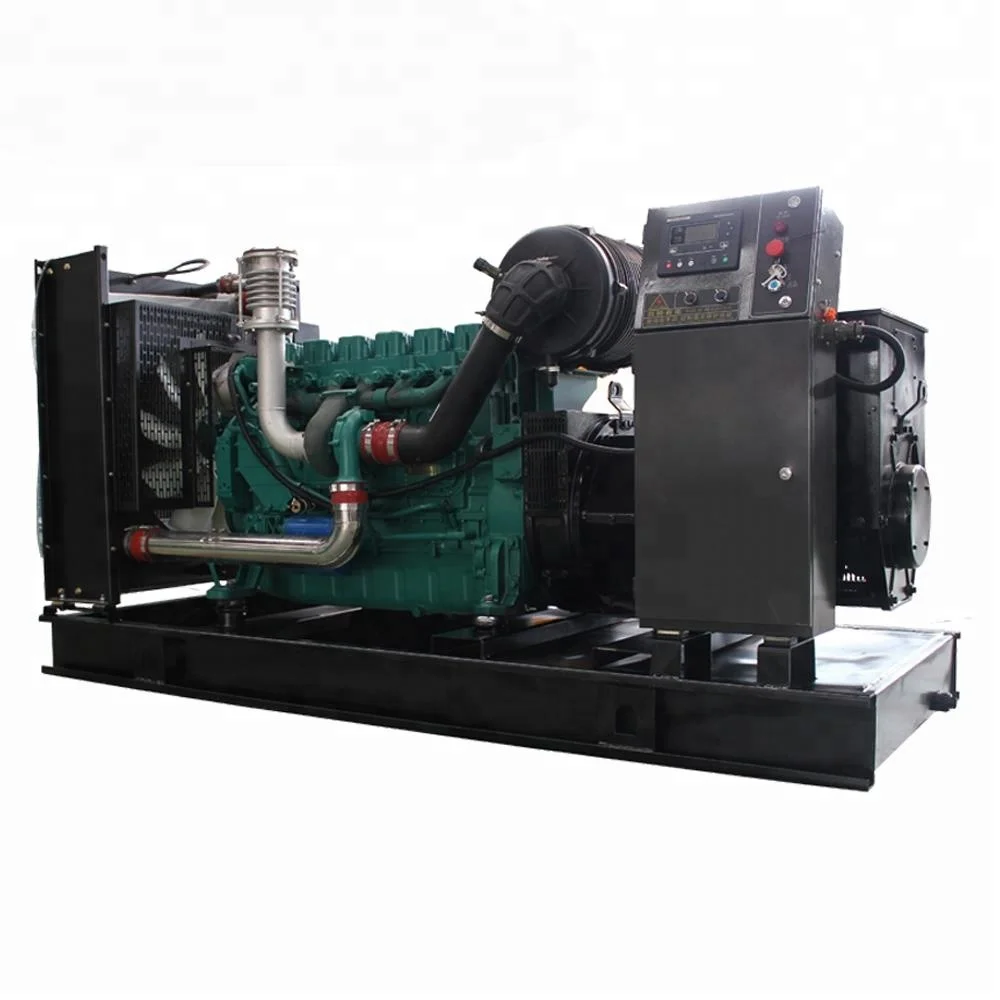

Генераторная установка weifang 50 кВт 100 120 150 240
- Категории: >>>
- Поставщик: Jiangsu,Hengtong,Generator,Manufacture,Co.,Ltd.
Сохранить в закладки:
Описание и отзывы
Характеристики
Related Products
Product Description
Diesel generator set specifications | Engine Specifications | Alternator Specifications | ||||||
Model | GF30KF | Engine brand | WEIFANG | Alternator brand | NENJO | |||
Prime Power | 37.5KVA/30KW | Engine Model | K4100ZDS | Model: | HJI-30 | |||
Standby Power | 41KVA/33KW | Standby power(KW) | 45 | Rated Capacity (KW/KVA): | 30/37.5 | |||
Frequency: | 50Hz/60Hz | Prime power (KW) | 36 | Winding: | 100% Copper Wire | |||
Voltage: | 400V or customized | Governor | Electronic | Frequency: | 50Hz/ 60Hz | |||
Phase: | 3 | Cylinders/ Arrangement | 4/L | Speed: | 1500 RPM/ 1800RPM | |||
P.F(COS￠): | 0.8 | Bore x stroke(mm*mm) | 100X115 | Connecting Type: | 3 Phase and 4 Wires, “Y” /“ Δ” type connecting | |||
Fuel: | Diesel | Consumption of fuel | 2.04 L/H | Power Factor: | 0.8 | |||
Rated Current: | optional | Lub.oil cap.(L) | 13 | Protection Grade: | IP23 | |||
Start Method: | 12/24V DC | displacement(L) | 3.61 | Exciter Type: | Brushless, self-exciting | |||
Control panel
Brand: NENJO brand
- A current, Voltage, Frequency simulative meters;
- An oil pressure, a water thermometer and indicator lights;
- 4 additional protection functions are provided optional;
- Start/ stop manually.
Automatic controller
Brand: DEEPSEA or SMARTGEN
- Control with AMF module;
- Static battery charger;
- Emergency stop push button;
- Basic protection function, etc.
ATS
- Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine BottProvide start signal to automatic control system;
- Control the generator set to run with no load until the temperature of the engine is balanced and lowered. Stop running automatically;.
- Changeover between the mains supply and power generated by gen-set;
Parallel Controller
Brand: DEEPSEA or SMARTGEN
- Manual/auto parallel system generators;
- Automatic start/stop of the gen-set, ATS(Auto Transfer Switch) control with perfect fault indication and protection function;
- IP55 waterproofness level;
- Can control engine heater, cooler and fuel pump;
- Metal fixing clips enable perfect in high temperature environment, etc..
Silent Canopy Detail
Features of Silent type
-Compact structure with high-strength chassis;
-Easy operation and maintenance, Low cost;
-Excellent performance damping system;
-Compliance with international electrical safety standards of electrical system;
-8 hours base tank;
-High-performance maintenance-free batteries with isolation switch
-50℃Radiator;
-Top lifting, Forklift bottom hole design, easy to transport;
-Industrial muffler;
-Noise reduction structure,Low noise;
-Convenient power output interface;
-IP56 (control system)
-Customized design for user

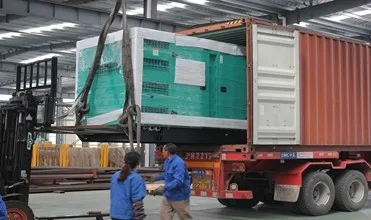

Packing & Delivery
- Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload
- Noise level shall be tested.
- All of the meters on the control panel shall be tested.
- The appearance of the Set and the label, nameplate shall be tested. "
-Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.
Packing of GF100V silent type generator set is plastic wrap, or can be plywood case as well as metal box. It depends on customers' requirements.

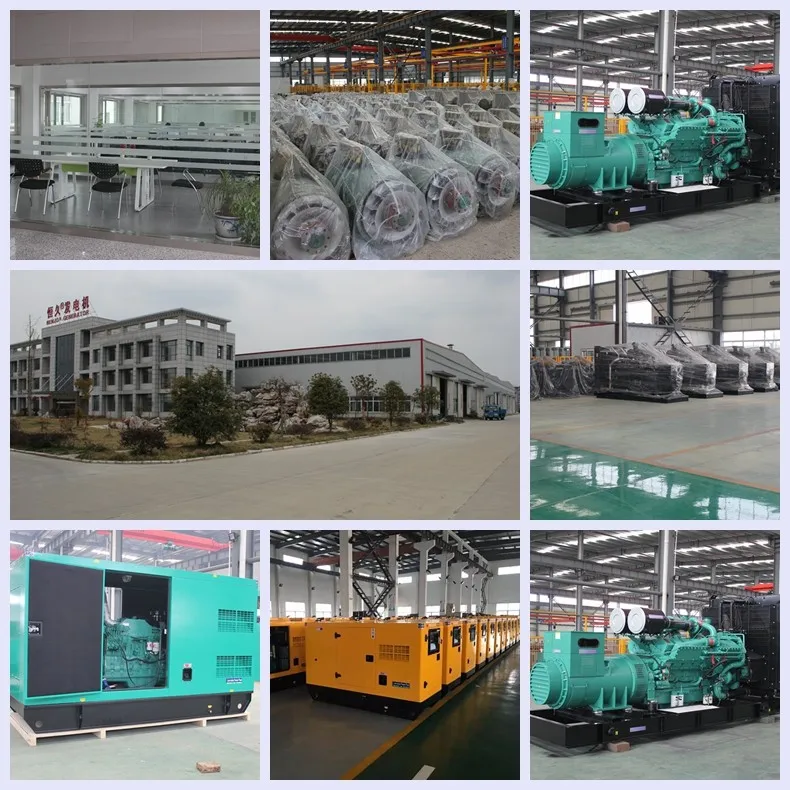

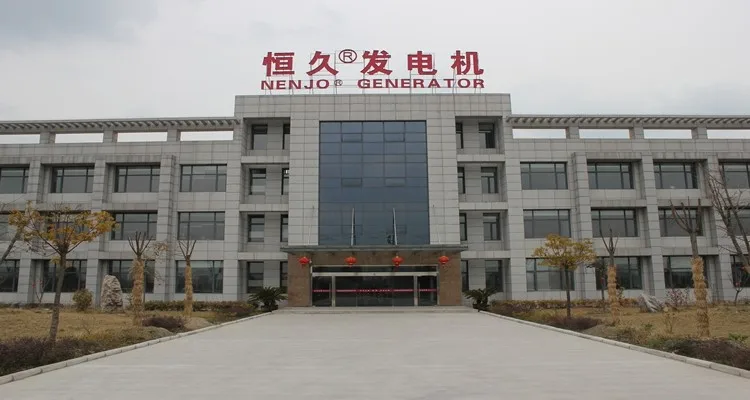

Factory information
Jiangsu Hengtong generator manufacture co., ltd.
Our factory has NENJO, VOLVO, Deutz, Daewoo, Shangchai, Weichai, Jichai etc World and Chinese famous generator set. And open type, silent/ low noise/ canopy/ sound proof type and mobile/ trailer generator are under your requirements.
We also have our own produced NENJO brand 3 phase synchronous brushless alternator.
We have CE, ISO, CQC certifications. Genset and alternator power range from 8~2000KVA.
Warranty: one year or 1000 hours from the date of shipment.( Alternator part 15 months or 1200 hours).
