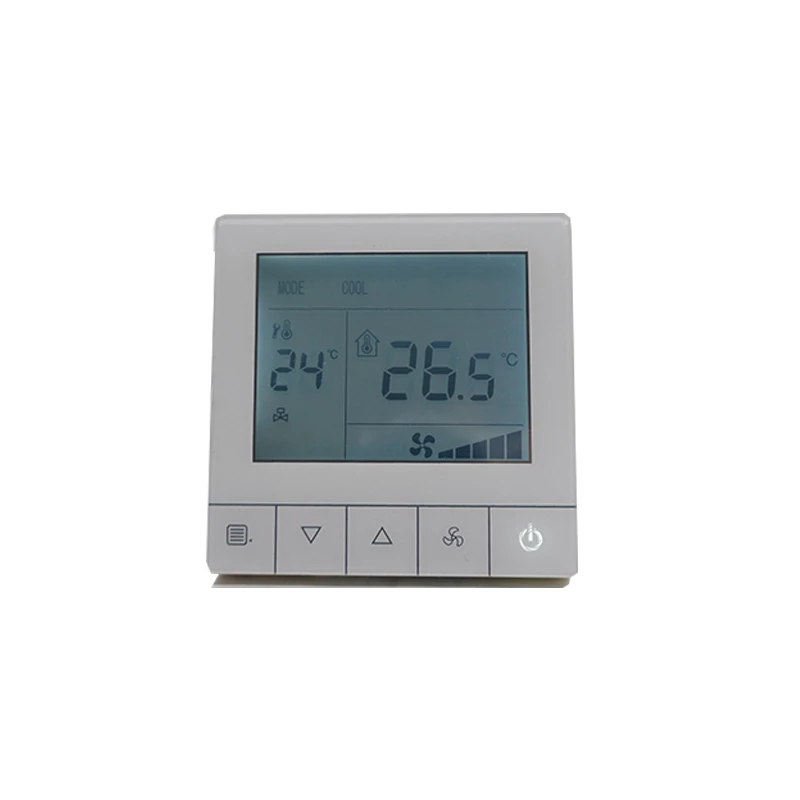

Блок вентиляторной катушки, 4 трубы, цифровой ЖК-дисплей, термостат, контроль температуры в помещении

Сохранить в закладки:


Цена:18,50 $ - 28,50 $*
Стоимость в USD:Показать (текущая цена)

Количество:

  • В избранное

Описание и отзывы

Характеристики








[ Product Overview]


LCD digital thermostats,applying the most advanced and international standardized microcomputer control chip, measures the indoor temperature by the in-built NTC high- precision sensor. It can always compare with the setting temperature, and automatically regulate the heating/cooling air input or switch on/off the motorized valve, so as to keep room in a certain temperature.





[ Technical Data ]


Working voltage : AC220V ±10 % ,50 / 60Hz            Load current : < 1A


Power self-consumption : < 1 . 5W                            Temperature Accuracy : ±1℃


Timing error: <1%                                                      Output rated power : < 200W


Temperature setup range : 5℃-35℃                         Dimension: 86mm * 86mm*13mm







Standard configuration ]


A,Large Interactive touch screen, clear display with backlight shows even in the dark.


B,Fan coil unit and motorized valve control;


C,Fan coil unit wind speed conversion--. High, Medium, Low, Automatic;


D,Locking function --- When locked, the temperature can not be set, and only heat & cool transfer, power on & power off and Fan speed setting ;


E,Lock hidden function--- This function can only operate when the thermostat in power offstatus;


F,Shell pieces for the white colors.


 15






[ Caution ]

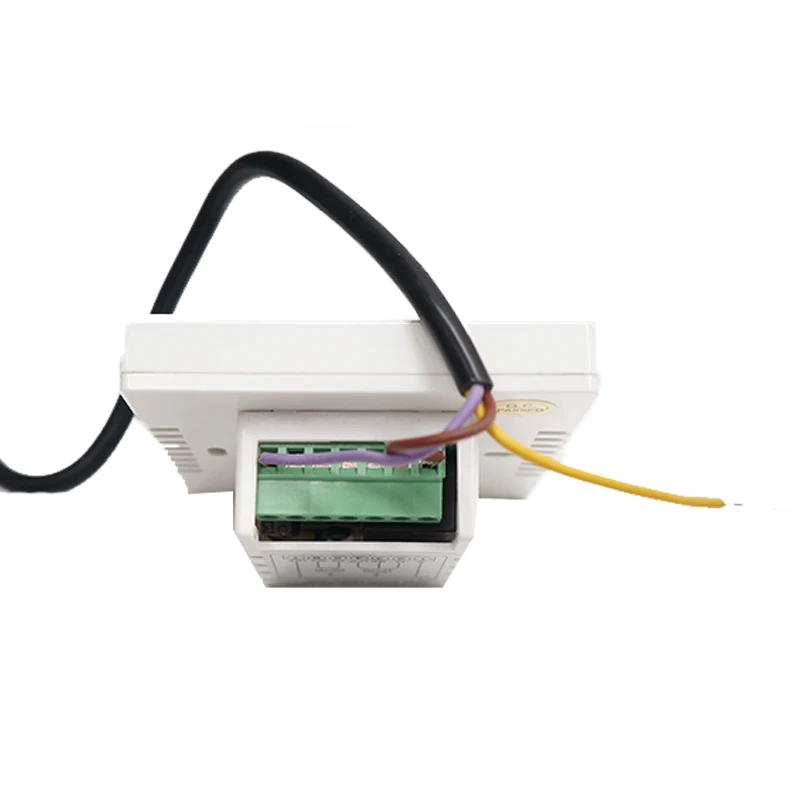

Please connect wires in strict compliance with the installation wiring diagram ;





Please install a thermostat correctly in strict compliance with the installation diagram





Do not pull the cable forcibly , or it may be damaged .





Do not squeeze the LCD or scratch the LCD surface during the installation; During the installation ,do not knock those electronic components on the circuit board , and do not drop or deform the back cover.





If hard plastic lines are used during the installation , do bend it into a appropriate angle firstly





Do not drop it into construction mud





Different Lines Match ]


17








Installation ]


We suggest installing the thermostat after the completion of the interior decoration.























































WRA-53 Series



220v ON/OFF, 3-Point



WRA-63 Series



220V/110V/24V  ON/OFF, 3-Point



WVA4-.. Series



220V/24V  ON/OFF, Proportional



WRA3-.. AC Series



220V/110V/24V  ON/OFF, 3-Point



WRA-42 DC Series



24V/12V/3V  ON/OFF, 3-Point



WRA3-.. DC Series



24V/12V/3V, ON/OFF, Proportional





16














1608188019(1)
