Oxygen Regulator/ Inhalator





1) HG-IG Medical Oxygen Regulator is designed to Reduce the pressure and Control the flow of oxygen from an oxygen cylinder or tank.
2) Oxygen Flow Control Regulator is a pressure-reducing device, which lowers the oxygen pressure from a cylinder to levels, and can be safely used by the patient. Oxygen Regulators are intended for the administration of oxygen to patients who need increased oxygen levels to improve their breathing conditions.



Specifications


Model
Humidifier Bottle(mm)
Inlet Pressure (bar)
Flow Rate (LPM)
Outlet Pressure(bar)
Cylinder Valve's Thread
HG-IG-R001(A)
150/250/300/500
150/200
0-5/10/15/70
3.0
G5/8 & G3/4 & CGA540 & W21.8--Male
HG-IG-R001(B)
HG-IG-R001(C)
HG-IG-R001(D)
G5/8--Female
HG-IG-R001(E)
G5/8-Female
HG-IG-R001(F)
CGA870

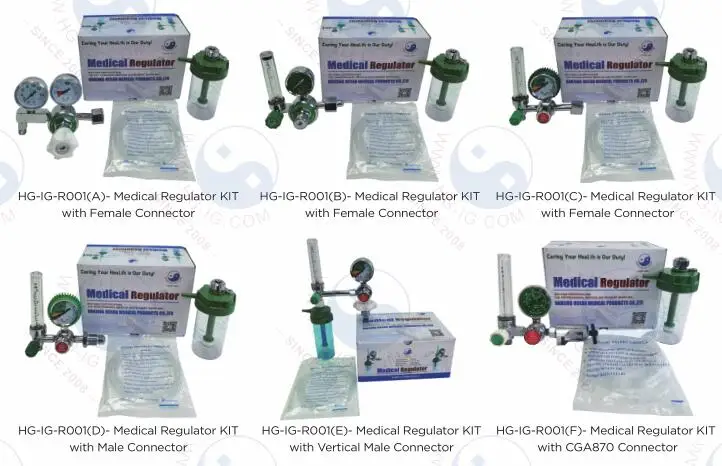

MEDICAL REGULATOR (INHALATOR) WITH FLOWMETER AND HUMIDIFIER BOTTLE
* Using with High Pressure Gas Cylinders * Medium Gas: Oxygen / Air
* Flowmeter: 0-10LPM / 0-15LPM * Max Inlet Pressure: 3000 PSI

We have various sizes and styles of pressure regulators. Should you have any questions, pls feel free to contact us directly at any time!


Applications

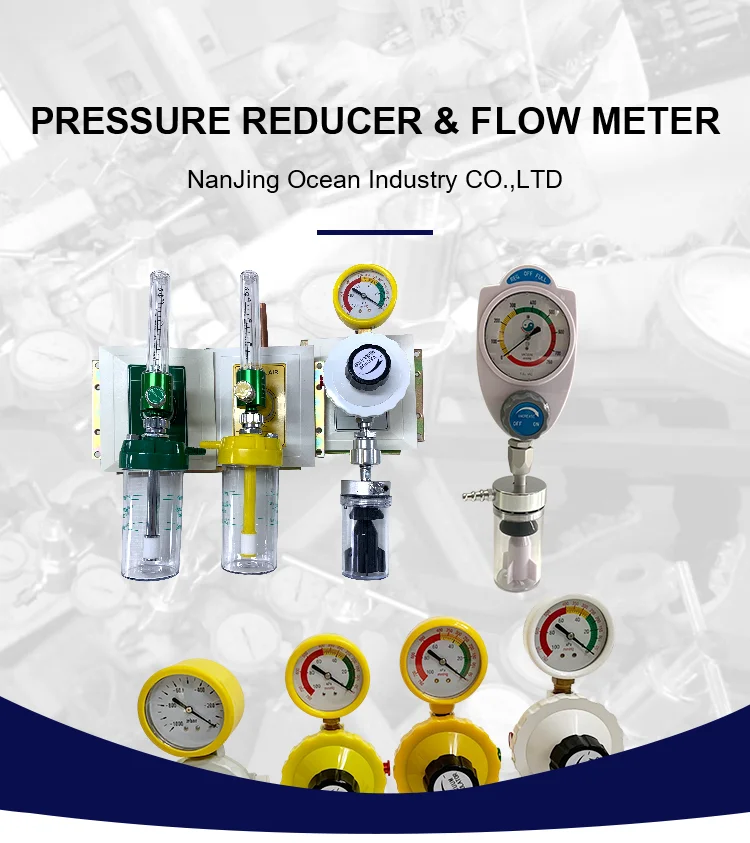

Varies Types of Pressure Regulators
connects to various of valve models and humidifier bottle

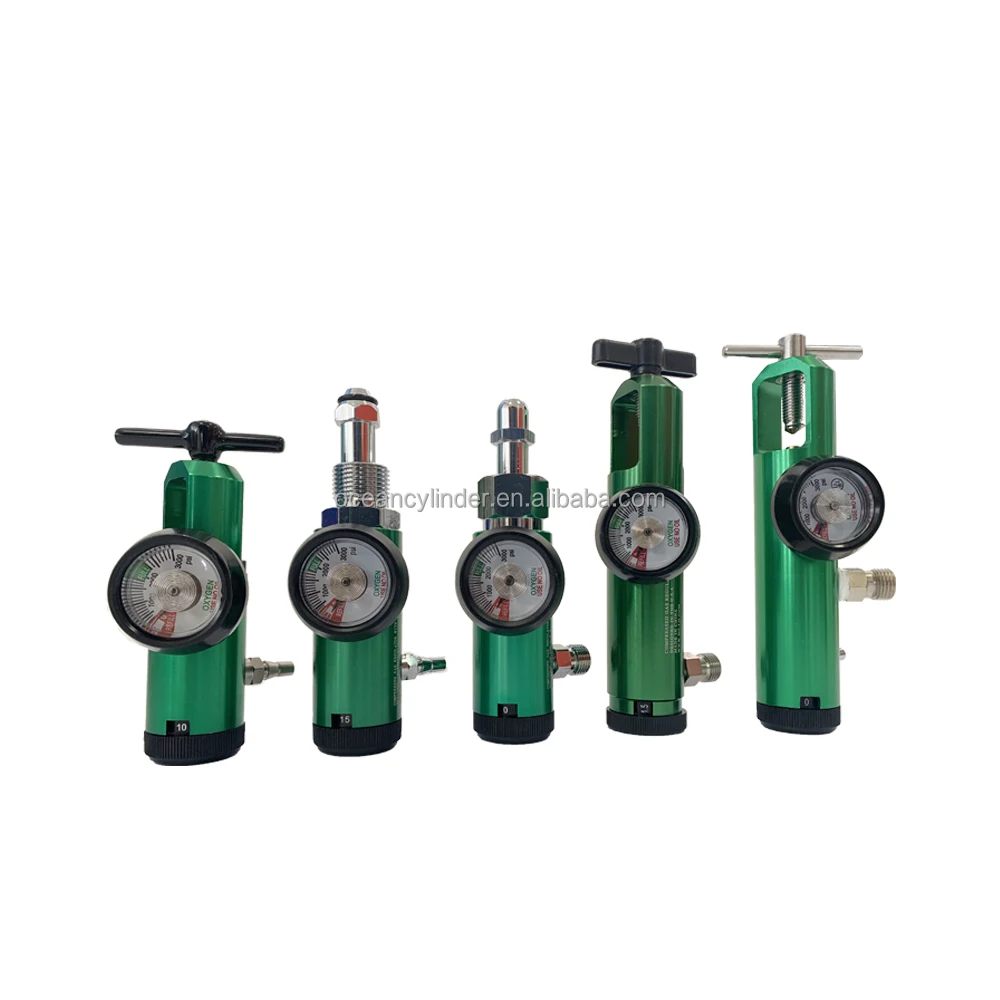

Click-style Oxygen Regulator




Specifications


①Aluminum body or brass chrome body with brass core
②3000 psi max inlet pressure
③1-1/2'' diameter gauge
④Inlet connection complies to CGA standards
⑤Internal relief valve
⑥Alternative color(green, blue, yellow, red, silver)

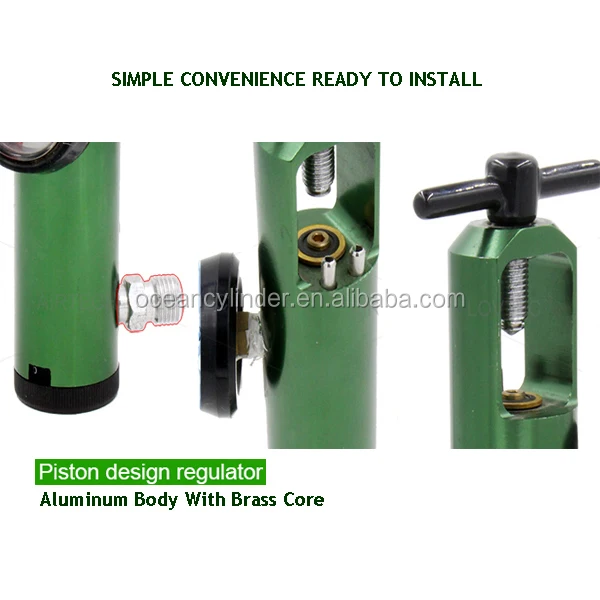

⑦Piston type regulator
⑧Sintered bronze inlet filter for longer service
⑨Easy to read flow rate window
⑩Selection of: 0-2;0-4;0-8;0-15;0-25




Applications

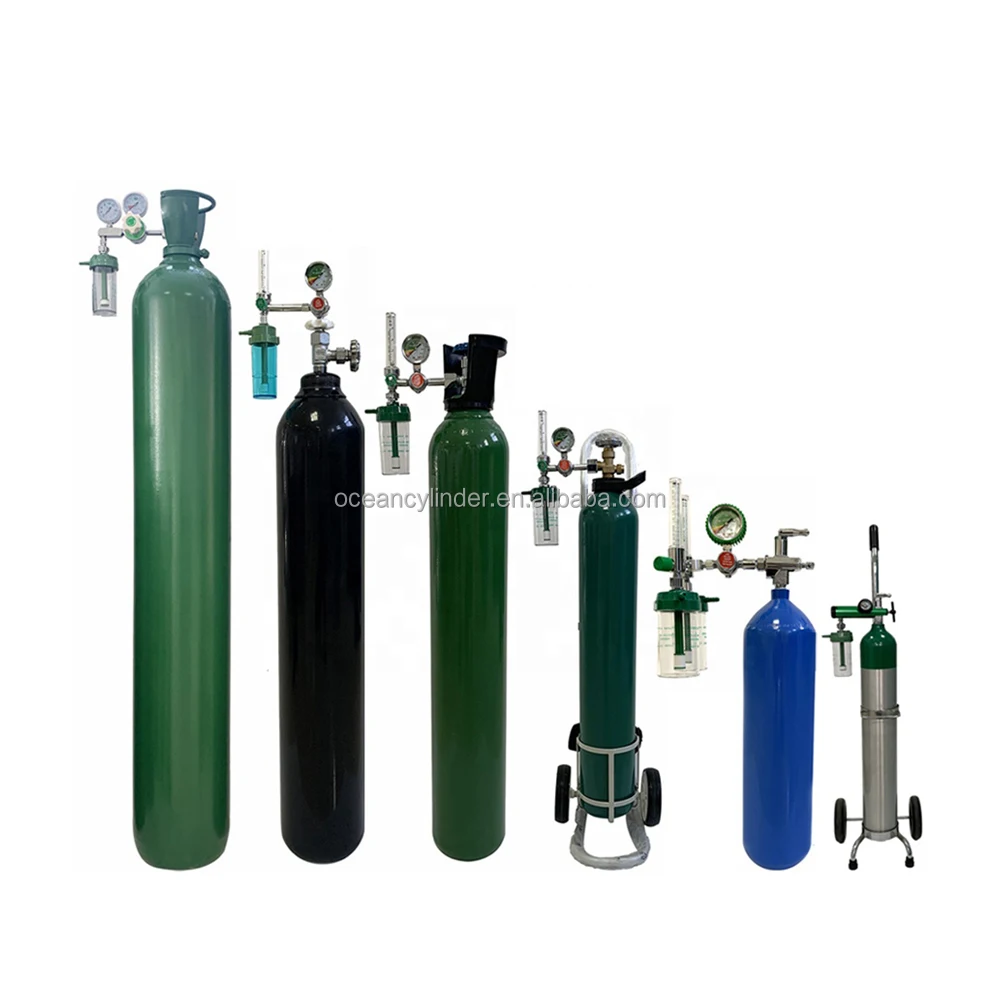

Portable Oxygen Tanks

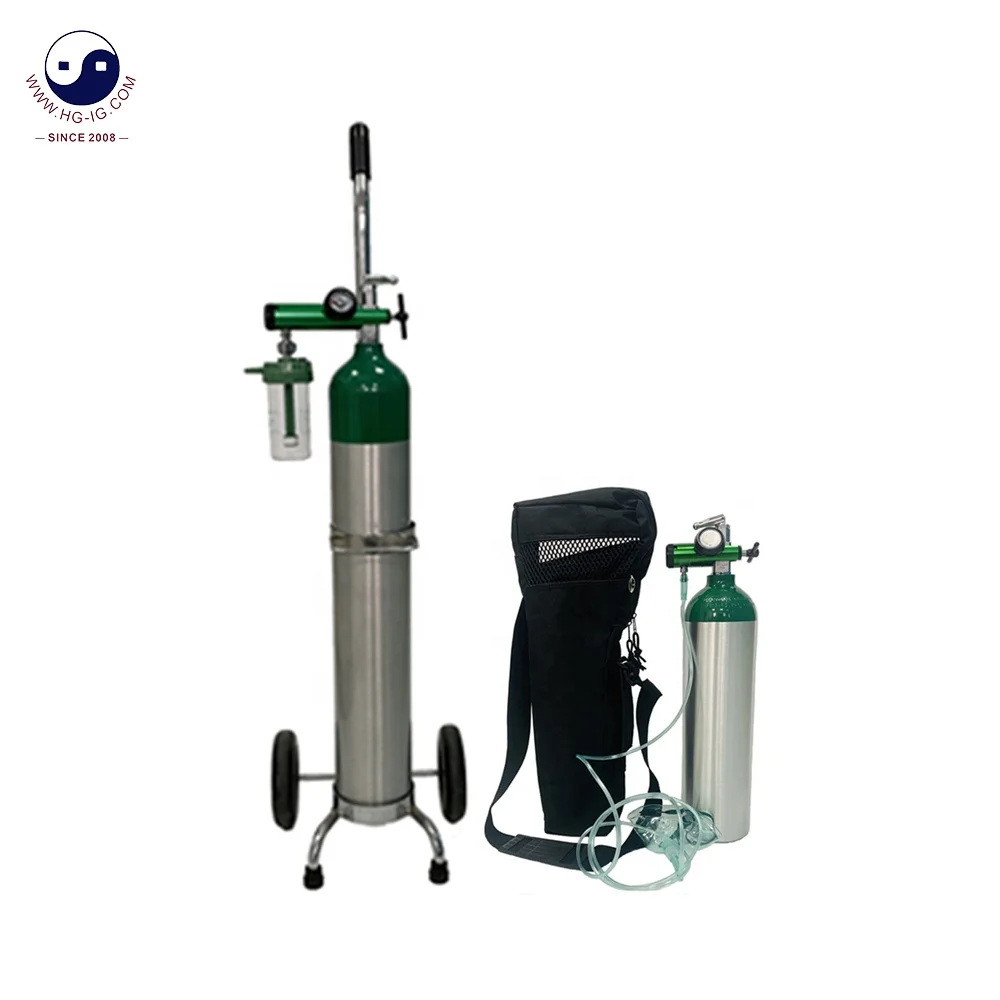

(CGA870 CLICK-TYPE REGULATOR)

HG-IG medical cylinders/tanks are the ideal choice for home oxygen therapy, emergency medical services and pre-hospital care, as well as hospitals, nursing homes and other portable use, such as diving, mountain-climbing.

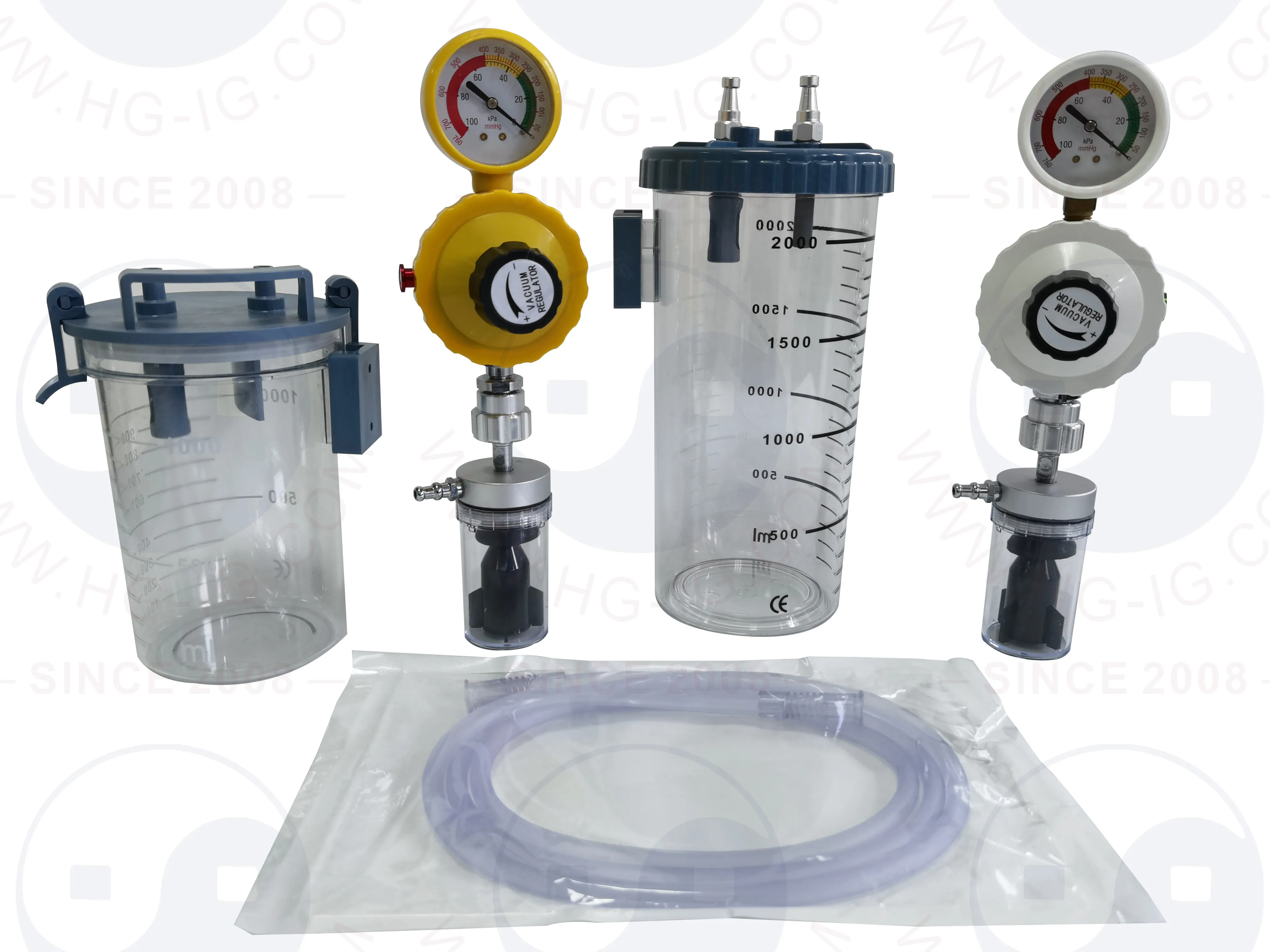

Vacuum Regulator & Flowmeter




More Products




FAQ


Q1: Are you a manufacturer or a trading company?
A1: We are a professional manufacturer engaging in the field of gas system, and have got the permit of export for years as well.

Q2: Can I print our own logo on package?
A2: Sure! Customized package and OEM printing are available.

Q3: What's the payment terms?
A3: Payment <=10,000USD, 100% in advance. Payment >10,000USD, 30% T/T advance, balance before delivery.

Q4: What's your delivery time?
A4: Usually 3--20 days, depending on the quantity you ordered.

Q5: Which package of the cylinder?
A5: Bulk in one container; Hard carton; Wooden or Steel Pallet, depending on the goods and quantity, negotiable.
