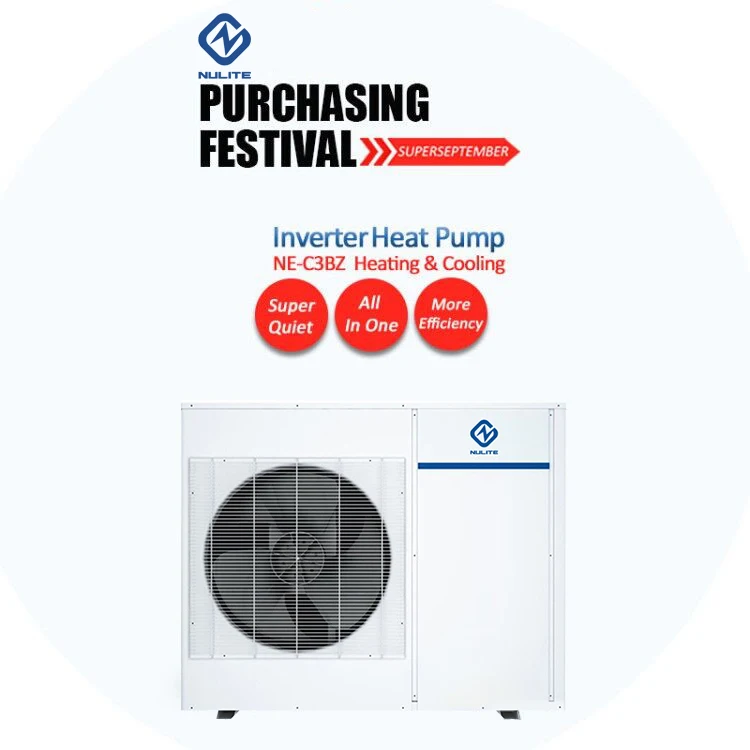

Инвертор постоянного тока C3BZ Nulite 10 кВт 20 кВт, воздушный водяной тепловой насос HVAC, воздушный кондиционер, домашние охлаждающие тепловые насосы

Сохранить в закладки:


Цена:1 099,00 $ - 1 399,00 $*
Стоимость в USD:Показать (текущая цена)

Количество:

  • В избранное

Описание и отзывы

Характеристики





Details Images

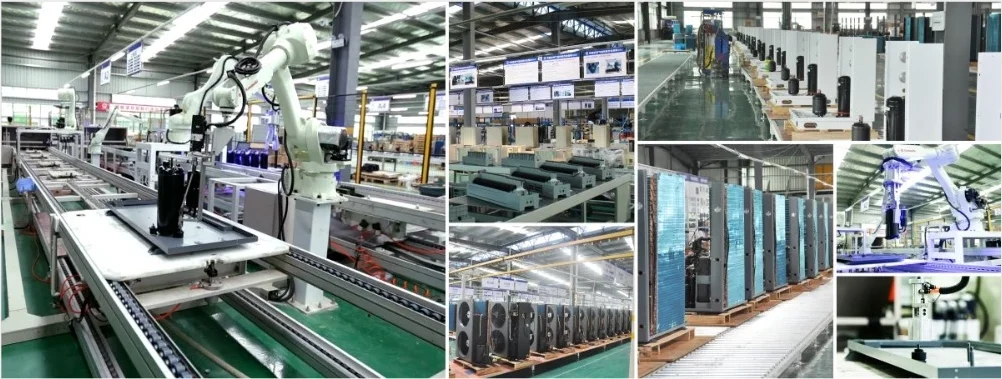

Nulite New Energy CBZ SERIES Producing line
Visual production base, welcome customers to visit and investigate, provide professional installation technology, to ensure that each machine is in the best condition.

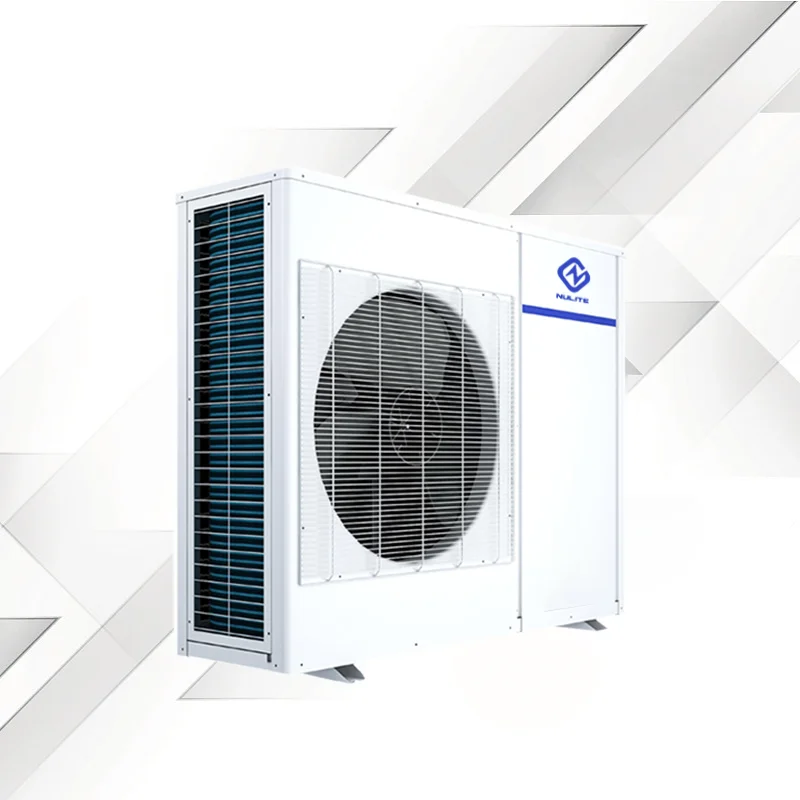

Nulite New Energy -25C DC inverter Air to Water Heat Pump
1.ASHP Heating Capacity: DC Inverter All In One 10KW 20KW 22KW 30KW 38KW.
2.Best Selling Market: Central Europe North & East Europe, North Europe, North America.
3.Ambient Temp of Using: Minus 25C, highest 55-60C hot Water Output.
4.Certification: ISO9001, CE, erP Energy Label, ROHS, EMC.
5.Japan *Mitsubishj" Twin Rotor Compressor for DC Inverter Monoblock Air Source Heat Pump.


For choosing the suitable model according to heating spaces here.
Types of heat pump                                            Model                                                   Using area
DC inverter all in one heat pump(10kw)           NE-C3BZ-B2F                                     60 to 100m2
DC inverter all in one heat pump(20kw)           NE-C5BZ-B2F                                     120 to 200m2
DC inverter all in one heat pump(22kw)           NE-C6BZ-B2F                                     150 to 220m2
DC inverter all in one heat pump(30kw)           NE-C8BZ-B2FIIF                                220 to 280m2
DC inverter all in one heat pump(38kw)           NE-C10BZ-B2FIIF                              260 to 350m2


Product Paramenters


Inverter Monoblock
NE-
C3BZ-B2F
C8BZ-B2F
NC10BZ-B2FIIF
Rated Heating Capicity
KW
10KW
30KW
38KW
Rated Cooling Capicity
KW
7.5KW
20KW
25KW
Power Consumption
KW
1~3.25KW
2.66~9.28KW
3.45~12.03KW
Heating Capicity I
KW
8.45W
22.5KW
28.1KW
Voltage (V)
V/Hz
220V - Inverter
220V - Inverter
380V - Inverter
Rated Currency/Max Currency
A
11.6A/14.8A
32.5A/42.2A
15.9A/21.5A
Rated output water temperature
°C
Heating: 40~45°C / Cooling: 12~7°C
Max output water temperature
60°C
Rated water flow
m³/h
1.3
3.44
4.3
Refrigeration
R410A
Rated of waterproof
IPX4
Control mode
Microcomputer central processor (linear control)
Compressor
Form
Double-Rotor Type
Quantity
1
1
1
Brand
Mitsubishi
Unit
Net size
mm
1110*330*965mm
1210*535*1495mm
1210*535*1495mm
Weight
Kg
90kg
155kg
165kg
Nosie level(2m)
dB(A)
≤50
≤55
≤55
Fan
Form
Brushless DC inverter motor
Ambient temperature
°C
(-25°C - 43°C)
Water pump build-in
/
\\
Expansion tank build-in
/
14.5KW
\\
Inlet pipe diameter/Outlet pipe diameter
DN25
DN25
DN40

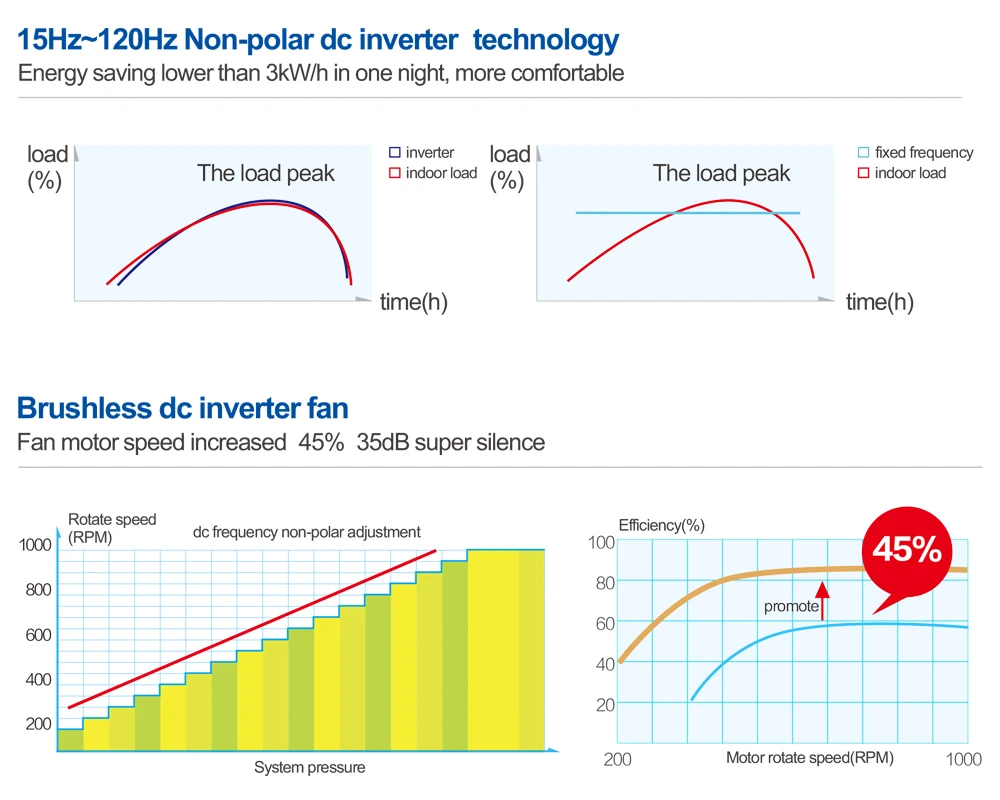

Advantages of DC Inverter Technology
1. High efficiency and energy savingVariable frequency

DC inverter heat pump can  determine the running frequency of the compressor and fan according to the amount of heat (cold) needed, so as to make reasonable use of energy.
Since the compressor will not be opened frequently, it will keep the compressor in a stable working state, so it will not consume more electric energy.The COP energy efficiency can be more than 30% energy saving than normal heat pump.

2. Long life and good stability

In the operation process of normal heat pump,the voltage range can only be 220V.When the temperature reaches the set temperature, it will stop, and when the temperature drops to the range, it will restart.Such frequent shutdown and restart in addition to the consumption of electricity, the compressor life will also have an impact.

The DC inverter air source heat pump has a wide voltage adaptation range, which solves the problem that the voltage is unstable and affects the operation.Moreover, it can automatically adjust the revolution of the compressor according to the change of ambient temperature and run more stably at the same time.Even when it reaches the temperature, it will not shut down, but maintain operation with low energy consumption.Therefore, in terms of service life and stability, variable frequency air source heat pump is better.

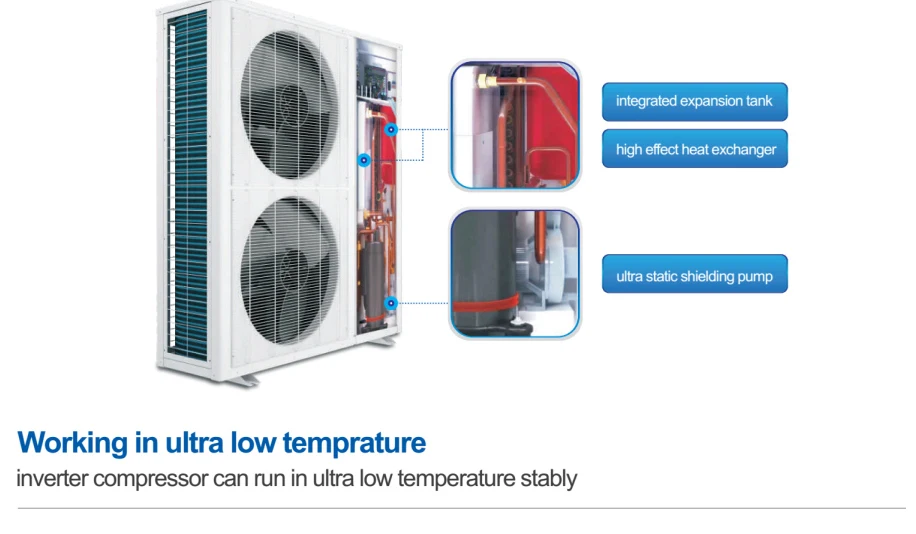

3.Low temperature heating intensity

At general temperature,normal air source heat pump and DC inverter heat pump heating energy efficiency difference is not big, but the lower the temperature, the more obvious the difference.


Installation Instructions

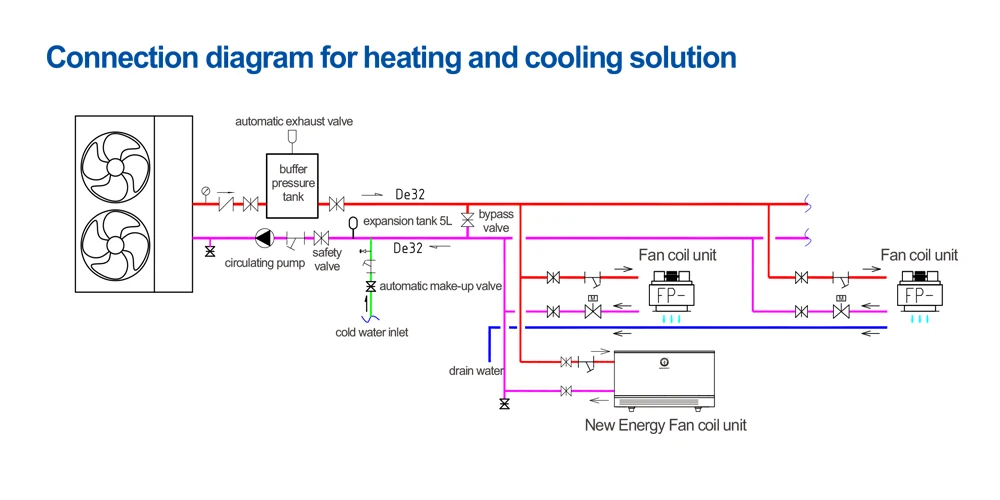

CBZ Series Installation Instructions

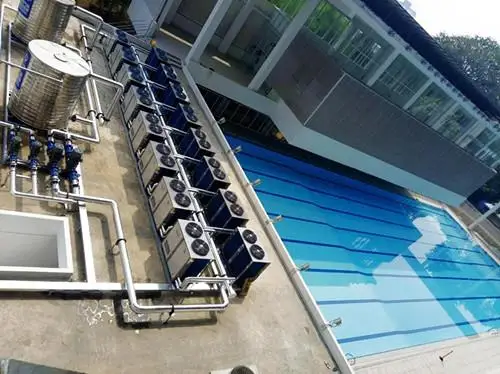

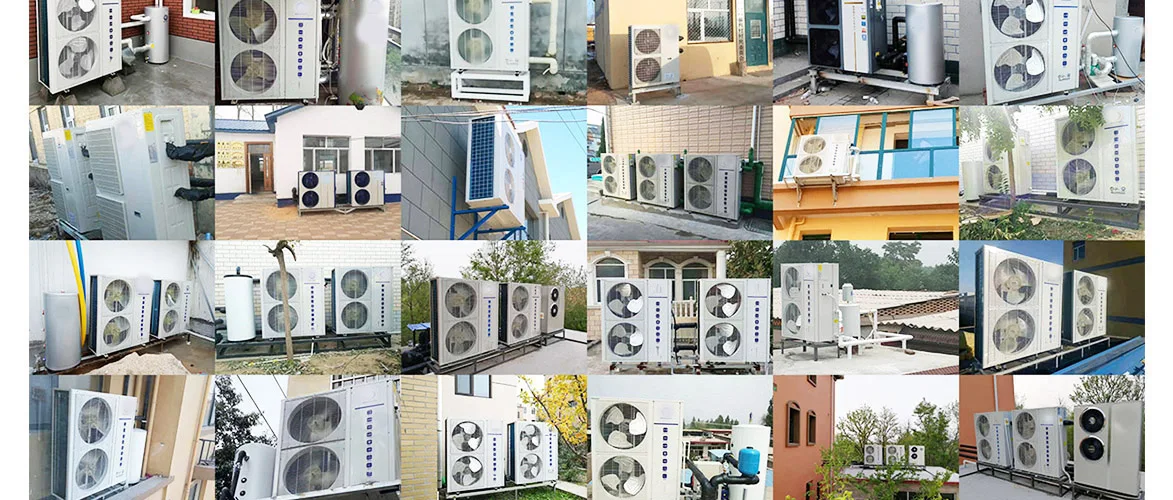

Real installation Cases of Nulite New Energy Heat pump from our customers

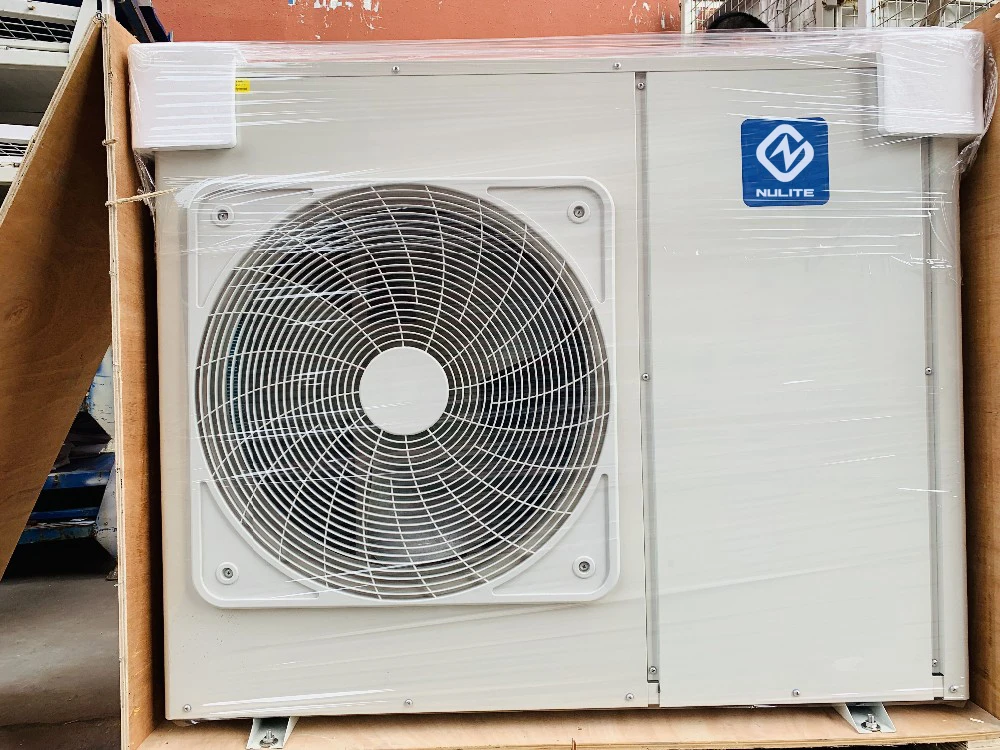

Product packaging & Delivery

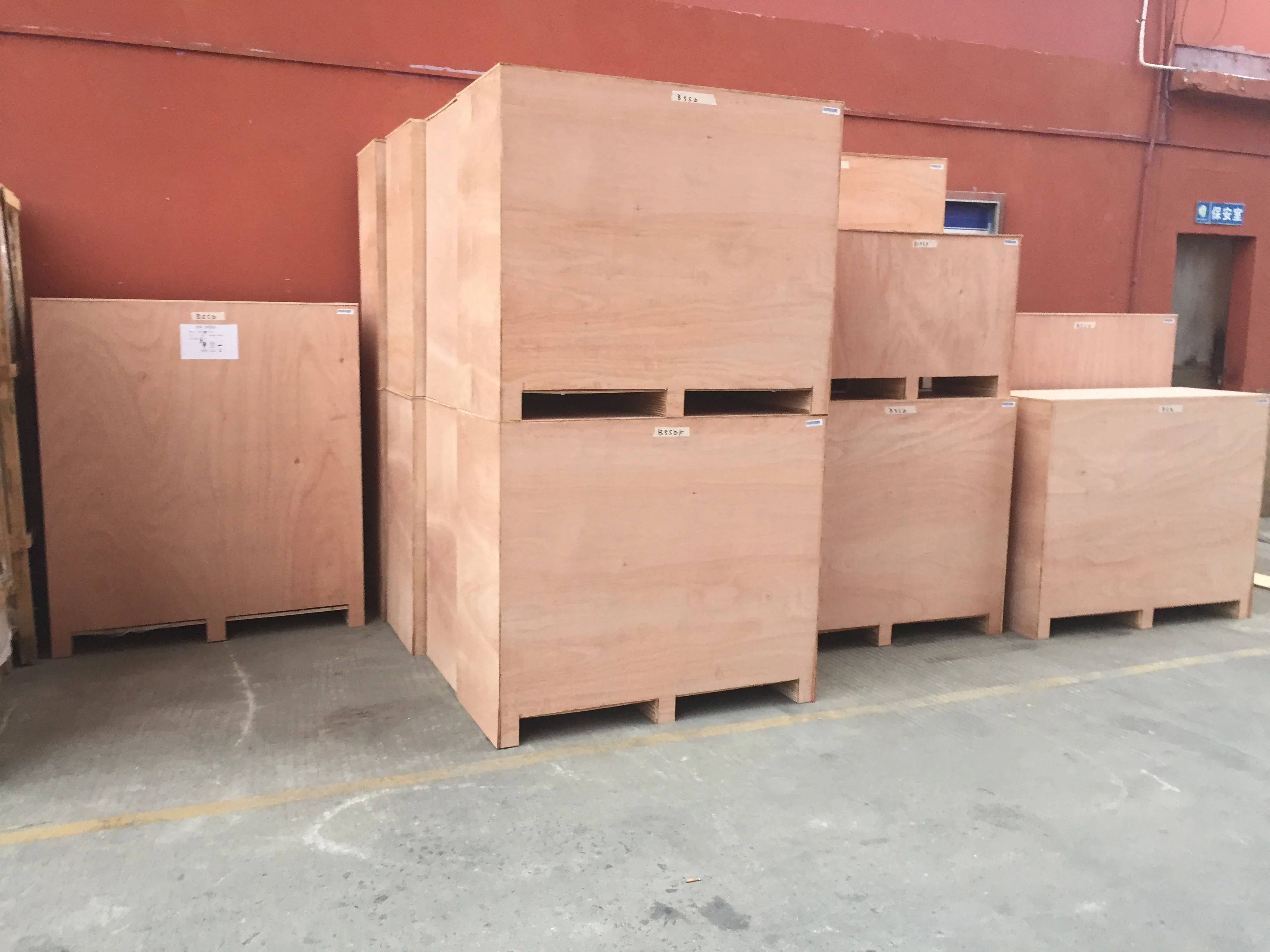

Packing Details : stable plywood box package.Delivery Details : 1-25 working days after receiving payment by T/T, or alibaba trade assurance payment.
Dealing Details: EXW factory, FOB Guangzhou/Shenzhen Port, CIF to destination Port, DDP Door to Door Service provided.




Company Profile


BRIEF INTRODUTION OF NULITE NEW ENERGY GROUP
NuLite NEW ENERGY established in 2003, with three main modern manufacturing factory covering 580,000 square meters, 1,200,000 units production ability and over 1,500 employees.
NuLite New Energy is fully committed to export service for overseas market.With strong R&D engineers.
NuLite New Energy is dedicated to supplying high efficiency energy-saving solution for household & commercial applications.
NuLite New Energy has developed advanced & unique technology and takes the leads of Floor Heating EVI & Inverter Heat Pump, Swim Pool Heat Pump, Central Hot Water Heat Pump, Fan Coil Unit and Geothermal Heat Pump.

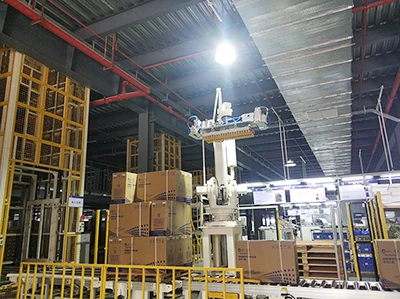

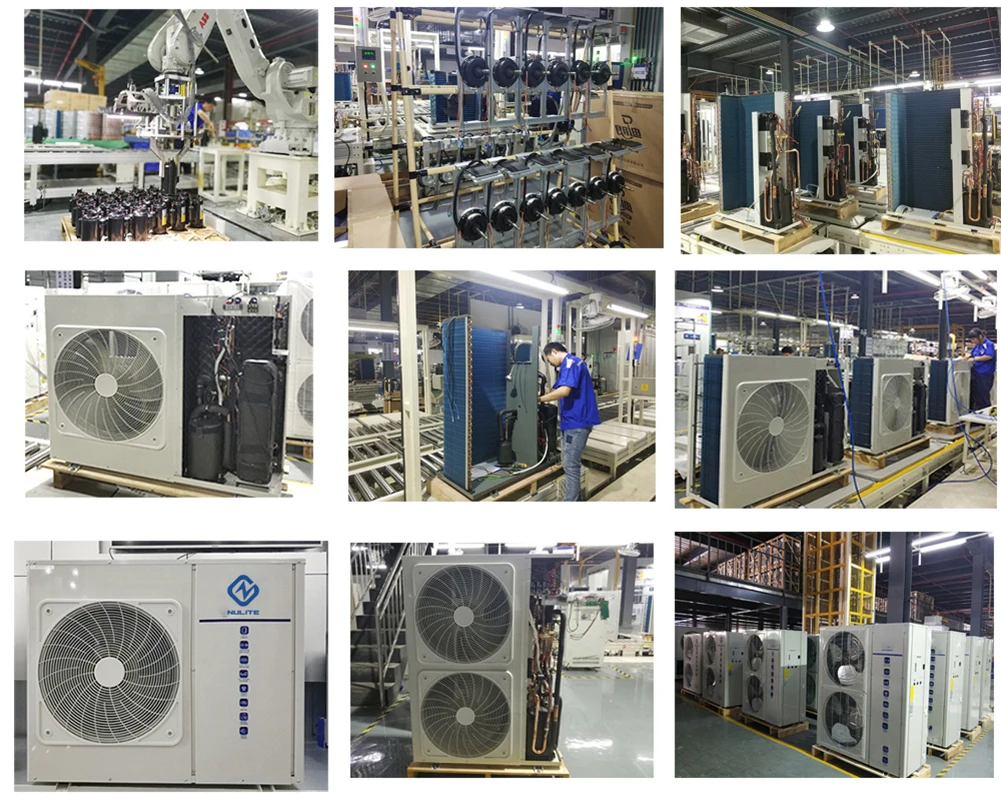

PRODUCUING LINE
Nulite New Energy Headquater have 5 main professional installation teames, which are full of efficiency and ability.Every team member is devote to work and provide the best quality of our product.



Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, erP, CB certificated. And also with customized OEM/ODM services for distributors all over the world.Now NuLite NEW ENERGY Brand Heat Pump has been exported to more than 100 countries, even well installed.

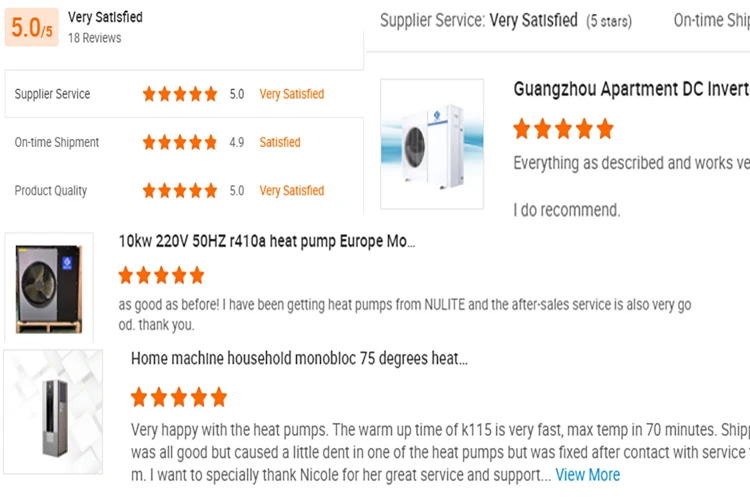

Customer Photos


The Exclusive heat pump supplier
Nulite New Energy has supplied swim pool heat pump, central hot water system supplying solutions




2017 Nulite New Energy Heat Pump in ISH
EVI Split & DC Inverter Split Heat Pump is well sold in Canada, Germany, Sweden, Poland, Ukraine, Russia, Finland, Czech, Slovak, Slovenia, etc.
Nulite NEW ENERGY EVI Heat Pump
Nulite NEW ENERGY HEAT PUMP is the official heat pump supplier for Expedition.


Recommend Products




Currently with the high efficiency ASHP of:
1. Apartment/Villa Inverter Heating/Cooling Series (3-38KW, 30-350m2)
2. -25°C EVI Heating Series (9-210KW)
3. Sanitary All in One Series (80-320L)
4. Swim Pool Series (3-150KW)
5. Commercial Central HVAC Series (10-180KW)
6. Fan Coil Unit & Water Tank (50L-10T)
7. Mini Hot Water Geyser Series (3-10KW)

With 1KW input power, 4-5KW output heating energy, saving 75%+ energy consumption for you.


FAQ


Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory. With 400,000 sq meters modern factory in Guangzhou City & Heyuan City. with OEM service provided, MOQ> 20 Units. heat pump air to water china heat pump

Q: How long for your heat pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25
working days if the goods are not in stock, it is according to quantity.

Q: Do you also provide other kinds of heat pump?
A: ASHP of EVI(9KW-132KW) / Swim Pool(5KW-150KW) / Domestic Hot Water Heat Pump(80L-300L tank size)etc... heat pump air to water china heat pump air to water china

Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment. AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
