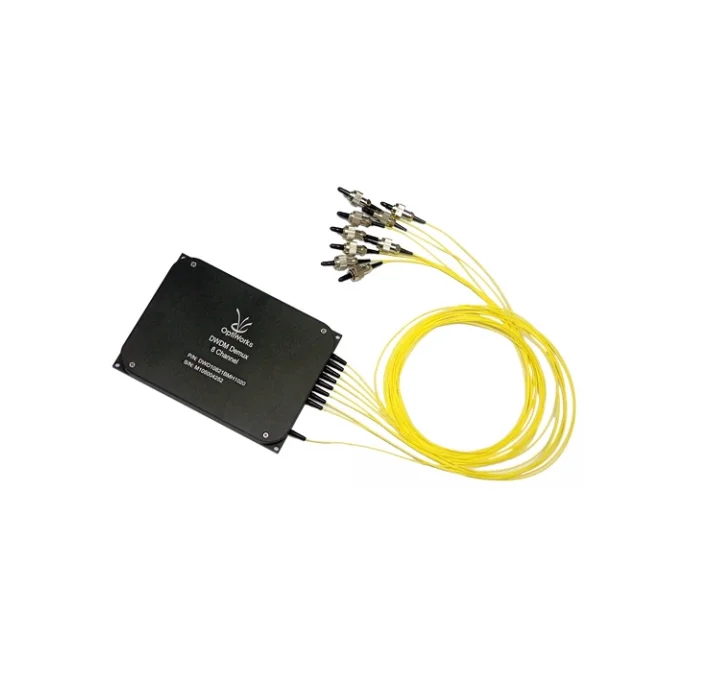

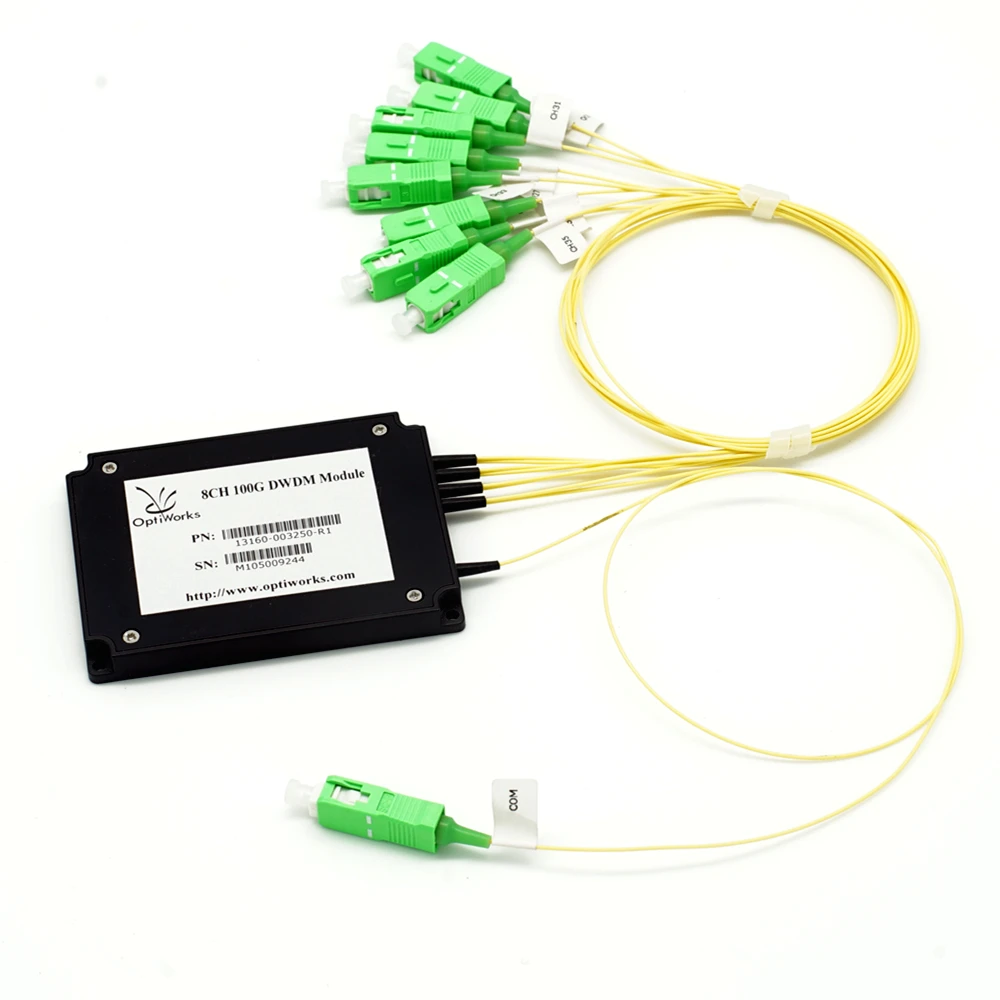

100G/200G Standard DWDM Wavelength Division Multiplexer Module with 1Channel/2Channel/4Channel/6Channel/8Channel for FTTX
- Category: >>>
- Supplier: Optiworks (Kunshan) Co. Ltd.
Share on (10000000111011):
Product Overview
Description
Key Features
♦ Low Insertion loss
♦ Standard ITU channel
♦ High channel isolation
♦ Epoxy-free Optical path
♦ Stable performance
Applications
♦ DWDM System
♦ CATV networks
Specification
Parameters | Unit | 1 Channels | 2 Channels | 4 Channels | 6 Channels | 8 Channels | ||||||
Insertion Loss（Add/Drop） | dB | ≤0.7 | ≤1.0 | ≤1.6 | ≤2.2 | ≤2.8 | ||||||
Ripple | dB | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ||||||
Polarization Dependent Loss | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Dimension | mm | 80 x 58 x 8 | 100 x 80 x 10 | |||||||||
Channel Center Wavelengths | mm | ITU Grid | ||||||||||
Channel Spacing | GHz | 100 or 200 | ||||||||||
Channel Passband | nm | 100G:λc ± 0.11 | ||||||||||
200G:λc ± 0.25 | ||||||||||||
Isolation-Adjacent | dB | ≥30 | ||||||||||
Isolation-Non-adjacent | dB | ≥40 | ||||||||||
Return Loss | dB | ≥45 | ||||||||||
Directivity | dB | ≥50 | ||||||||||
Notes: The above specs exclude connector loss, each pair of connecter adds 0.25dB | ||||||||||||
