Product Overview

Description

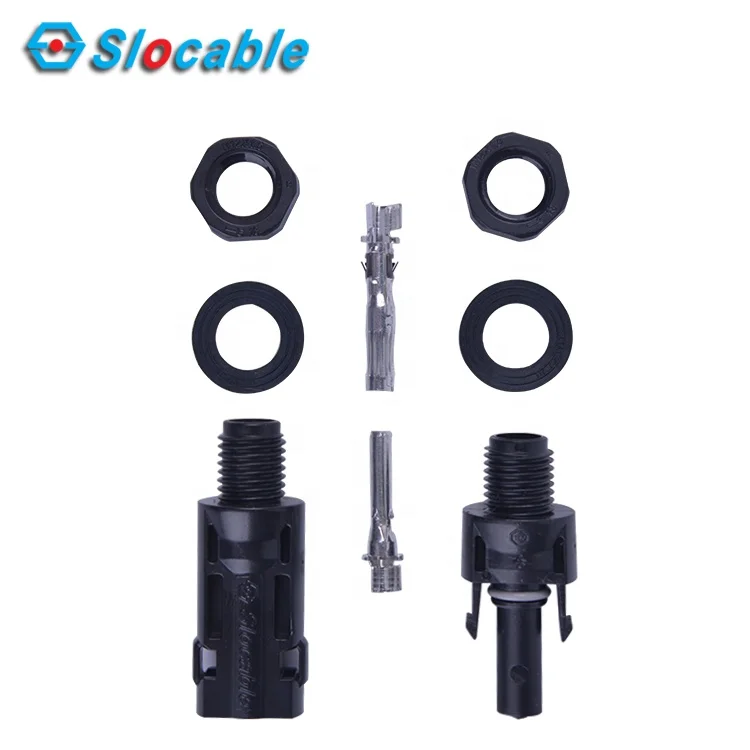

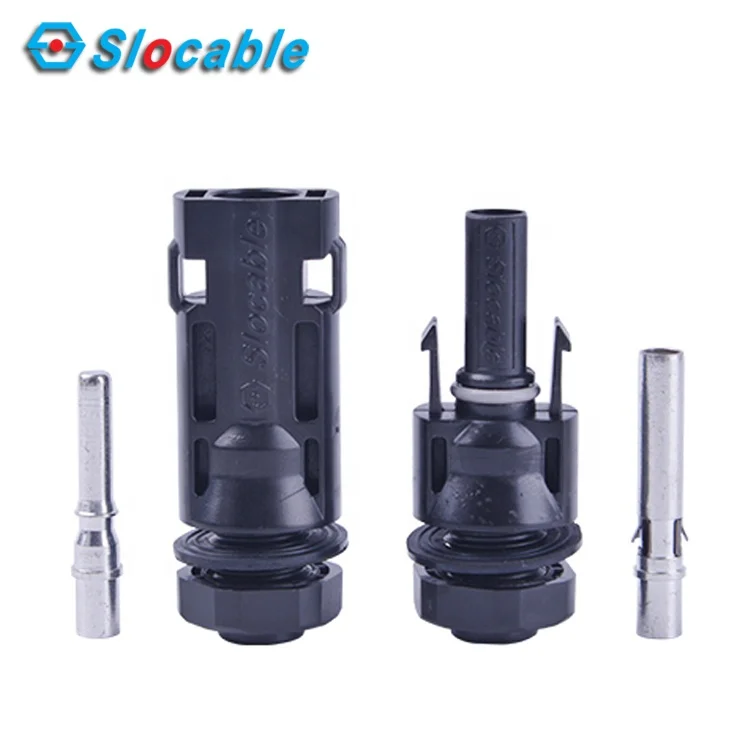

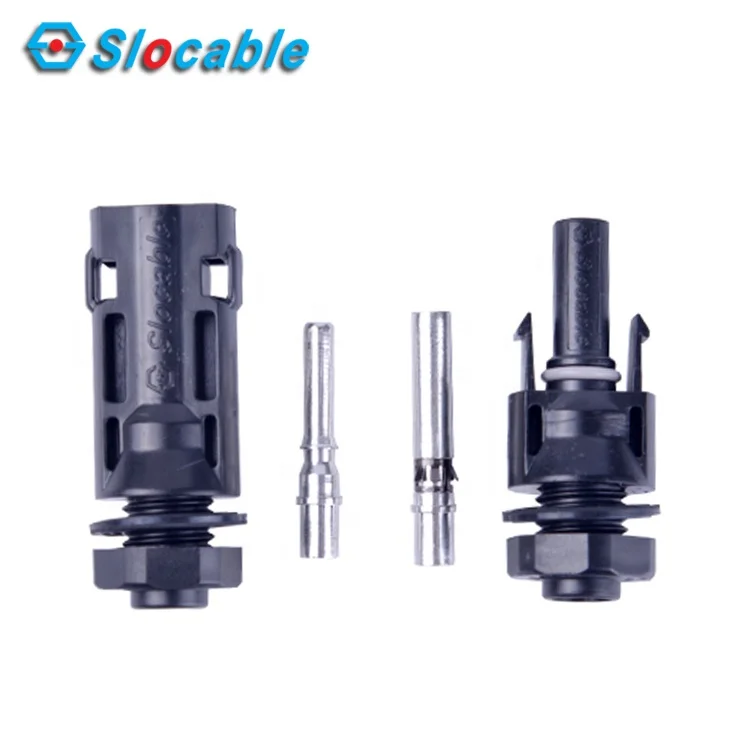

Slocable The new listing connectors with built panels connectors pv solar branch connector



Product Description

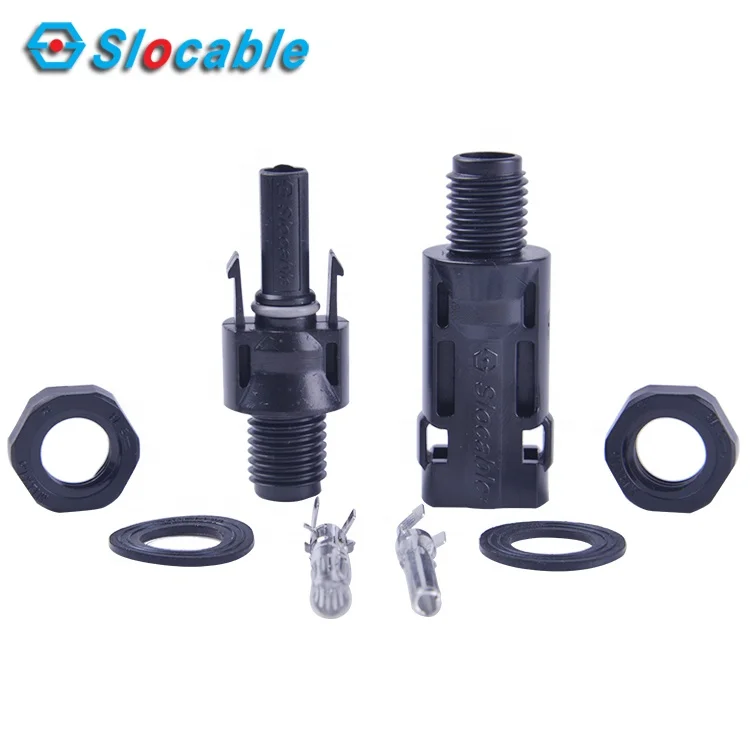

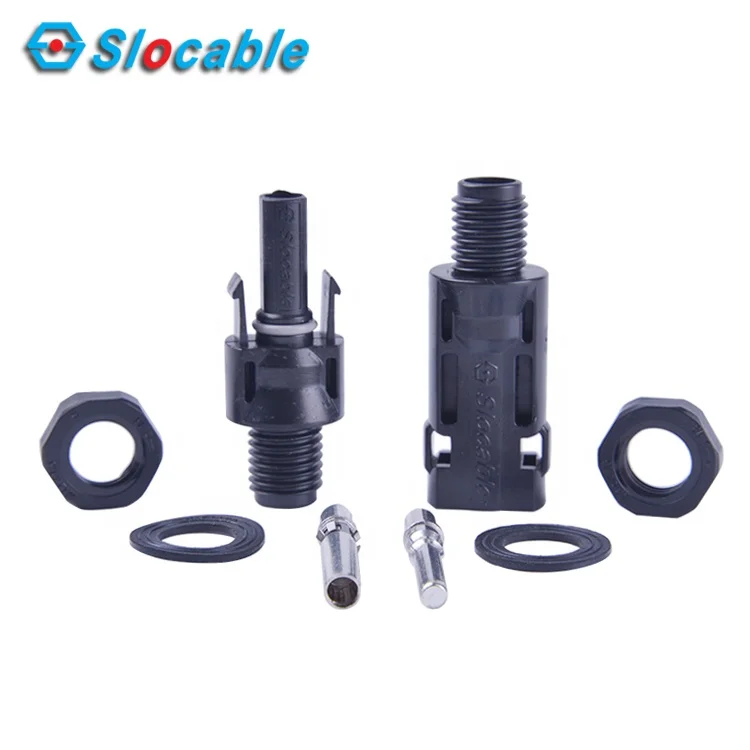

Detail Information of Panel Connector













  • Simple on-site processing

  • Mating safety provided by keyed housings

  • Multiple plugging and unplugging cycles

  • Accommodates PV cables with different insulation diameters

  • High current carrying capacity

  • CE and TUV approved









 Technical Data of Panel Connector


































 Rated Current :            40A (2.5-6mm²)



  Degree of Protection:                 IP2*/IP68



 Rated Voltage:              1500V DC



  Flame Class  :                            UL94-V0



 Test Voltage:                6000V (50Hz,1min)



  Safety Class:                              II



 Overvoltage Category:   CATIII



  Suitable Class:        OD4.5-8.5 (2.5-6.0mm²)



 Contact Resistance:      <0.5mΩ



  Insertion / Withdrawal Force:      ≤50N/≥50N



 Contact Material:     Copper (Class5, Tin Plated)



  Connecting System:              Crimp Connection



 Insulation Material :      PPO



  Temperature Range:                  -40℃ ~ +85℃

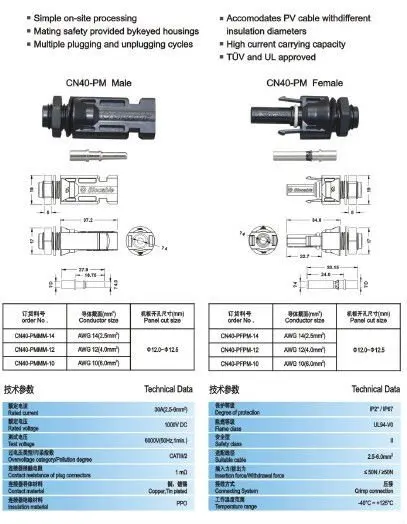

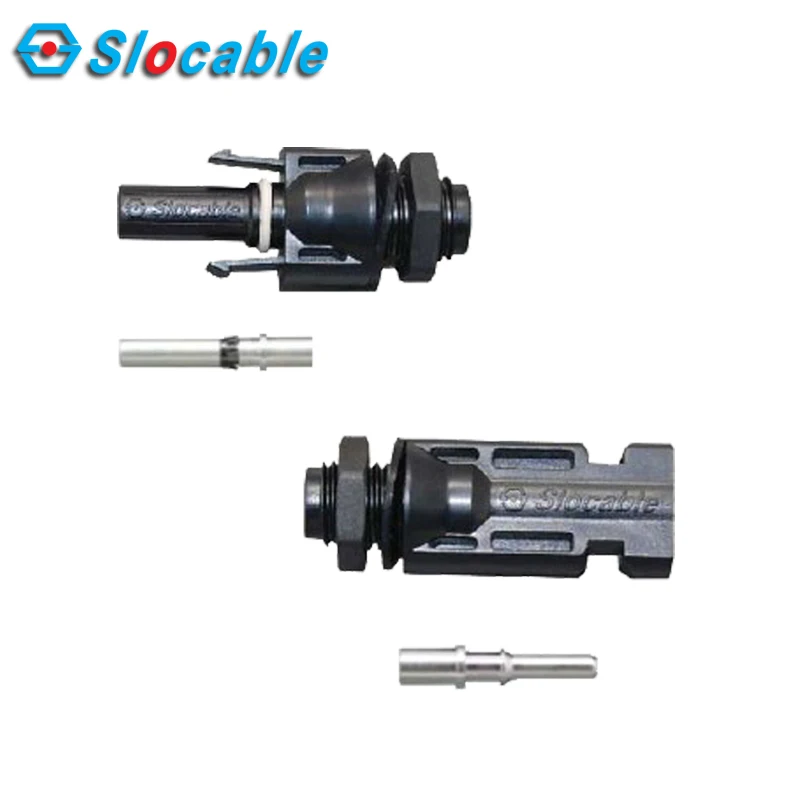

CN40-PMCN40-PM





Advantages


 0201PK

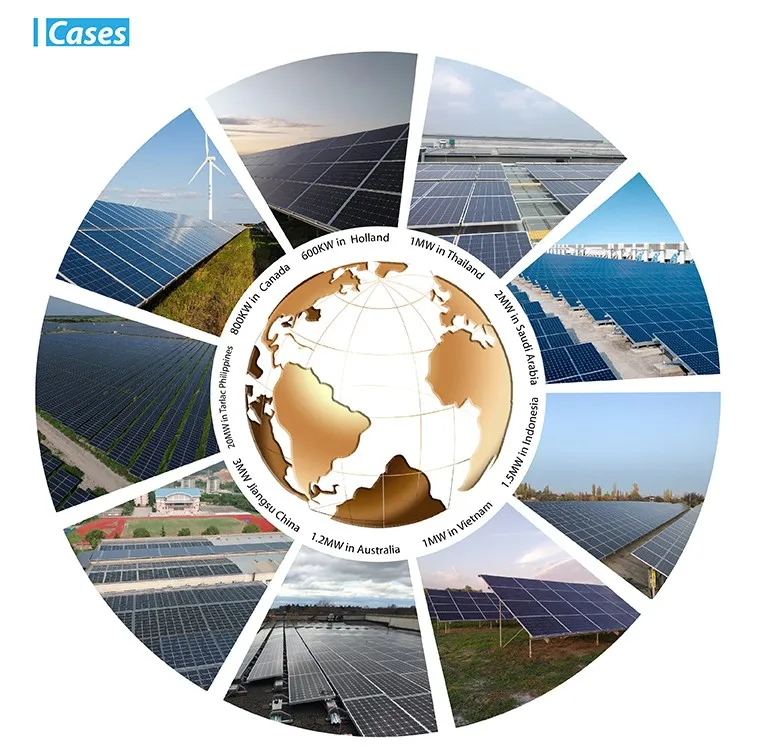

Customer feedback


photobank (3)photobank (2)





Certifications


Certificates











Company Information


photobank-4




z





Packaging & Shipping




Slocable solar cable 08

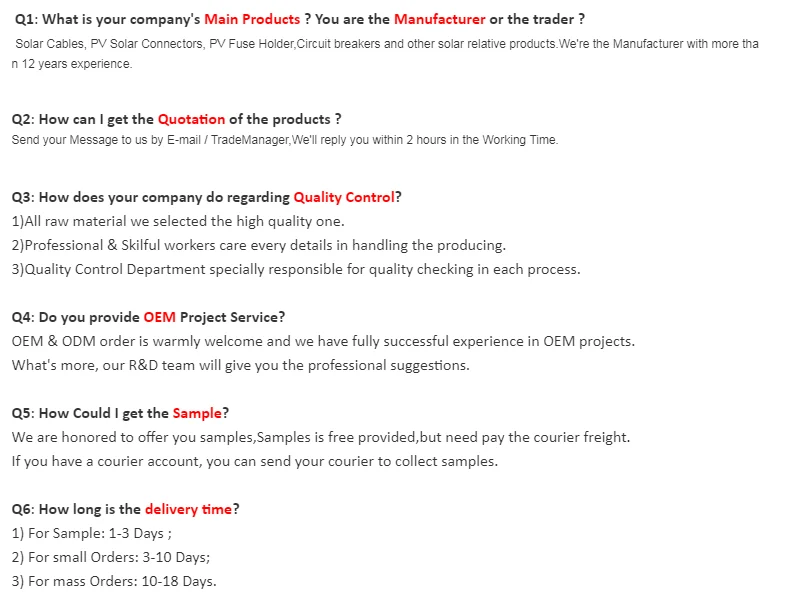

FAQ




..




More details, please feel free to contact us. Many thanks!
