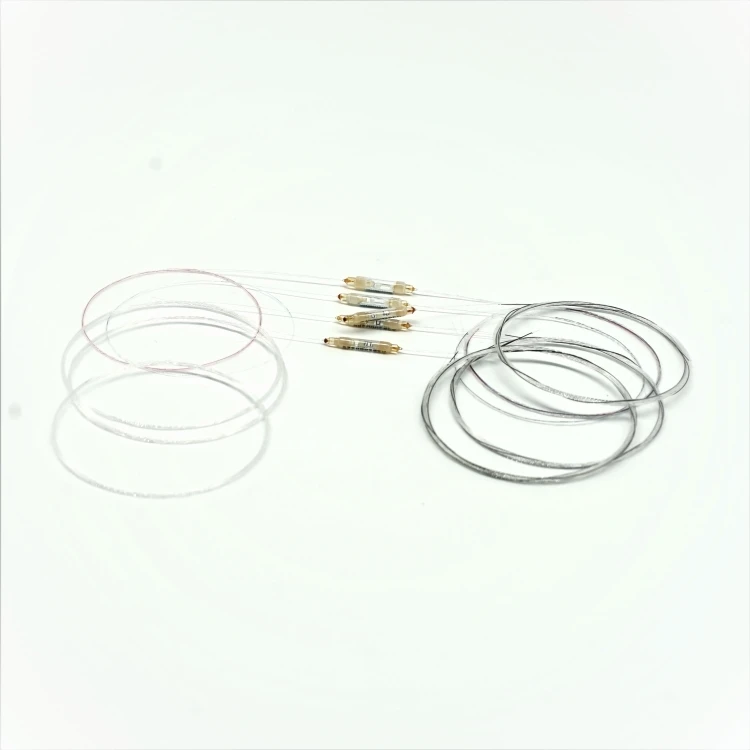

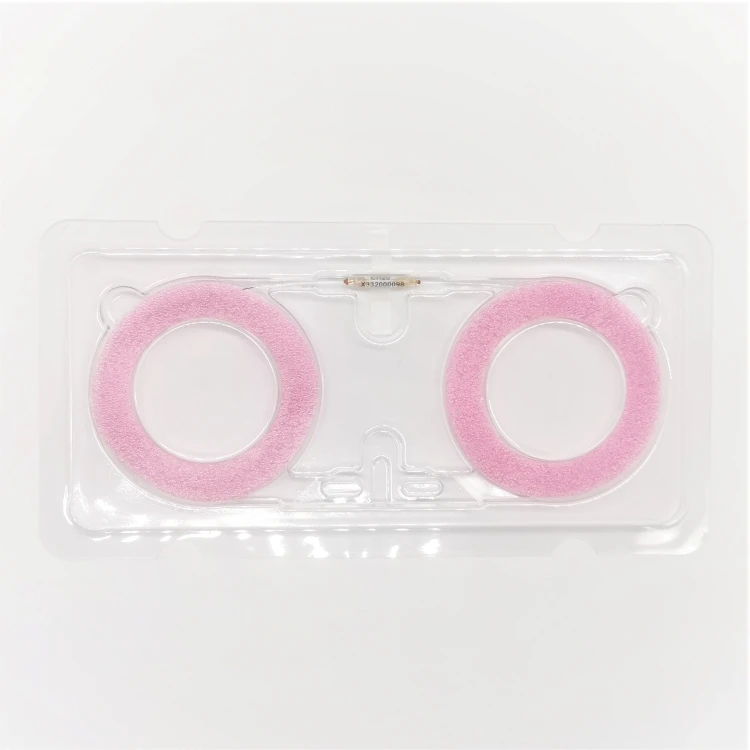

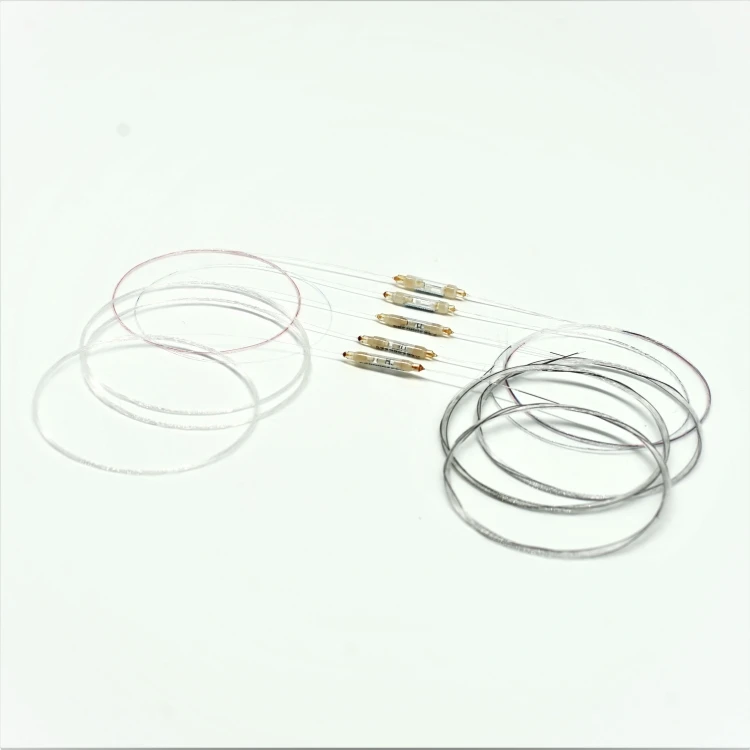

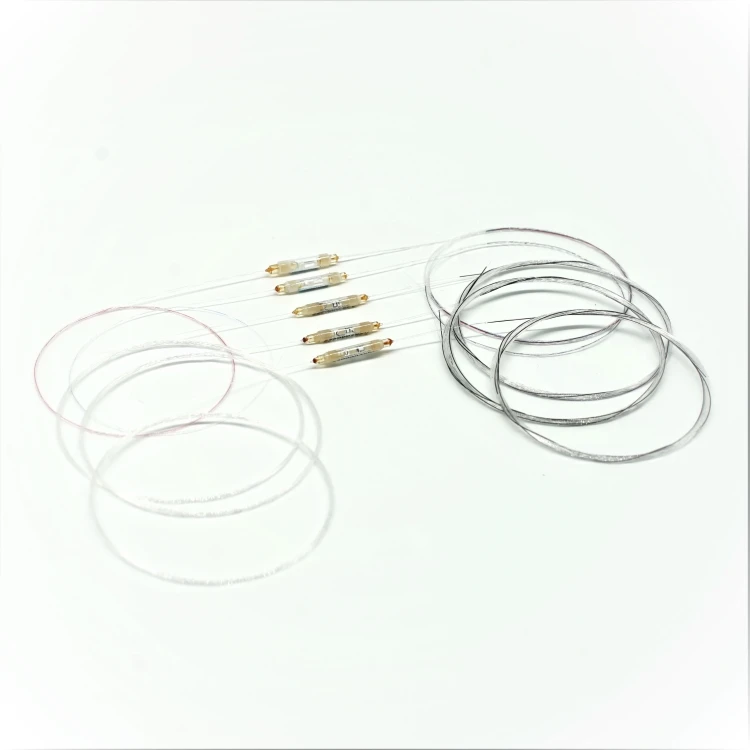

1420~1620nm 200G DWDM MUX DEMUX Fiber Optical WDM

Price:RUB 2,081.16

Quantity:

Key Features
♦ Low Insertion loss

♦ Low polarization dependent loss

♦ High isolation

♦ High stability and reliability

Applications

♦ DWDM System

♦ CATV networks

Specification

Parameters	Units	100G DWDM	200G DWDM
Wavelength	nm	1420-1620
Channel Passband	nm	± 0.125	± 0.25
Channel Spacing	nm	100	200
Pass band Insertion Loss	dB	≤0.8	≤0.7
Reflected band Insertion Loss	dB	≤0.4	≤0.35
Isolation_adj_Channel	dB	＞30
Isolation_non_adj_Channel	dB	＞45
Polarization Dependent Loss	dB	≤0.10
Return Loss	dB	≥45
Directivity	dB	≥55
Package Dimension	mm	φ3.2&3.6&4.0 x L30 & φ5.5xL35/40
Notes : The above specs exclude connector loss, each pair of connecter adds 0.2dB
