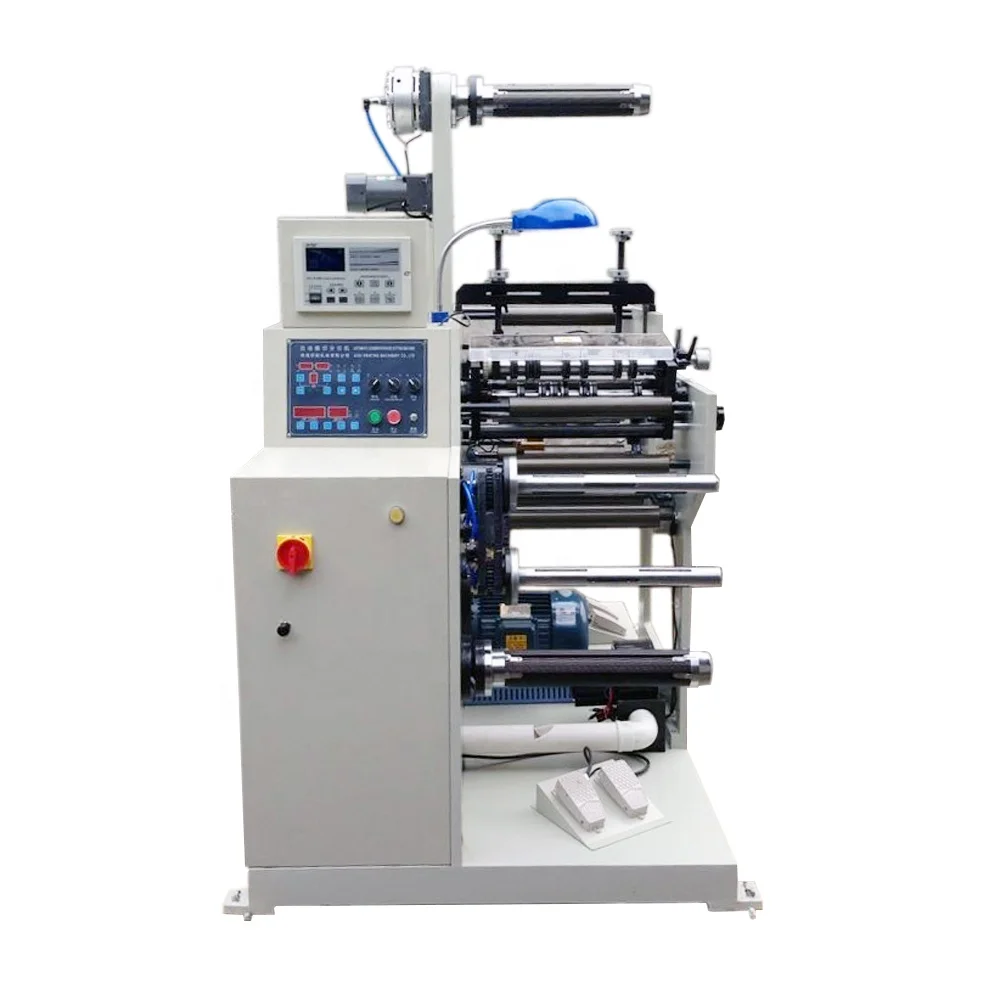

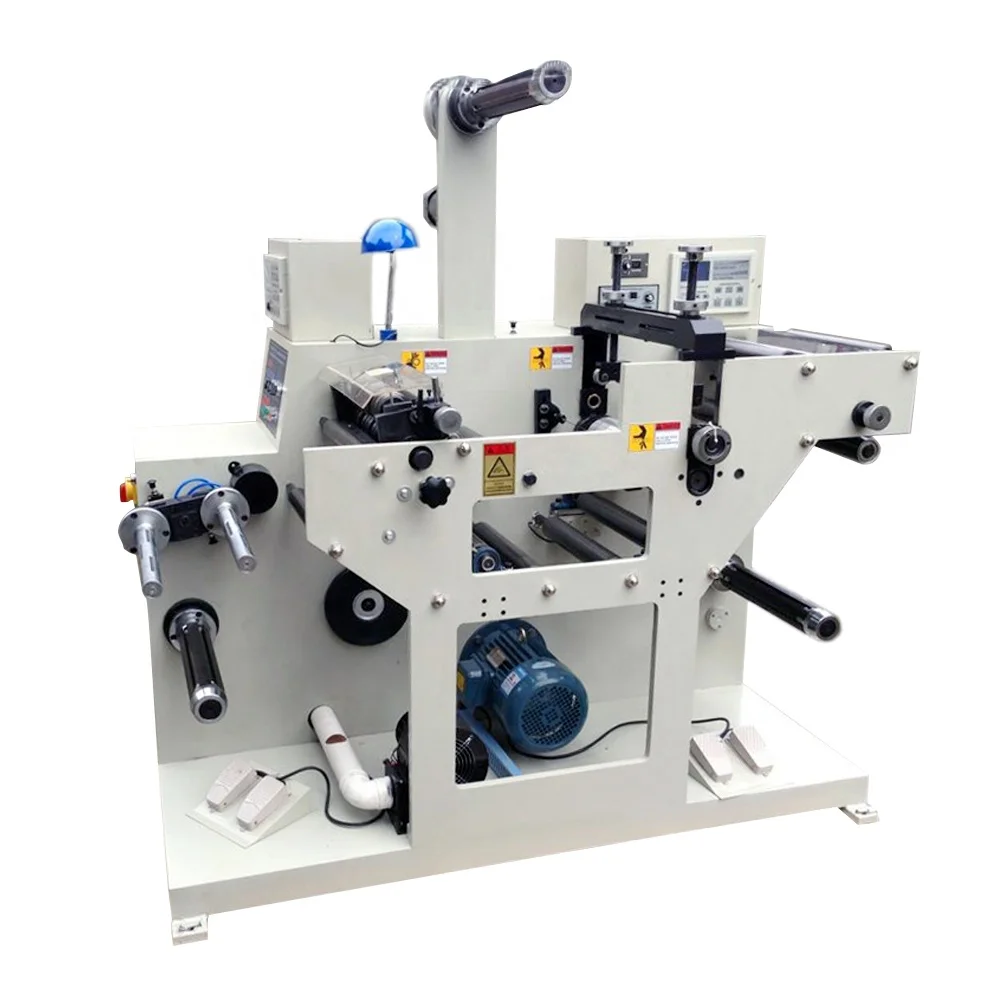

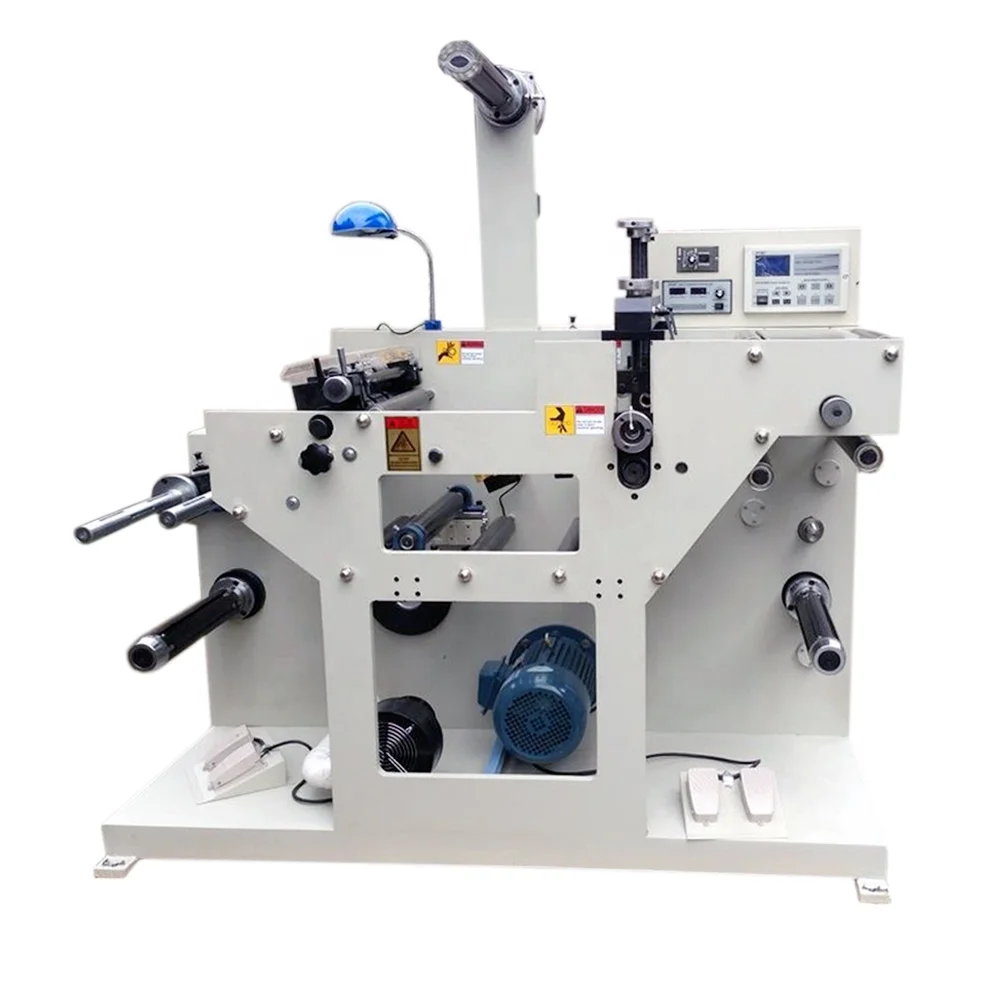

JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder
Feature:
This product is suitable for blank label. Die cutting,slitting , rewinding can be in one process. It have automatic tension controller system for unwinding and rewinding, Automatic inflating air for air shafts, Optional Start and stop by foot. This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions. The unwinding is controlled by the two photoelectric eyes. The whole machine structure is compact, fast and with high efficiency. Operation is easy and steadily
Model
JPS-320C-TR
Slitting speed
120m/min
Die cutting speed
80m/min
Die cutting length
240-476mm
Max paper width
320mm
Max Unwind diameter
700mm
Max rewind diameter
700mm
Dimension
1.7x 0.9x1.4m (LxWxH)
Machine weight
About 720kg
Functions:
1. Advanced turret rewinder for two shafts
2. Automatic metering and counting
3. Semi-automatic tension control for unwind, waste draining
4. Automatic tension control for rewind
5. Foot switch available .
Optional functions:
1.Lamination 2. Double-station 3.clockwise and counter-clockwise rewinder
Standard configuration:
1. One rotary die cutting station
2. One slitting station
3. With 1 pc 3" unwinding shaft
2 pcs 1.5" rewinding shafts
one pc 1" rewinding shaft
4. With meter/number counter
5. With two photoelectric eyes
6. With 8 pcs rotary knife
7. One magnetic brake, two magnetic clutches
After-service:
1. Warranty for machine: 12months 2. After-service: A reply within 24 hours 3. A free training in our factory available before delivering machines

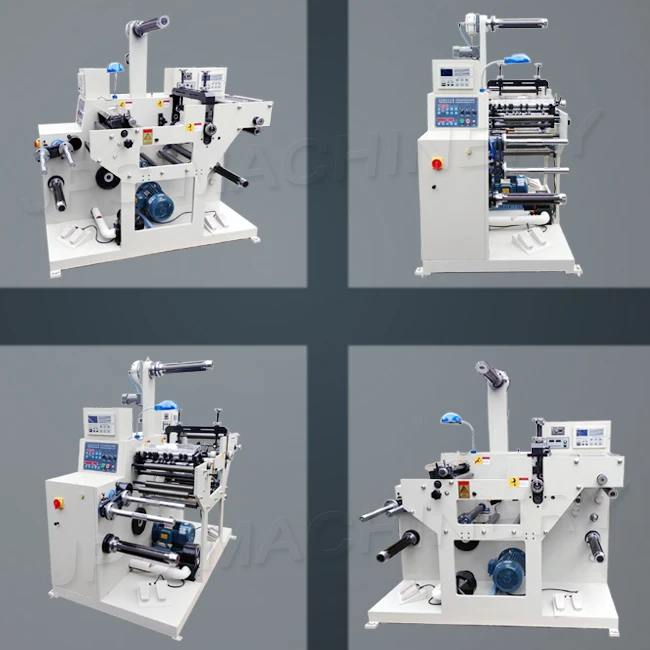

JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder----- Version

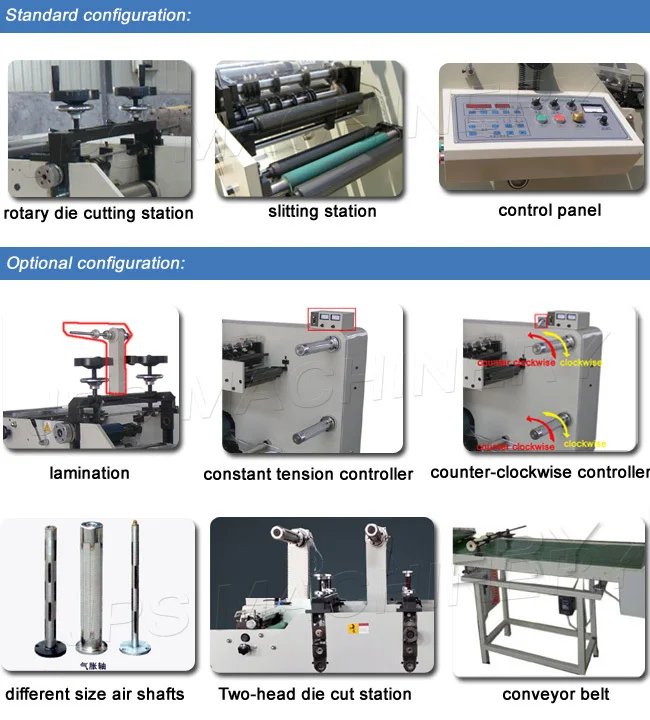

JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder----- Configuration
Standard configuration will be included on each die cutting machine, it is a basic configuration
Optional configuation will be customized according to customer's requirement , we can make the machine individually for you if you can supply us your specific requirement , to make sure customers will buy the most suitable machine .
Different customers has different requirement, It is the best if customers can supply us the complete requirement details.We will guide customers to confirm the details as much as possible if they can't send us the complete demand in advance. We think there is always one machine that belongs to you !
JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder ----- Die Mould
There are two kinds of moulds applied in rotary die cutting machine , one is consist of magnetic cylinder + flexible die , the other one is consist of engraved cylinder . Two kinds of moulds both can effect die cutting job, mould chosed according to the different materials

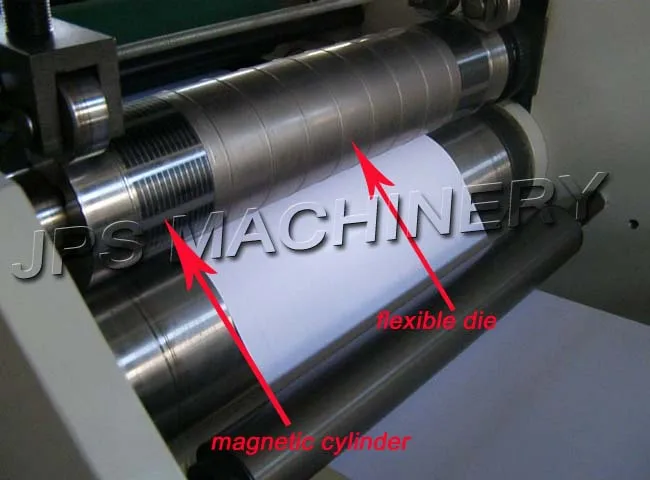

Mould : Magnetic cylinder + flexible die

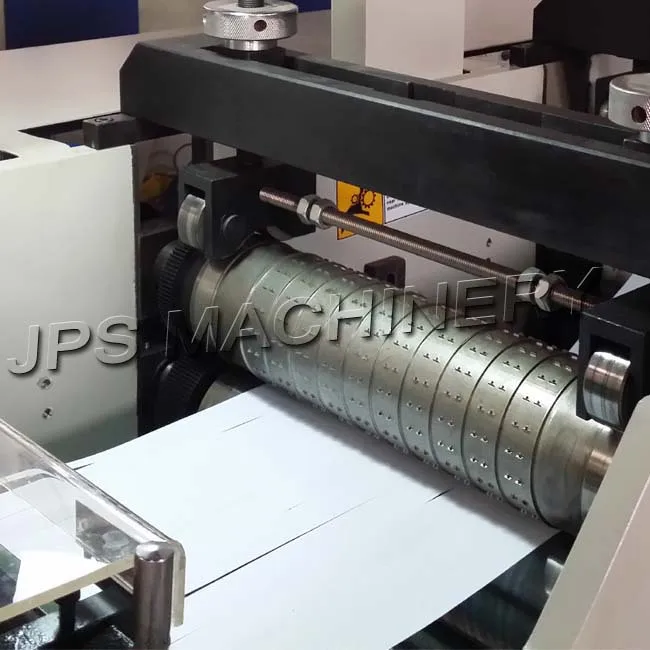

Mould : Engraved cylinder
Mould need be customized , so it is not included on standard machine. Usually customers choose to buy the mould in their local and it is convient , However, they also can buy the mould from us if customers can't find the suitable mould supplier in their local.
JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder----- Application
This slitting & rotary die cutting machine is professional for die-cutting all kinds of blank label , film , paper, non-woven and other self-adhesive products, Especially for die-cutting all kinds of self-adhesive label applied in many industrial line such as in food, medicine, chemicals, logistics, clothes, trademarks, tag, electronics, toys, gifts, stationery, home appliance , supermarket ......

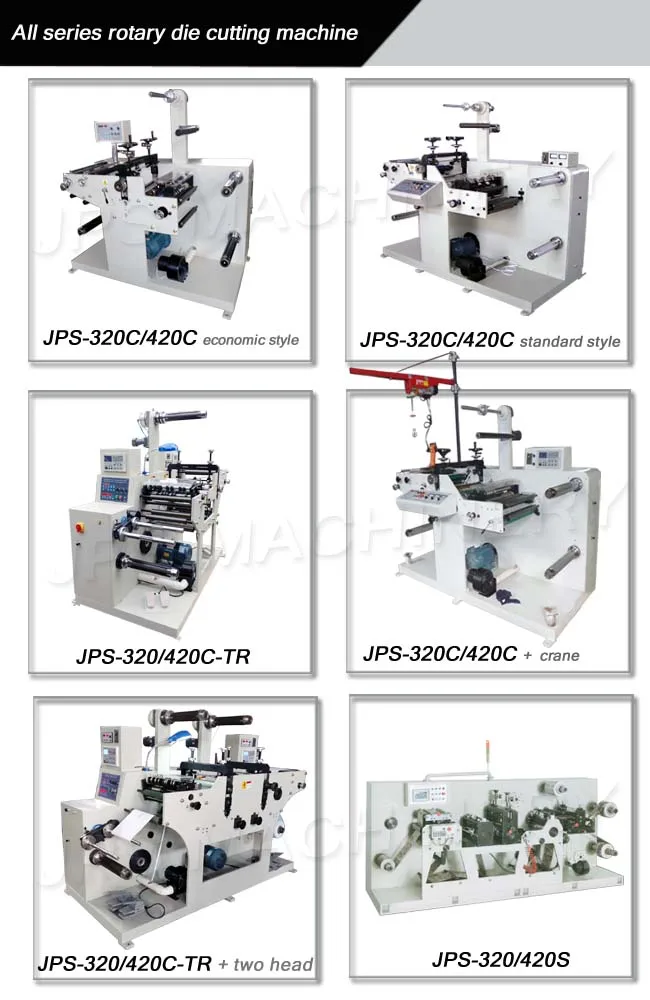

JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder----- Similar Products
JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder ----- Customers Show
We insist on supplying the constant service to build a long and friendly business relationship. We treat each customer seriously and help them grow rapidly by our experience. Any one approval from customers is the best advertisement . We always with customers together.
Packaging & Shipping
JPS-320C-TR Blank Label Slitter & Rotary Die Cutter With Turret Rewinder ----- Relative Details
All of our machines are under CE certification, which is up to European Economic Area's Standard , each machine made according to CE standard, electronic parts, safety desgin and CE marking can be found on machine outside . CE certification is also necessary documents for European Economic Area customers to do import customs clearance , Our CE certifications have helped each European customers succeed passing import customs clearance. So please be assured purchase to our printing machine
Package : We use fumigation wooden case with IPPC for packing the machine , to make sure wooden case safe and strong, up to International trade standard
Shipping : Usually we suggest customers choose ocean shipping to ship machinery , or air transport for small machine and urgent order . We also supply shipping sevice with our cooperation shipping forwarder , help customers to deliver the machinery in first time
