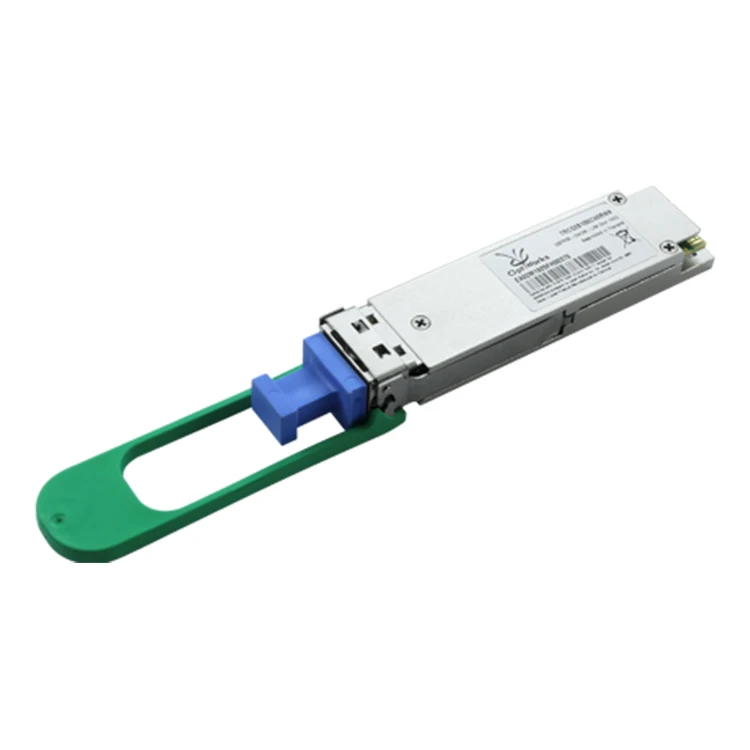

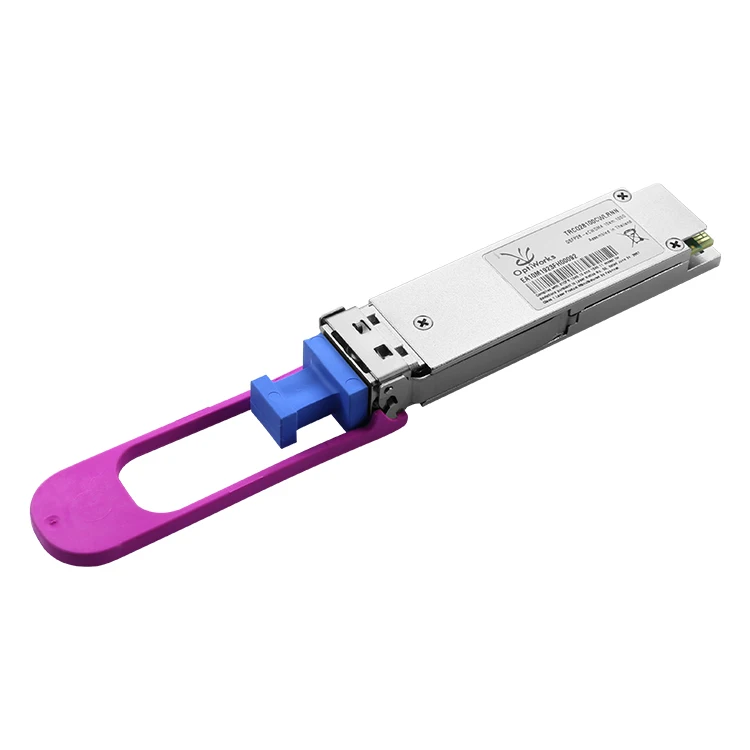

The OptiWorks 100G QSFP28 SR4 transceiver modules are designed for use in100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-SR4 and CAUI-4. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA1and Finisar Application Note AN-2141. The transceiver is RoHS-6 compliant per Directive2011/65/EU.
Applications
♦100GBASE-SR4 Ethernet links
♦Infiniband EDR, FDR and QDR interconnects
♦Rack to rack
Key Features
♦ Compliant with 100G Ethernet IEEE 802.3bmand SFF-8636 QSFP28 MSA
♦ Hot pluggable electrical interface
♦ QSFP footprint (Quad small form factor,pluggable)
♦ 0°C to 70°C operating case temperature
♦ Low power consumption:＜3.5W
♦ Single 3.3V power supply
♦ 4 independent full-duplex channels
♦ MTP/MPO optical connector
♦ Up to 28Gb/s data rate per channel
♦ Up to 100m OM4 MMF transmission
♦Class 1 laser product complies with IEC/EN60825-1:2007 and IEC/EN60825-1:2014
