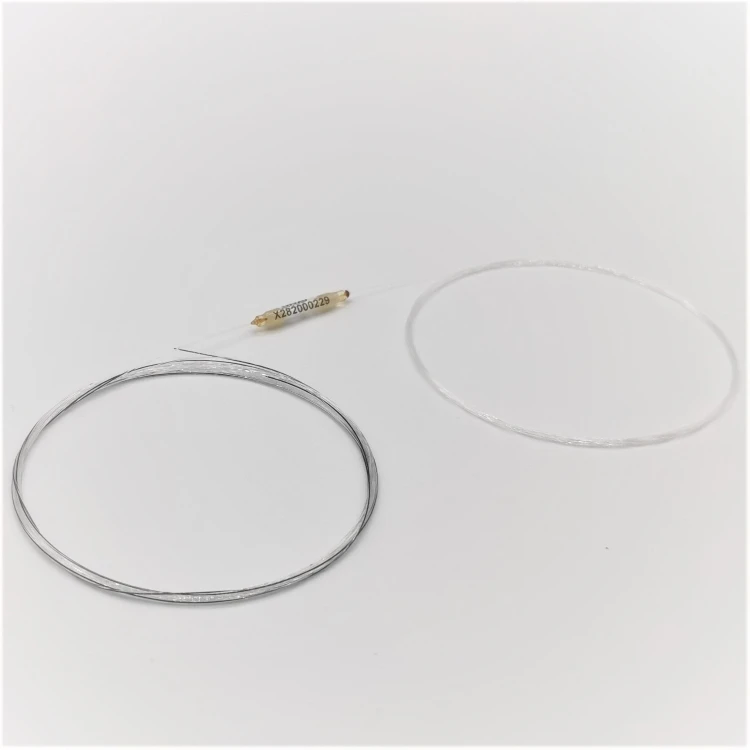

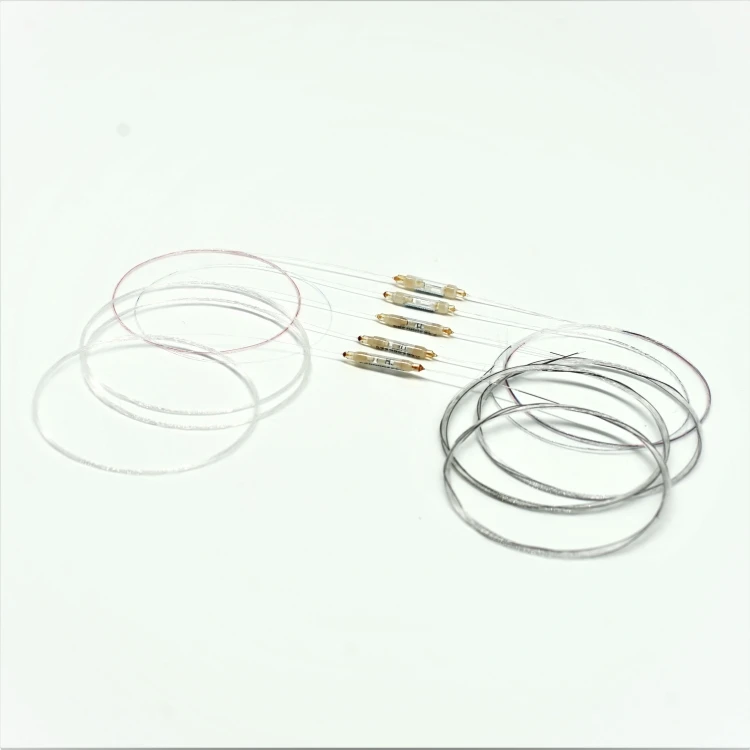

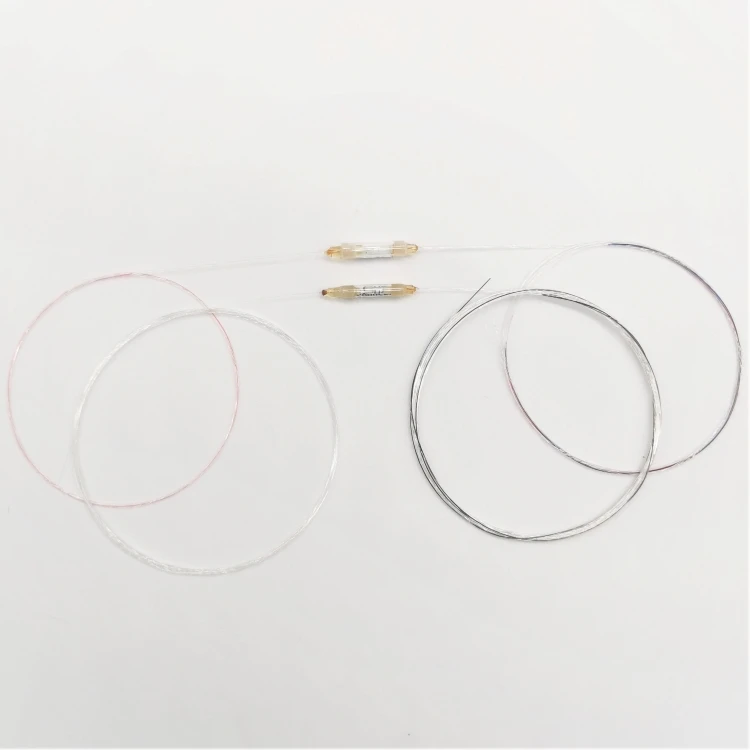

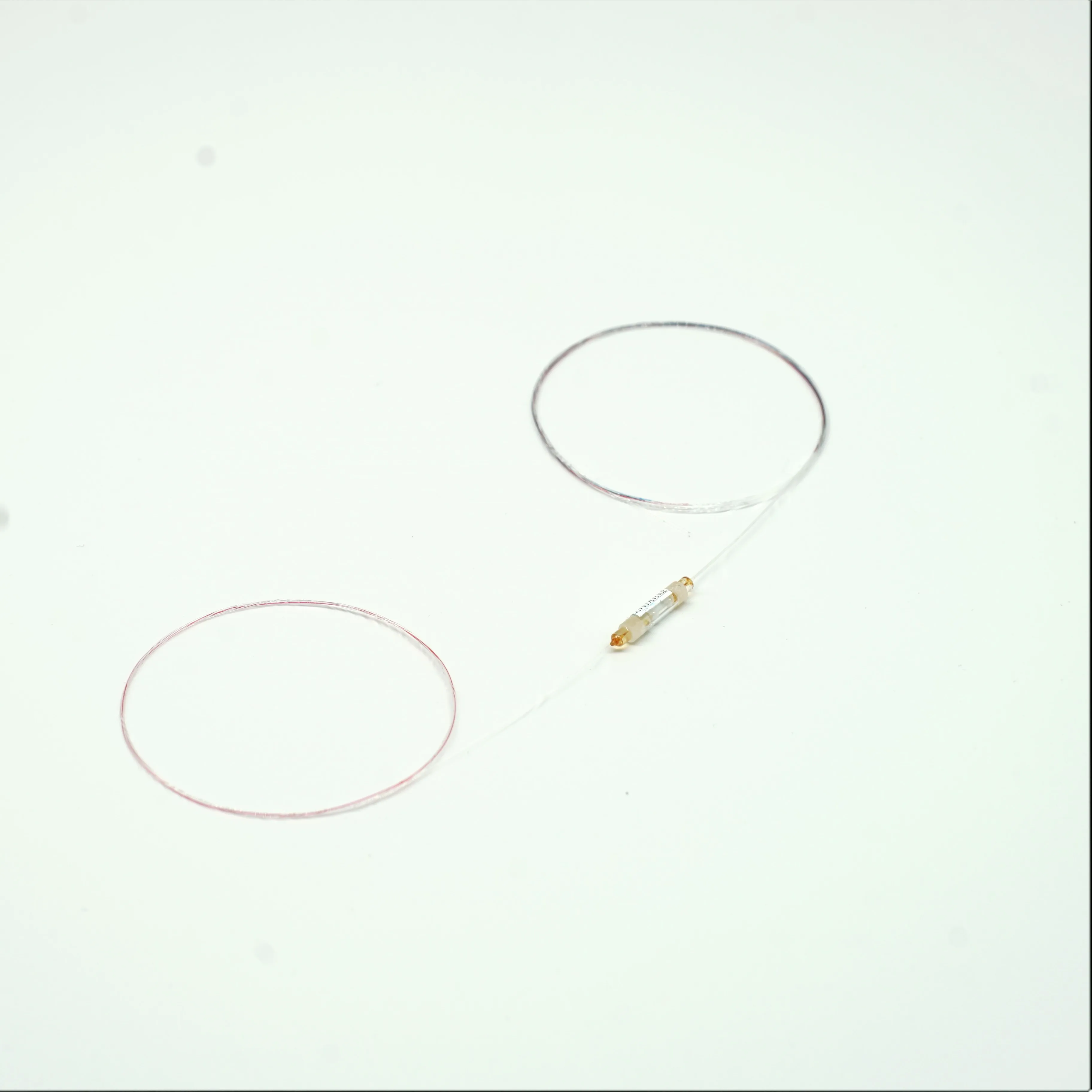

200G DWDM 1X2 MUX DEMUX Fiber Optical WDM For FTTH WDM
- Category: >>>
- Supplier: Optiworks (Kunshan) Co. Ltd. [Jiangsu China]Optiworks
Share on (10000000330069):
Product Overview
Description
Key Features
♦ Low Insertion loss
♦ Low polarization dependent loss
♦ High isolation
♦ High stability and reliability
Applications
♦ DWDM System
♦ CATV networks
Specification
Parameters | Units | 100G DWDM | 200G DWDM | |||
Wavelength | nm | 1420-1620 | ||||
Channel Passband | nm | ± 0.05 | ± 0.1 | |||
Channel Spacing | nm | 100 | 200 | |||
Pass band Insertion Loss | dB | ≤0.8 | ≤0.9 | |||
Reflected band Insertion Loss | dB | ≤0.4 | ≤0.6 | |||
Isolation_adj_Channel | dB | ＞30 | ||||
Isolation_non_adj_Channel | dB | ＞40 | ||||
Polarization Dependent Loss | dB | ≤0.10 | ||||
Return Loss | dB | ≥45 | ||||
Directivity | dB | ≥50 | ||||
Package Dimension | mm | φ3.2&3.6&4.0 x L30 & φ5.5xL35/40 | ||||
Notes : The above specs exclude connector loss, each pair of connecter adds 0.2dB | ||||||
