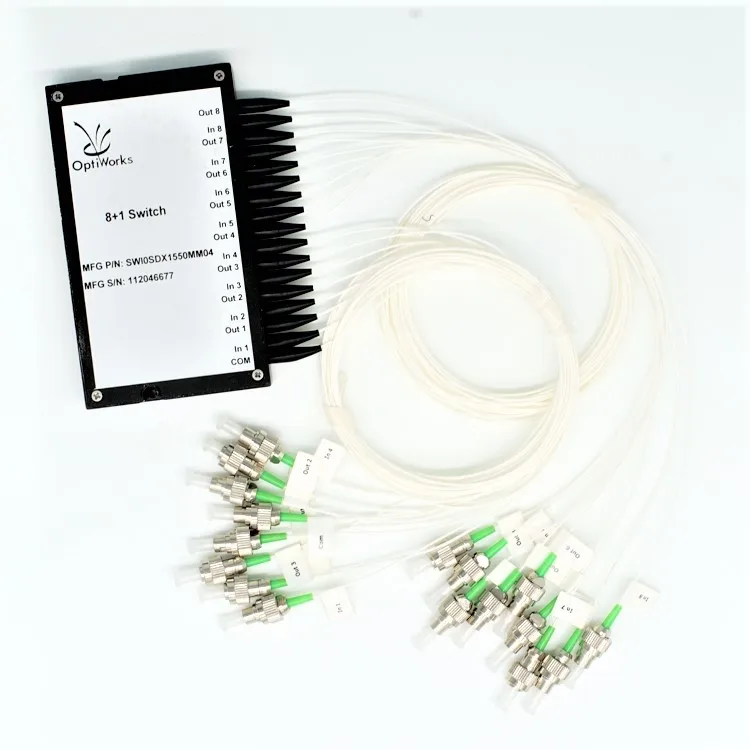

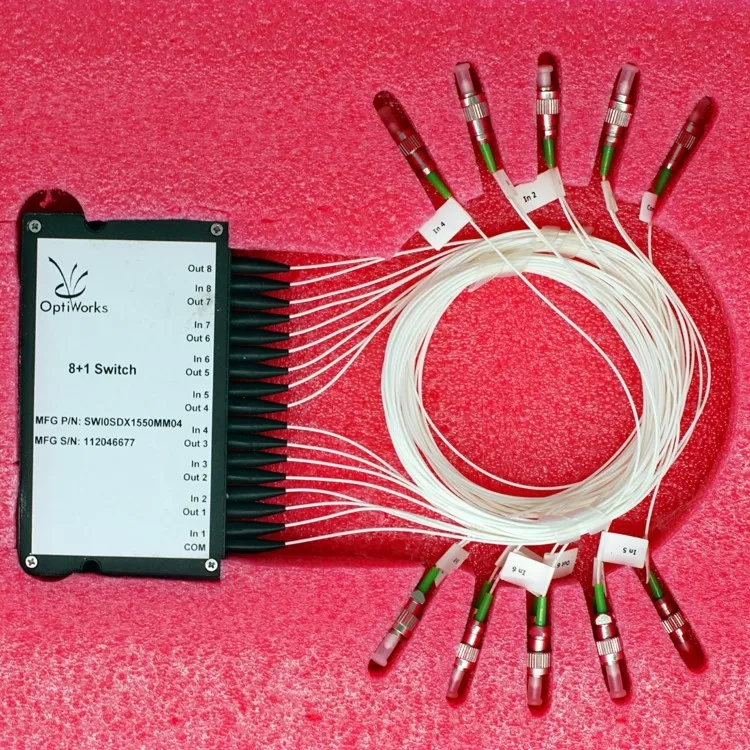

8 1 Optic Switch Module FC/PC 1550nm Latch SMF 900um Optical Fiber Mechanical Switch
- Category: >>>
- Supplier: Optiworks (Kunshan) Co. Ltd. [Jiangsu China]Optiworks
Share on (10000000331061):
Product Overview
Description
Key Features
♦ Fast Switching Speed
♦ Low Insertion Loss
♦ Wide Wavelength Range
♦ Low Optical Return Loss
♦ Low Cross Talk
Applications
♦ Configurable Add/Drop
♦ Network Route Protection
♦ R&D Laboratory
Specification
Parameters | Units | Performance Specifications |
Wavelength range | nm | 1310+/-40 1550+/-40 |
Switching Time | ms | ≤ 7.5 |
Insertion Loss (@ 25 °C) | dB | ≤ 1.2 |
Cross Talk | dB | ≥ 55 |
Polarization Dependent Loss | dB | ≤ 0.1 |
Optical Return Loss | dB | ≥ 50 |
Input Optic Power | mW | 500 |
Life Cycles | - | 107 |
Fiber Type | - | Corning SMF 28e+ |
Connector Type | - | FC, SC, LC (customer optional) |
Switch Type | - | Latching or No Latching (optional) |
Switching Voltage | V | 4.5-5.5 |
Switching Current | mA | 120 |
Dimension | mm | 1x4: 55x48x15 1x8: 56x80x15 |
