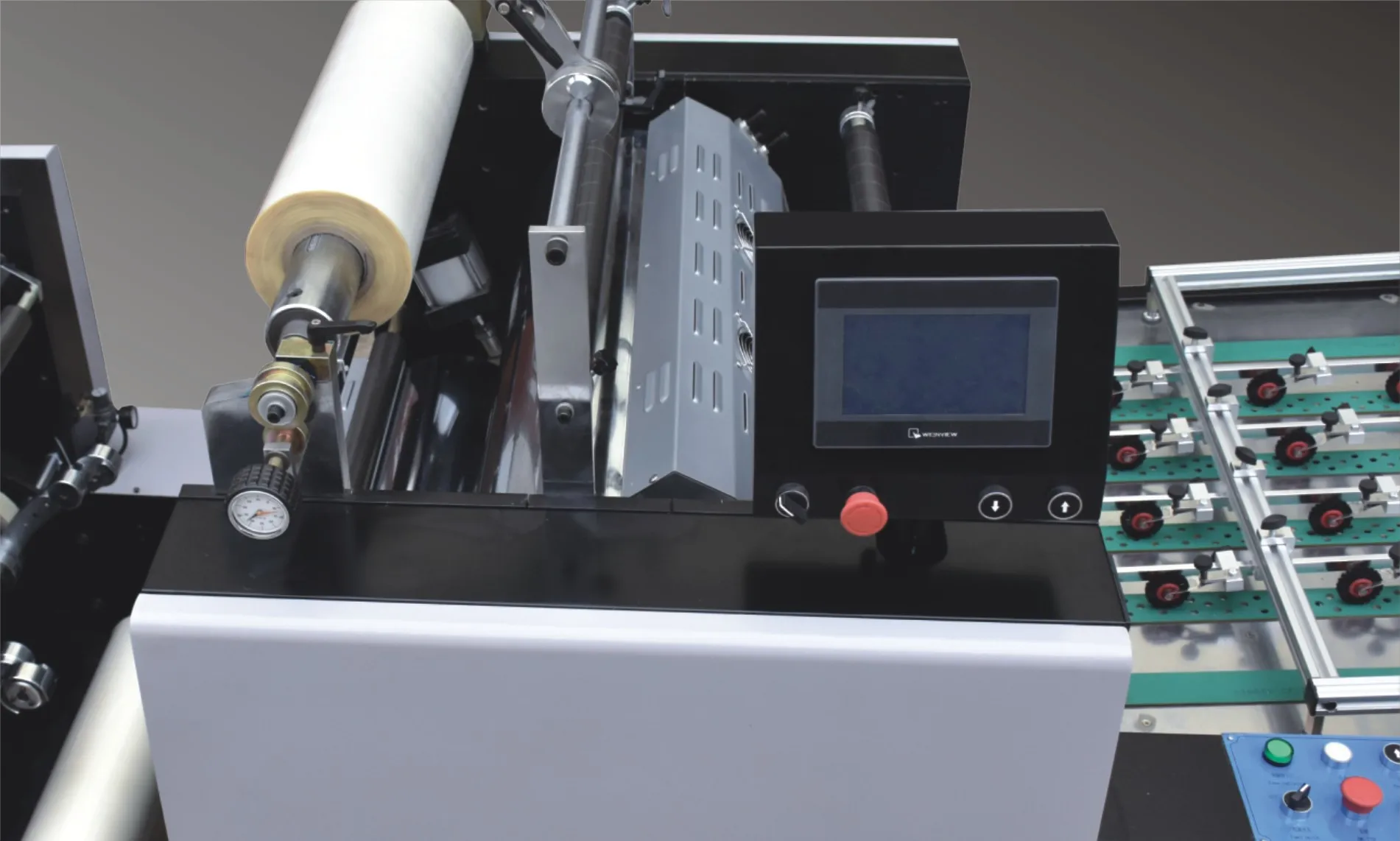

YFMA 800 Automatic Paper Photo UV BOPP PET Film Laminating Machine
- Category: >>>
- Supplier: Wenzhou Feihua Printing Machinery Co. Ltd.
Share on (10000000358546):
Product Overview
Description
Product Overview

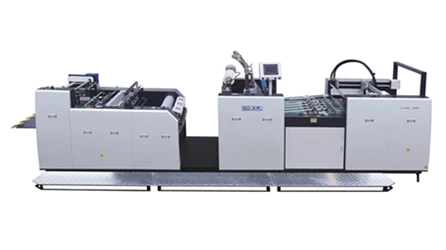

YFMA-800A Paper & Aluminum PET Film Laminating Machine
YFMA series automatic laminating machine is a compound device, it is mainly equipped with transportation system, laminating system and cutting system. The electrical device is contolled by PLC, heating roller use the circulation of heated oil to insure the accuracy of laminating temperature. The whole machine has compact structure, automatization and humanity operation. It is the good choice for the large and medium scale enterprise.
FEATURES AT A GLANCE
• Easy to operate
• Stream feeder
• Servo-controlled pump
• Electromagnetic heating
• Stable and precise
• 1 year warranty
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | YFMA-800 |
2 | Max paper size | 760*1020mm |
3 | Min paper size | 240x200mm |
4 | Paper weight | 100-500g/m2 |
5 | Laminating speed | 0-80m/min |
6 | Voltage | 380V |
7 | Temperature | 80 -110ºC |
8 | Power | 25kw |
9 | Total weight | 4800kg |
10 | Overall dimension | 5500*1500*1800mm |

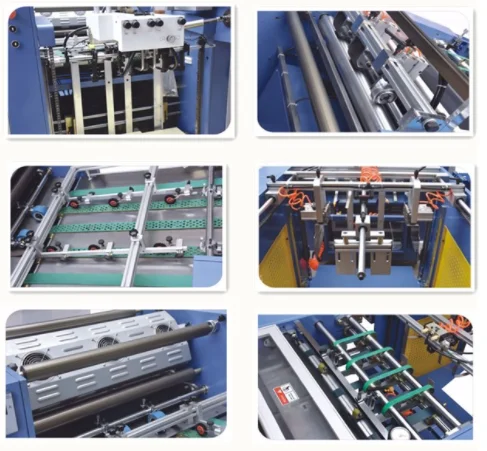

PRODUCT CONFIGURATION
· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.

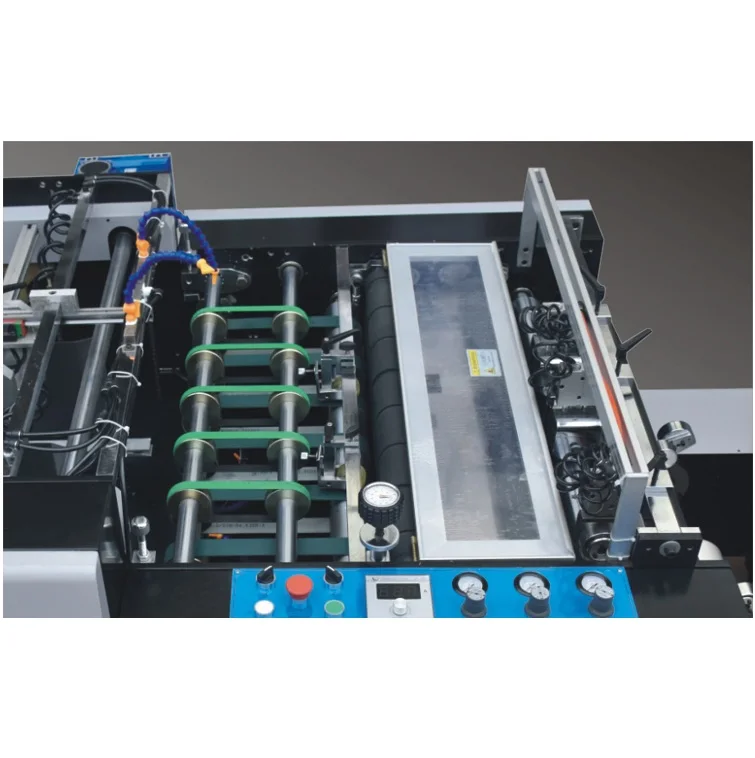

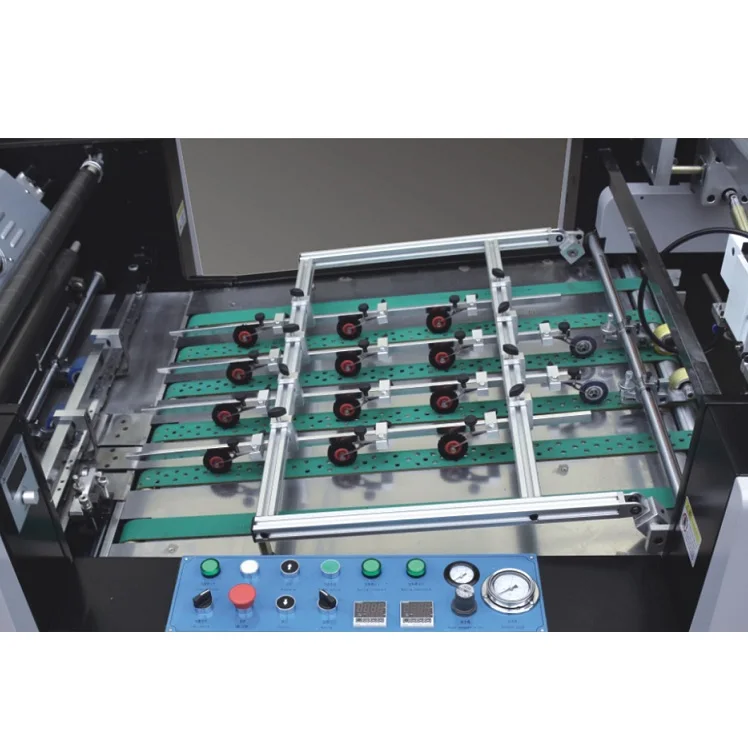

· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.

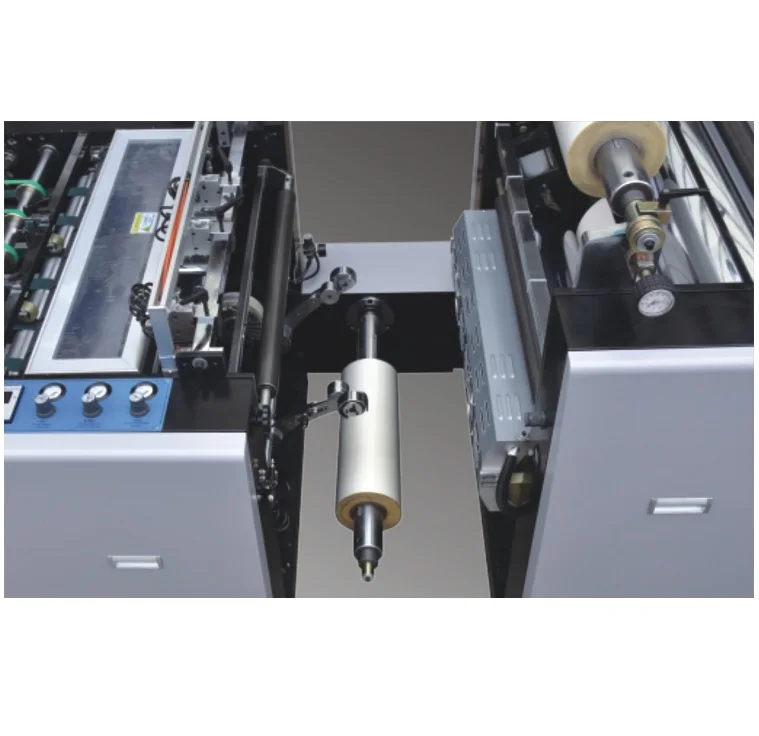

· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.

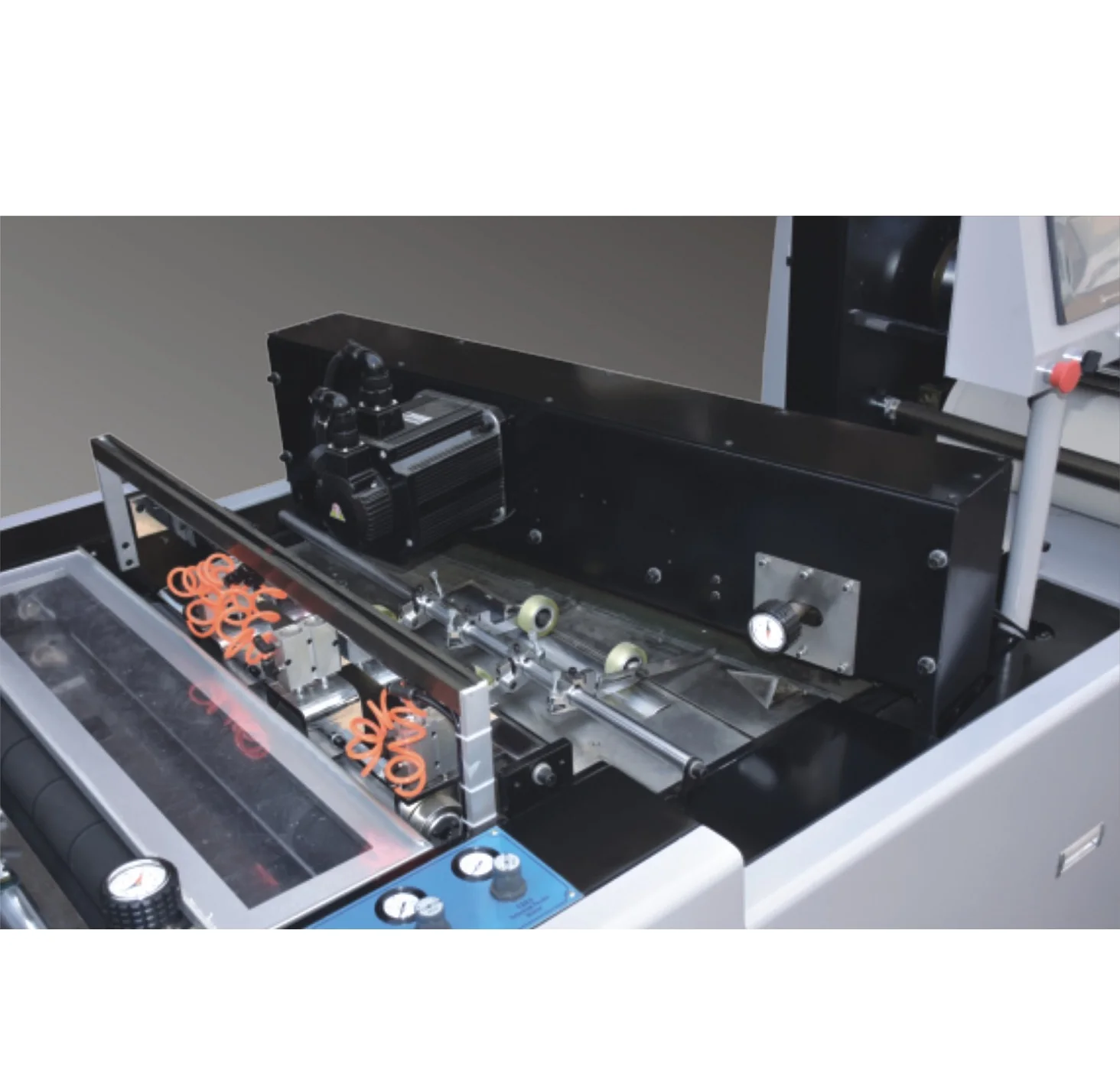

· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.
· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.

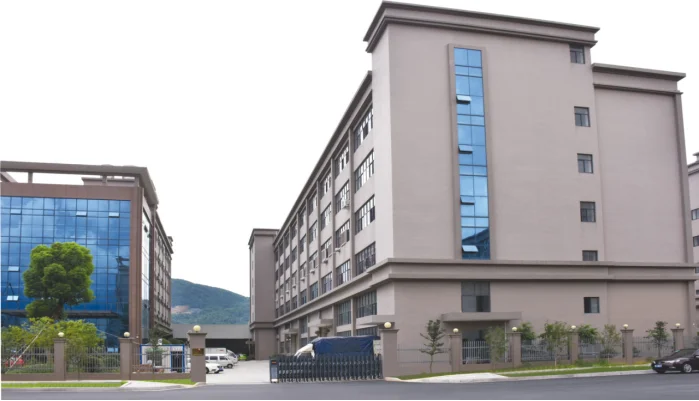

Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
