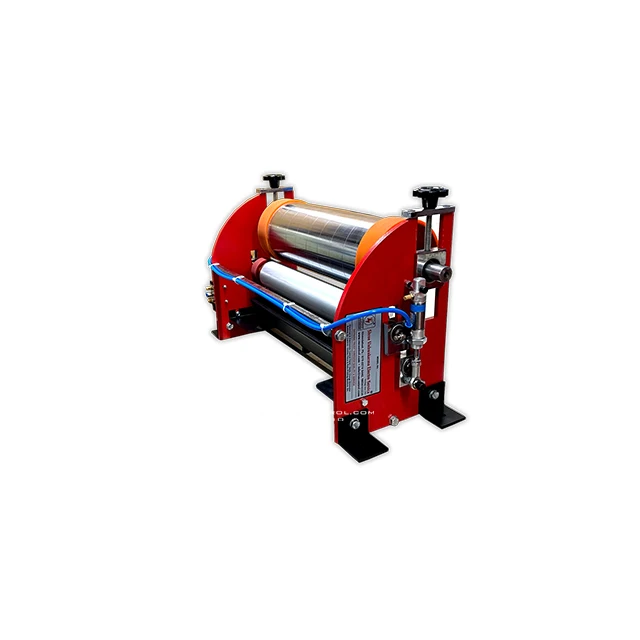

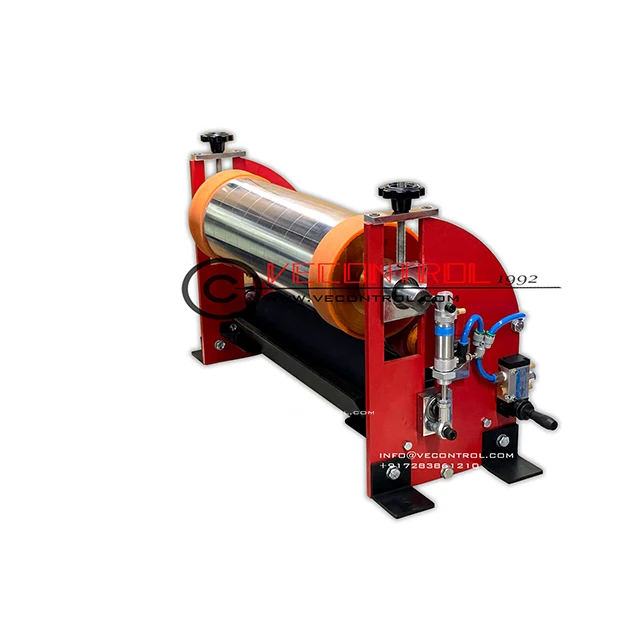

Product Overview

Description

Product Description



Product Application



Our this machine mostly fixed on film blowing machine, or some other machines do simple printing online. no need power consumption, no need workers, and with lower ink comsuption.



Application



Our Product range has wide application in the following areas

Portable type Can be attached to a blow-film machine, bag-making machine, and other



·        HM

·        LD

·        PP

·        BIO PP

·        LLDP

·        LAMINATION PLANT

·        STRETCH FILM PLANT

·        BUBBLE SHEET PLANT

·        RAFFIA BAG PLANT

·        TARPAULIN PLANT

·        NON WOVEN BAG PLANT

·        CLOTH MFG PLANT

·          PAPER PLANT

MODEL NO:-	PFN900
PRINTING WIDTH:-	125mm / 250mm / 400mm / 525mm / 650mm
PRINTING LENGTH:-	200mm~900mm(rechargeable cylinder system)







Printing Width MODEL:

PF10N900 : 10” 250mm

PF15N900 : 15” 375mm

PF20N900 : 20” 500mm

PF25N900 : 25” 625mm

PF30N900 : 30” 750mm

Print Length :minimum 8” (200mm) maximum 36” (900mm) (changeable length)



Distributor Roller : Rubber Roller+Anilox Roller+Hard Anodized Aluminium



Automation: Pneumatic



Ink Type: Solvent Based / Water Based

Printing Line Speed Max  80 Mt/Min







Features:

·         Easy To Operate

·         Portable Printing Machine Portable Printing Mac

·         High Working Efficiency

·         Longer Service Life

·         Single Color Printing

·         Converting Equipment.

·         Fully Pneumatic

·         Equipped Without Its Own Driven. No, Electrical Connection Is Necessary.

·         Ink Filling Is Easy, And It Ensures Excellent Printing Results.

·         High Quality Printing Results Even When Running At 60 Meter/Min









Machine Components Details

-Rubber Roller

-Anilox Roller

-Flexographic Process Hard Anodized Aluminium Roller



- Fully Pneumatic System



-Automatic Ink pump

-Detachable Ink Tray For Easy Cleaning

-Nylon Gear For Smooth And Maintenance Free Operation

-Powder Coated MS Frames



Installation



·         Easy installation and operation.



·         For installation Need Only Aluminium Roller, M.s Shaft & Bracket.



Sample image with Aluminum Roller & Extra Fitting Shaft with Bracket Set

Printing Sample



Certifications

Experience

Headquartered in Gujarat, Shree Vishwakarma Electro Service is one of the most respected companies in India's sector. With over 28 years of a strong, customer-focused approach and a continuous quest for world-class quality, vecontrol  has unmatched capabilities across Electrical  Engineering, Manufacturing and maintains a leadership in all its major lines of business.

Packing & Delivery







Packaging
Size	16 (L) * 15(W) * 16(D)
Weight	25 KG
Packaging Details	The normal package is corrugated box with moulded thermocol .export in woodn box .If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Delivery
Time	Min 5 to 15 days after payment.
Delivery Via	Air , Sea , Road
