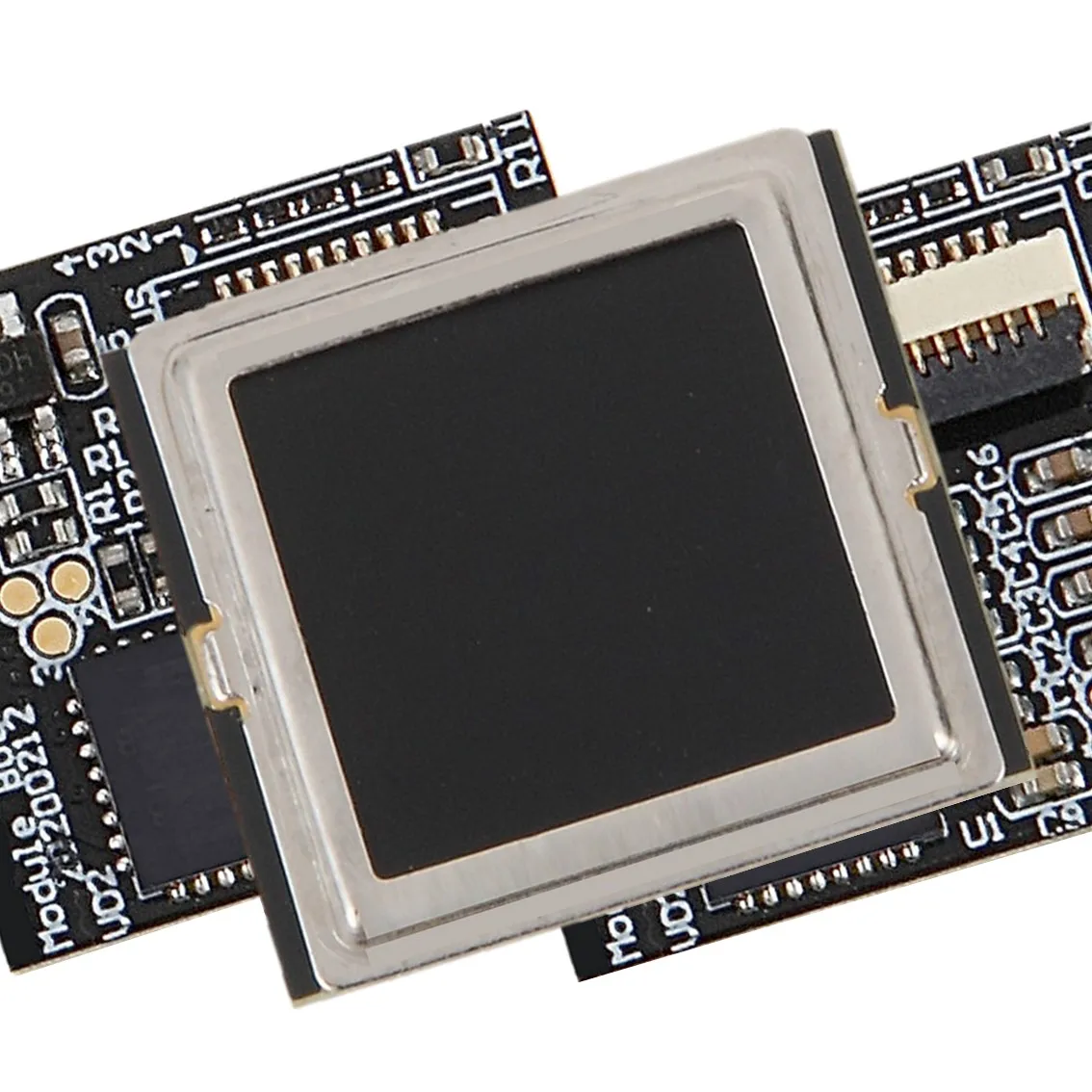

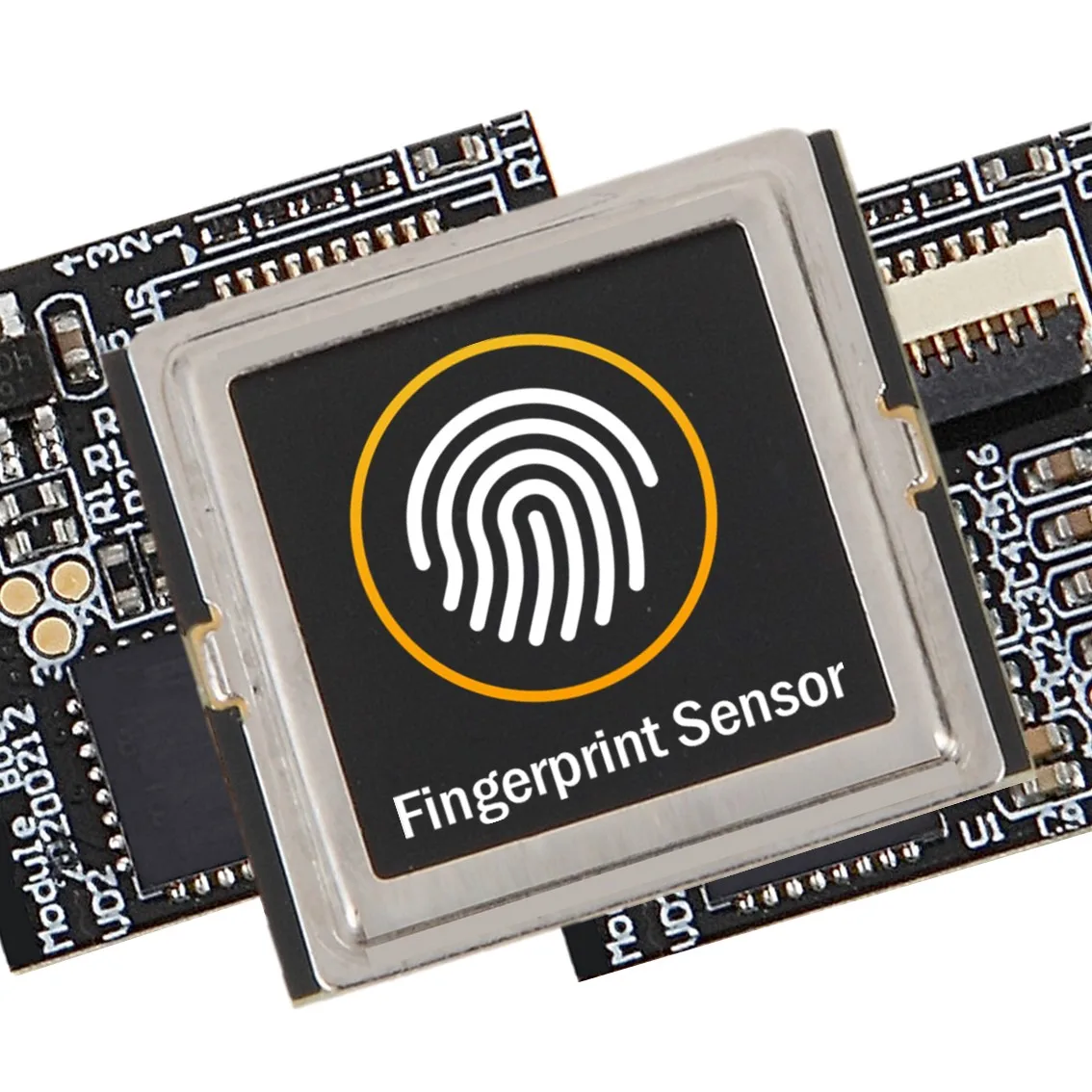

Wide Temperature Fingerprint Sensor with MCU and BP Algorithm is the Best Choice of Biometric USB Fingerprint Sensor Module
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000000402063):
Product Overview
Description
Product Description
Capacitive Fingerprint Sensor Module | Module de capteur d'empreintes digitales | System | |
Image resolution | 508dpi | |
Sensing area | 8mm x 8mm | |
Package size | 15.8mm x 14.5mm x 3mm(H) | |
Gray level | 8 bits/pixels, 256 grayscales | |
Recognition Time | 1:N, 0.6 second | |
Template capacity | 100 | |
FRR(Fales Rejection Rate) | 1.50% | |
FAR(False Acceptance Rate) | <0.01% | |
Interface | UART (57600,8,N2)/ TTL level | |
Supply voltage | 3.3V | |
Total supply current | 35mA | |
Operation humidity | 0 -95%, Non-condense | |
Operating temperature | -40 ~ 80 ℃ | |
ESD protection for air discharging | 15kV | |
Windows 10 (IoT) for Industrial devices. | ||
Android Kitkat 4.4.4 (64‐bit), Ubuntu 14.04 and 14.10 | ||
Note: All specifications are subject to change without furthur notice.
Company Profile
Our Advantages
Exhibition
Winning experience
Oversea Extend
Certificates
FAQ
Q1: What is Midas Touch core competence?
Q2:Why we should choose you?
A2:
● Size: Size is really mater. It will cause the FAR/FRR rate. Please refer the attachment. FRR/FAR: Ours is FRR:1.5% and FAR :/100,000. Mobile security level is only 1. Ours is about level 3 to 4. Please refer the following chart. FRR/FAR is lower
which is better.
● Size: Size is really mater. It will cause the FAR/FRR rate. Please refer the attachment. FRR/FAR: Ours is FRR:1.5% and FAR :/100,000. Mobile security level is only 1. Ours is about level 3 to 4. Please refer the following chart. FRR/FAR is lower
which is better.

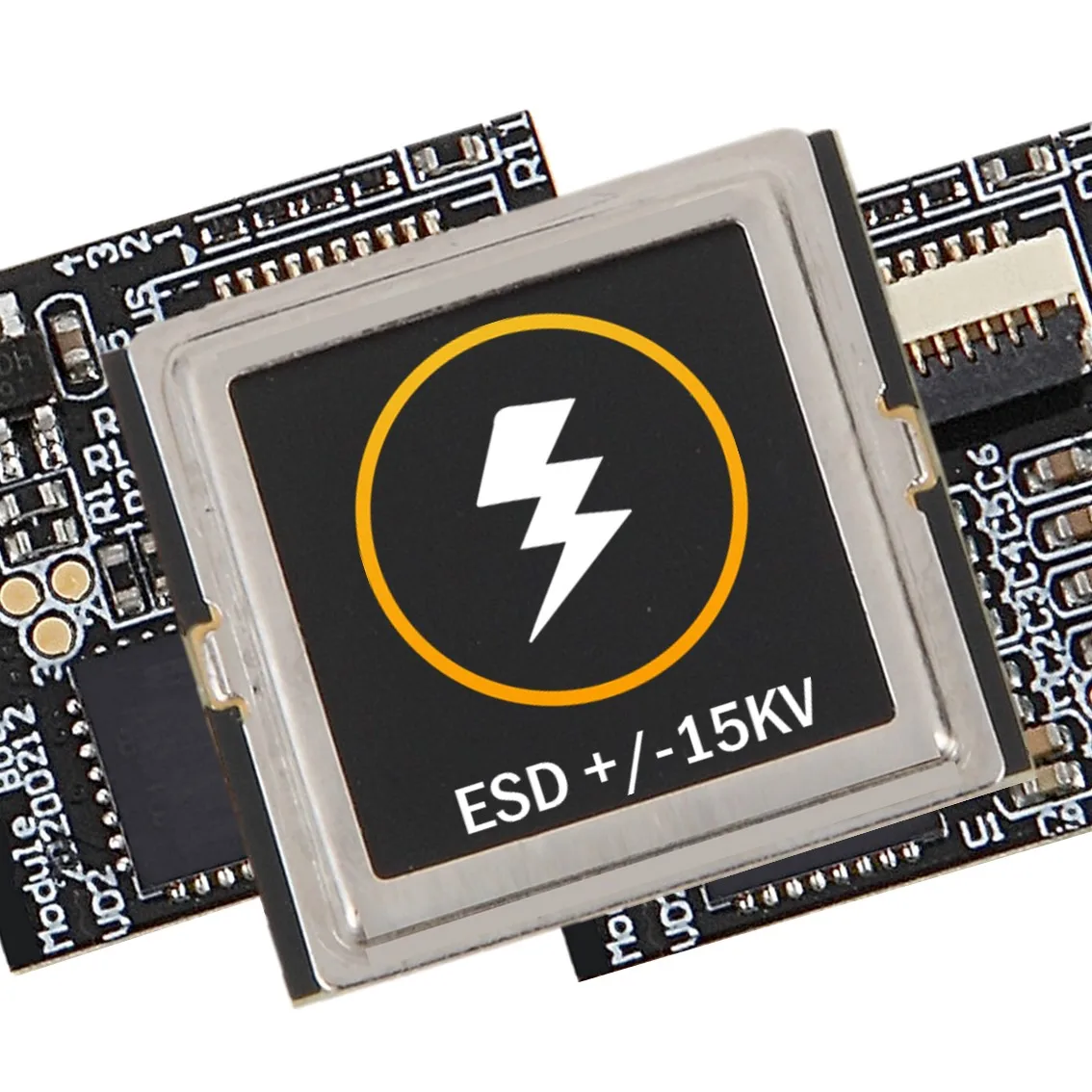

● ESD: most of the sensor in the market is only+-8KV, ours is +-15KV which is standard. https://en.ppt-online.org/14877
● 100% made in Taiwan. Our factory is VIS which invested by TSMC. TSMC provides the chipset to Apple.
The above three major issues will cause your customer service loading and brand image in the future.
● 100% made in Taiwan. Our factory is VIS which invested by TSMC. TSMC provides the chipset to Apple.
The above three major issues will cause your customer service loading and brand image in the future.
Q3:What is Midas Touch sensor advantage?
A3: Spatial Resolution 508 DPI Data Encryption Short Read Out Time Multiple Options Available in Different Pixel size 360 Degree.
Matching Low Power Consumption High-Speed SPI Interface IP 67 ApprovedWhat is Midas Touch sensor advantage?
●Spatial Resolution508 DPI
●Short Read Out Time
●Multiple Options Available in Different Pixel size
●360 Degree Matching
●Low Power Consumption
●High-Speed SPI Interface

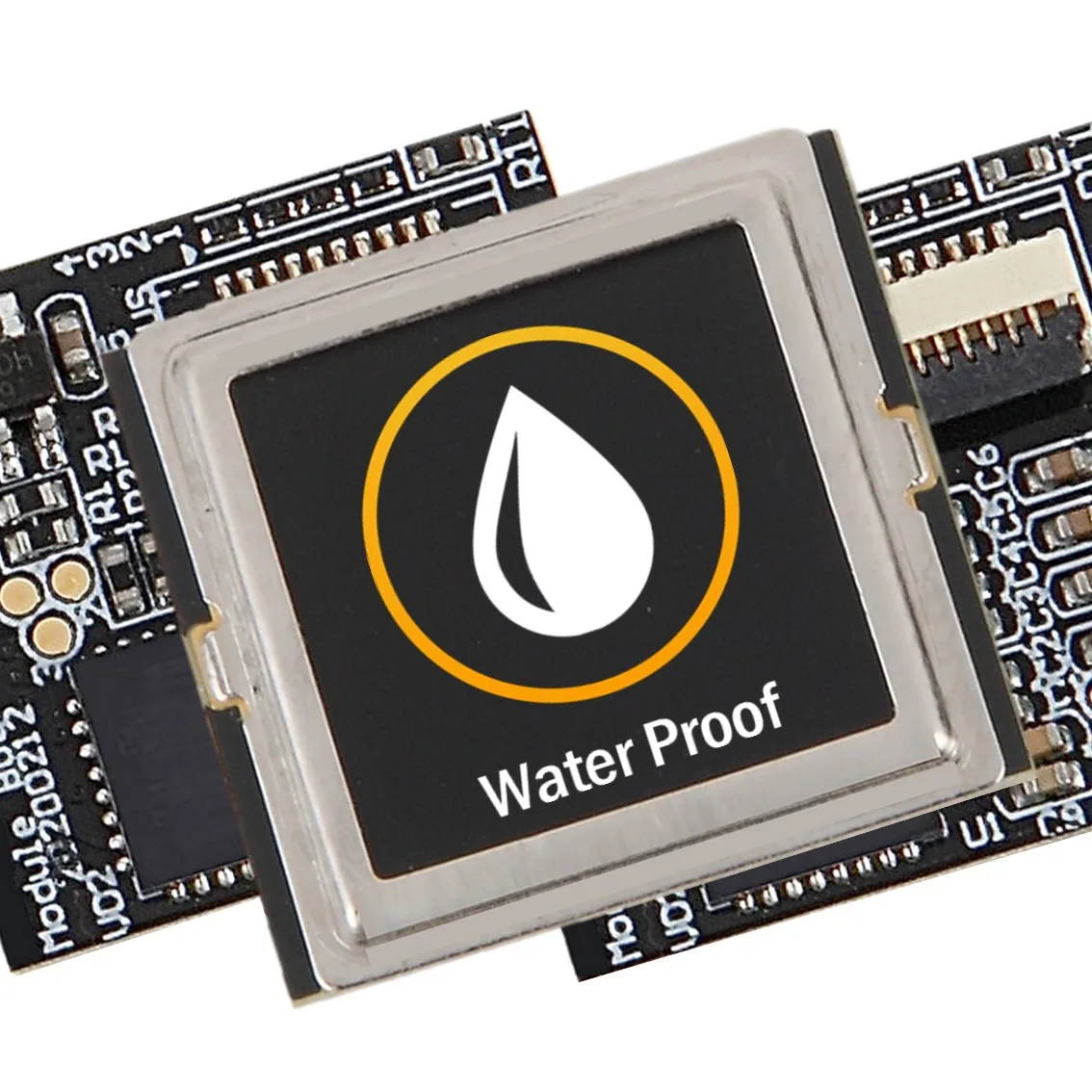

●IP67 Approved
A3: Spatial Resolution 508 DPI Data Encryption Short Read Out Time Multiple Options Available in Different Pixel size 360 Degree.
Matching Low Power Consumption High-Speed SPI Interface IP 67 ApprovedWhat is Midas Touch sensor advantage?
●Spatial Resolution508 DPI
●Short Read Out Time
●Multiple Options Available in Different Pixel size
●360 Degree Matching
●Low Power Consumption
●High-Speed SPI Interface
●IP67 Approved
Q4: This following is Midas Touch expertise field.
Q5: How about the shipping cost?
A5: For the sample, we provide the DHL/Fedex/UPS. For the large quantity, we can provide the forwarder for you.
Q6: How about the price?
A5: For the sample, we provide the DHL/Fedex/UPS. For the large quantity, we can provide the forwarder for you.
Q6: How about the price?
A6: The price depends on the quantity you want.Finally quotation according to your specifications.
Q7: How about the sample lead time? What is the payment?
A7: The lead time for the sample is about 3-5 working days after receipt of your payment.We accept the sample amount less than USD$1000 pay by PayPal.
Q7: How about the sample lead time? What is the payment?
A7: The lead time for the sample is about 3-5 working days after receipt of your payment.We accept the sample amount less than USD$1000 pay by PayPal.
