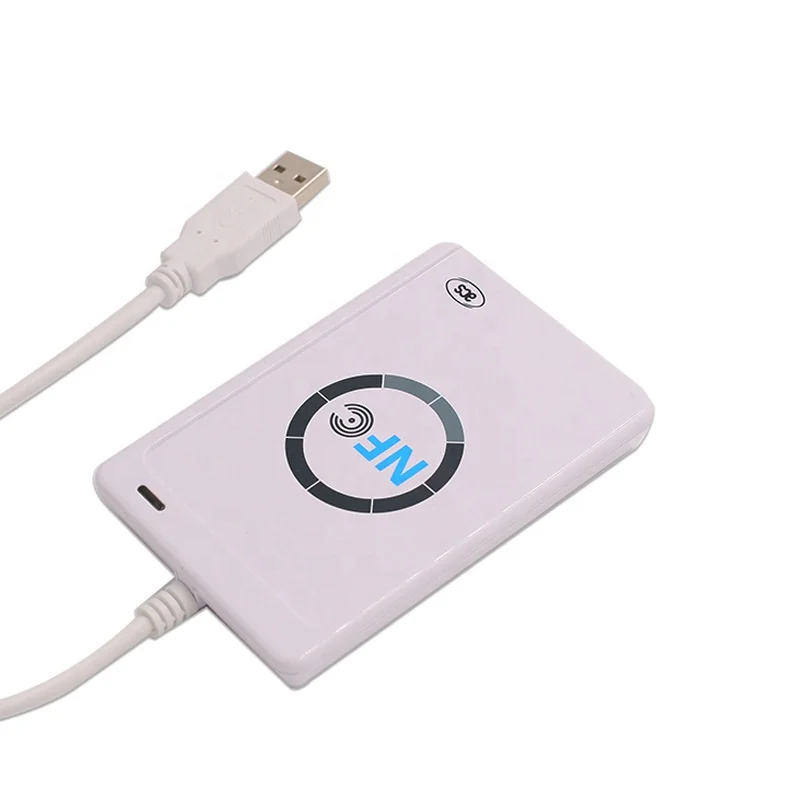

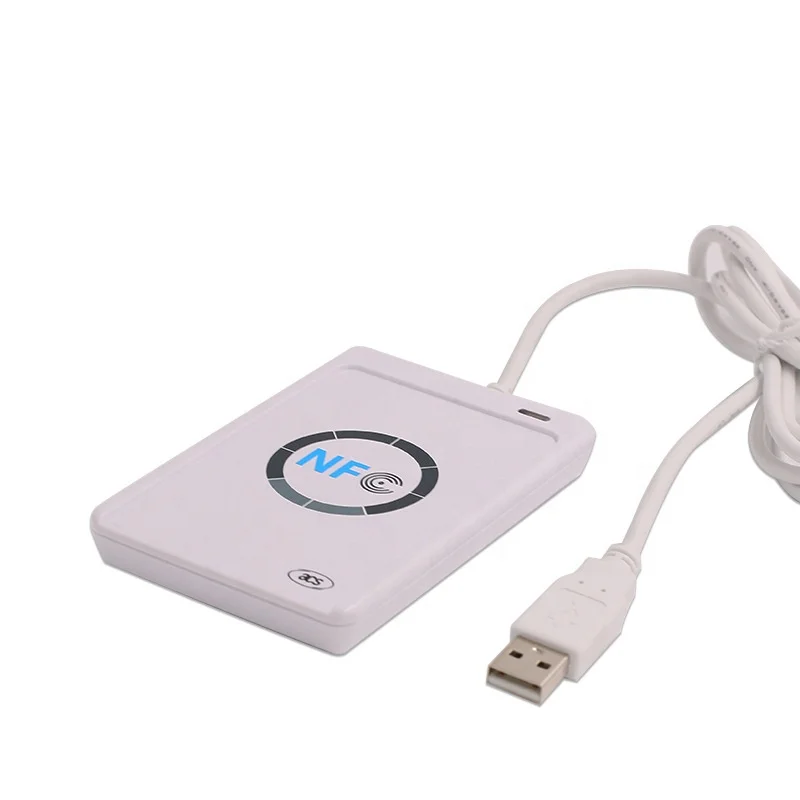

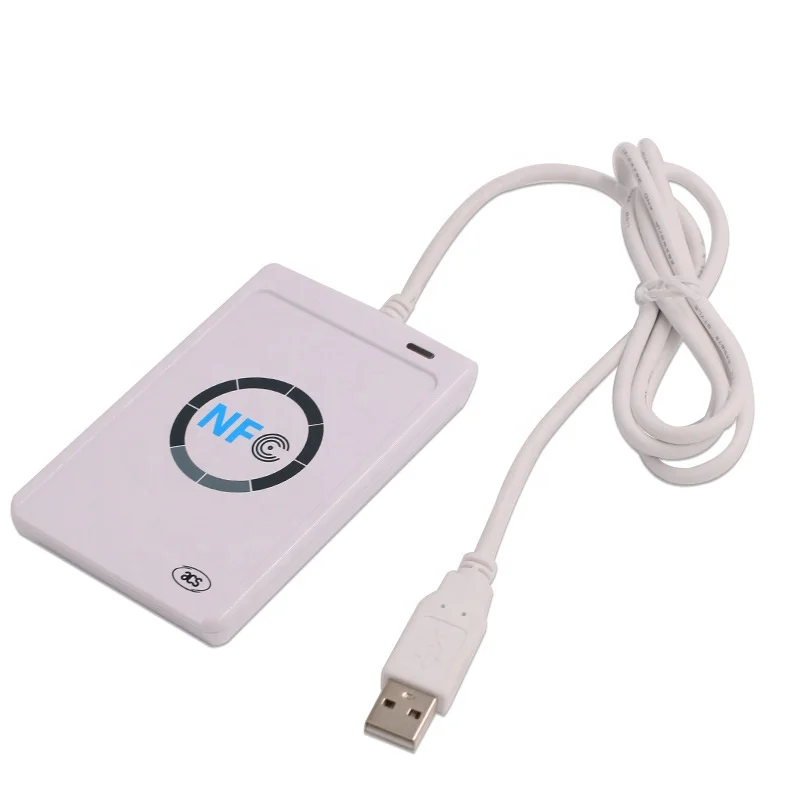

ISO14443A 13.56Mhz USB Interface Desktop NFC Rfid Card Reader Writer Device

• Comply with CCID

• Comply with PC / SC

• Read/write speed up to 424 kbps

• Built-in antenna for non-contact tag access, card reading distance up to 50mm (depending on tag type)

• Support ISO14443 Type A and B, MIFARE, FeliCa and all 4 types of NFC (ISO/IEC 18092)

• Support NFC reader mode

• Built-in anti-collision function (at least one card is detected when multiple cards are presented)

• USB plug and play

• Two-color LED light

• Compact size: 98mm (length) X65mm (width) X12.8mm (height)

• Weight: 70 grams

• Comply with CE, FCC, VCCI and ROHS

• User-controllable buzzer (optional)



Technical specifications

Universal serial bus interface

powered by Via USB

speed 12 Mbps (full speed)

Voltage Conventional 5V grounding

Current (maximum) 50Ma (medium), 100Ma (standard)

Contactless smart card interface

stand by ISO/IEC 18092,ISO14443A and B, FeliCa, MIFAREClassics

protocol Felica protocol, T=CL protocol

frequency 13.56MHz

Read and write speed 106kbps, 212 kbps, 424 kbps

specification

size (length)*65mm(width)*12.8mm(height)

weight 70 grams

Material Polycarbonate (PC)

colour Pearl White

Antenna size 50X40mm

Reading distance 0~50mm

Built-in Two-color LED light Two-color LED lights, red and green

buzzer Monotonous (optional)

temperature 0~50 C

humidity 10%~80%

Line length 1 meter (USB)

Certification/Specification Comply with PC/SC, CCID, CE, FCC, VCCL, ROHS requirements

Microsoft WHOL 2000, XP, Vista 7

Device driver operating system support Windows 2000, Server 2003,XP, Vista, Server 2008,Windows CE 5.0 Linux, Mac OS X

Application:

•Network access control

•Small payment

•NFC mobile tag

•Public transportation hub

• Automatic charging

• Physical access control

•Customer Loyalty

•Time and attendance

• Contactless public telephone

•vending machine

Yeerfid is an enterprise dealing in the manufacturing, sales, and distribution of rfid tag/sticker for solution integrating of warehouse management, asset management,logistic management,retail industry, anti-counterfeiting etc.
We design our tags to provide smooth, fast and reliable identification for employees and technicians in the Automotive industry, factories, logistics,retail stores,public transportation,Medical,Research laboratories, financial institute etc.
To ensure we maintain the innovative pace that comes with being a trendsetter in the automatic asset management industry, we operate with a dedicated workforce focused on carrying out research that provides our customers with tags of high and stable quality, development procedures that guarantee we offer a wide range of solutions, and production spectrum that enabled us to retain our spot as the one-stop junction for the requirement of customers.
Established in 2015,we thrive to provide professional rfid tags for solutions junction.With total assets of 2 million USD and a land area of 2,500 square meters, Which is always committed to the development, production and sales of rfid technology and products, has formed several series of main products like rfid tag, NFC tag, rfid/nfc wristband, rfid/nfc keyfobs Etc. We have already provided millions of RFID and NFC products for the users all over the world. With rich experience in the rfid, we have professional rfid team to solve the problem in rfid field, now we have many customers all the world, if you have rfid projects, please feel free to contact us! Yeerfid company will provide our professional service for you.

1. who are we?
We are based in Guangdong, China, start from 2020,sell to Western Europe(30.00%),North America(20.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),South America(9.00%),Oceania(8.00%),Africa(2.00%),Central America(2.00%),Eastern Asia(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
rfid tag,rfid wristband,rfid card,pvc card,rfid ticket

4. why should you buy from us not from other suppliers?
Yeerfid is an enterprise dealing in the manufacturing, sales, and distribution of rfid tag/sticker for solution integrating of warehouse management, asset management,logistic management,retail industry, anti-counterfeiting etc. ISO, SGS certificate passed.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
