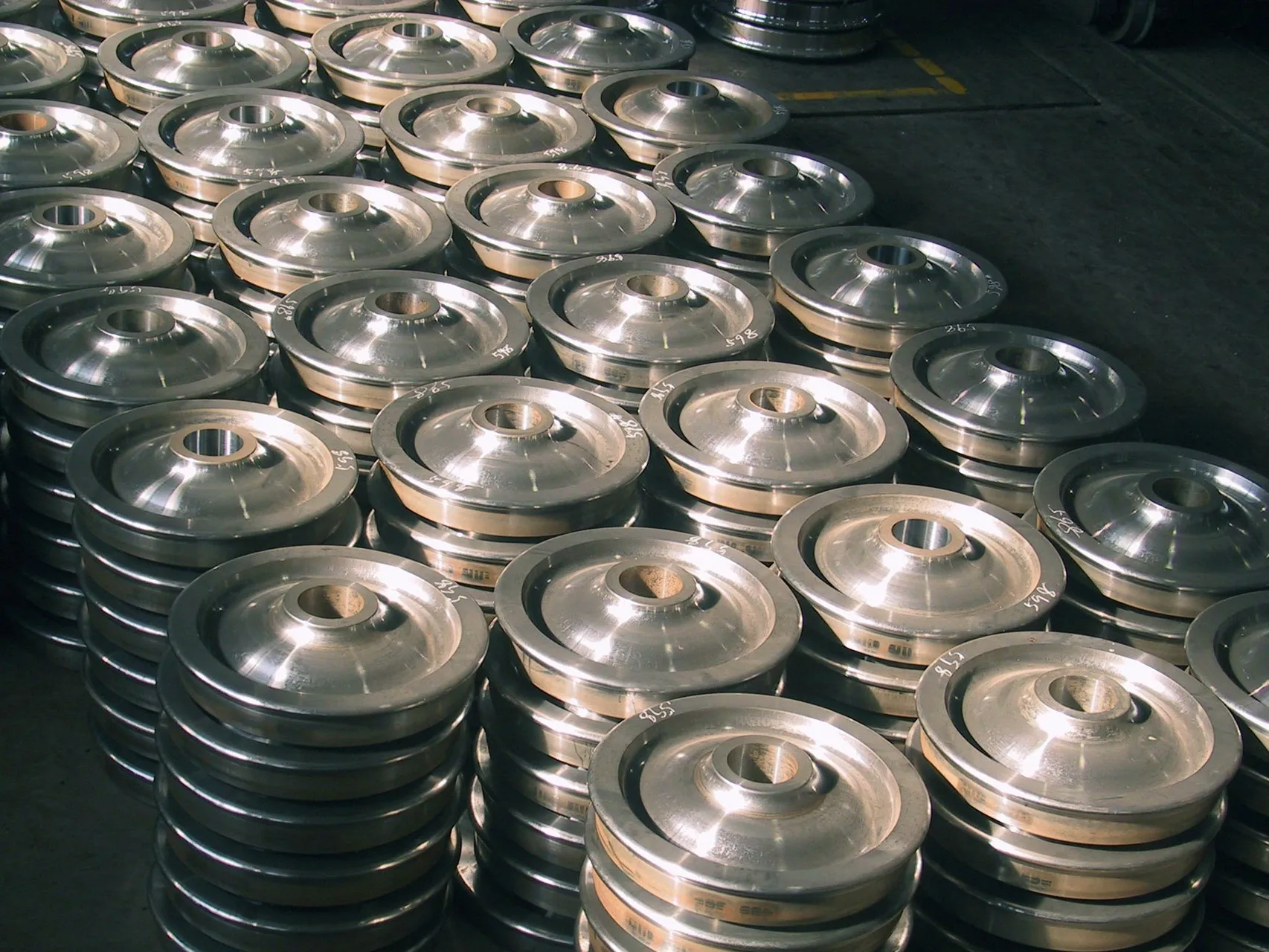

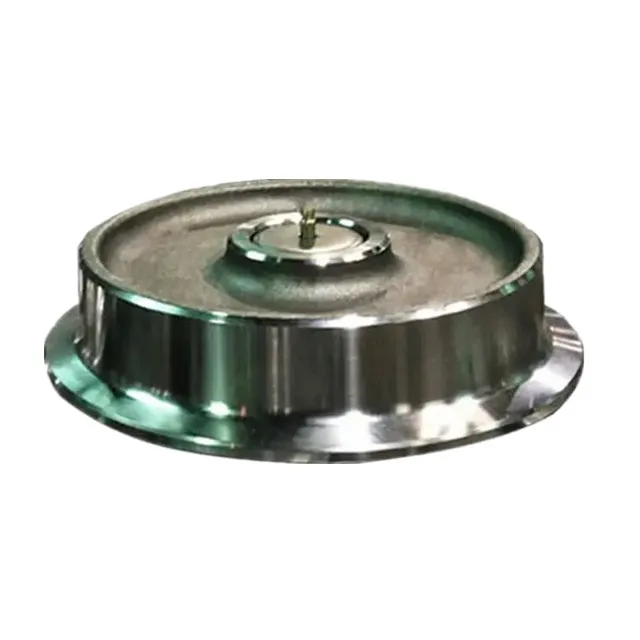

forged crane wheels customized specification

 With An improved forged wheel trimming die, which consists of connecting rod (2), lower die seat lower plate (3), face plate (4), return guide post (5), punching rod (6), top block ( 7), lower mold seat ribs (8), lower mold seat upper plate (9), lower mold (10), stripper plate (11), conformal baffle (12), shearing blade (13), punching The flash rod (14) is composed. The advantage of the improved forged wheel trimming die of the present invention is that two conformal baffles are added to the die return main plate, so that the forged wheel blank flash is restricted in the radial direction during the cutting process, so that it cannot be caused by Excessive deformation causes it to break; in this way, the flash can be kept from being damaged after being cut from the blank, and it can be smoothly beaten out by the punching rod. This prevents the blank from being scrapped by being left on the mold surface and pressed into the next blank after the flash breaks.

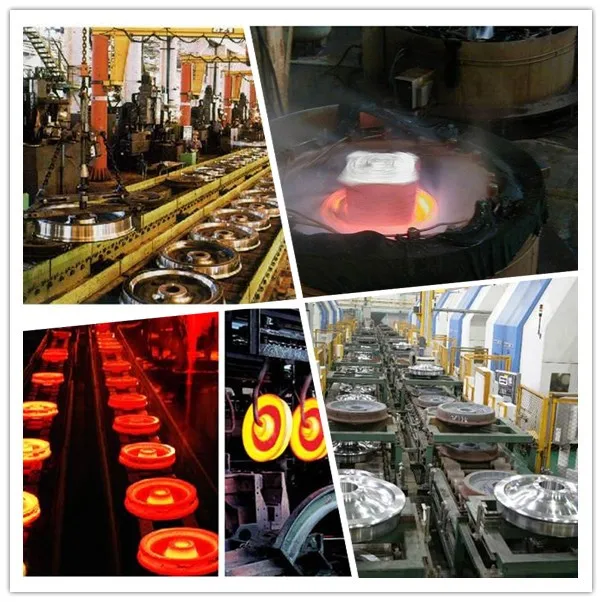

Production process

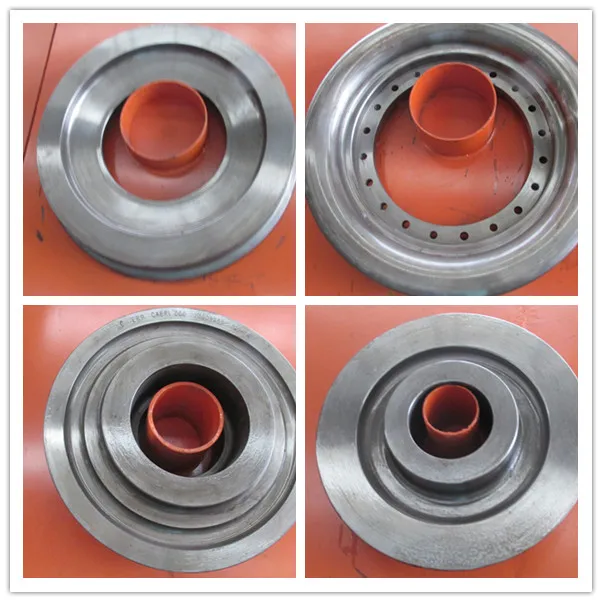

100% inspection before delivery, guarantee all products are qualified

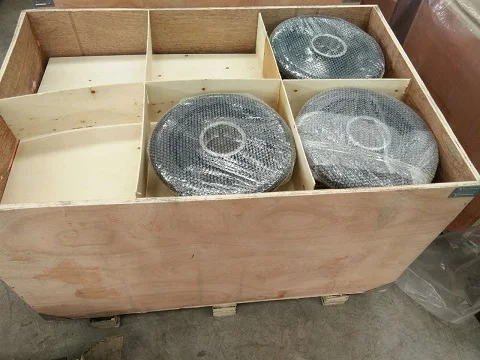

  packaged in Nylon Bag or Wooden cases: export wooden cases with fumigation certifications.

Certifications

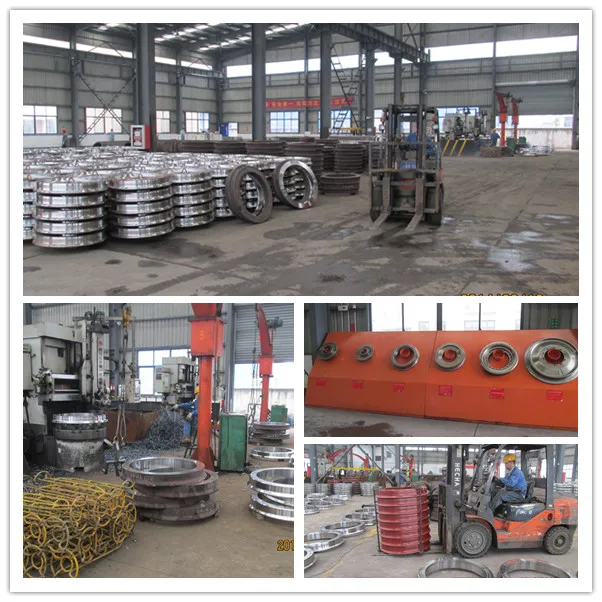

 Maanshan Ruika Metal Products Technology Co.,ltd is a professional railway products, and mainly engaged in design and manufacture for wheels and axles, track materials such as tie plates, clips,screw spikes, fishplates. The railway product according to AAR and UIC standards and so on. Our products are popular in South America, North America, Europe and Africa for many years.
