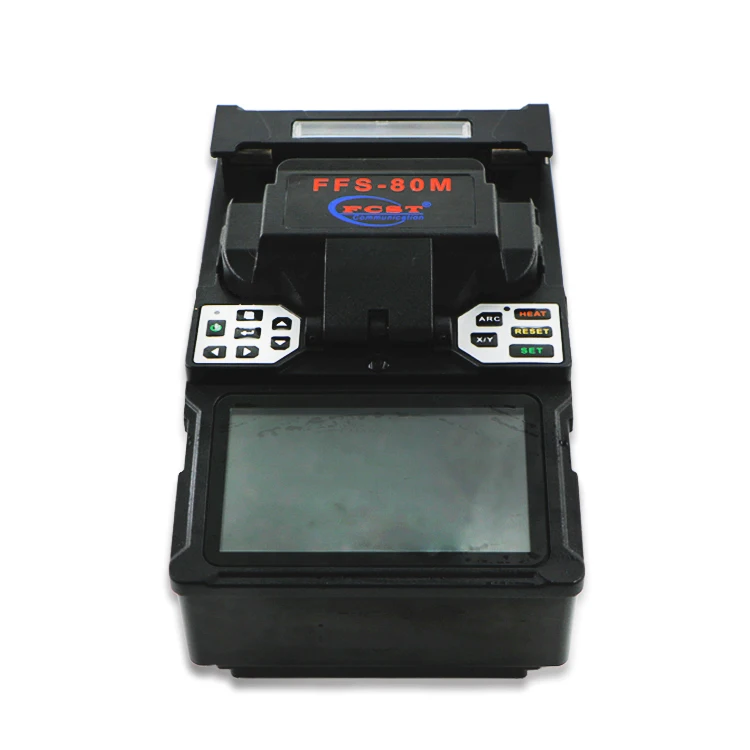

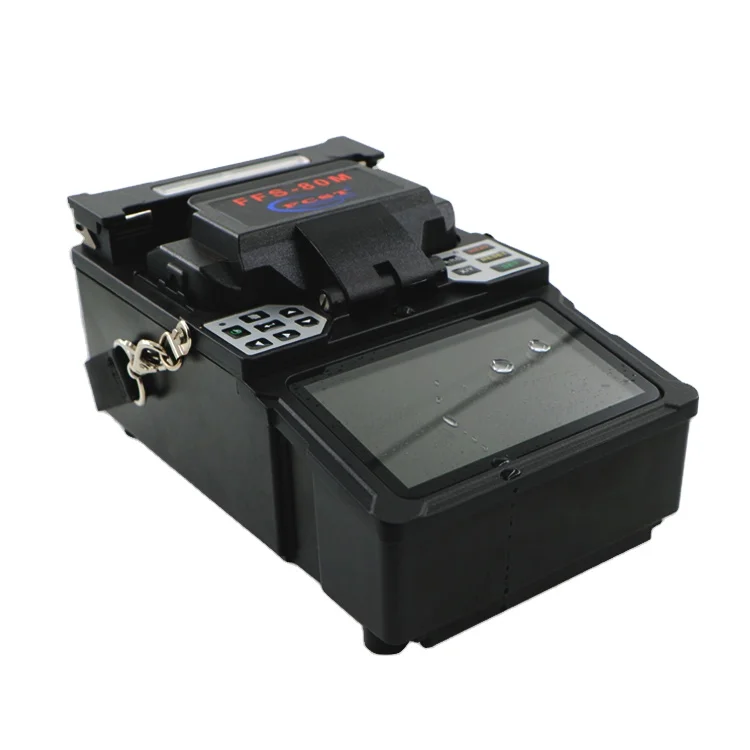

FFS 80M Full Automatic Mini Type SM&MM Intelligent Multi function Fiber Optic Fusion Splicing Machine with Multi Languages
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (10000000547262):
Product Overview
Description
Product Specifications
Construction | Description |
Applicable Fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653), NZDS(ITU-T G.655)，EDFA, others(including G.657) |
Diameter Of Cladding | 80 -150μm |
Diameter Of Coating | 160-900μm |
Typical Splice Loss | SM: 0.03dB, MM: 0.02dB, DS: 0.05dB, NZDS: 0.05dB |
Return Loss | >60dB |
Fibe Cleaved Length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
Splicing Program | 40 groups |
Operate Mode | Automatic/Manual |
Auto-heating | Available |
Typical Splicing Time | 7 seconds |
Typical Heating Time | 20 seconds for 60mm and 40mm shrinkable sleeves |
Fiber Magnification | 250X (X or Y view), 125X (X and Y view) |
Display Screen | 2 CMOS cameras, 4.3 inch color LCD monitor |
Records Storage | 5000 groups data and 100 group images |
Loss Evaluation | Available |
Tension Test | >2.2N |
Interface | GUI menu interface, easy for operation |
Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating, pluggable inner Li-battery |
Power Supply | Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V |
Electrodes Life | More than 5000 ARC discharges, can be replaced conveniently |
Ternimal | USB2.0 port, for uploading splicer results and upgrading software |
Operating Conditions | Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage Temperature: -40℃~+80℃,Wind speed: Max 15m/s |
Dimension | 200mm(L) * 123mm(W) * 95mm(H) |
Weight | 1.60kg (including battery) |

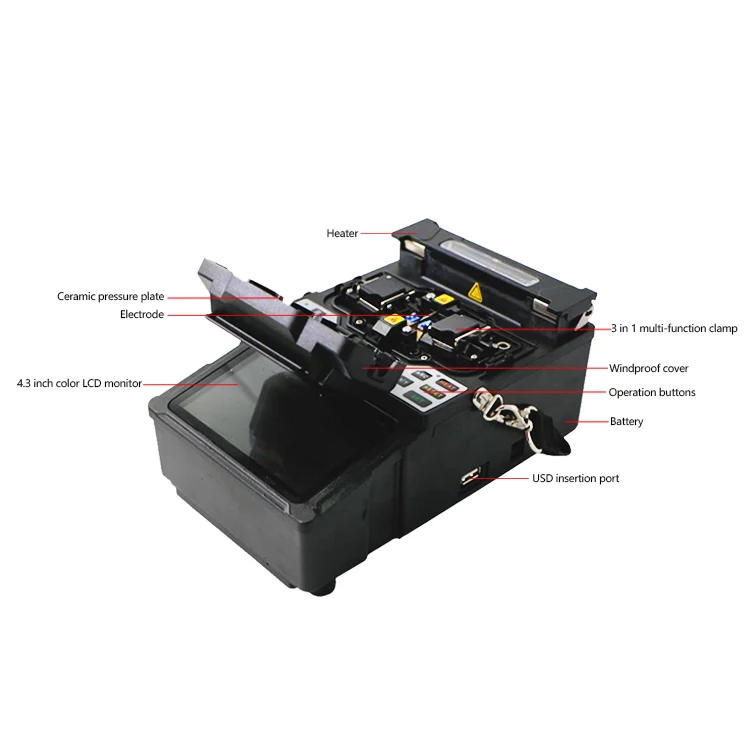

Producto Views

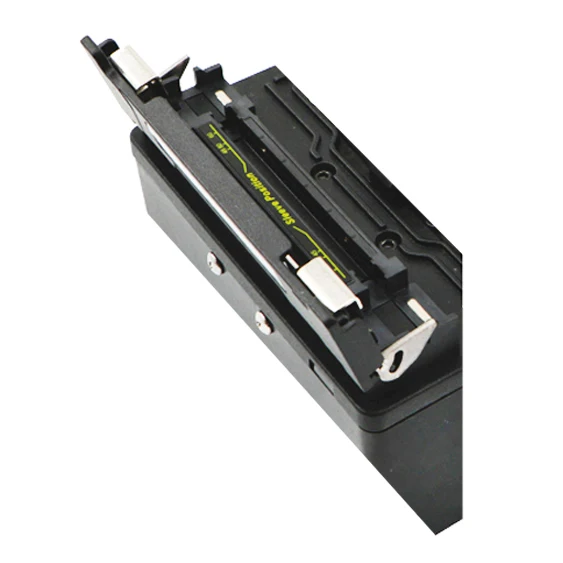

20S automatic heating
Automatic heating, adjustable temperature, preset multiple modes.

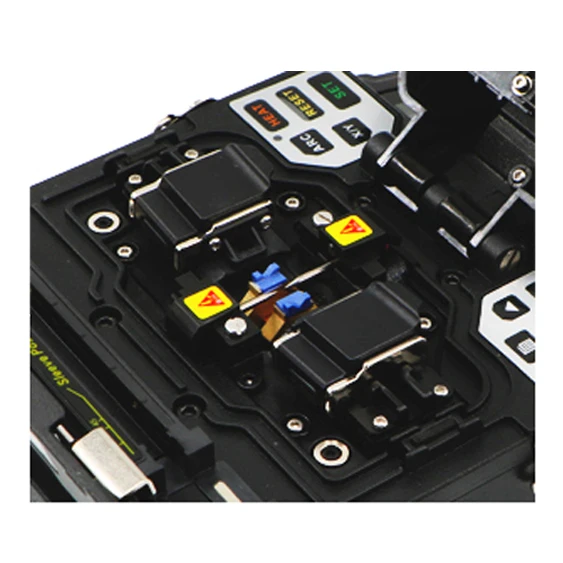

3 in 1 multi-function clamps（drop cable、pigtail、Bare fiber）
The clamp has been optimized for multiple generations, and the clamping effect is good, and there will be no broken fiber or offset.

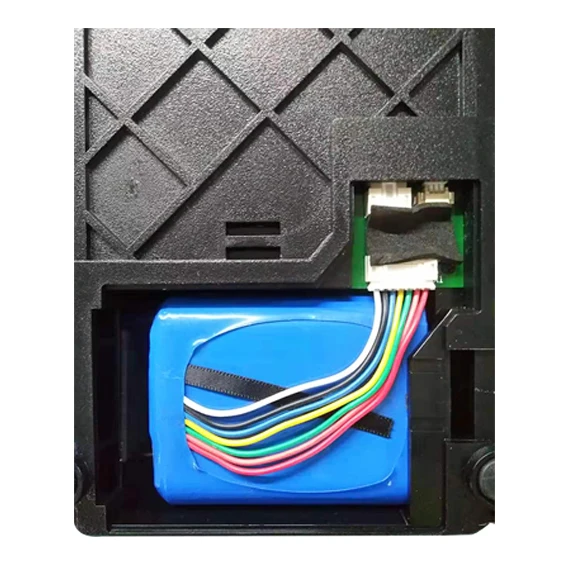

large capacity battery.
5200mAh Li-battery, typical 250 cycles splicing and heating..
Product Application
Recommend Products
Click Here To Get More Details
Company Profile
As a 17 years old company in fiber optic tools field, we can distribute and provide full of your test instruments and tools
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.

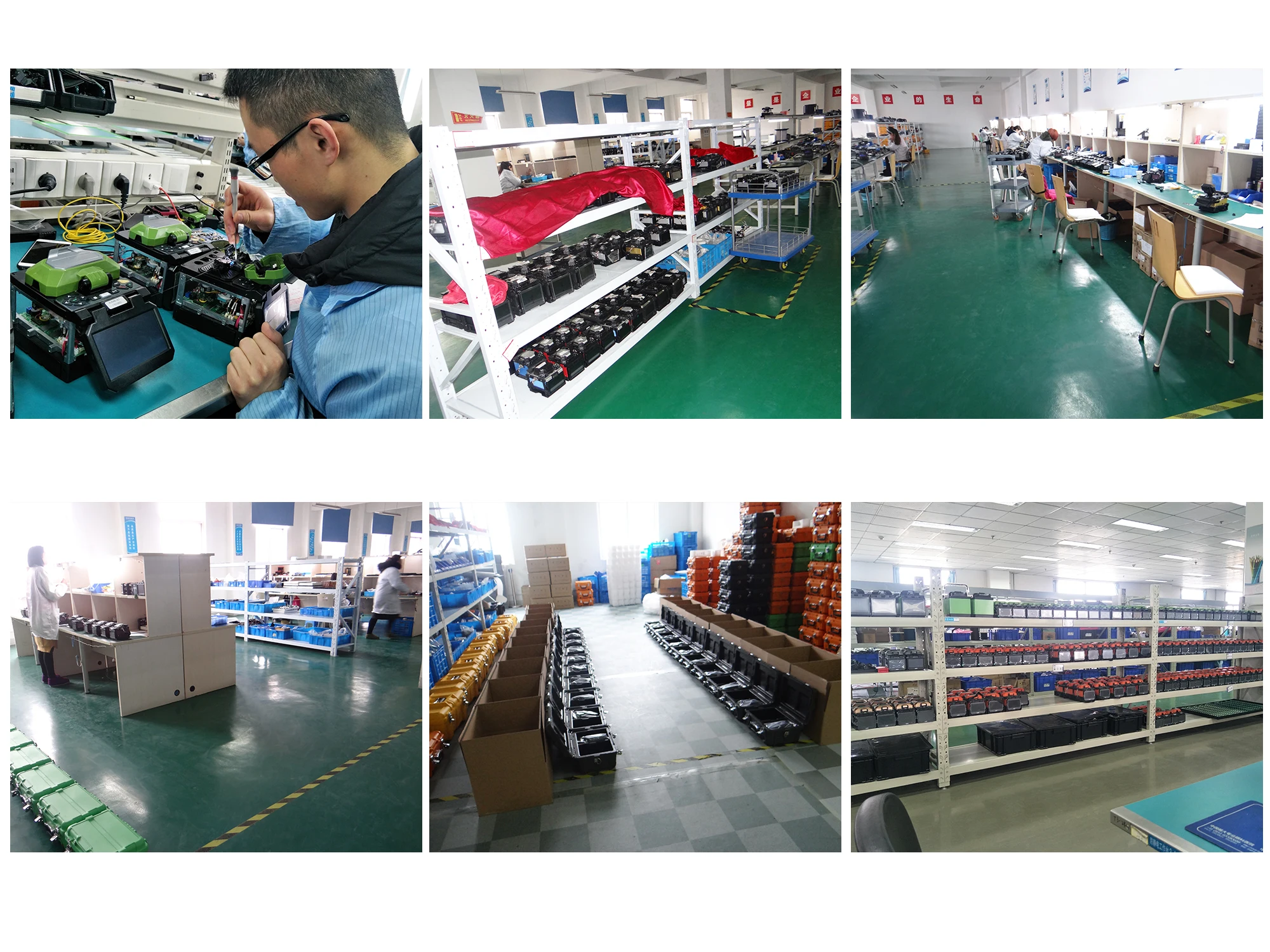

Our Factory
