Car ramp automotive service low profile durable lift ramps wheelchair slope stairs access handicap light weight portable

Product Overview

Description



Car step plate ramp eliminates steps between parking and roads it can be used in the room entrance porch for wheelchairs



Specification

NAME	Car step plate ramp eliminates steps between parking and roads it can be used in the room entrance porch for wheelchairs

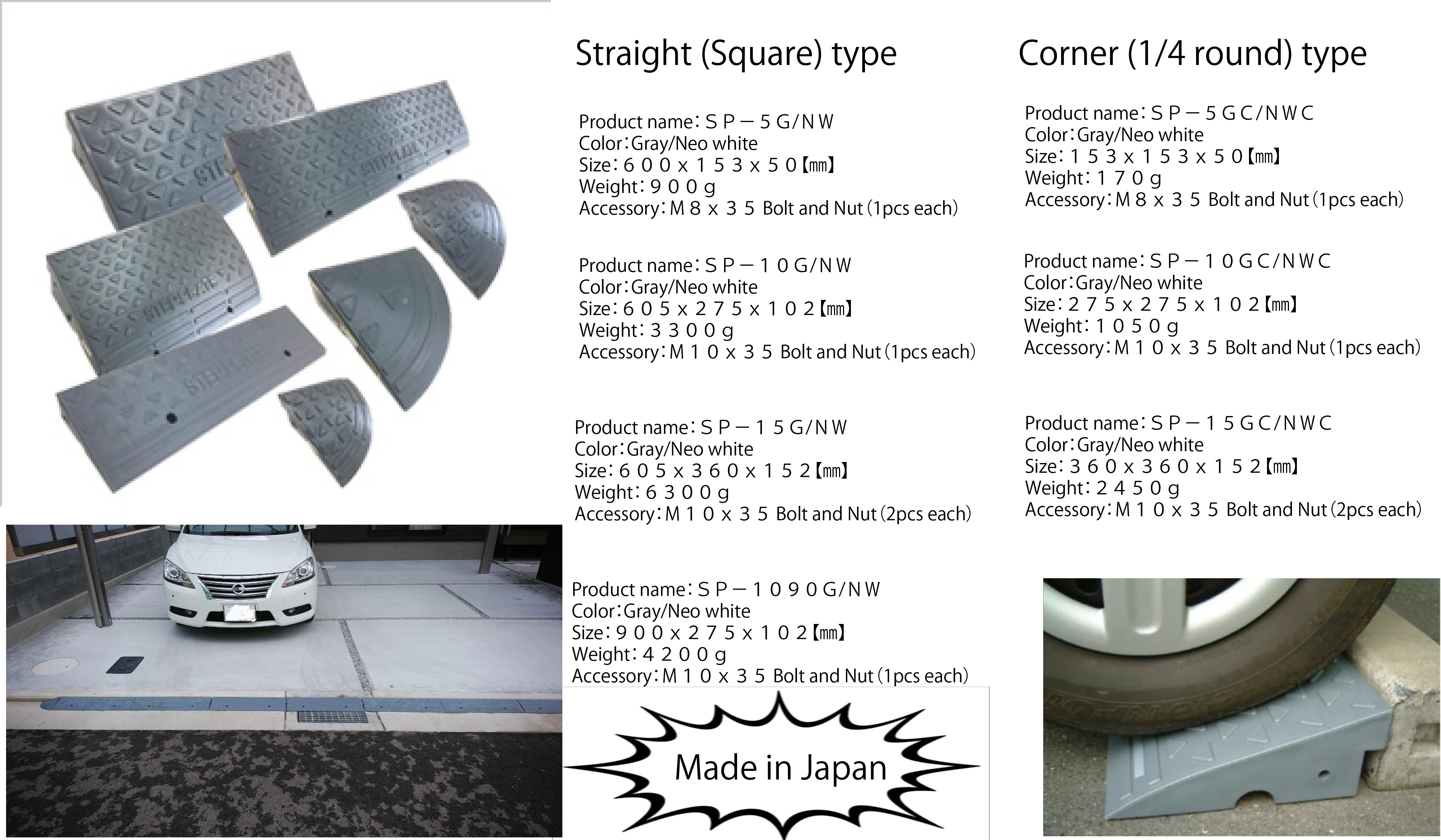

Product details	Product name: SP-5G/NW Size: 600x153x50[mm] Weight: 900g Accessory: M8x35 Bolt and Nut(1pcs each) Product name: SP-5GC/NWC Size: 153x153x50[mm] Weight: 170g Accessory: M8x35 Bolt and Nut(1pcs each) Product name: SP-10G/NW Size: 605x275x102[mm] Weight: 3300g Accessory: M10x35 Bolt and Nut(1pcs each) Product name: SP-1090G/NW Size: 900x275x102[mm] Weight: 4200g Accessory: M10x35 Bolt and Nut(1pcs each) Product name: SP-10GC/NWC Size: 275x275x102[mm] Weight: 1050g Accessory: M10x35 Bolt and Nut(1pcs each) Product name: SP-15G/NW Size: 605x360x152[mm] Weight: 6300g Accessory: M10x35 Bolt and Nut(2pcs each) Product name: SP-15GC/NWC Size: 360x360x152[mm] Weight: 2450g Accessory: M10x35 Bolt and Nut(2pcs each)
LOAD CAPACITY	10 tons
MATERIAL	100% recycled PP (polypropylene) resin
COLOR	Gray, Neo white
ORIGIN	Made in Japan



The material is 100% recycled PP (polypropylene) resin that is environmentally friendly.

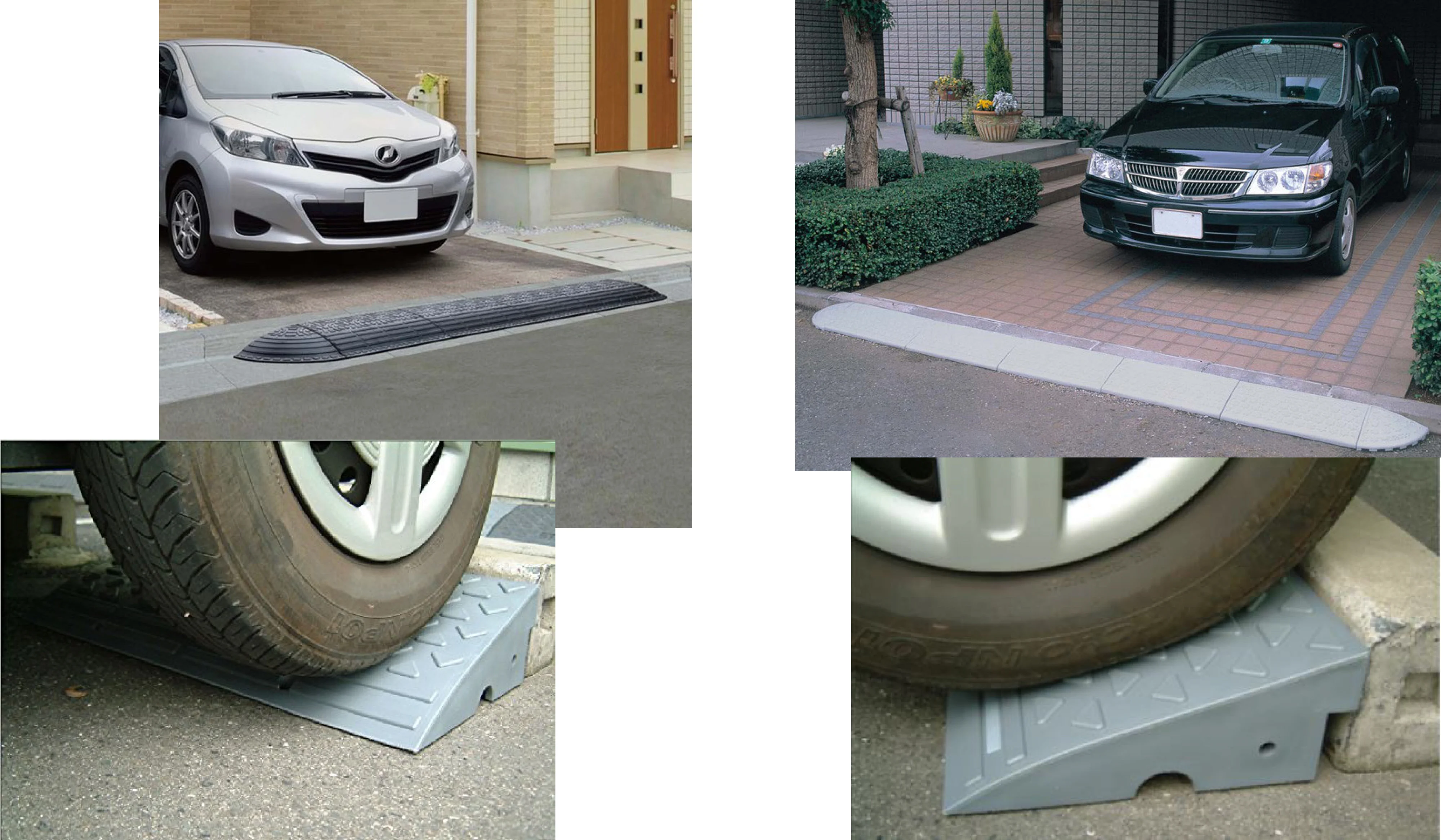

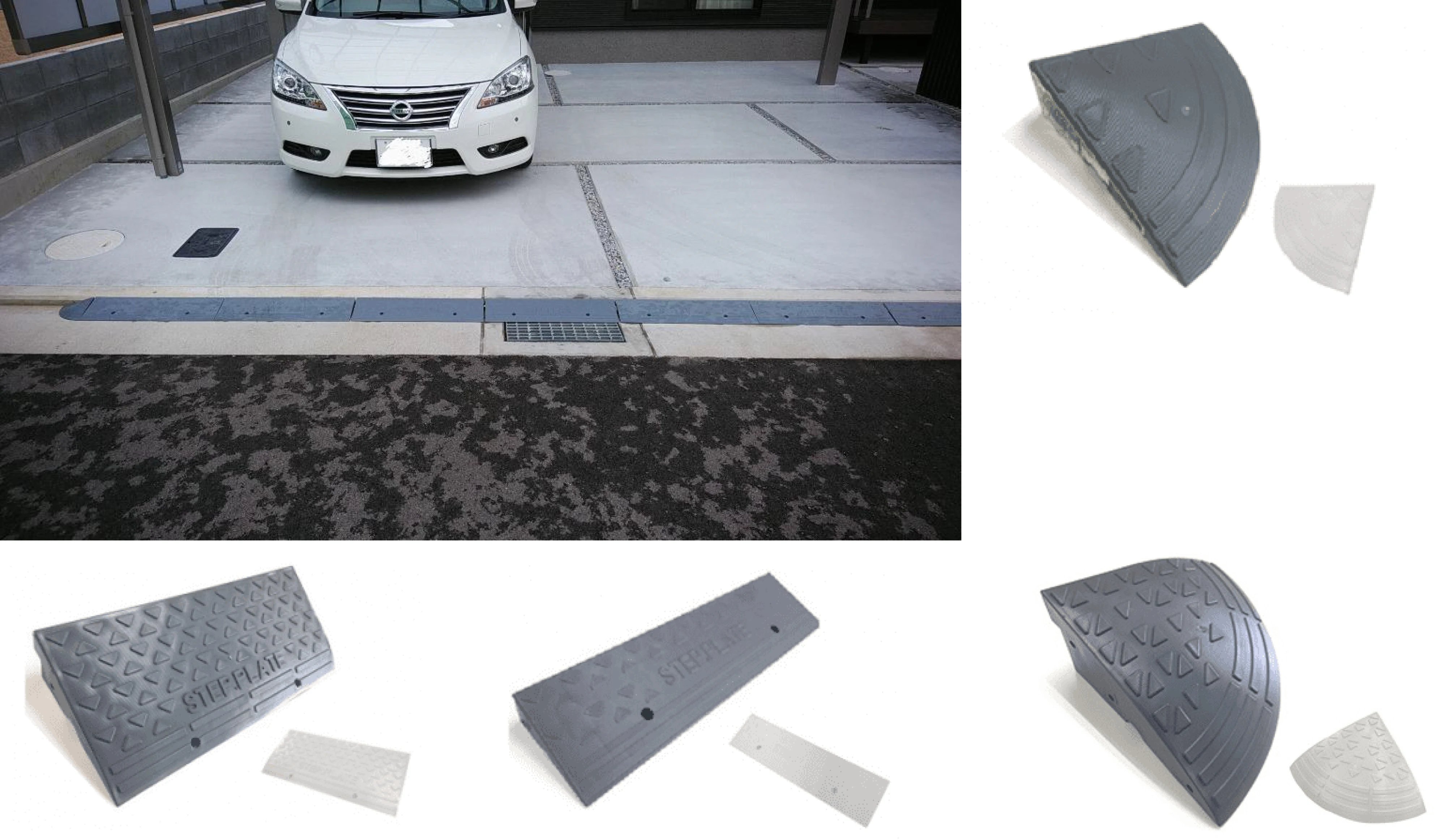

Eliminates steps between parking and roads.

There is no sound like an iron plate when riding.

Clears a load capacity of 10 tons using our special thick molding technology.

Can be fixed to the installation on the road surface with All Anchor C-645 (sold separately: made by another company).

(Only the main body can be fixed, please join the corners with the main body.) The same product and corners can be connected with the attached bolts and nuts.

Tighten the bolts lightly so that the product does not come off.

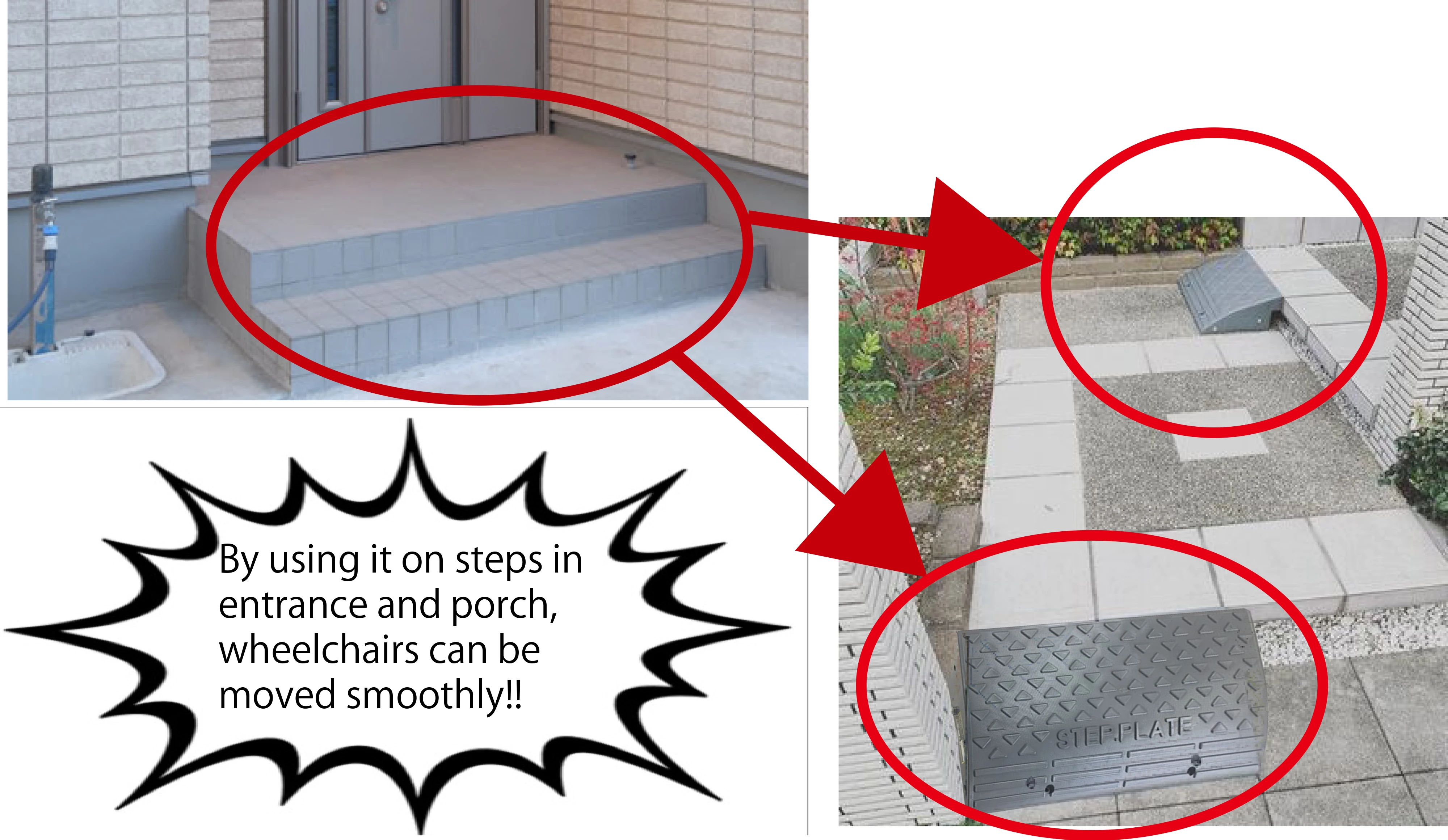

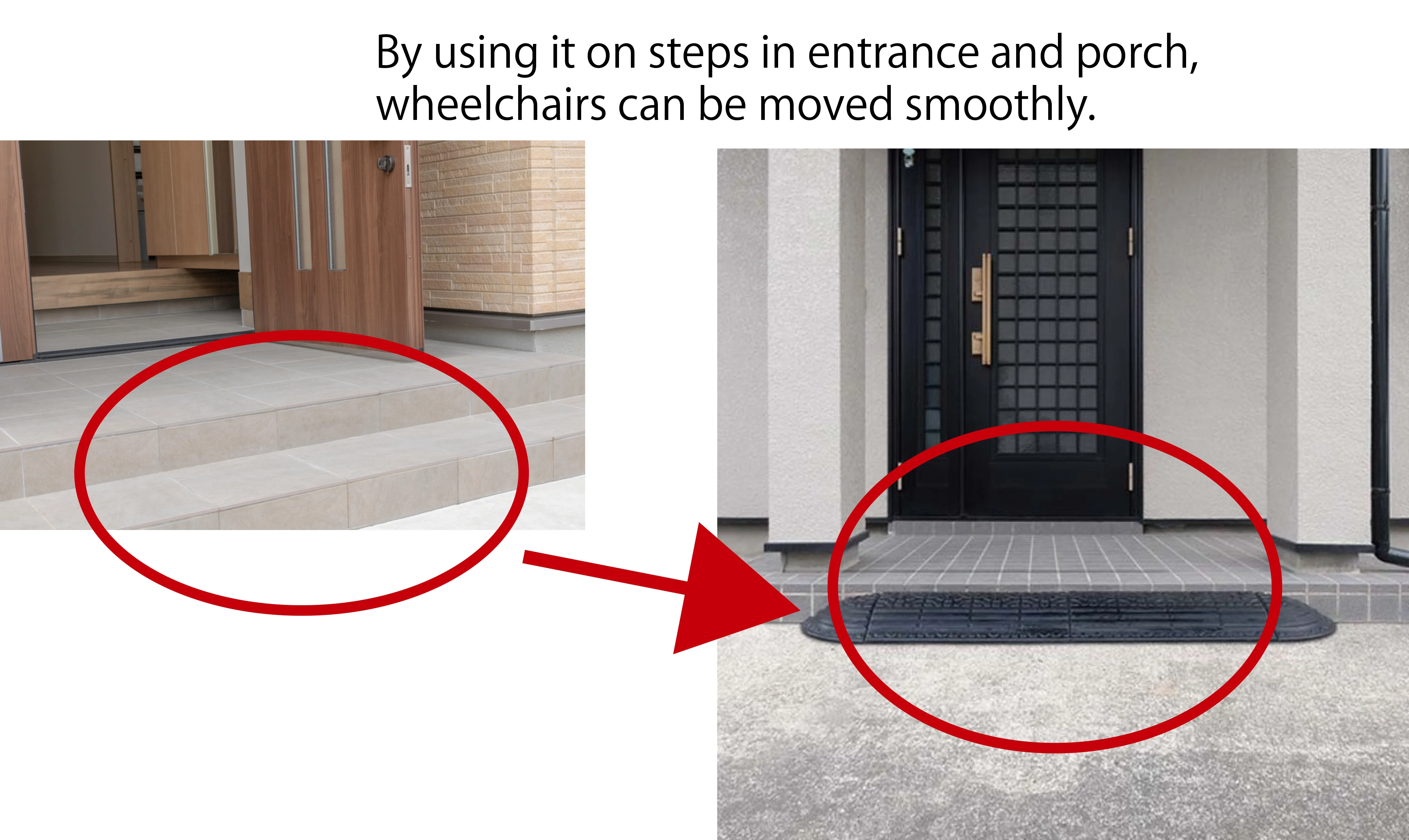

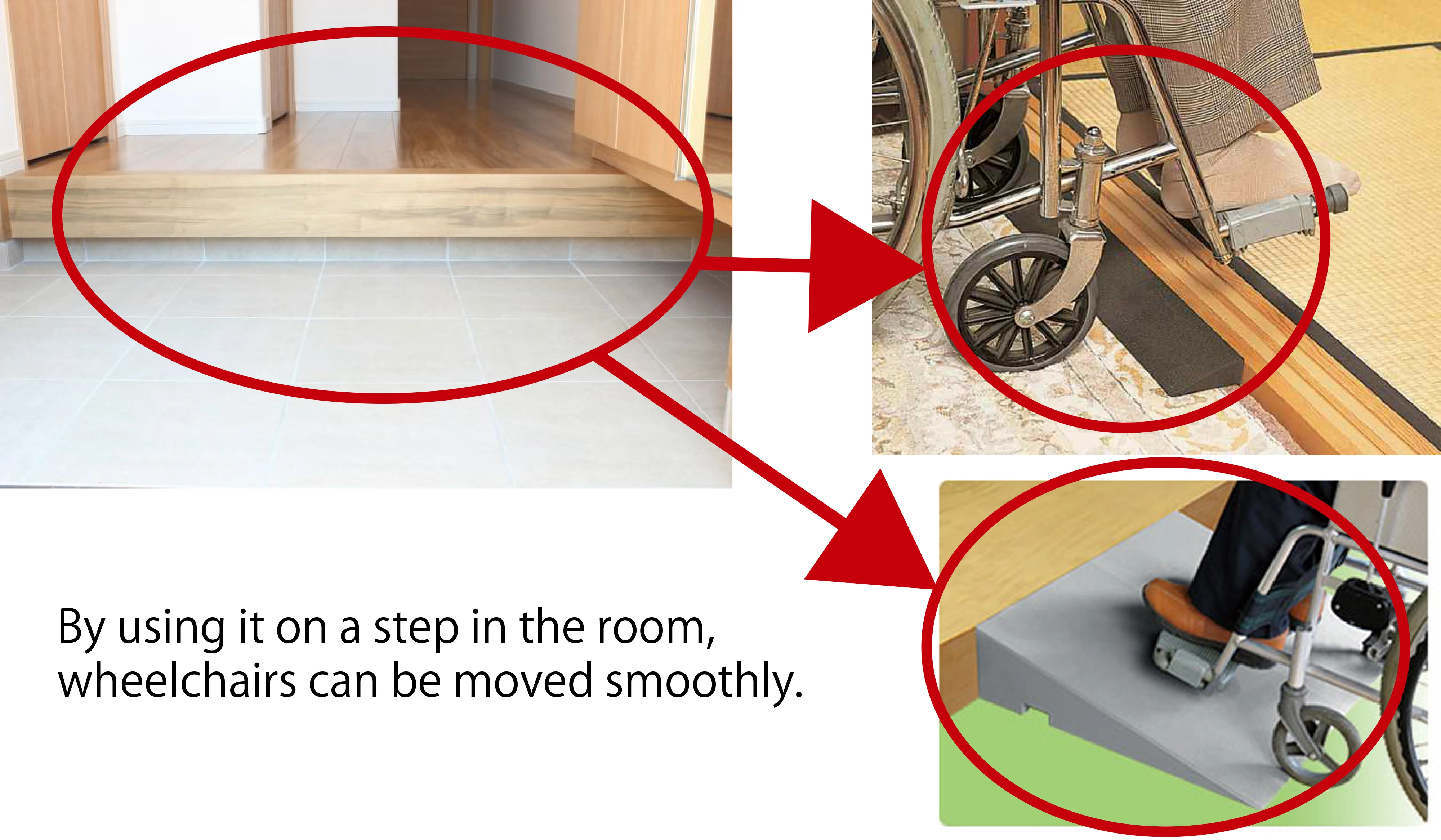

By using it on steps in the room, entrance and porch, wheelchairs can be moved smoothly.
