3HP 3 Phase AC Slip Ring Induction Motor Cut Section View Educational Equipment

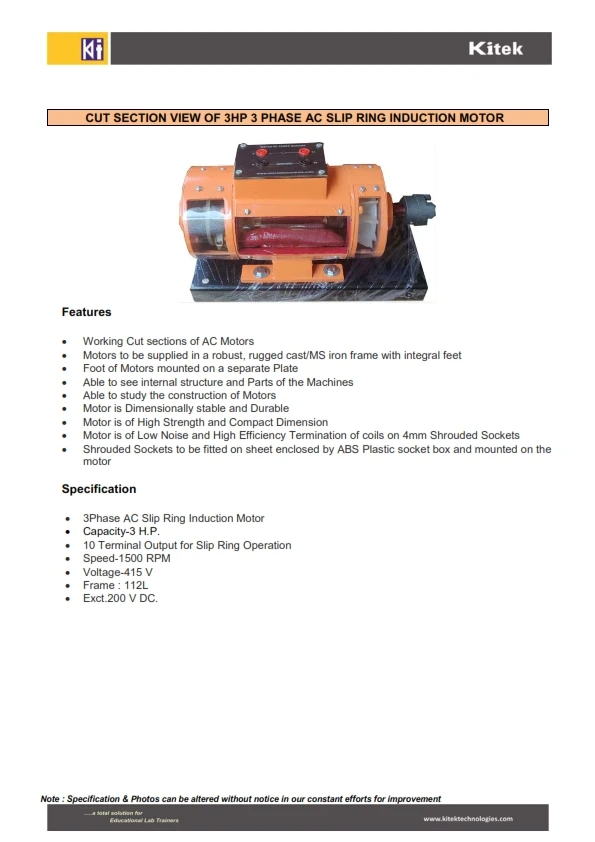

CUT SECTION VIEW OF 3HP 3 PHASE AC SLIP RING INDUCTION MOTOR

Features
• Working Cut sections of AC Motors
• Motors to be supplied in a robust, rugged cast/MS iron frame with integral feet
• Foot of Motors mounted on a separate Plate
• Able to see internal structure and Parts of the Machines
• Able to study the construction of Motors
• Motor is Dimensionally stable and Durable
• Motor is of High Strength and Compact Dimension
• Motor is of Low Noise and High Efficiency Termination of coils on 4mm Shrouded Sockets
• Shrouded Sockets to be fitted on sheet enclosed by ABS Plastic socket box and mounted on the motor

Specification
• 3Phase AC Slip Ring Induction Motor\t\t
• Capacity-3 H.P.
• 10 Terminal Output for Slip Ring Operation
• Speed-1500 RPM
• Voltage-415 V\t
• Frame : 112L
• Exct.200 V DC.
