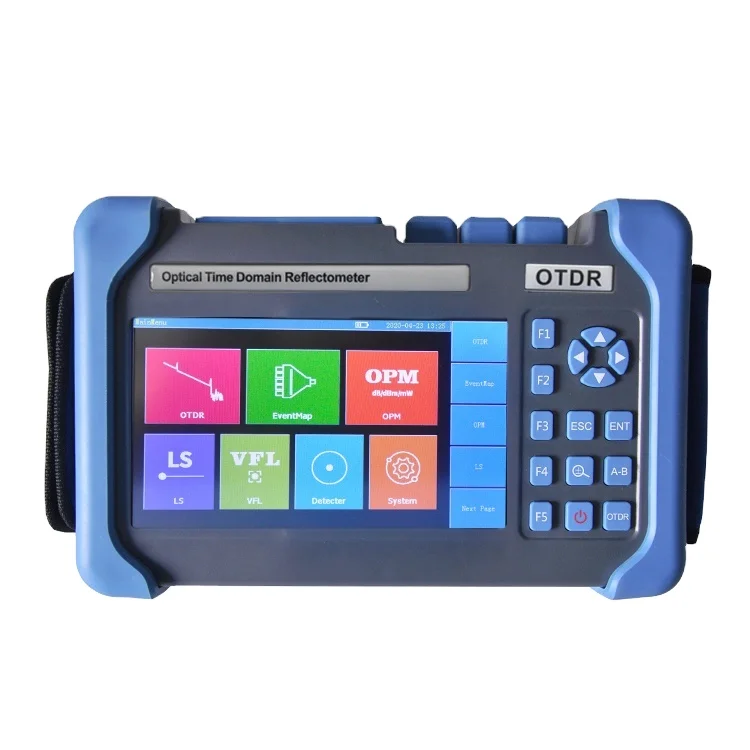

FCST080607 1310/1550nm Wavelength 37/35dB Dynamic Range Fiber Optical Time Domain Reflectometer OTDR For Network Construction
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (10000000597335):
Product Overview
Description
Product Specifications
Construction | Description |
Product Name | FCST080607 Series Optical Time Domain Reflectometer |
Dimension | 253×168×73.6mm 1.5kg (battery included) |

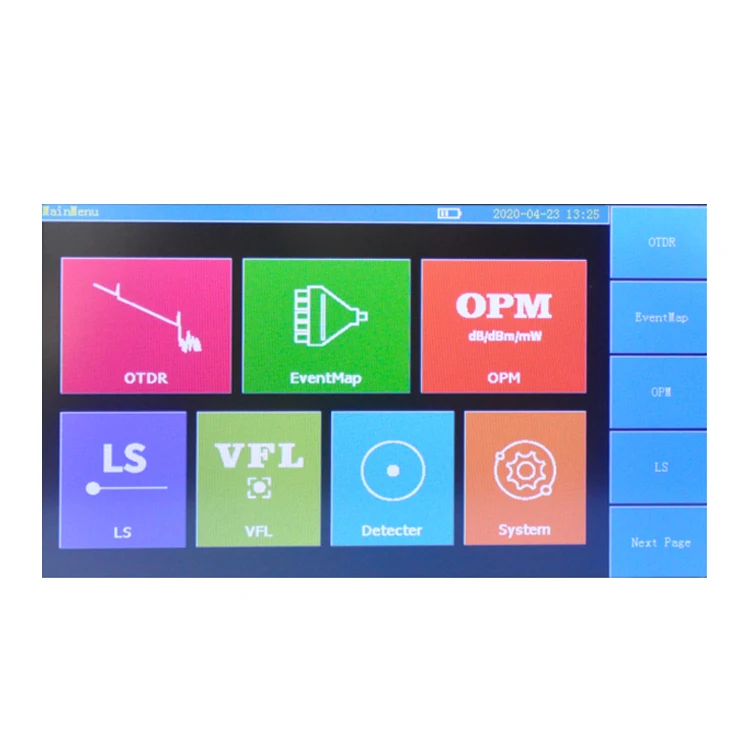

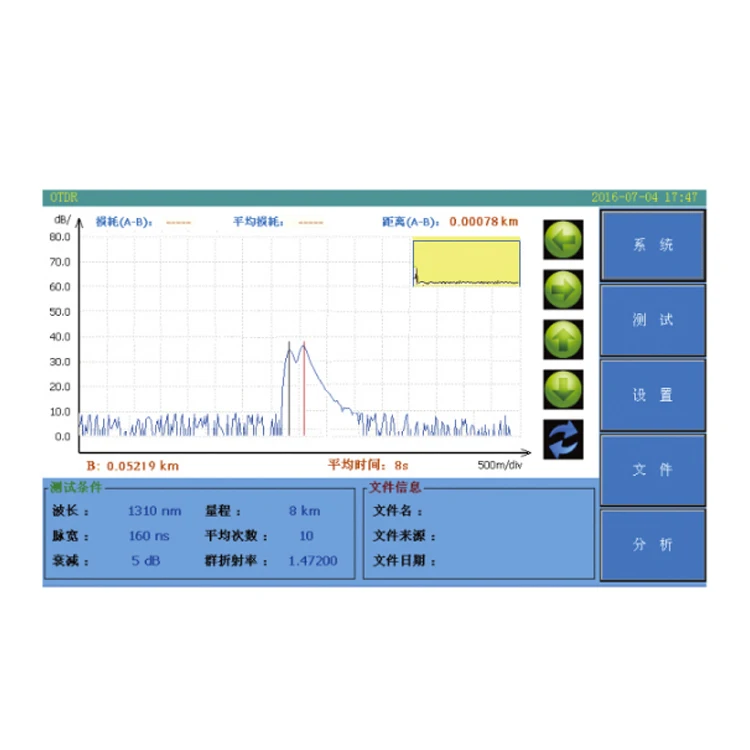

Display | 7 inch TFT-LCD with LED backlight (touch screen function is optional) |

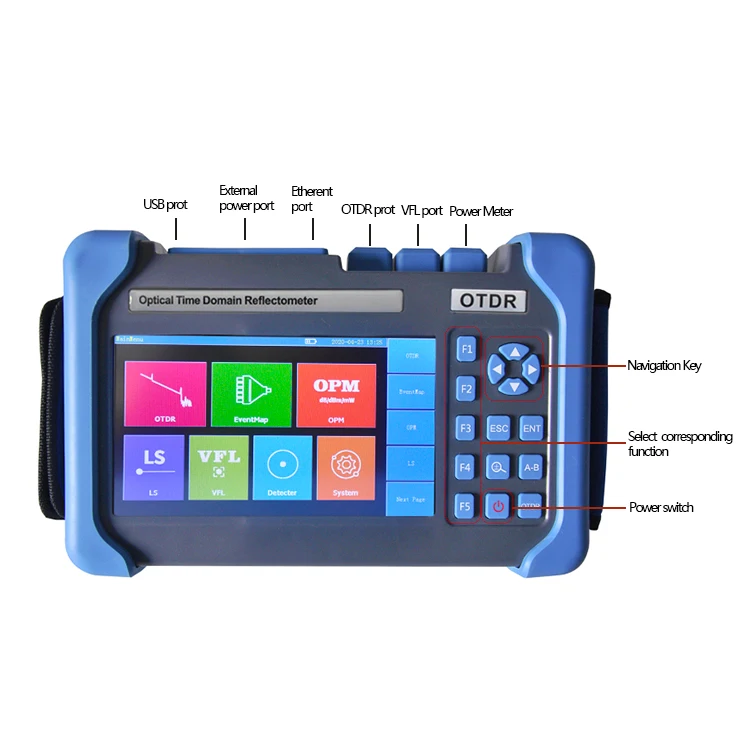

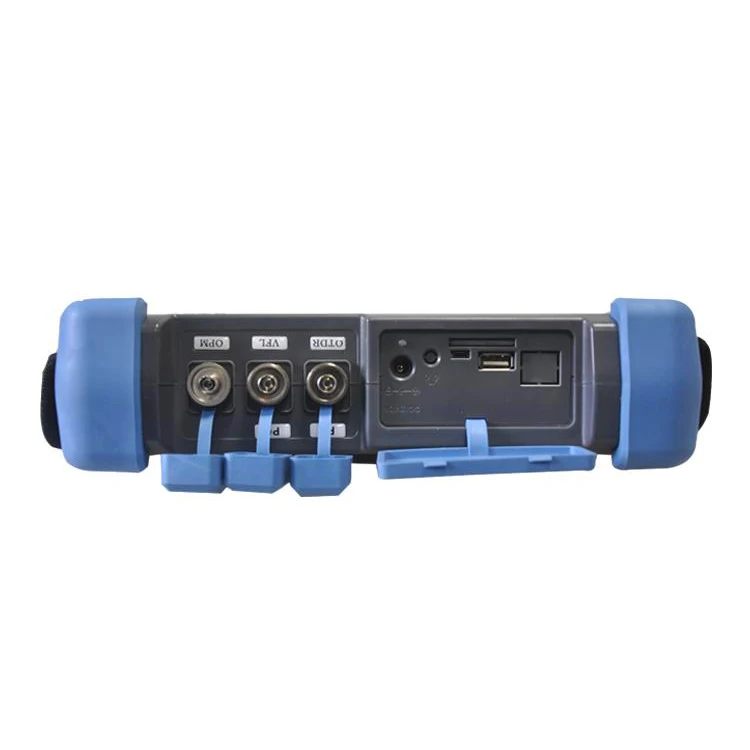

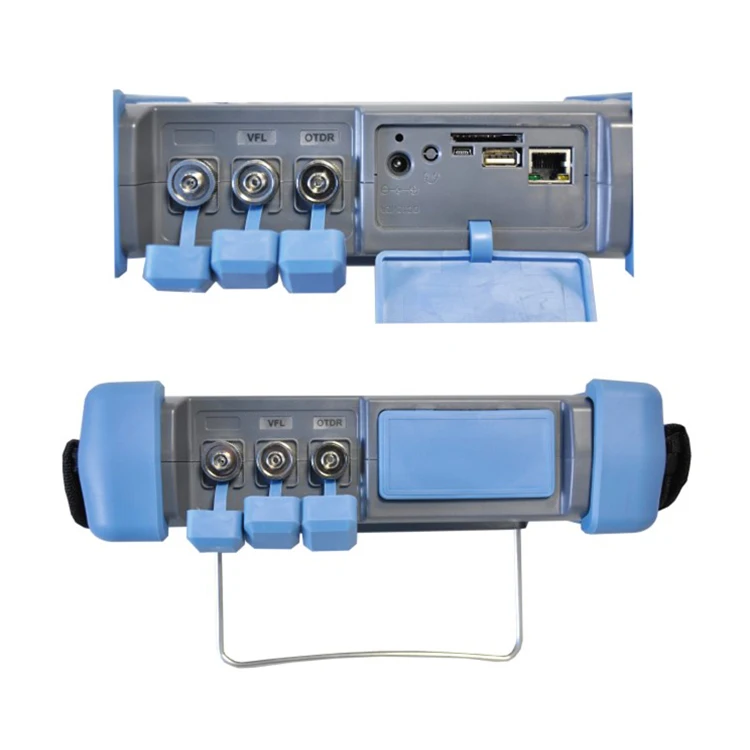

Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1) |
Power Supply | 10V(dc), 100V(ac) to 240V(ac), 50~60Hz |
Battery | 7.4V(dc)/4.4Ah lithium battery (with air traffic certification) Operating time: 12 hours, Telcordia GR-196-CORE Charging time: <4 hours (power off) |
Power Saving | Backlight off: Disable/1 to 99 minutes Auto shutdown: Disable/1 to 99 minutes |
Data Storage | Internal memory: 4GB (about 40,000 groups of curves) |
Language | User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others) |
Environmental Conditions | Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation) Proof: IP65 (IEC60529) |

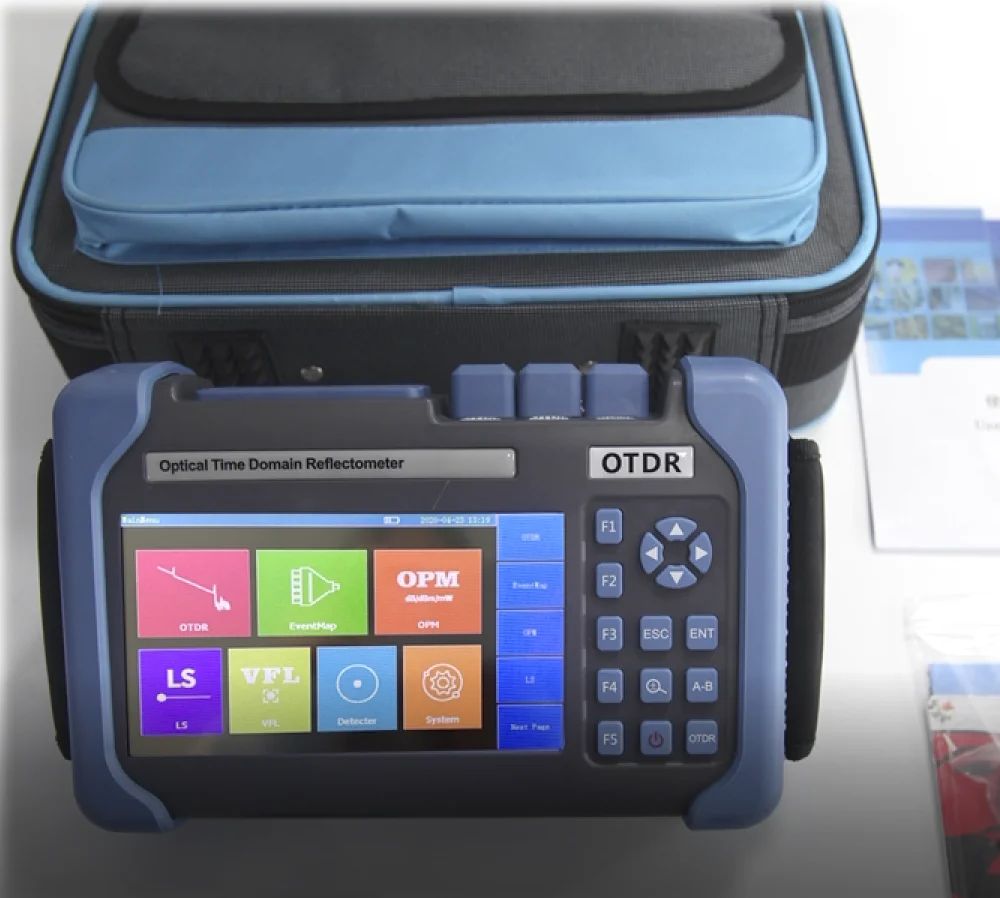

Accessories | Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case Optional: SC/ST/LC adapter, Bare fiber adapter |
Technical Parameter
Type | Testing Wavelength (MM: ±20nm, SM: ±10nm) | Dynamic Range (dB) | Event Dead-zone (m) | Attenuation Dead-zone(m) |
FCST080607-S1 | 1310/1550 | 32/30 | 1 | 8/8 |
FCST080607-S2 | 1310/1550 | 37/35 | 1 | 8/8 |
FCST080607-S3 | 1310/1550 | 42/40 | 0.8 | 8/8 |
FCST080607-S4 | 1310/1550 | 45/42 | O.8 | 8/8 |
FCST080607-T1 | 1310/1490/1550 | 30/28/28 | 1.5 | 8/8/8 |
FCST080607-T2 | 1310/1550/1625 | 30/28/28 | 1.5 | 8/8/8 |
FCST080607-T3 | 1310/1490/1550 | 37/36/36 | 0.8 | 8/8/8 |
FCST080607-T4 | 1310/1550/1625 | 37/36/36 | 0.8 | 8/8/8 |
FCST080607（SM＆MM） | 850/13001310/1550 | 26/30/32/30 | 0.8 | 8/8/8/8 |
Product Advantages

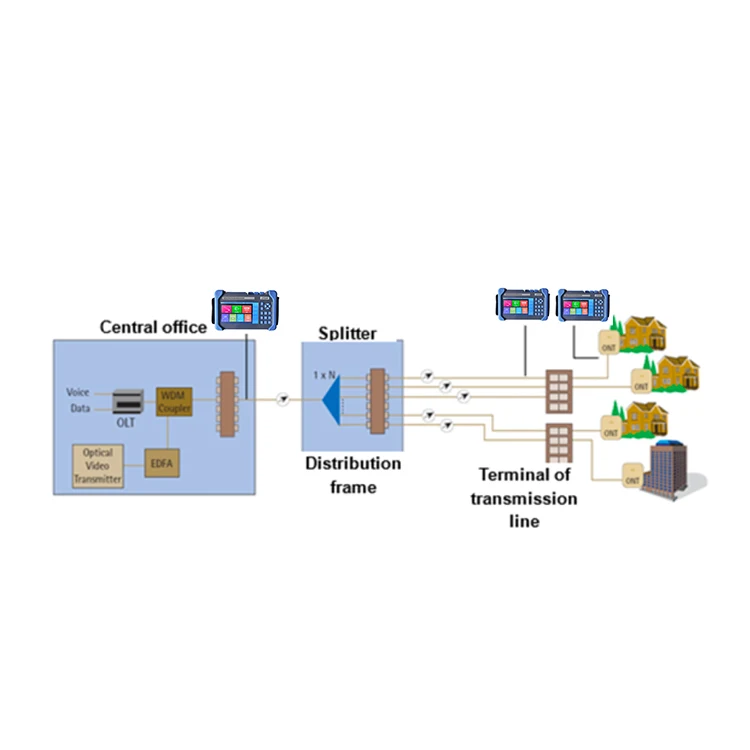

Unique PON network test function
The built-in unique PON network test function can realize the precise test and positioning of each branch of the PON network through the 1:8~1:64 optical splitter.
U disk or SD card; printer with basic USB interface; data communication with PC; remote control via Ethernet; external earphone.
Product Application

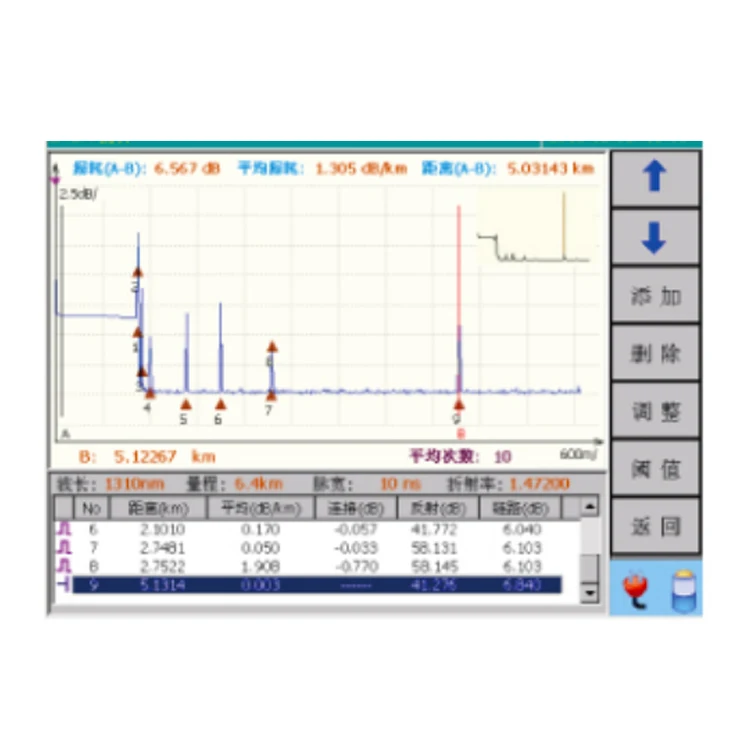

FCST080607 OTDR is a high-performance, multi-function test instrument designed by FCST for FTTx networks. It has excellent test performance and can support various test modules such as VFL, OPM, and fiber optic microscope (FIP). This product is mainly used to measure the length, transmission loss, connector loss and other physical properties of optical fibers, and is widely used in FTTH networks, local area optical networks, metropolitan area optical networks, PON network construction, deployment, maintenance, certification, and optical communication teaching And scientific research.
Recommend Products
As a 17 years old company in fiber optic tools field, we can distribute and provide full of your test instruments and tools
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.

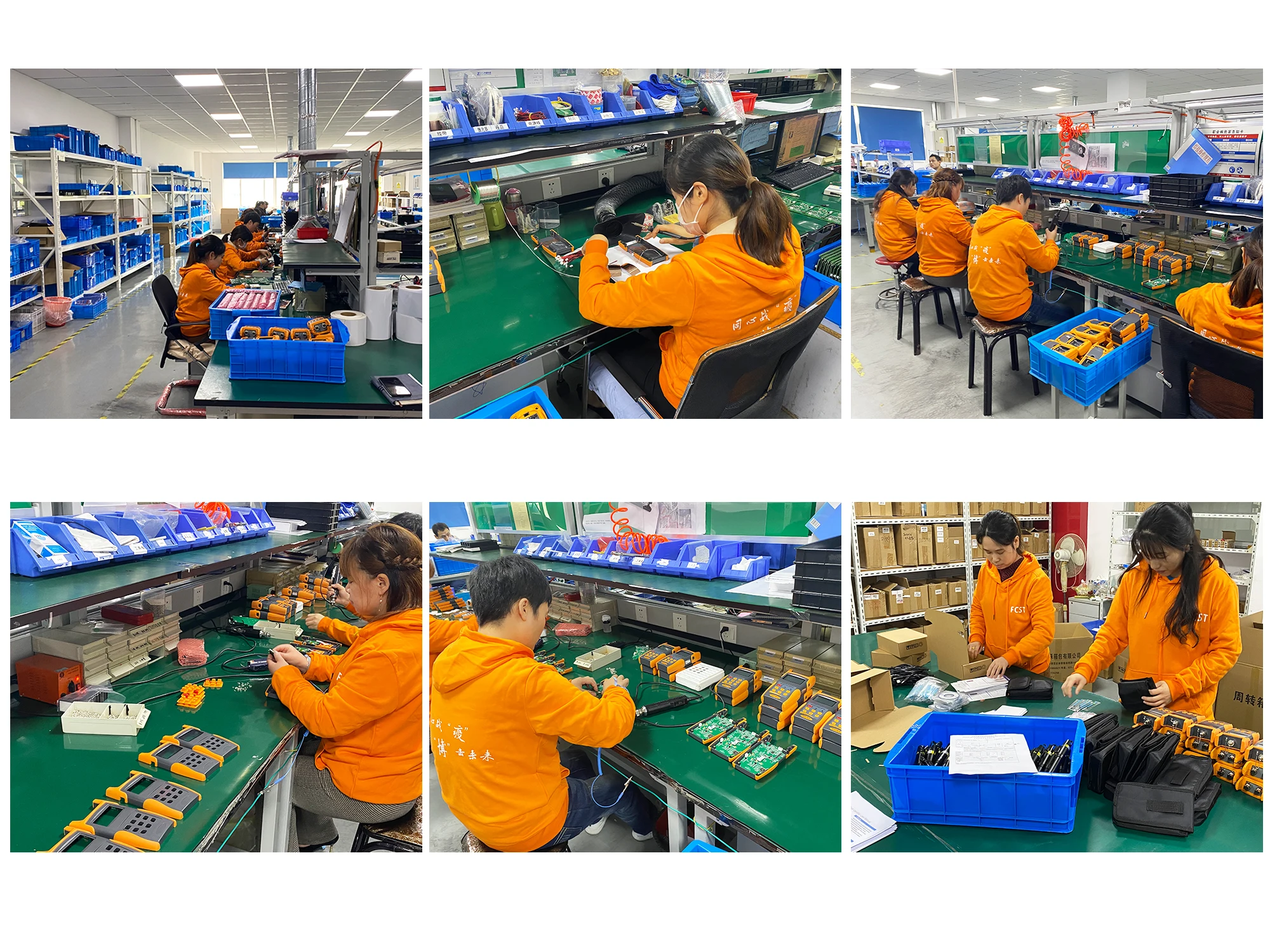

Product packaging and warehouse
