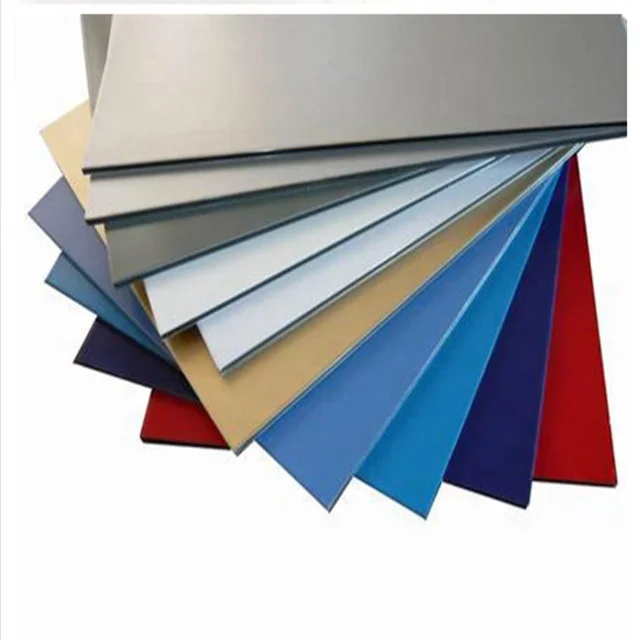

High Strength PVDF Aluminum dibonds/alucobond price

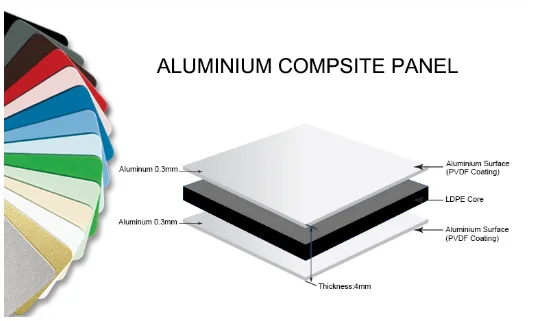

1) Protective film with Trubond OEM brand or as requested.
2) Front side: aluminum roll coated with PE/PVDF
3) Macromolecular lamination film.
4) Core: Non-toxic polyethylene.
5) Macromolecular lamination film.
6) Rear side: Aluminum coated with primer or as requested.
aluminium composite panel sheet manufacturers
Aluminium composite panel consisting of two aluminium cover sheets(AA1100 Series or AA3003 Series) sandwiching a non-toxic low density polyethylene core produced from a continuous extrusion process.Used for cladding,advertising.It’s usually called Aluminium composite panel,shortened as ACP or ACM.
|Aluminium Composite Panel Quick Details|
A) Front : aluminium alloy sheet coated fluoro-carbon resin (PVDF) with Nano lacquer.
B) Core: nontox low density polyethylene.
C) Back: aluminium alloy sheet coated with polyester resin painting.
D) Surface coating thickness: 32μ±1μ.
E) Aluminium alloy: 3003 H24.
F) Sheet thickness: 0.3mm,0.4mm,0.5mm .
A) Thickness: 3mm,4mm,6mm,8mm,10mm.
B) Width: 1220mm,1250mm,1500mm,1570mm,1800mm,2000mm(max).
C) Length: 2440mm,3050mm,3200mm( max:6000mm).
D) Weight: 5.5kg/sqm baesd on 0.5/4mm thickness.
E) Standard size:1220*2440mm.
F) Qty/20'fcl:4mm/2380sqm; 3mm/2977sqm.
G) Non-stanard size are available according to requirement.
A) West Europe standard ( Germany DIN Standard).
B) The EAST Europe standard ( Russian standard ).
C) The commonweathlth standard (U.K BS Standard ).
D) The North America ASTM standard.
ACP compared with different products( Lightness / Rigidity ):
The composite structure of Alumtimes® results in an impressive strength-to-weight ratio, even when comparing large panel sizes. Despite its low weight, which makes Trubond easy to transport and handle in the factory and on site, its rigidity and high strength make the panels keep their shape and remain flat, even when exposed to extreme temperature changes. Comparison of thickness and weight of panels with equal rigidity.
Trubond ACP compared with solid aluminium:
Required thickness and actual weights of panels with same rigidity
|Rigidity (E J)||Section modulus||Thickness||Weight||Thickness||Weight|
|1250 kN cm2/m||1.25 cm3/m||3 mm||4.5kg/m2||2.7 mm||7.3kg/m2|
|2400 kN cm2/m||1.75 cm3/m||4mm||5.5kg/m2||3.3 mm||8.9kg/m2|
Trubond ACP Physical Properties for Panel:
|Aluminium Skin Thickness||Average 7.0 N/mm|
|Tensile Strength||52.5 Mpa|
|Flexural Strength||100.0 Mpa|
|Shear Strength||28.1 Mpa|
1)Building exterior curtain walls
