Red Waterproof 12V 24V 6AWG 50A Anderson Style Plug Connectors
- Category: >>>
- Supplier: Ningbo Zhong Xin Electronic Technology Co. Ltd.
Share on (10000000668918):
Product Overview
Description
Product Description
Specification
Current Rating | 50A |
Voltage Rating | Max 600V |
Operating Voltage | For 12V or 24V Use |
Color | Red |
Operating Temperature | -20°C ~105°C |
Cable Size | #16 to #6 (AWG), 1.5 to 13.3(mm²) |
Features

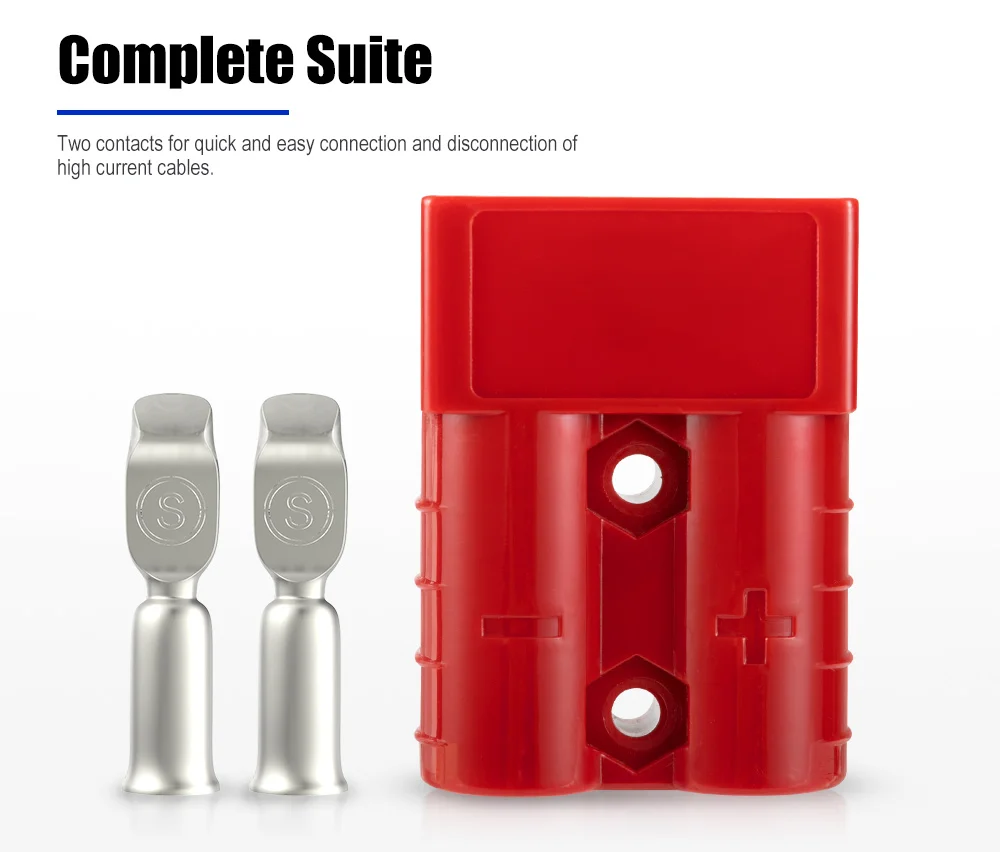

Complete Suite: We offer 10 two pole waterproof Anderson style plugs with 20 contacts for quick and easy connection and disconnection of high current cables.

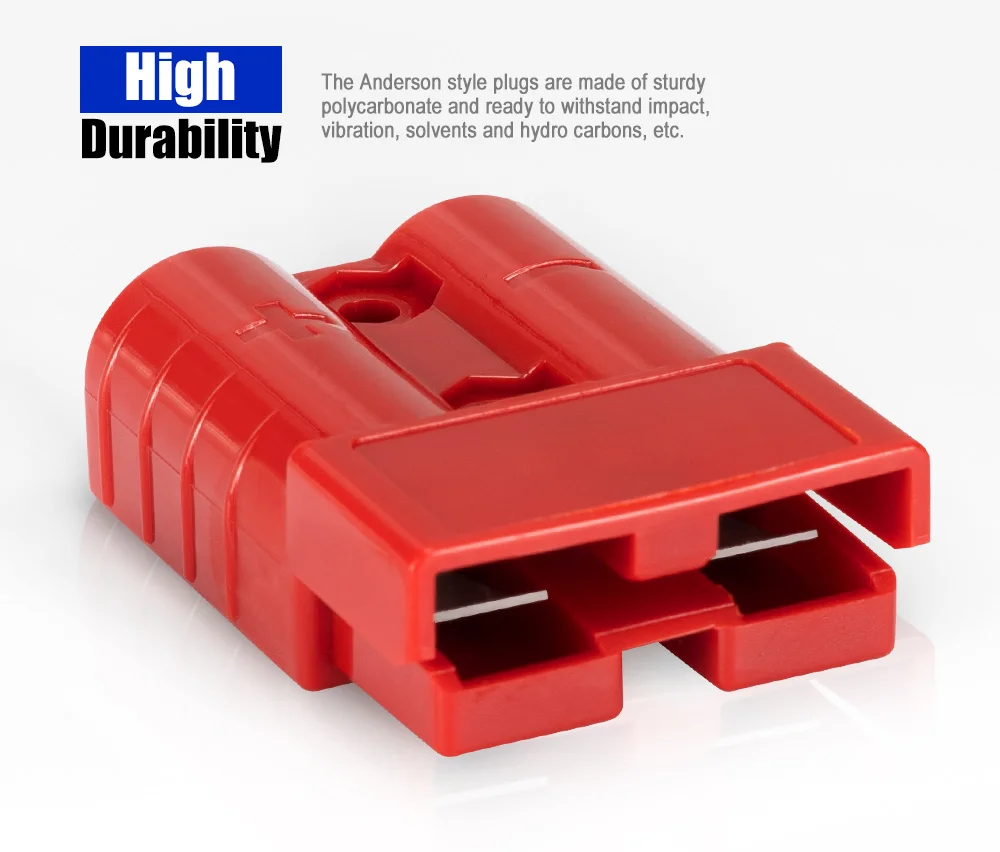

High Durability: The Anderson style plugs are made of sturdy polycarbonate and ready to withstand impact, vibration, solvents and hydro carbons, etc.

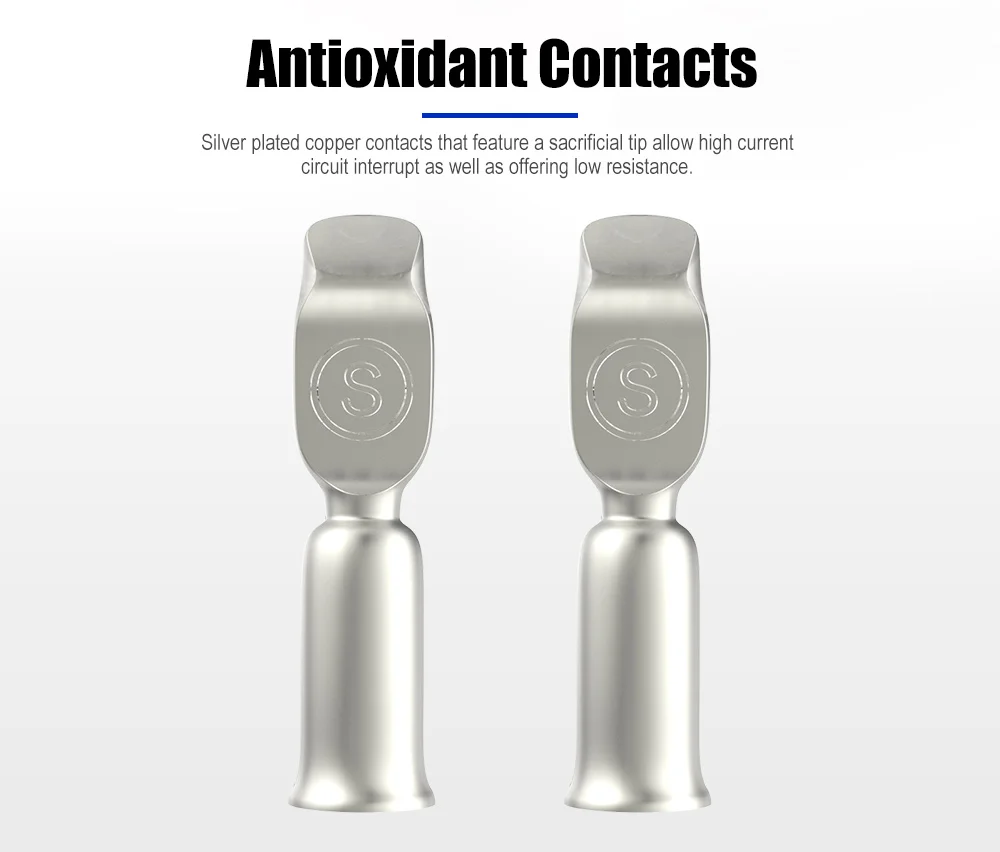

Antioxidant Contacts: Silver plated copper contacts that feature a sacrificial tip allow high current circuit interrupt as well as offering low resistance.

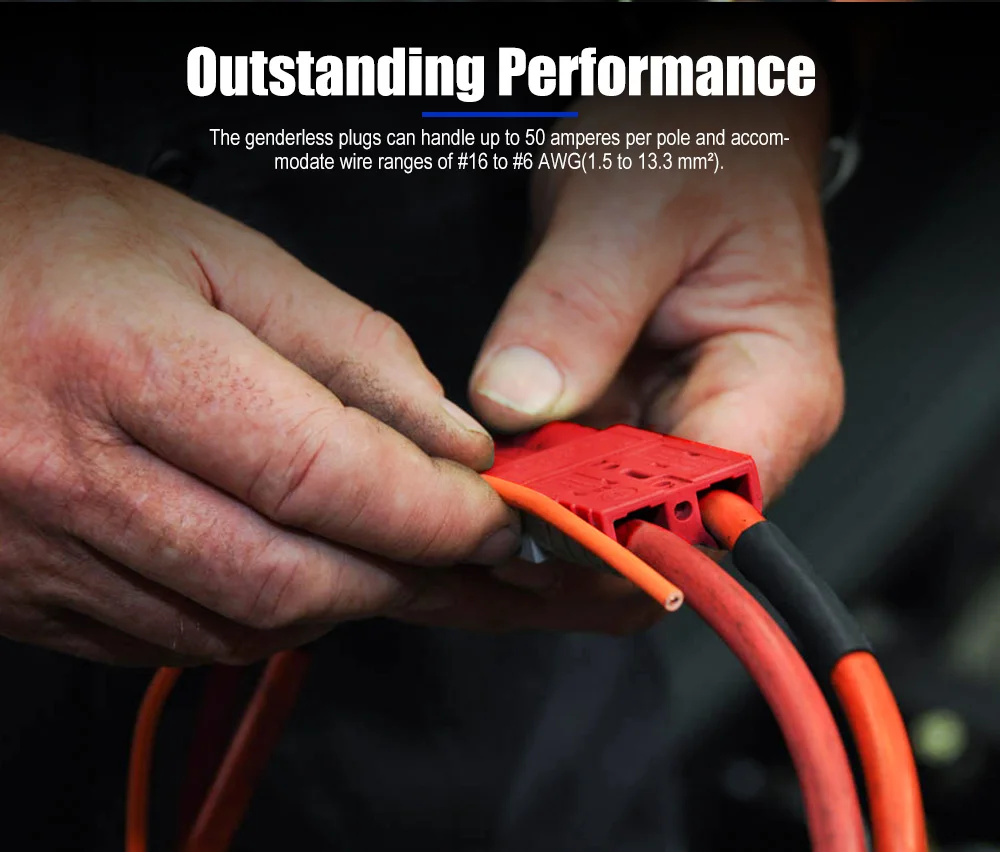

Outstanding Performance: The genderless plugs can handle up to 50 amperes per pole and accommodate wire ranges of #16 to #6 AWG (1.5 to 13.3 mm²).

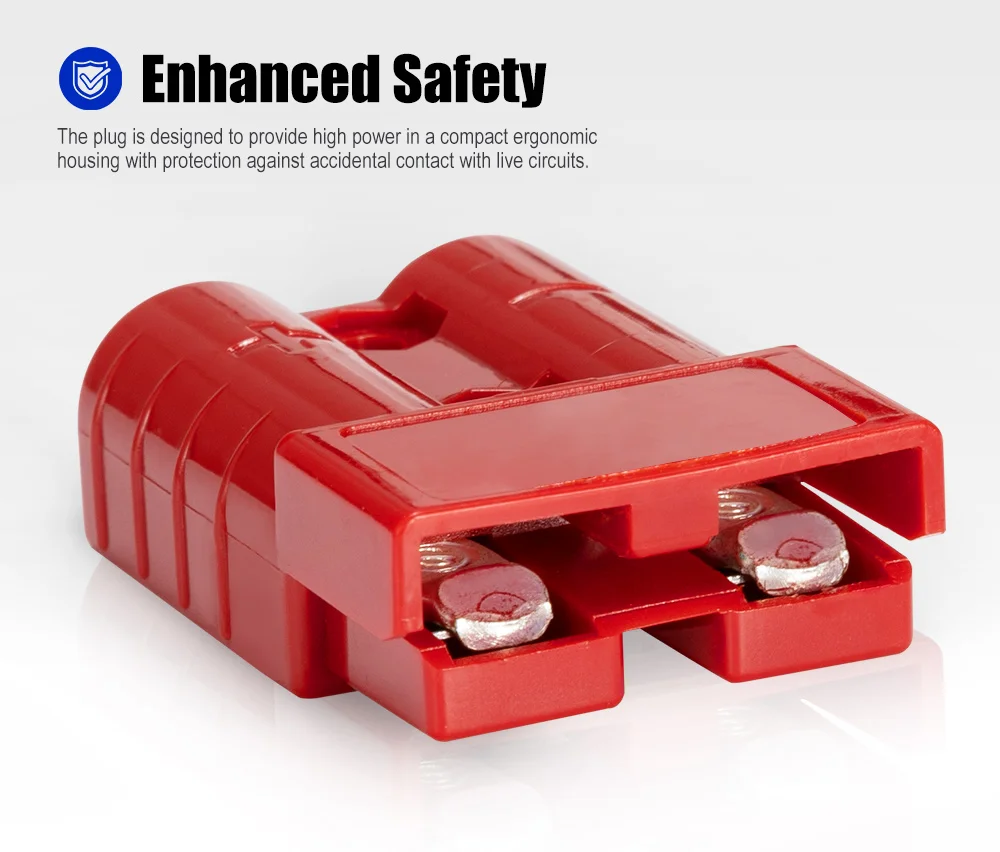

Enhanced Safety: The plug is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.
Super Versatility: Compatible with a 12V or 24V DC power source, this suite is suitable for solar panels, dual battery systems,caravans, 4WD, fridges, etc.
Terminal Insertion: Observing the polarity markings, insert the terminal that can be crimped or soldered into the connector
housing until a sharp click is heard.
Terminal Removal: Press the sprung metal tabs inside the connector housing fully flat by using a suitable tool and withdraw the terminal.
Flat Wiping: Allowing for minimal contact resistance at high current, the self-wiping action cleans contact surfaces during
connection/disconnection.
Complete Suite: We offer 10 two pole waterproof Anderson style plugs with 20 contacts for quick and easy connection and disconnection of high current cables.
High Durability: The Anderson style plugs are made of sturdy polycarbonate and ready to withstand impact, vibration, solvents and hydro carbons, etc.
Antioxidant Contacts: Silver plated copper contacts that feature a sacrificial tip allow high current circuit interrupt as well as offering low resistance.
Outstanding Performance: The genderless plugs can handle up to 50 amperes per pole and accommodate wire ranges of #16 to #6 AWG (1.5 to 13.3 mm²).
Enhanced Safety: The plug is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.
Super Versatility: Compatible with a 12V or 24V DC power source, this suite is suitable for solar panels, dual battery systems,caravans, 4WD, fridges, etc.
Terminal Insertion: Observing the polarity markings, insert the terminal that can be crimped or soldered into the connector
housing until a sharp click is heard.
Terminal Removal: Press the sprung metal tabs inside the connector housing fully flat by using a suitable tool and withdraw the terminal.
Flat Wiping: Allowing for minimal contact resistance at high current, the self-wiping action cleans contact surfaces during
connection/disconnection.
