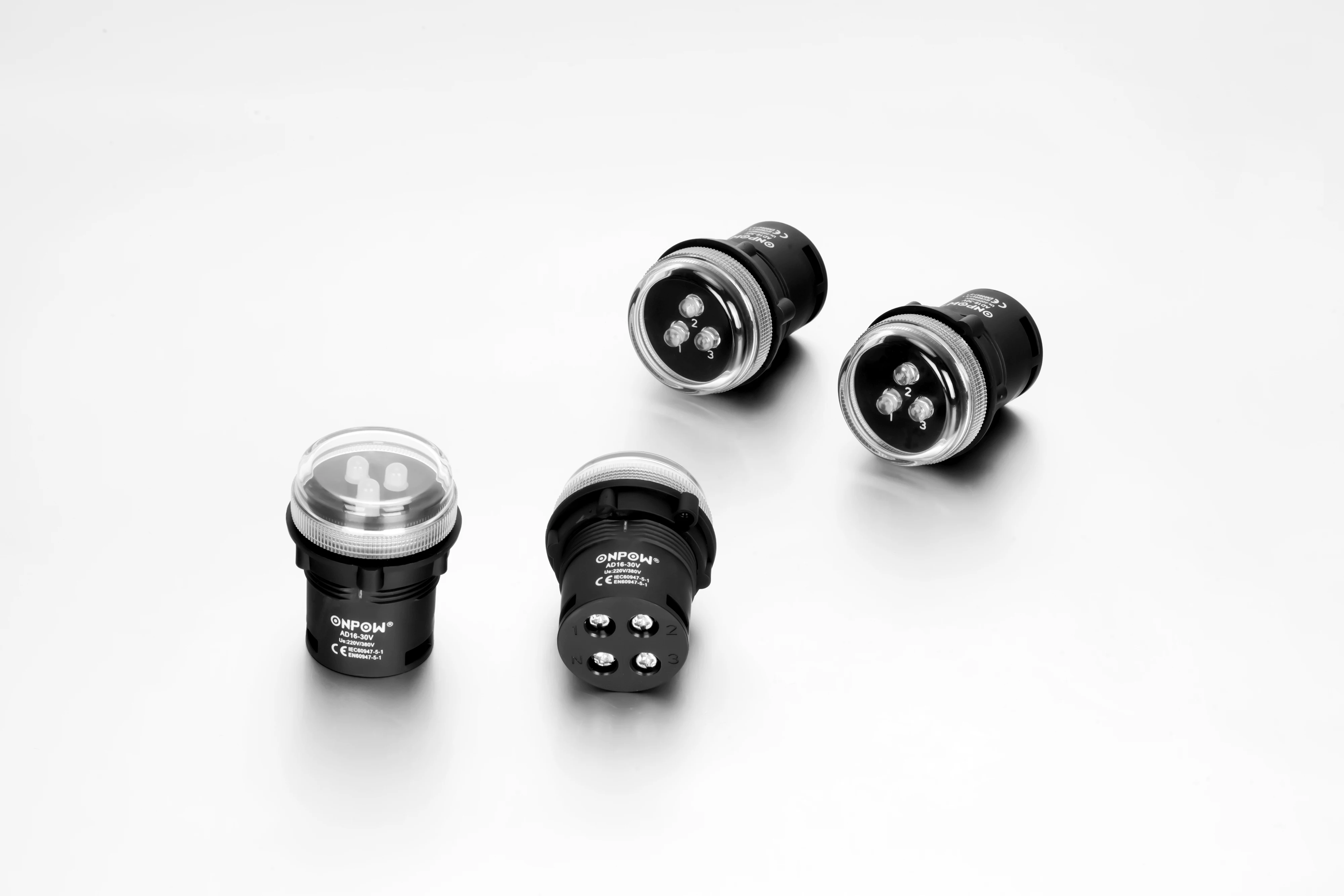

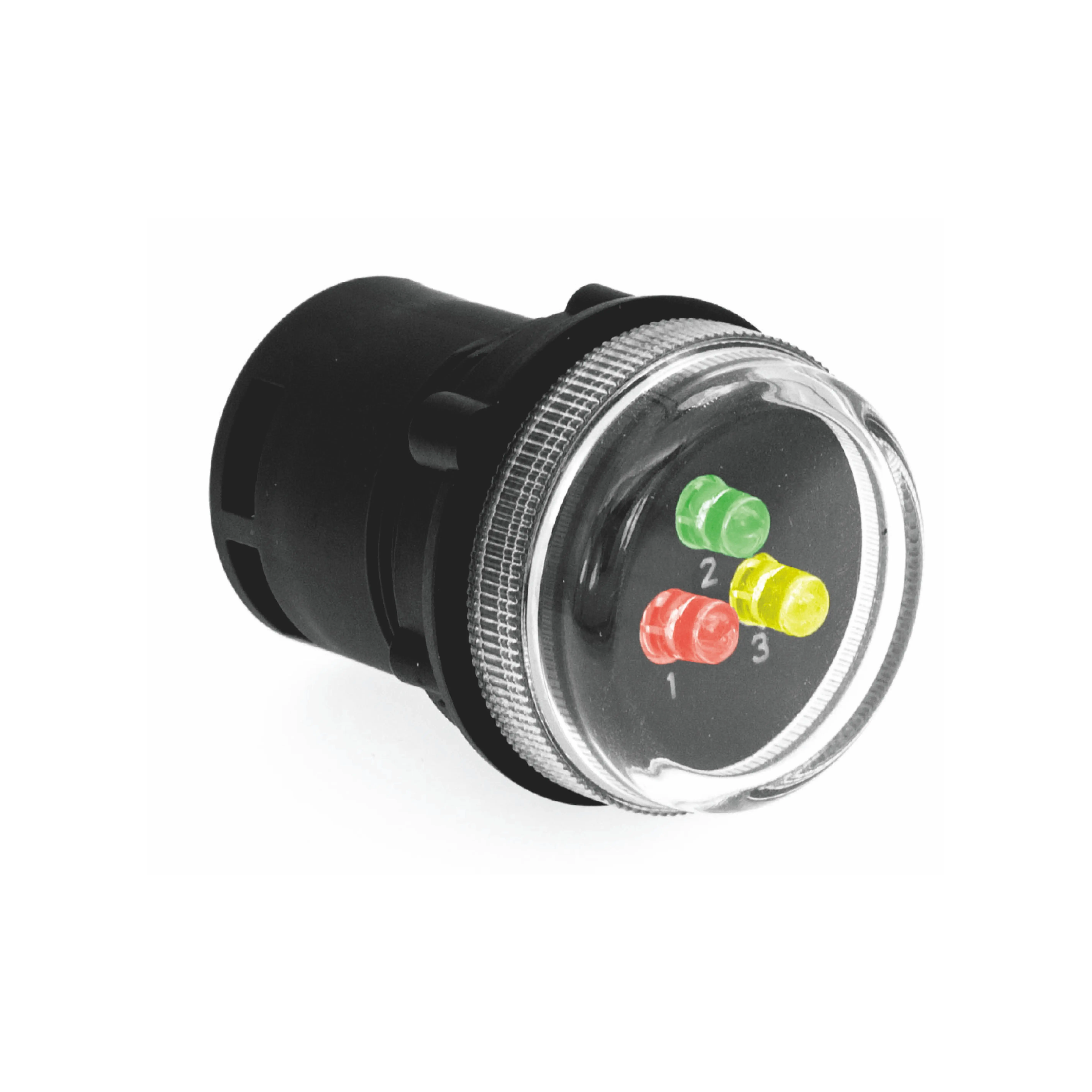

LYAN product 30mm 1890VAC 50Hz, RGY lamp 3 phase indicator light, LY3P 30V/RGY

Product Overview

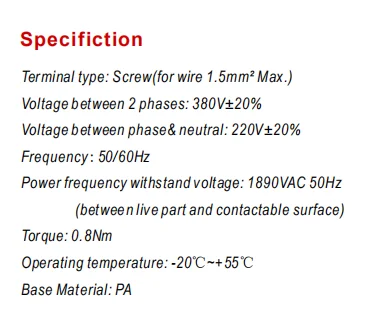

Description



brand	LYAN
part number	LY3P-30V/RGY
Terminal type	Screw(for wire 1.5mm² Max.)
Voltage between 2 phases	380V±20%
Voltage between phase& neutral	220V 20%
Frequency	50/60 Hz
Power frequency withstand voltage	1890VAC 50Hz(between live part and contactable surface)
Torque	0.8Nm
Base material	PA





Pls contact me to confirm the product details before ordering.

For large qty,we could give you more discount!
