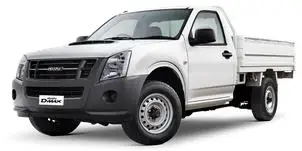

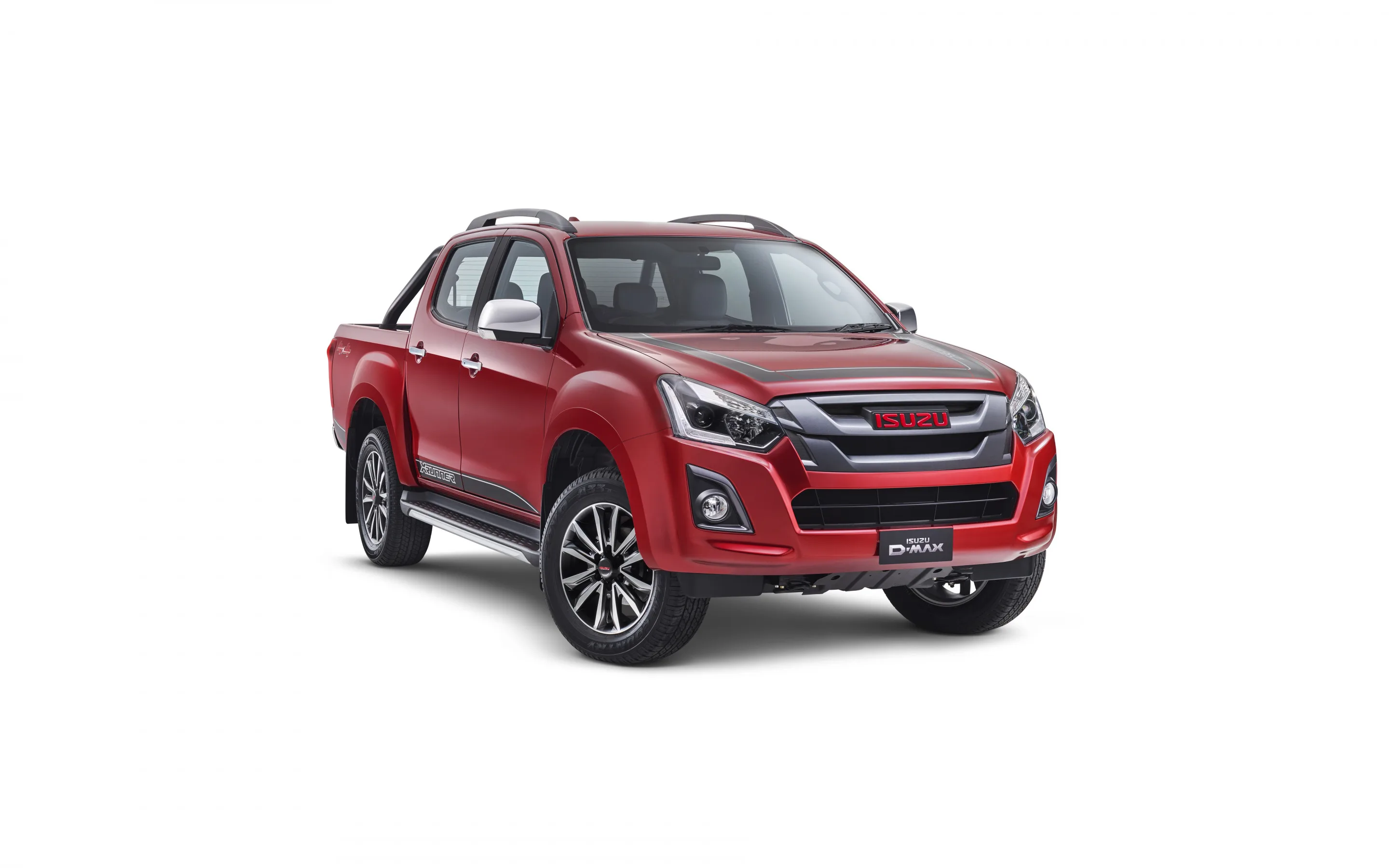

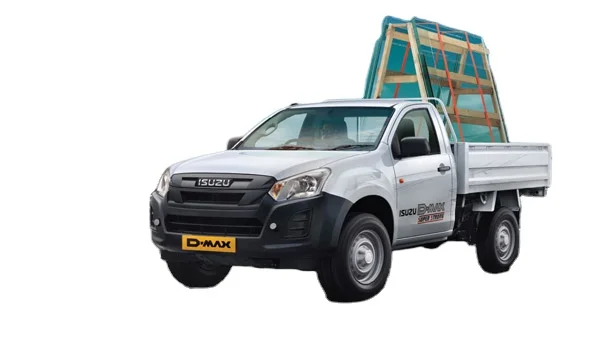

2990kg 3490kg 2499cc Cargo Pick Up Truck D max from Indian Supplier

Product Overview

Description

PERFORMANCE

Powerful & proven engine with VGS technology

Low 6.3m turning radius

220 mm high ground clearance

Refined 5-speed gearbox with overdrive

COMFORT

SUPER COMFORTABLE LIKE AN SUV, SUPER STRONG LIKE A TRUCK

Modern car-like controls for fatigue free long drives. Spacious cabin with ergonomic design help you drive effortlessly for longer hours

1 Fabric seat covers

2 Quiet and spacious cabin

3 Car-like interiors

4 Multiple storage spaces

5 A/C* with blowers, heater, dust and pollen filter(*optional)

6 Ergonomic cabin controls

SAFETY

THE CONFIDENCE OF SUPER STRONG SAFETY Collapsible chassis with crumple zones

Efficient braking system

Cross-car front beam and side-door intrusion beams

Underbody protection kit

Collapsible steering column

LSPV(Load sensing proportioning valve)

1 Gear shift indicator



2 High contrast and stylish instrument cluster



3 Brake override system

4 Rear parking sensor

5 Co-driver sliding seat

6 High mount stop lamp

Type
4 Cylinder, Common Rail, VGT Intercooled Diesel

Engine Displacement
2499 cm3

Max Power
58 kW (78 hp) @ 398 rad/s (3800 rpm)

Max Torque
176 Nm @ 157 - 251 rad/s (1500-2400 rpm)

Drive Type
2WD

No. of speeds, shift type
5 Speed, Manual

Front Type
Double Wishbone, Coil Spring

Rear Type
Semi-Elliptic Leaf Spring

Rim Size
6.5J x 16 (40.64 cm)

Tyre Size
205 R16C

Tyre Type
Radial

Brake Type
Hydraulic Brake with large Booster (26.67 cm) and LSPV

Front Brake
Ventilated Disc with Twin Pot Caliper

Rear Brake
Drum

Steering Type
Hydraulic Power Assist with Tilt Adjustment

Overall Vehicle (LXWXH)
5375 mm x 1860 mm x 1800 mm

Wheelbase
3095 mm

Cargo Deck (Inner) (LXWXH)
2440 mm x 1725 mm x 510 mm

Turning Circle Radius
6.3 m

Ground Clearance
220 mm

Payload
1240 kg

GVW
2990 kg

Kerb Weight
1750 kg / 1550 kg

Fuel Tank Capacity
55 litre

Seating Capacity
D+1
