Bag In /Bag-Out Housing (hereinafter referred to as BIBO) adopts fully enclosed bag entry and exit design, which can effectively isolate the pollution of radioactive gases, pathogens and toxic chemicals, provide users with a safe and reliable environment, effectively prevent secondary air pollution, and ensure the safety of operators. Applications: Usually used in medical care, pharmaceutical engineering, microelectronics factory, nuclear industry and biochemical laboratories and other fields. The design of single or multiple filtration system is adopted: the single filtration system has only one high efficiency filter; the multiple filtration system can increase the middle and middle efficiency filter section, the chemical filter section, the activated carbon filter section and the double high efficiency filter section.
Product advantages: Modular design, compact structure, easy to transport, the use of building blocks stacked installation design, to meet the requirements of large volume air filtration, stacked up to three layers, can effectively save space. The cabinet body is strong and has strong pressure resistance. The cabinet body is made of 304 stainless steel or high quality cold rolled steel (electrostatic spraying). The maximum resistance pressure is 2500 Pa positive pressure and 3000 Pa negative pressure. The replacement of the filter is simple and reliable. The filter is pressed by fast pressure, and the screw bolts are reduced. It is easy to operate in the bag and ensures the reliability of the pressure. Equipped with auxiliary mobile device, it is convenient to replace the filter. Optional filter, high air volume or PTFE high strength filter, shock resistance, prevent filter damage. The maximum air volume of box filter can reach 4000 CMH and the maximum efficiency of PTFE can reach U16 (EN1822).
item
value
Applicable Industries
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, Cleanroom
Core Components
PLC, Engine, Motor, Pressure vessel
Condition
New
Efficiency
2.2kw, 2Kw
Construction
Bag Filter
Porosity
Place of Origin
China
Shanghai
Brand Name
Marya
Dimension(L*W*H)
1550*1150*1520mm
Weight
87KGS
Certification
CE ISO9001 GMP
Warranty
1 Year
Certification
CE
Filtering Material
Glass Fiber Filter Material
Feature
Low Carbon Environmental Protection
Structure
Bag Housing
Suitable for
Dysons Air Purifier HEPA Filter
Size
Customer Requiremen
Brand
Marya
Shape
Cylindrical Cartridge Filter
Frame
Aluminum Frame
Voltage
380V, 380v/220v, 3PHASE
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shanghai marya pharmaceutical Engineering&Project Co.,Ltd is a professional manufacturer for pharmaceutical packaging machine and cleanroom system .We have 3 factories in Shanghai,Suzhou,Changsha.Our main products including BFS machine,Soft bag filling sealing machine,Blister packing machine(tablet/capsule/ampoule/vial/syringe blister packing machine),Strip packing machine,Tablet counting machine,Cartoning machine,Ampoule filling machine,vial powder filling machine,dry granulator etc.
As a manufacturer We can provide much better price and better technical support and service than trading companies.
We can design and manufacture machines based on Customer's request ,Your satisfaction is our top Priority.
Our machineries have sold all over the country and they are exported to South east Asia, America, Europe and middle east ,Africa and other countries and regions.

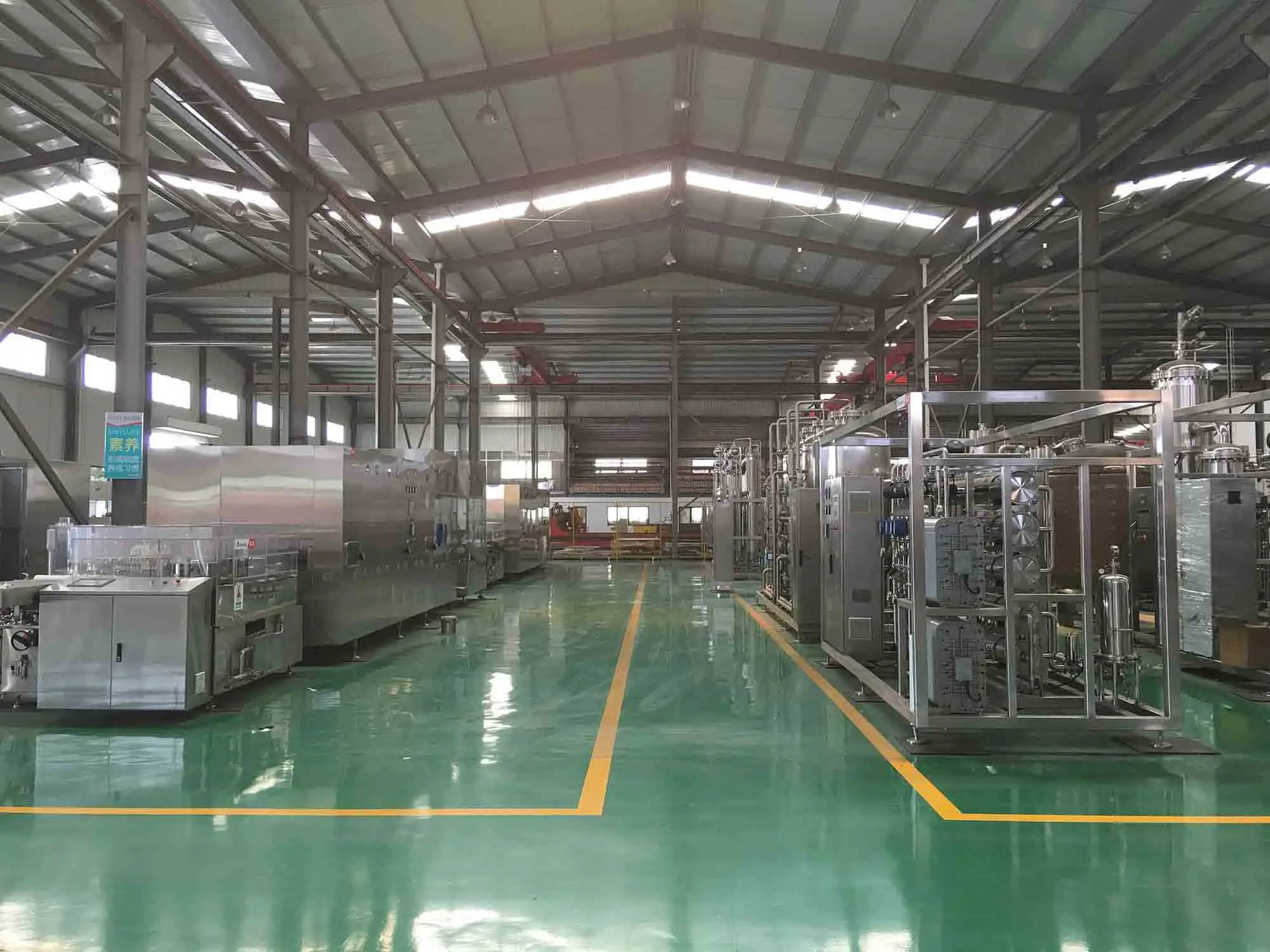

Welcome to Visit Our factory
FAQ
1. who are we? We are based in Hunan, China, start from 2014,sell to Eastern Europe(20.00%),North America(20.00%),Western Europe(10.00%),South America(10.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Southeast Asia(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Pharmaceutical packaging machine,Cleanroom system,pharmaceutical turnkey project,cleanroom turnkey project,pharmaceutical filling machine
4. why should you buy from us not from other suppliers? We are specialized in doing Pharmaceutical Packaging Machinery and Pharmaceutical Cleanroom System.
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
