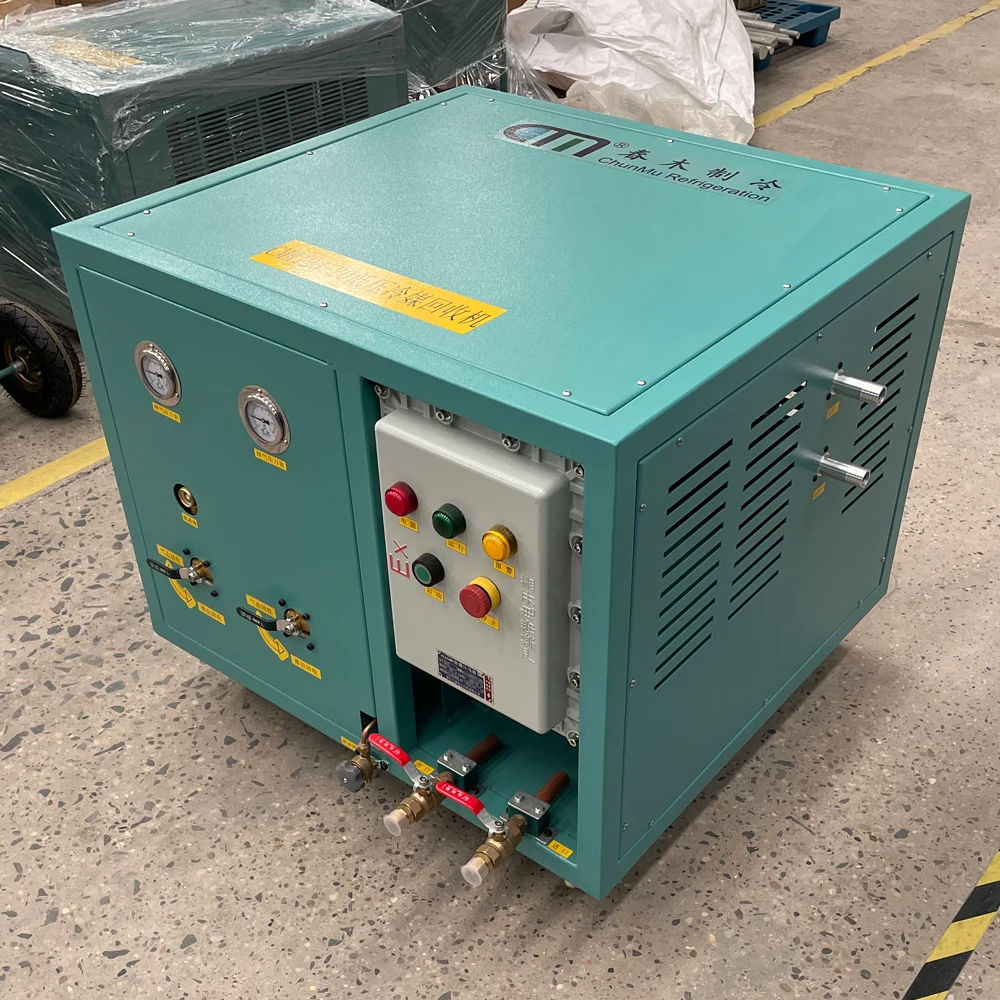

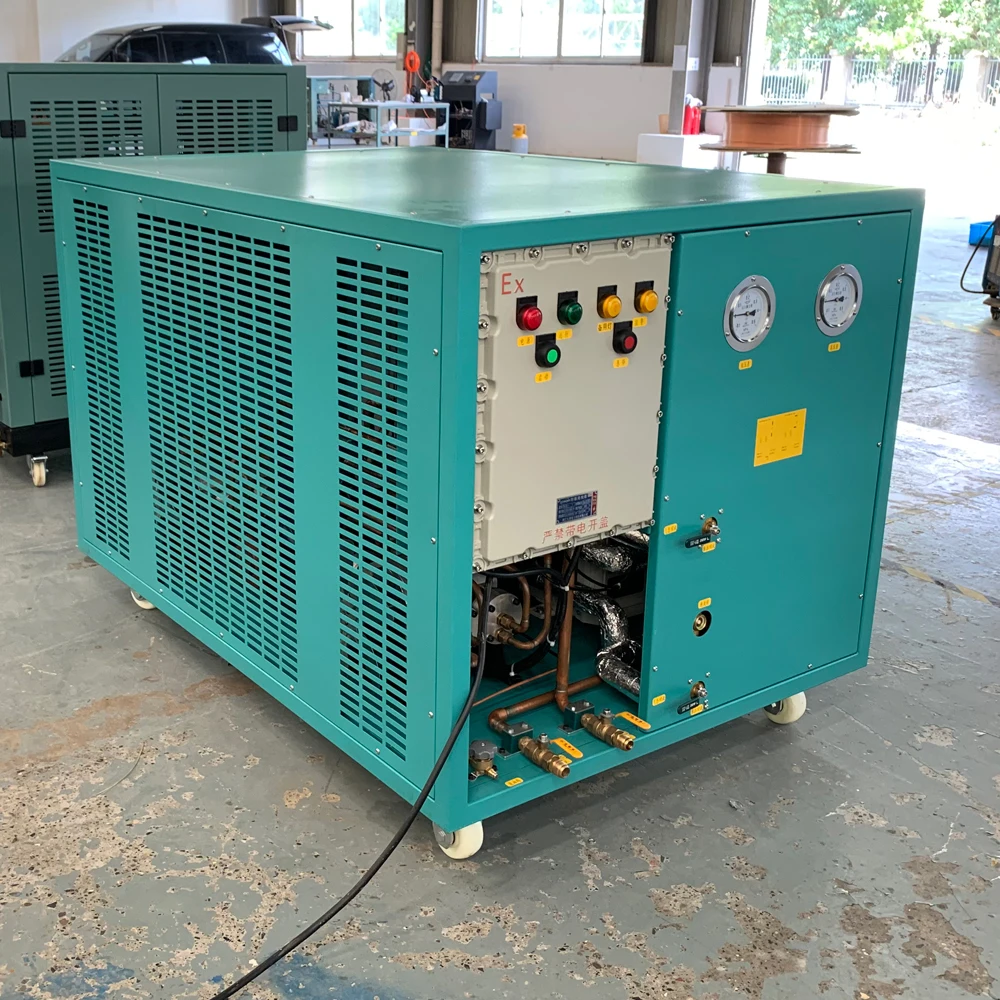

R123 Low Pressure Refrigerant Recovery And Recharge Machine
- Category: >>>
- Supplier: Nanjing Wonfulay Precision Machinery Co. Ltd.
Share on (10000000873102):
Product Overview
Description
Product Description
CMR123 Low Pressure Refrigerant Recovery/Recharge Machine Series is specially designed for low pressure refrigerants R123, R141B, R245FA, R1233zd etc, combined with recovery and vacuumfunctions. It’s helpful for maintenance of low pressure chillers and refrigeration equipment.
FEATURES
1- Adopt 4-cylinder oil-free piston compressors special for the low pressure refrigerant recovery;
2- Water-cooled type design make sure the normal running during hot environment;
3- Reversing valve design is convenient for recovery method switching, no need to change the connection horse;
4- High speed recovery rate, the compressor displacement is up to 20m3/hr or 40m3/hr;
5- The functions of recovery and vaccum are combined together, it's so easy for operation;
6- Optimized system design and full safety protection, long time working performance is excellent;
7- Air separator function is custom-designed (Optional).
Product Paramenters
Model | CMR123-20 | CMR123-40 | |
Compressor Type | Oil free piston compressor | ||
Compressor Power | 2 HP | 4 HP | |
Power Supply | 380V/50HZ/3PH | ||
Vapor Recovery Speed | ≤ 96Kg/hr | ≤ 180Kg/hr | |
Push/Pull Liquid Recovery Speed | ≤ 2400Kg/hr | ≤ 4000Kg/hr | |
Operating Temperature | -5°C to 45°C | ||
Suction Pressure | -0.09Mpa ~ +0.15MPa | ||
Discharge Pressure | 0 ~ 3bar | ||
Input/Output Pipe Size | 3/4'' SAE | 3/4'' SAE | |
Applicable Refrigerant | Low pressure refrigerants like: R123, R1233ZD, R11, R245FA, R141B | ||
Dimension(L*W*H) | 830*750*750mm | 830*750*750mm | |
Net Weight | 120kg | 170kg | |

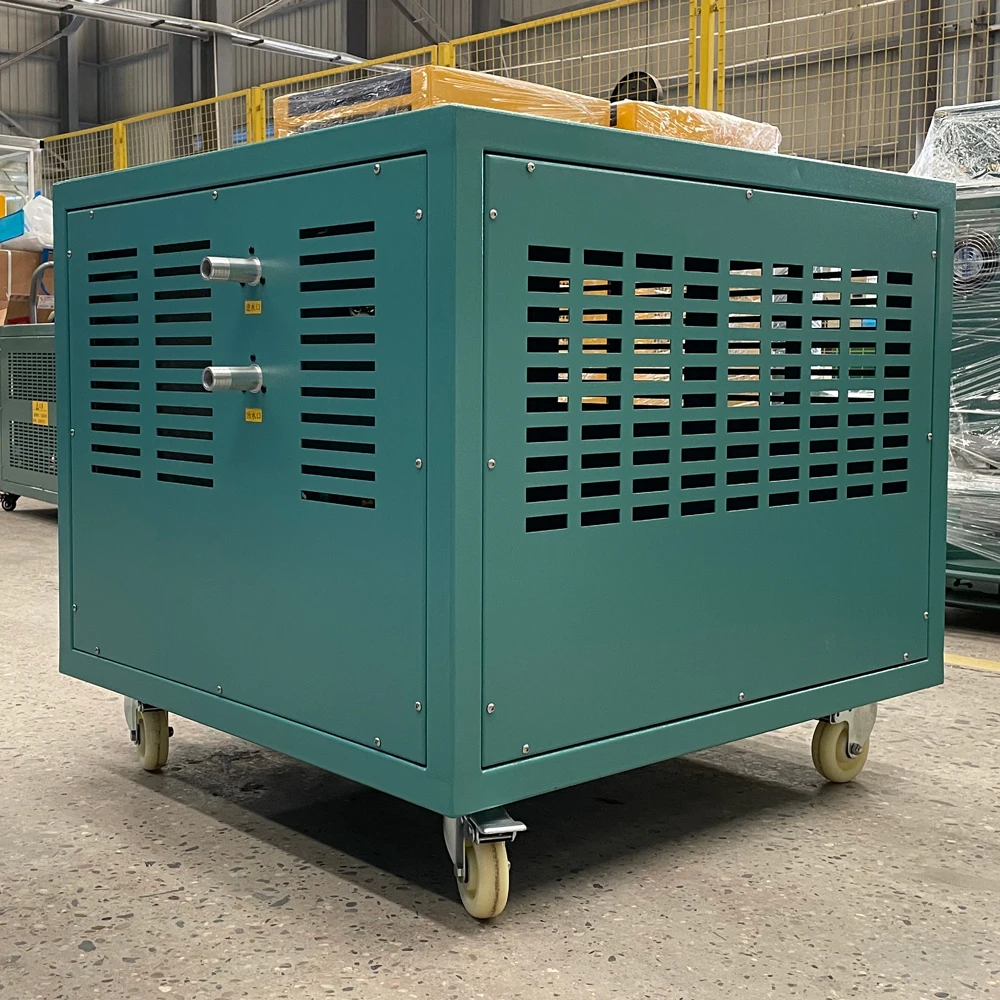

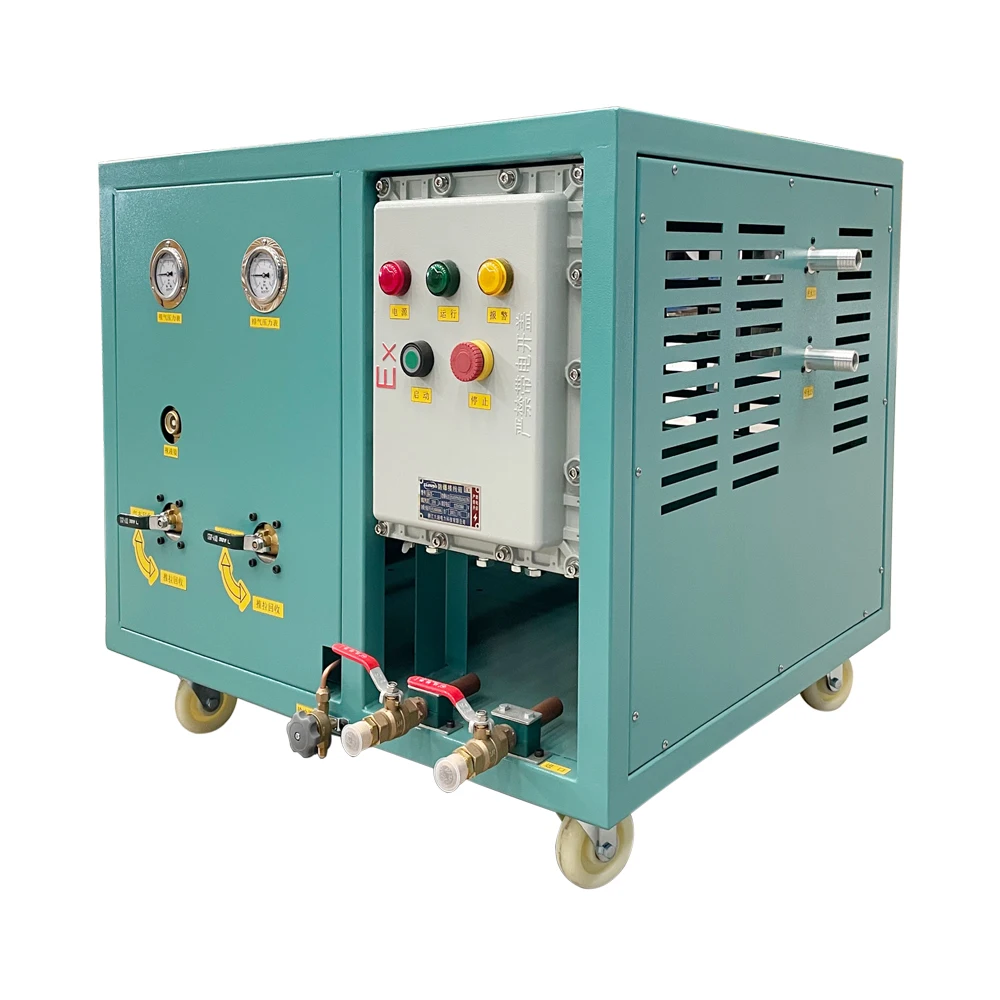

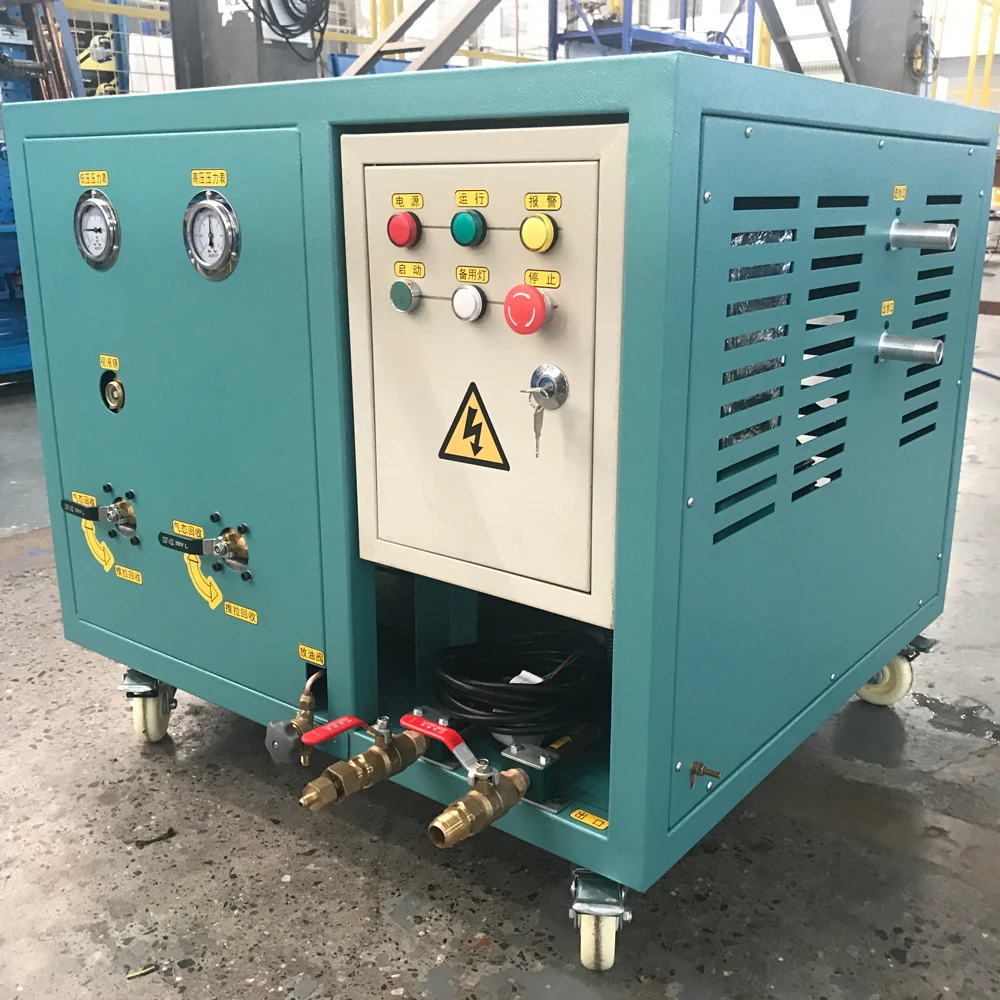

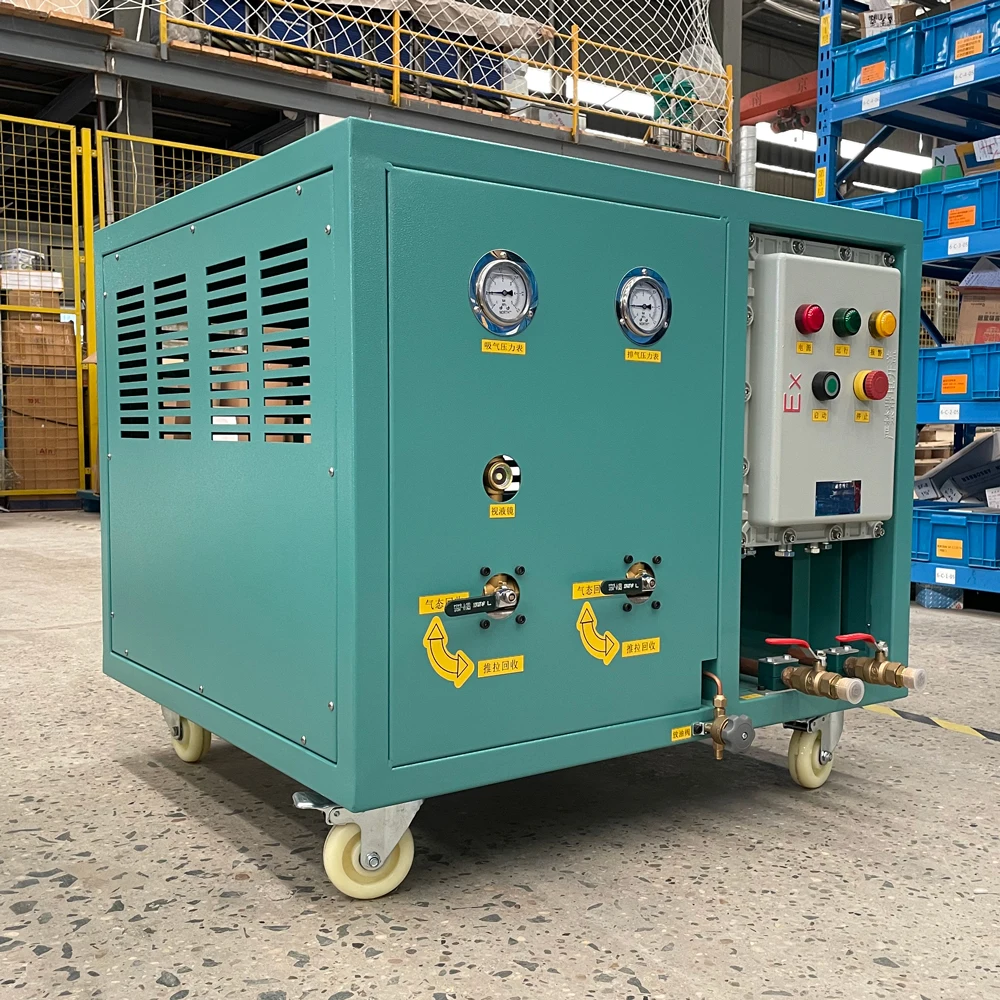

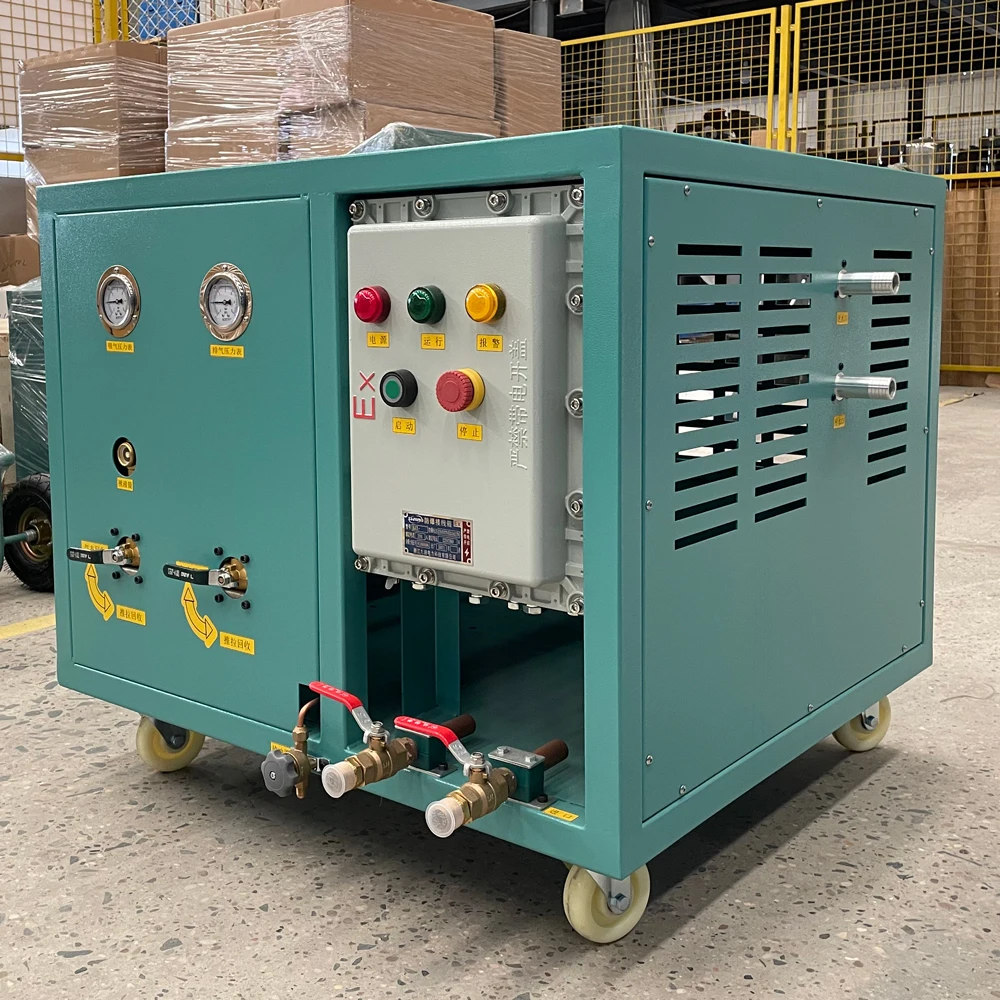

Details Images
Cooperation Partner & Cases
WELL-KNOWN CLIENT LISTS
CM Refrigeration had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years, some other partners also build deep and continuous cooperation.
No. | Partner Name | Main Product Type | Cooperation Time |
1. | YORK Air Conditioning | Refrigerant recovery machine | 11 years |
2. | CARRIER Air Conditioning | Refrigerant recovery/recharge machine | 06 years |
3. | MCQUAY Air Conditioning | Refrigerant recovery/recharge machine | 09 years |
4. | CLIMAVENETA Air Conditioning | Refrigerant recovery/recharge machine | 04 years |
5. | TICA Air Conditioning | Refrigerant recovery/recharge machine | 08 years |
APPLICATION SITES
SPECIAL UNITS
Packing&Shipping
Inner: Water-proof film + Protective Foam Panel
Outer: Wood case + Packing Strap
Outer: Wood case + Packing Strap
Company Introduction
CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
WHY CHOOSE US?
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.
>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.
>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.
>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
Certifications
Find More Product Videos
To help new user have a better knowledge about our product, we create the official channel on Youtube, typewrite our brand name "Chunmu Refrigeration" then you will find our channel.
If you have any queries or suggestions about our product and refrigerant recovery fields, welcome to leave your comments below these videos, or you can also contact us directly. Thank you.
