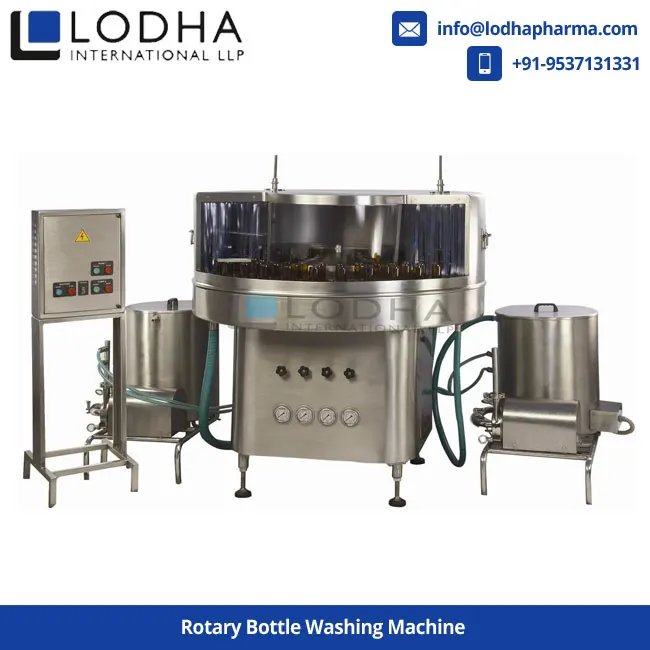

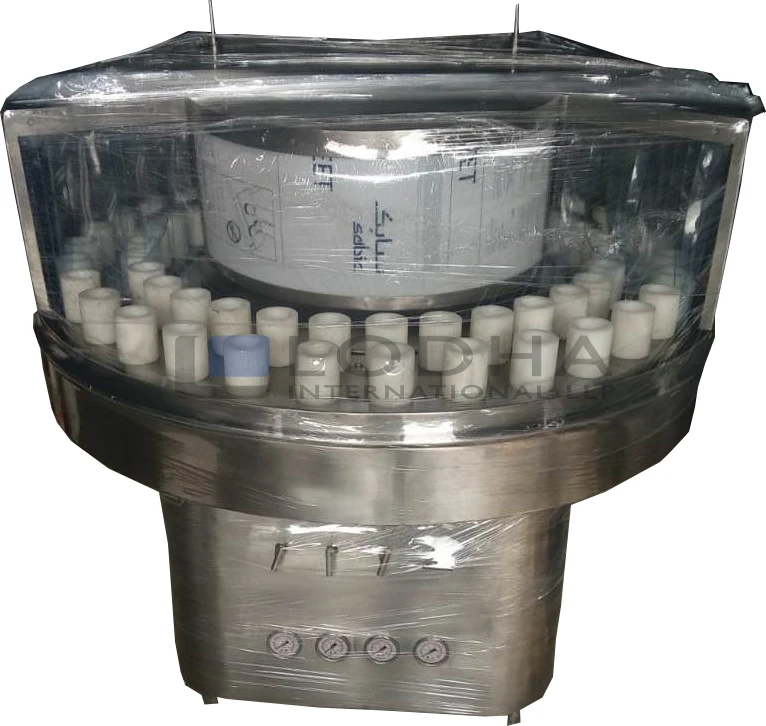

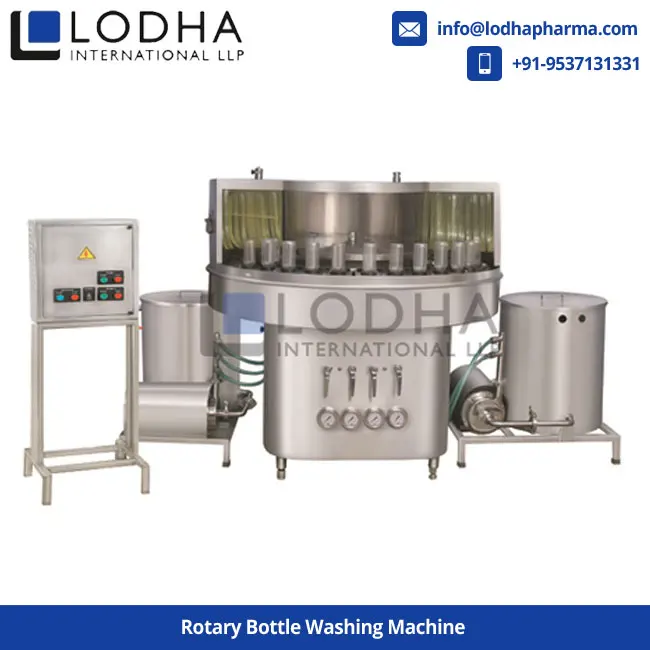

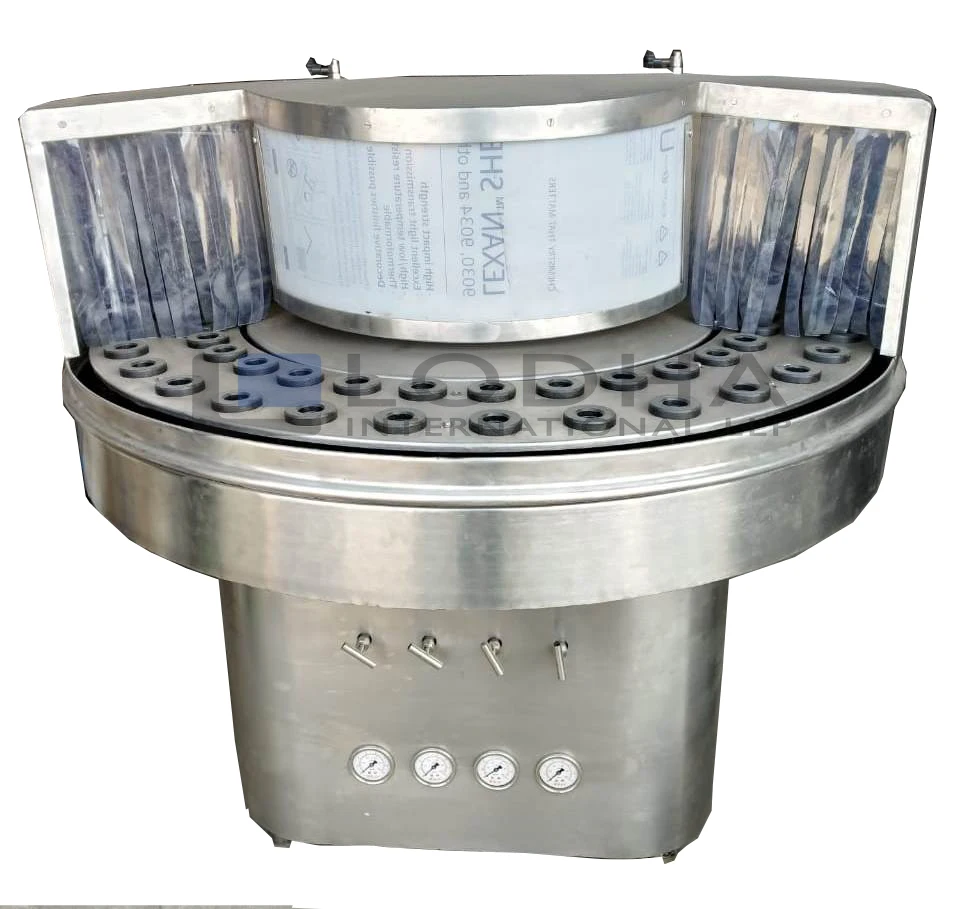

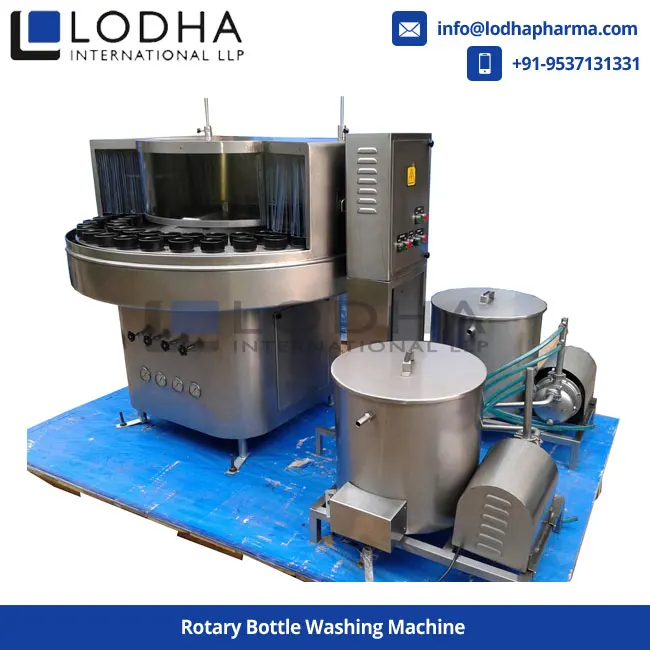

Automatic Head Washing Machine 100ml Plastic glass Rotary Bottle Washing Machine,
- Category: >>>
- Supplier: LODHA INTERNATIONAL LLP
Share on (10000000925542):
Product Overview
Description
Product Description
100ml Bottle Washing Machine, Bottle Washer
100ml Bottle Washing Machine, Bottle Washer Operates on the rotary principle with "GENEVA" mechanism and requires manual loading and unloading of bottles. LI-RBW model is suitable to wash various types of Bottles ranging from 15 ml to 1000 ml size with maximum speed of 100 bottles per minute. Machine construction is in Stainless Steel finish including frame structure. All parts used in contact with washing zone and Jets are made from stainless steel 316 Material. Intermittent handling of Bottles ensures the maximum time for washing. Machine also offers various customised options for washing sequence as per customers’ requirements. Washing process takes place with Four different Washing Zones for optimum washing. Machine also equipped with external washing of Bottles. We can also customise the machine to suits special type of bottle or size and also washing sequence. We have also another lower capacity Model LI-RBW 64 with speed of 60 bottles per minute for lower speed requirement and also require small area compare to LI-RBW 100.
This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles.
Salient Features
- 16 Jets for each washing zones
- All contact parts made of SS-316 material
- Machine construction is in SS-304 material
- Suitable for 15 ml to 1000 ml Bottle Size*
- Machine with Geneva-Cam Mechanism
- Washing sequence can be made as per customers’ requirements.
- Built-in 2 Pumps and 2 Tanks
- Machine main drive with Safety Clutch System
Process Operation
- The bottles are loaded on the subsequent indexing part of rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle is stopped means insure saving of water, and sequence of various washing media to suit specific requirement.
Specifications
| Model No. | LI-RBW 64 | LI-RBW 96 |
| Output | 40 to 60 Bottles/ Minute | 60 to 100 Bottles/ Minute |
| Suitable for | 15 ml to 1000 ml Bottles* | |
| Input Specifications | ||
| Round Bottle | Ø30 mm to Ø80 mm***, Respectively height 50 mm to 270 mm***,Ø 22 to Ø 28 Neck*** | |
| Flat/Square Bottle | 30 mm to 80 mm (Length), Respectively 10 mm to 50 mm (Width)Respectively height 58 mm x 190 mm | |
| Total Water Consumption | 450 to 650 Litre per hour | |
| Washing Cycle | 4 Inner + 1 Outer (Inner wash sequence are inter changeable) | |
| Water Tank | 2 nos. each with 75 Litres. (SS 304) Capacity Product Diameter: 85 mm* Maximum | |
| Electric Supply | 415 VAC Three Phase Power Supply | 415 VAC Three Phase Power Supply |
| Power | 2.5 H.P. | 2.5 H.P. |
| Power Consumption | ||
| Main Motor | 0.5 HP / 415 Volts / 50 Hz | |
| Pump Two Nos. | 0.5 HP x 2 = 1 HP / 415 Volts / 50 Hz | |
| Electrical Heater | 3 Kw | |
| Working Height | 860 – 910 mm | |
| Overall Dimensions | 2100 mm (L) x 1820 mm (W) x 1500 mm (H) | |
| Net Weight | 450 Kgs. | 550 Kgs. |
| Gross Weight | 700 Kgs. | 750 Kgs. |
Consumption of Water:
| First Wash | 230 Litres/Hr. |
| Second Wash | No consumption as such, water loss during re-circulation shall be compensated |
| Third Wash | 230 Litres/Hr. |
| Fourth Wash | No consumption as such, water loss during re-circulation shall be compensated OR Air Wash |
| Outside Wash | 200 Litres/Hr. |
Utility Requirement:
| Electrical supply | 3 Phase + Neutral + Earthing |
| Electrical load | 2 KW + 3 KW for heater |
| Air Pressure: Minimum | 6 bar pressure 5 CFM |
