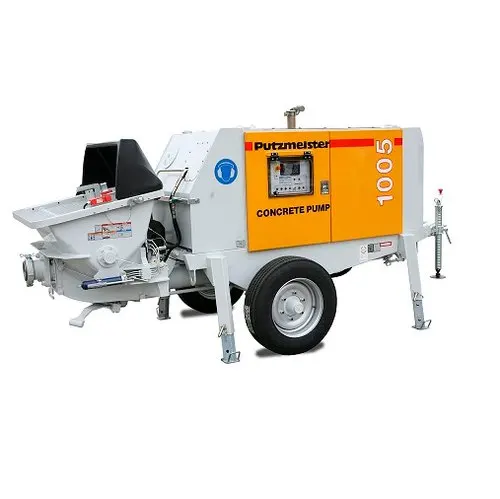

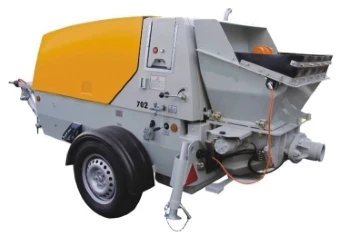

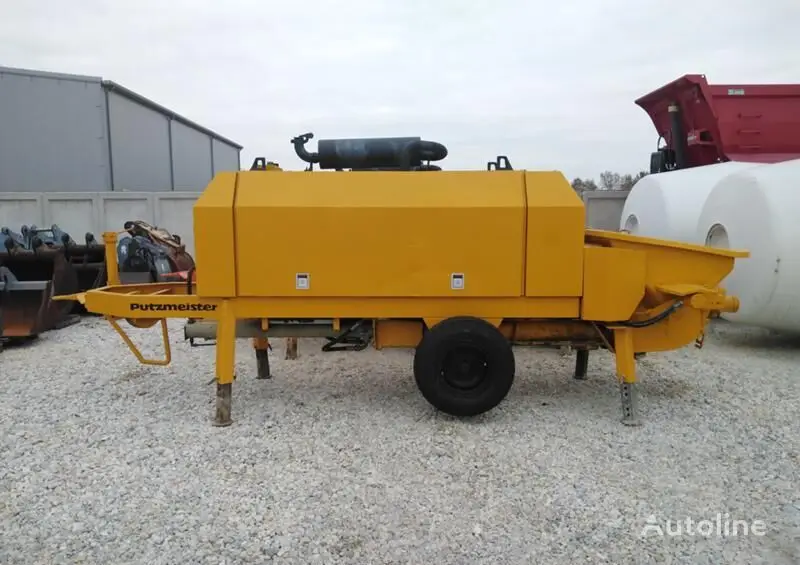

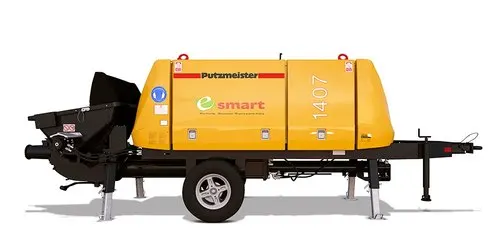

PUTZMEISTER CONCRETE PUMPS HIGH EFFICIENCY FOR CONSTRUCTION FROM INDIA

Product Overview

Description

Expertise gives you a leading edge – not all concrete is equally good



Minimise wear – maximise service lives Although unavoidable, wear can be minimised by taking a few effective measures.

The following solutions are provided by Putzmeister:

A hard chrome layer on the delivery cylinders assures long service life and protects against corrosion

Special protection of wear-intensive areas of the S transfer tube through chrome plating, deposit welding or wearresistant casting inserts

S transfer tube manufactured from thick-walled special castings is designed to cope with problem grades of wear-intensive concrete  Piston wear sleeves enable just the ring to be replaced rather than the entire component.



Above-ground civil engineering – where stationary can also be very flexible



Building construction – deliberately beyond the ordinary



Bridge construction – best performance for connecting elements



Underground civil engineering – far-reaching challenge, maximum delivery performance levels



Specialist underground civil engineering – intelligent technology for specific tasks



Massive force and very well-behaved



Easily accessible so that everything runs smoothly



Other advantages in terms of operation, cleaning and maintenance Mini-measuring strip: All hydraulic measuring points at a central location (BSA latest generation) Freely accessible water connection Swing doors, for example, ensure easy access, and protect the machine operator from rain and sun while working inside the machine



 The position of hydraulics and changeover cylinder outside the concreting area prevents pollution



 External non-return slide valve connection (standard from 1,400 mm stroke)



Easy to change all components on the S tube



Fast piston change using water boxes that open at top, readily accessible water drain cock



Rapid supply of all the main lube points in the hopper area by the central lubrication unit



Optimised hopper shape simplifies the job of cleaning, reduces interruptions in the supply of concrete and cuts down on concrete residue



Smooth outer surface simplifies the job of cleaning



Enlarged support area and longer service life through angled support legs



Practical hand winch for set-up work, with a lifting force of 3 tons (standard from 2,100 mm stroke)



Additional lashing fasteners on the machine, e.g. using clamping locks (from 2,100 mm stroke)



Practical accessories – Original Putzmeister Sophisticated and practical – for your stationary concrete pump you have a comprehensive range of machine-type-dependent equipment (standard or optional) in good Putzmeister quality.

Return Line Filter

The electronic central lubrication system

Compressor

Engine Option (Kirloskar/Deutz)

Rubber collar  Splash Guard  Second gate valve connection  Flushing Water Pump  Vibrator



 Very highly developed in all performance and price classes, and tried and tested in many extreme applications

Remarkably robust and wearresistant, designed for a long service life

Broad performance range makes the potential applications on construction sites and in industry very versatile indeed

Extremely powerful performance in the transport of concrete, in terms of height and of distance

Many user-friendly details ensure easy operation and maintenance

Available with diesel engine or electric motor, to suit the intended application

Successful combination of all components such as drive unit, longstroke piston pump, free-flow hydraulics, S-transfer tube and EPS electronic control unit (Ergonic® Pump System) for exceptionally high performance and uniform concrete flow  Comprehensive, practical equipment configuration as standard, and a functional range of accessories assure flexible application options and a high level of machine utilisation

Excellent service from Putzmeister maximises the availability of your stationary concrete pump.
