Полиамидные нейлоновые PA6 композитные паллеты усиленные стекловолокнами нейлоновые PA6 гранулы
- Category: Engineering Plastics >>>
- Supplier: Suzhou TOPO New Material Co. Ltd.
Share on (10000000980452):
Product Overview
Description

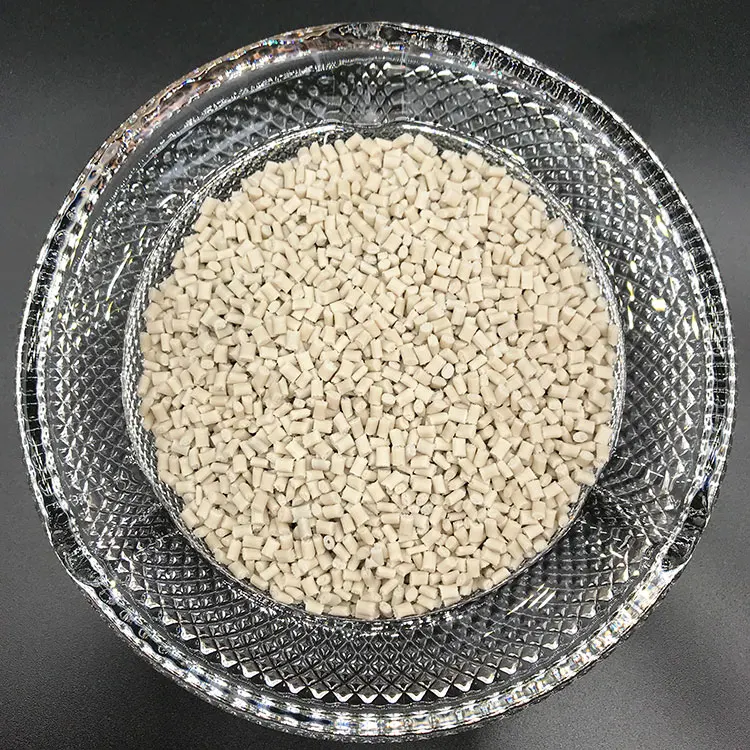

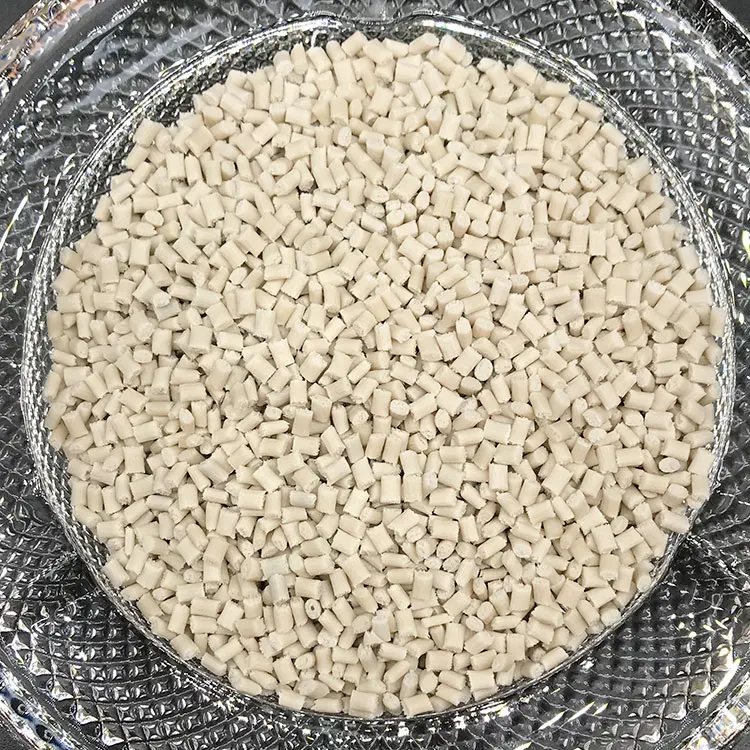

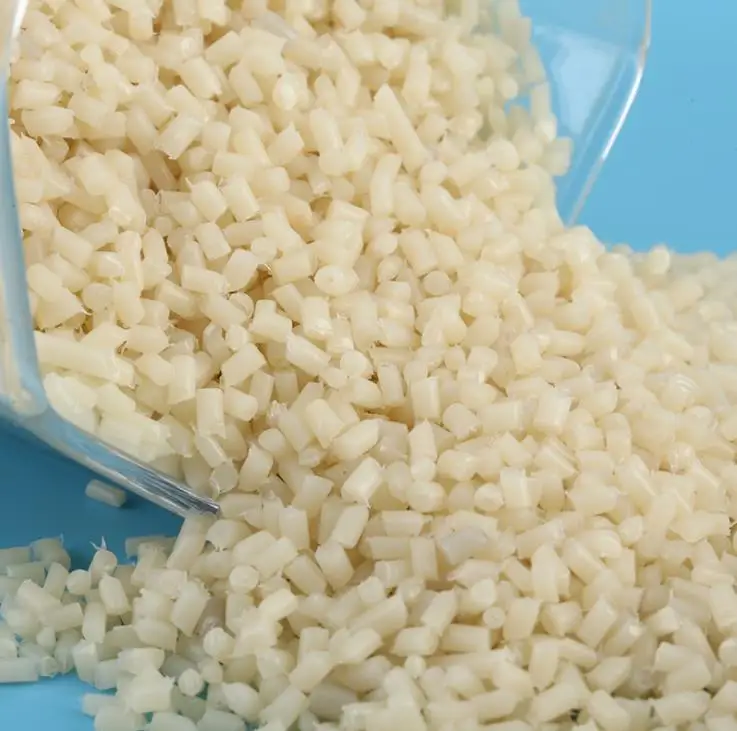

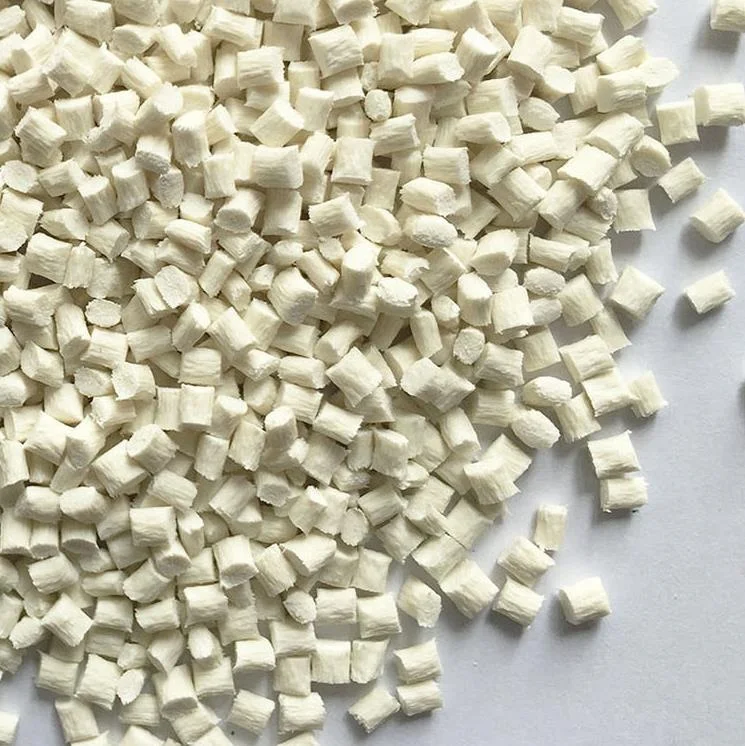

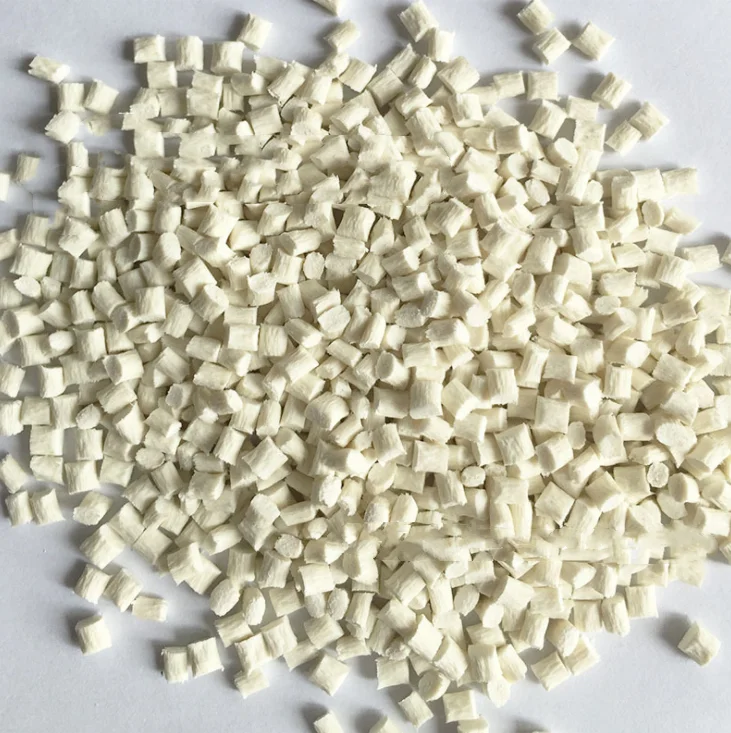

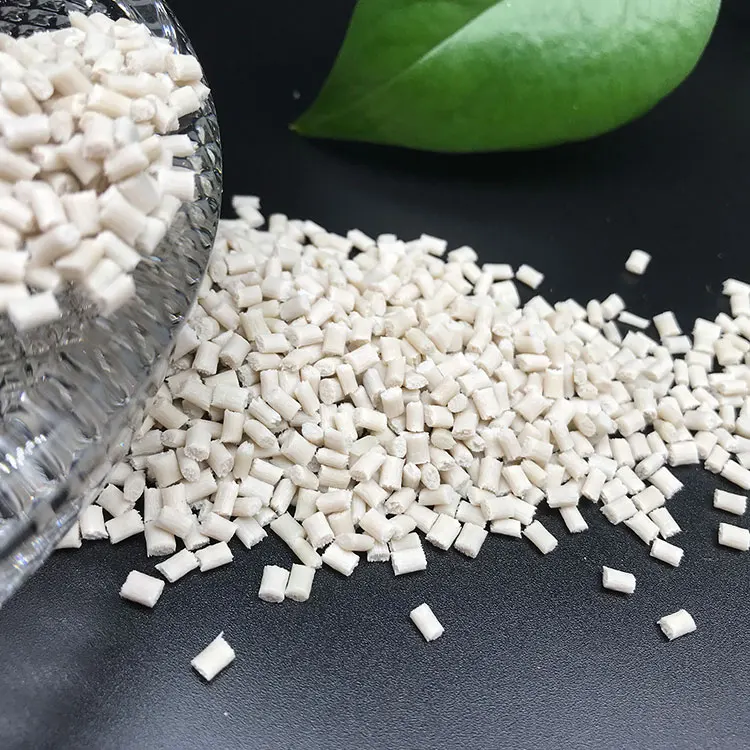

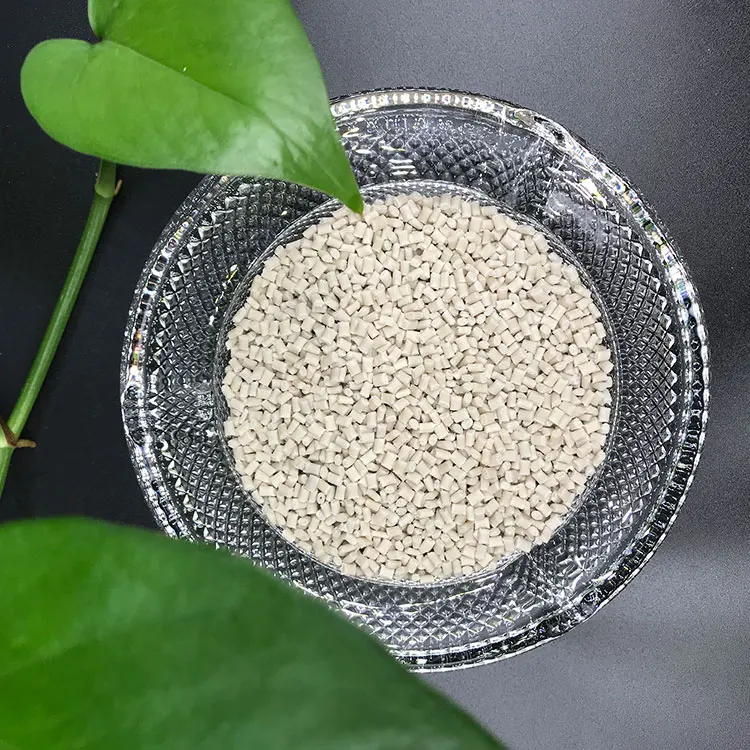

Polyamide Nylon PA6 Composite Pallets Glass Fiber Reinforced Nylon PA6 Granules
Description:

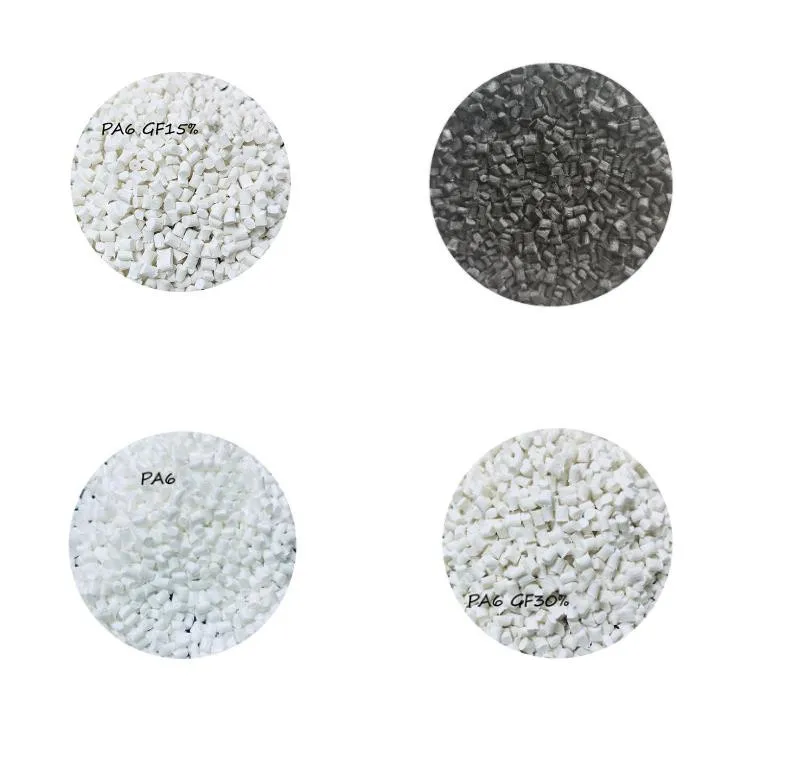

Glass fiber reinforced nylon PA6(High Gloss PP Granules) is made of PA6 resin and filled with 10-35% glass fiber. It is a high strength, high toughness, wear resistance, and corrosion resistance. Also, the material is dimensionally stable with high heat deflection temperature, good electrical insulation, good surface smoothness, easy molding, and other advantages. Material can be widely used in automotive parts, electronic appliances, power tools, gears, mechanical parts, and other fields.
Properties | Test Method | Test Condition | Units | Typical Values |
Physical | ||||
Melt Flow Rate | ISO1133 | 270℃, 2.16Kg | g/10min | - |
RELATIVE VISCOSITY | IS0307 IN 96%H2SO4 | 2.47 | ||
Specific Gravity | ISO1183 | 23℃ | g/cm3 | 1.13 |
Ash | ISO3451 | 800℃,30min | % | - |
Mechanical | ||||
Tensile Strength | ISO527 | 50mm/min | MPa | 70 |
Elongation at Break | ISO527 | 50mm/min | % | 100 |
Flexural Strength | ISO178 | 2mm/min | MPa | 47 |
Flexural Modulus | ISO178 | 2mm/min | MPa | 2400 |
Impact Strength, IZOD non-notched | ISO179 | 23℃ | KJ/m2 | NB |
-30℃ | KJ/m2 | - | ||
Impact Strength, IZOD notched | ISO179 | 23℃ | KJ/m2 | 7 |
-30℃ | KJ/m2 | - | ||
Thermal | ||||
Heat Deflection Temp. | ISO75 | 0.45MPa | ℃ | - |
1.8MPa | ℃ | 50 | ||
Melting Point | DSC |
| ℃ | 217 |
Others | ||||
Hardness | ISO2039 | - | N/mm2 | 150 |
Mold Shrinkage | - | 23℃ |
| 1.0-1.5 |
Flammability | TL1010 | - | mm/min | 35 |
Tip: The technical data sheet is for reference only. We supply the OEM service per your request.
Are you trading company or manufacturer?
We are manufacturer.
About Sample:

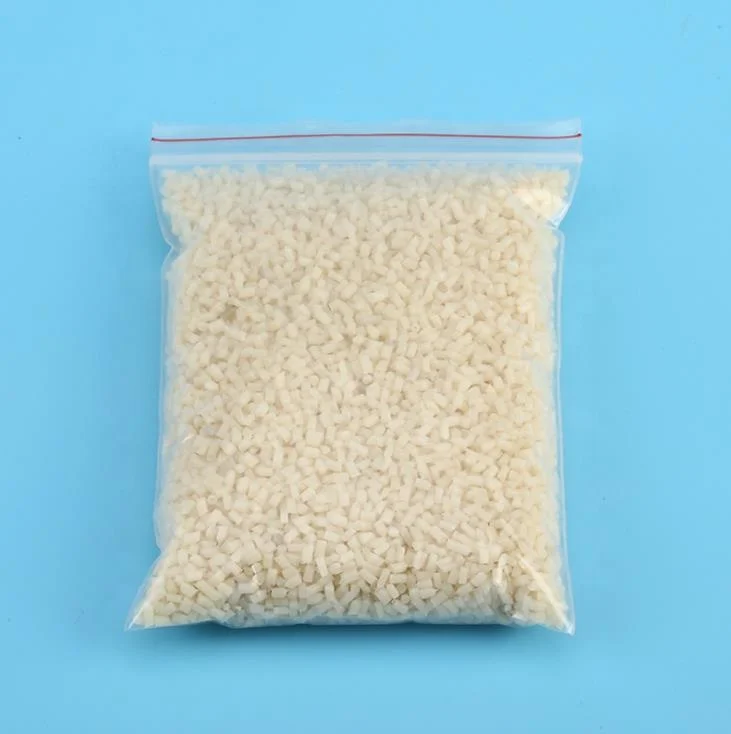

5 KG Free Sample can be offered per your request.
About Material Color:
We can make the material to your appointed color according to Pantone/RAL#.
