Hot sale excavator hydraulic breaker for all excavators
- Category: >>>
- Supplier: Const (shen Zhen) Trade Co. Ltd.
Share on (10000000984038):
Product Overview
Description
Mobil Dragon Excavator Hydraulic Breaker/Hammer
Product Description
TYPE | Side/Top/Box Silenced |
COLOR | Red,Yellow,White,Customized |

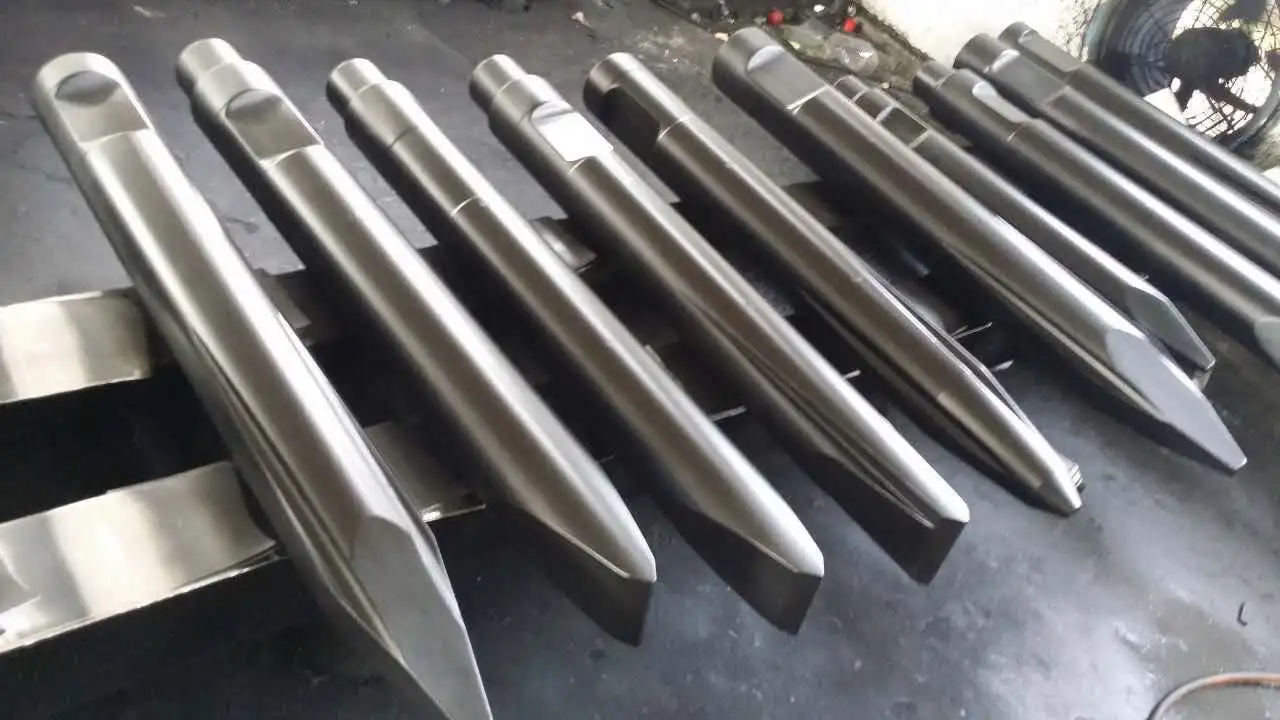

Chisel Material | 42CrMo |
Suitable Brand | All Brands Excavators |
System | Hydraulic-gas System |
Warranty | 1 Year |

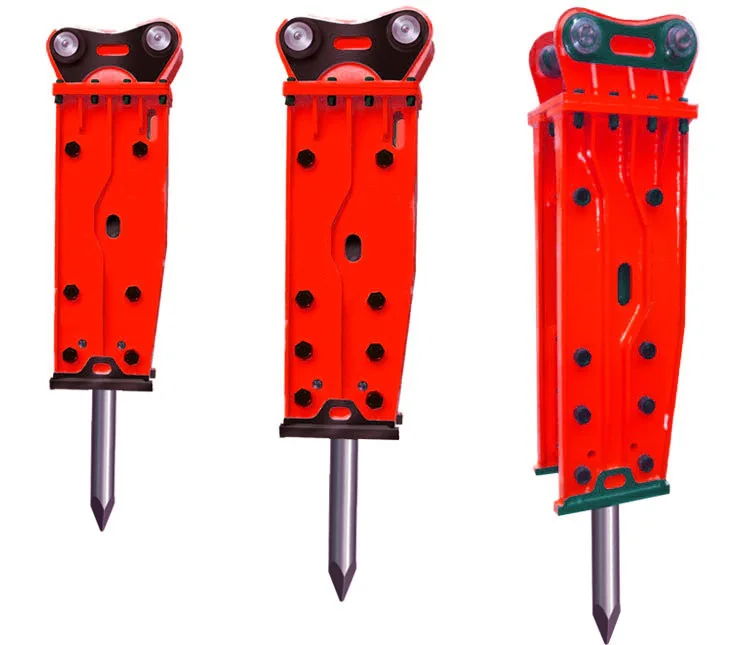

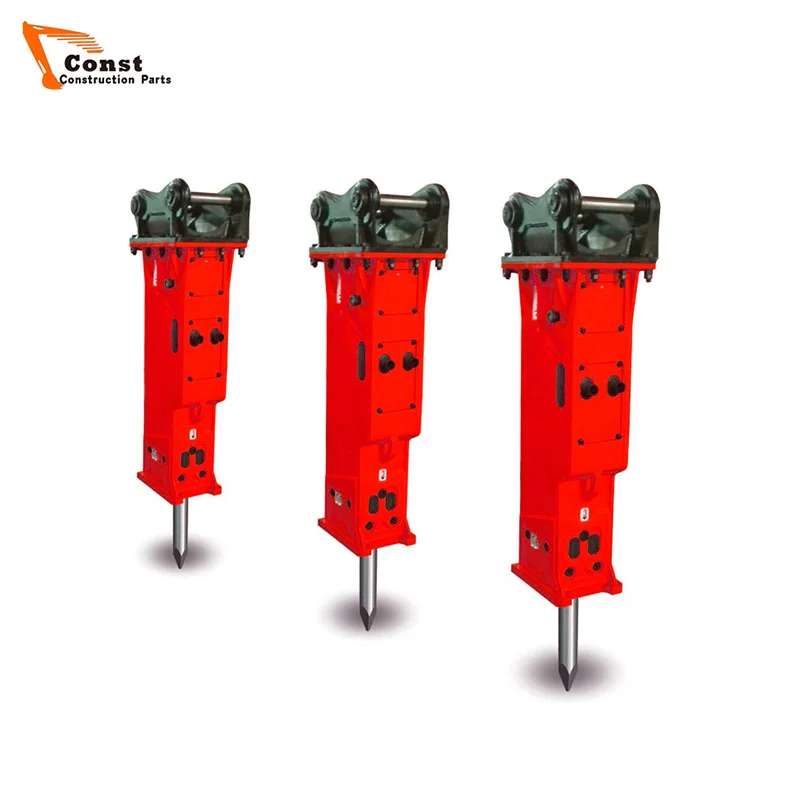

Top Pencil Type Hydraulic Breaker
Adopted advanced technology of oil pressure control and fluid micro-adjustment makes stronger impact and its persistence. Can enlarge the scope of demolition with long overall length.

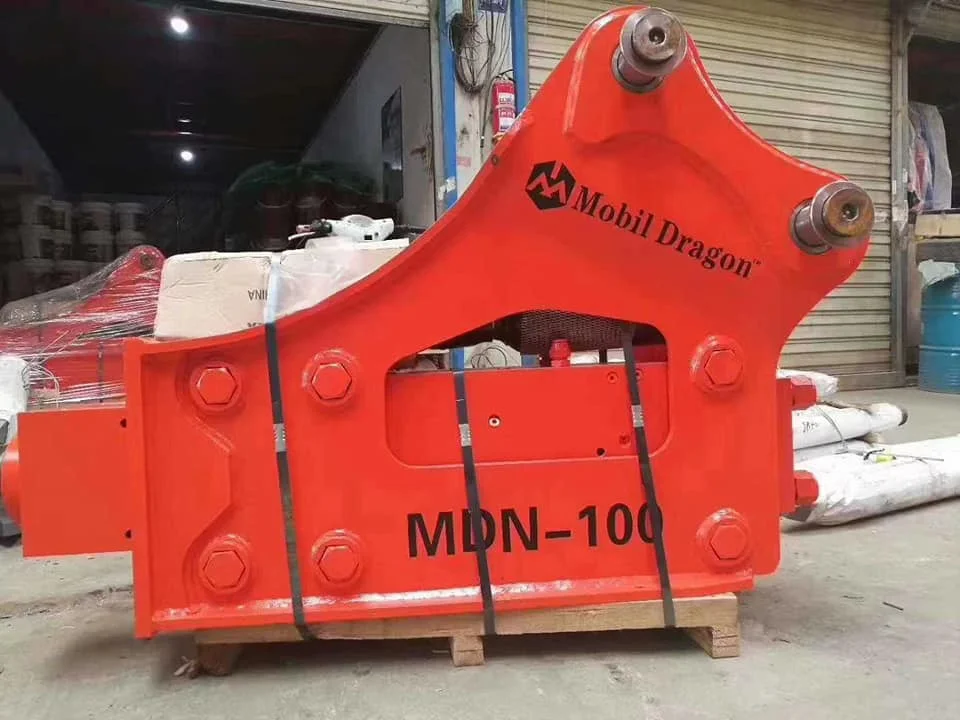

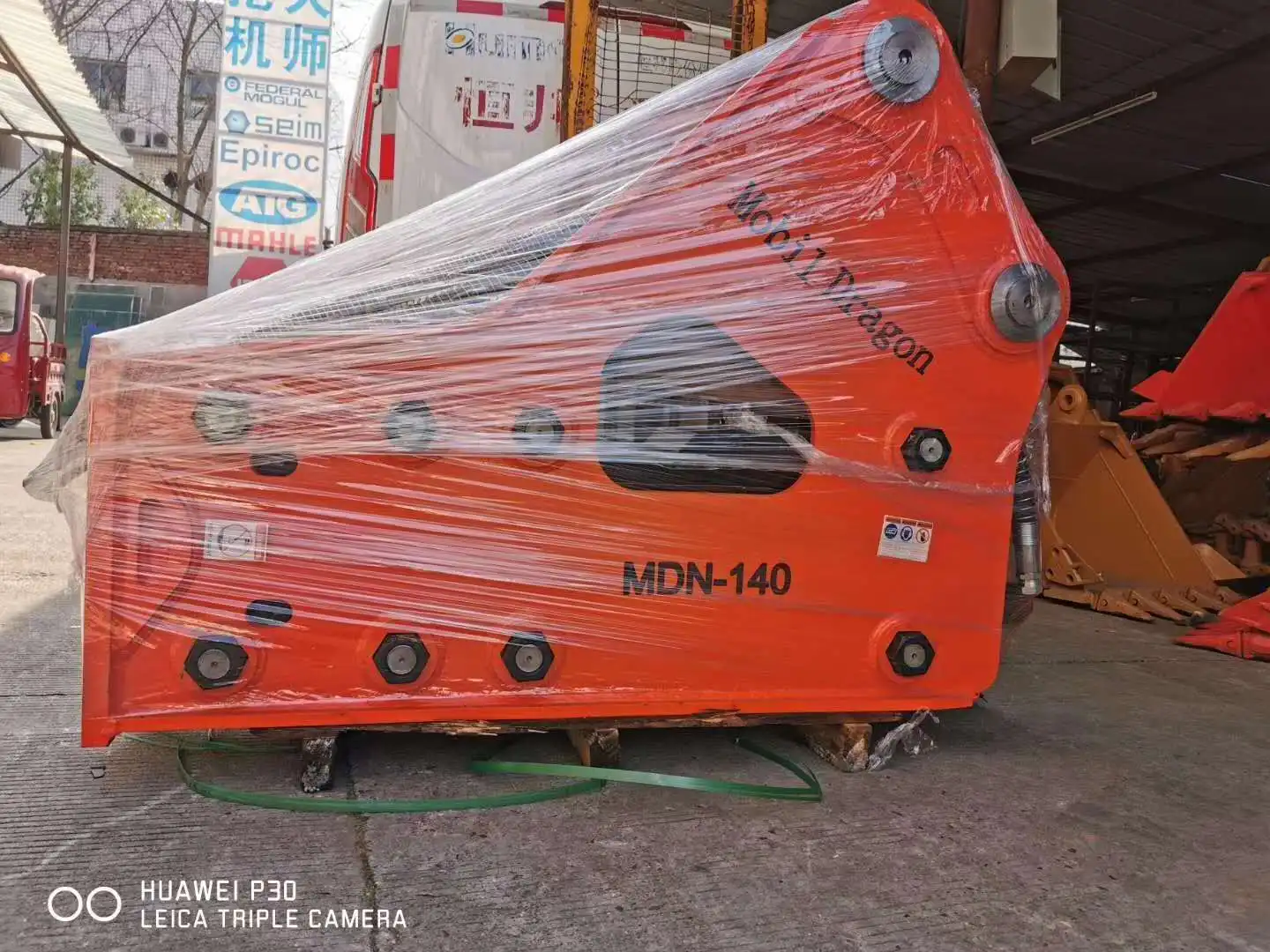

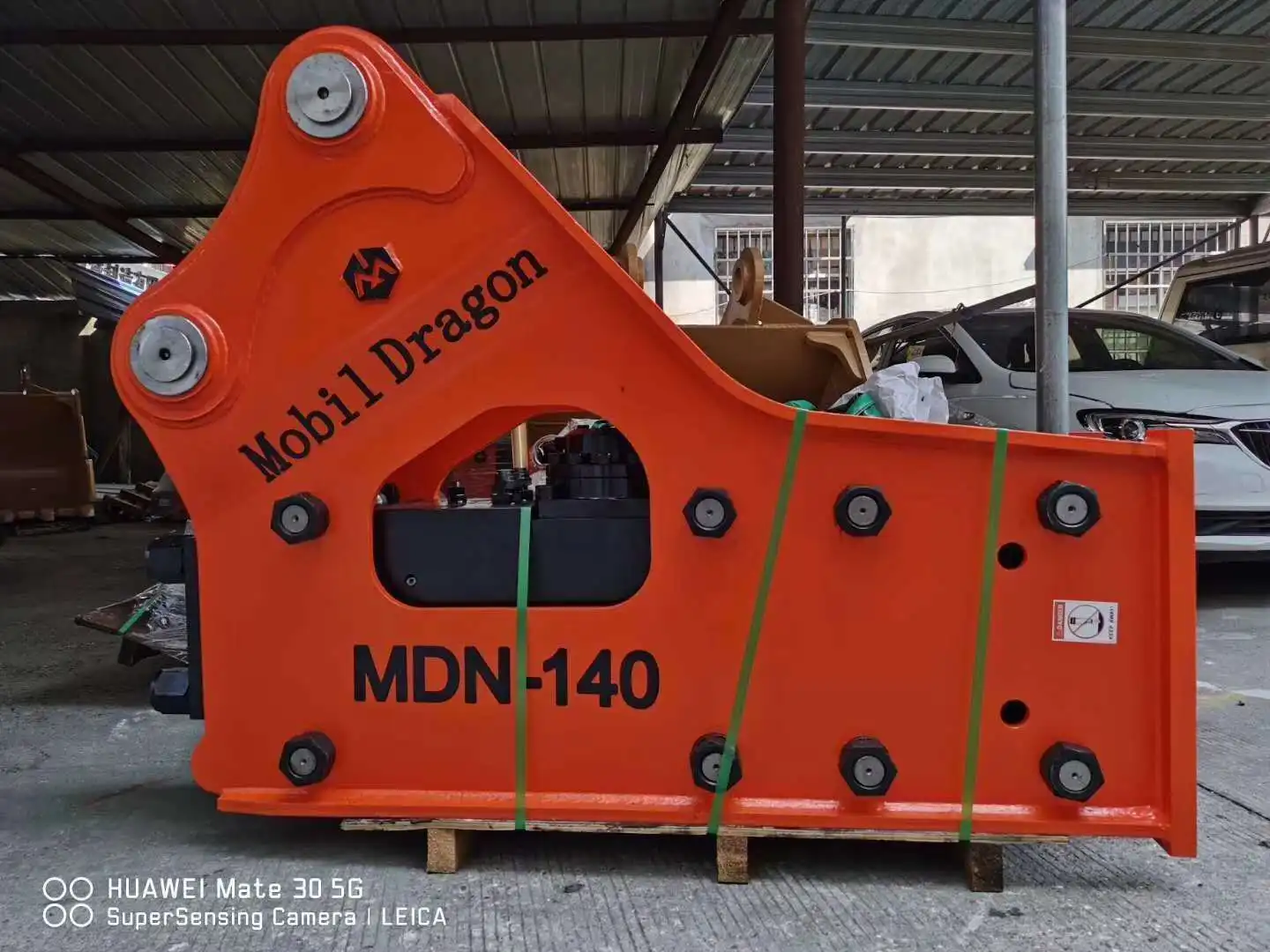

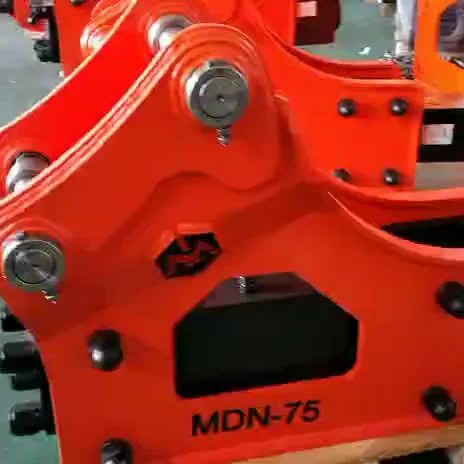

Side Type Hydraulic Breaker
Simple and reliable design can suit for excavator very well. High efficiency of hydraulic system with strong impact power. Easy maintenance with half-open frame structure.

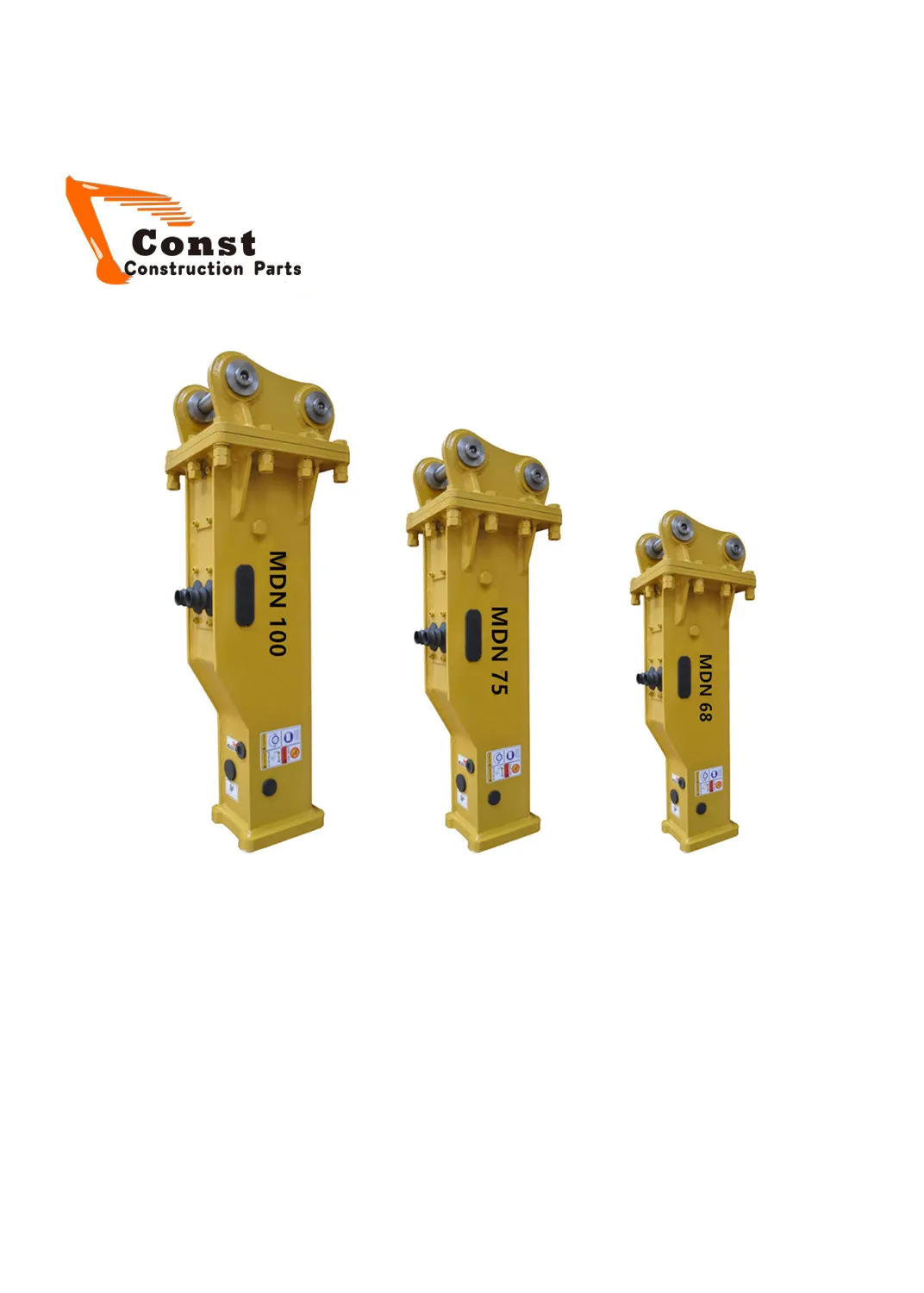

Box Silenced Type Hydraulic Breaker
With same advantages as top type breakers, but box silenced type breaker is with low noises.
Spec. | Model /Unit | MDN45 | MDN53 | MDN68 | MDN75 |
Body weight | kg | 71 | 89 | 156 | 214 |
Total weight | kg | 95/95/129 | 158/158/155 | 263/343/361 | 334/409/450 |
Outline dimension (L*W*H) | Side | 1090*265*435 | 1178*285*500 | 1373*385*696 | 1515*385*735 |
Top | 1235*226*200 | 1344*285*370 | 1684*385*486 | 1706*390*486 | |
Box | 1331*260*295 | 1417*350*305 | 1660*385*486 | 1712*385*486 | |
Operating pressure | kg/cm2 | 90-120 | 90-120 | 110-140 | 120-150 |
Oil flow range | L/min | 20-30 | 25-50 | 40-70 | 50-90 |
Diameter of hose | inch | 1/2 | 1/2 | 1/2 | 1/2 |
Diameter of tool | mm | 45 | 53 | 68 | 75 |
Impact frequency | bpm | 700-1200 | 600-1100 | 500-900 | 400-800 |
Applicable Carrier | ton | 1.2-3.0 | 2.5-4.5 | 4-7 | 6-9 |
Spec. | Model /Unit | MDN85 | MDN100 | MDN135 | MDN140 |
Body weight | kg | 282 | 479 | 850 | 920 |
Total weight | kg | 559/637/733 | 761/866/1007 | 1653/1847/1893 | 1774/2059/2011 |
Outline dimension (L*W*H) | Side | 1735*443*910 | 1994*443*966 | 2423*575*1202 | 2480*575*1335 |
Top | 2120*458*570 | 2387*458*570 | 2900*575*710 | 2866*575*710 | |
Box | 2074*458*570 | 2354*458*570 | 2847*575*710 | 2793*575*710 | |
Operating pressure | kg/cm2 | 130-160 | 150-170 | 160-180 | 160-180 |
Oil flow range | L/min | 60-100 | 80-110 | 130-150 | 120-180 |
Diameter of hose | inch | 3/4 | 3/4 | 1 | 1 |
Diameter of tool | mm | 85 | 100 | 135 | 140 |
Impact frequency | bpm | 400-800 | 350-700 | 400-800 | 350-500 |
Applicable Carrier | ton | 7-14 | 10-15 | 18-26 | 18-26 |
Spec. | Model /Unit | MDN155 | MDN165 | MDN175 |
Body weight | kg | 1313 | 1590 | 1960 |
Total weight | kg | 2577/2754/2968 | 3277/3447/2975 | 3905/4057/3902 |
Outline dimension (L*W*H) | Side | 2776*665*1382 | 2820*665*1445 | 3184*764*1670 |
Top | 3102*665*760 | 3446*665*840 | 3812*764*920 | |
Box | 3075*665*760 | 3460*665*840 | 3723*764*920 | |
Operating pressure | kg/cm2 | 160-180 | 170-200 | 180-210 |
Oil flow range | L/min | 180-240 | 200-250 | 210-290 |
Diameter of hose | inch | 1-1/4 | 1-1/4 | 1-1/4 |
Diameter of tool | mm | 155 | 165 | 175 |
Impact frequency | bpm | 300-450 | 250-380 | 200-350 |
Applicable Carrier | ton | 28-35 | 30-45 | 40-55 |
Our Advantages
ADVANTAGES
1.Suitable for all models of excavators.
2.We will make or design hydraulic breakers as customer requests.
3.Because we are a manufacture and trading company ,the highest quality, competitive price and a perfect after-sales service
should be provided to our customers.
4 High Strength and wear resistance steel plate adopted.
5. First-class quality: Korean technology used to guarantee the quality.
2.We will make or design hydraulic breakers as customer requests.
3.Because we are a manufacture and trading company ,the highest quality, competitive price and a perfect after-sales service
should be provided to our customers.
4 High Strength and wear resistance steel plate adopted.
5. First-class quality: Korean technology used to guarantee the quality.
Workinng Case

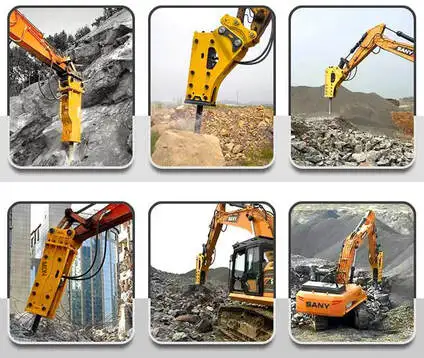

APPLICATION
Mining: Mining, second-time breaking;
Metallurgy: Clearing slag, Demolition of furnace and foundation;
Road: Repairing, Breaking, Foundation work;
Railway: Tunneling, Demolition of bridge;
Construction: Demolition of building and reinforced concrete;
Ship repairing: Clearing clam and rust from the hull;
Others: Breaking Frozen mud.
Metallurgy: Clearing slag, Demolition of furnace and foundation;
Road: Repairing, Breaking, Foundation work;
Railway: Tunneling, Demolition of bridge;
Construction: Demolition of building and reinforced concrete;
Ship repairing: Clearing clam and rust from the hull;
Others: Breaking Frozen mud.
Related Products

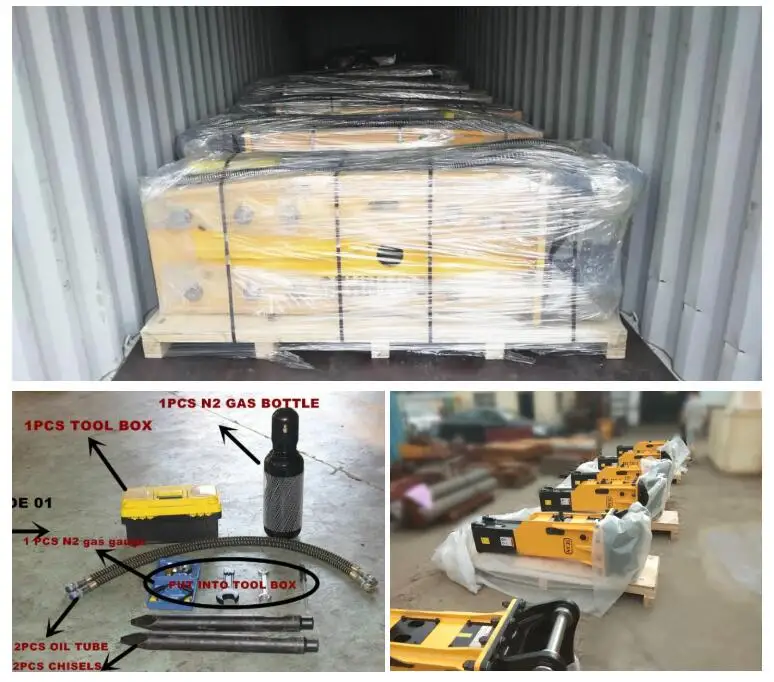

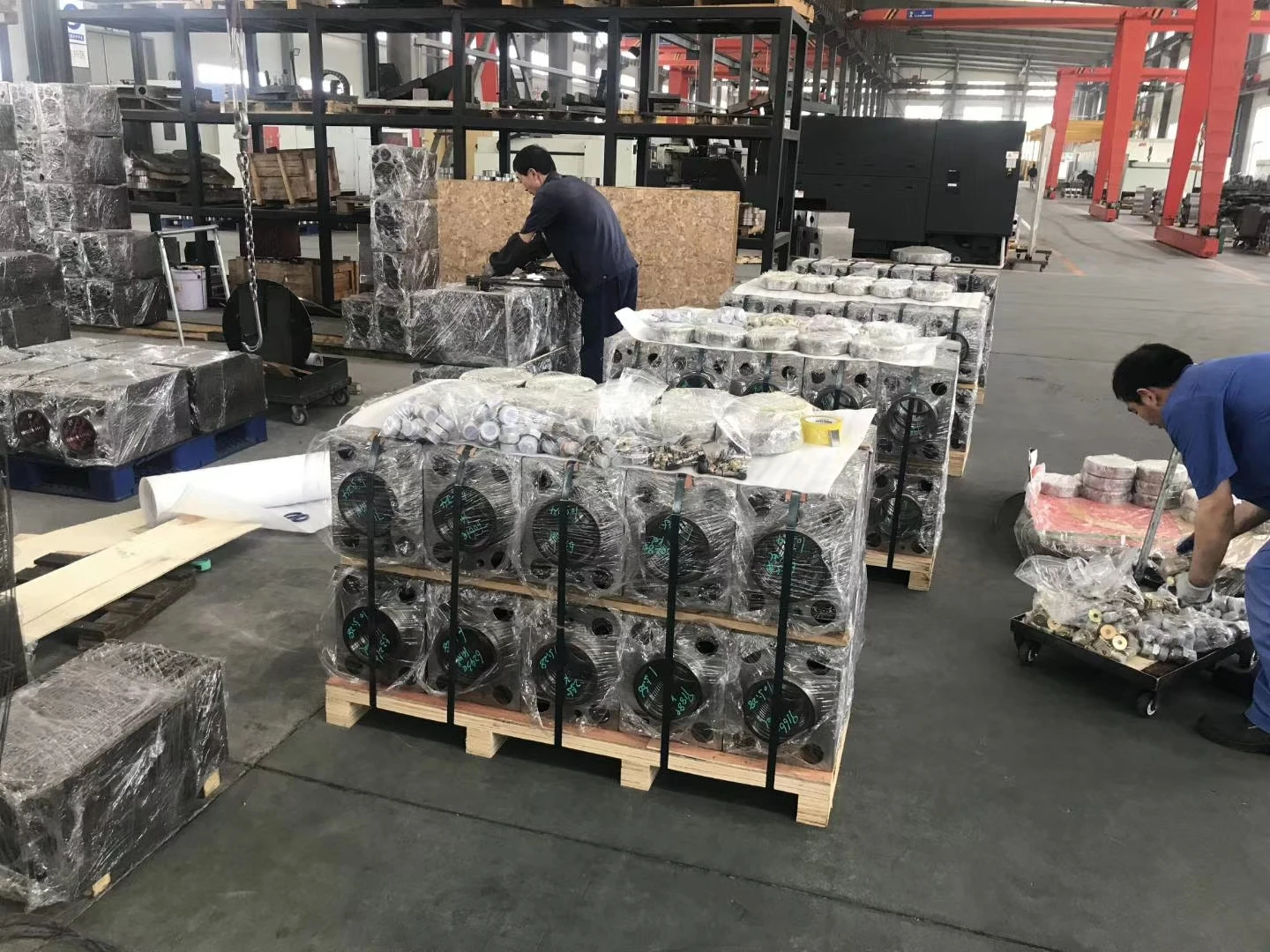

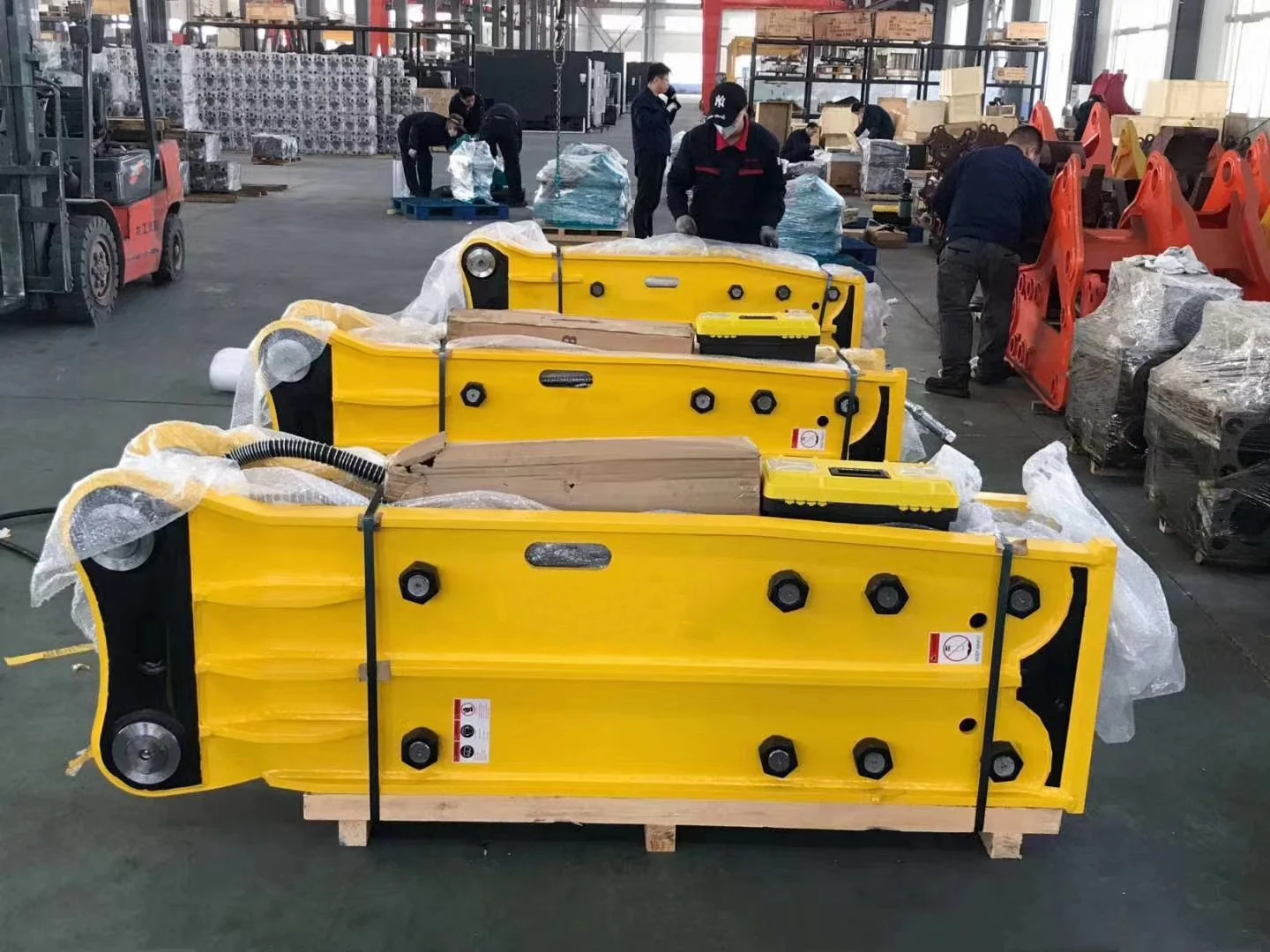

Packing&Shipping
Standard Configurations: Breaker(1pc)+Tool Box(1pc)+Nitrogen Bottle(1pc)+Hydraulic Oil Hoses(2pcs)+Chisel(2pcs)
Package: Standard export wooden case, double-layers stretch film Inside,solid packaging with pallets
Package: Standard export wooden case, double-layers stretch film Inside,solid packaging with pallets

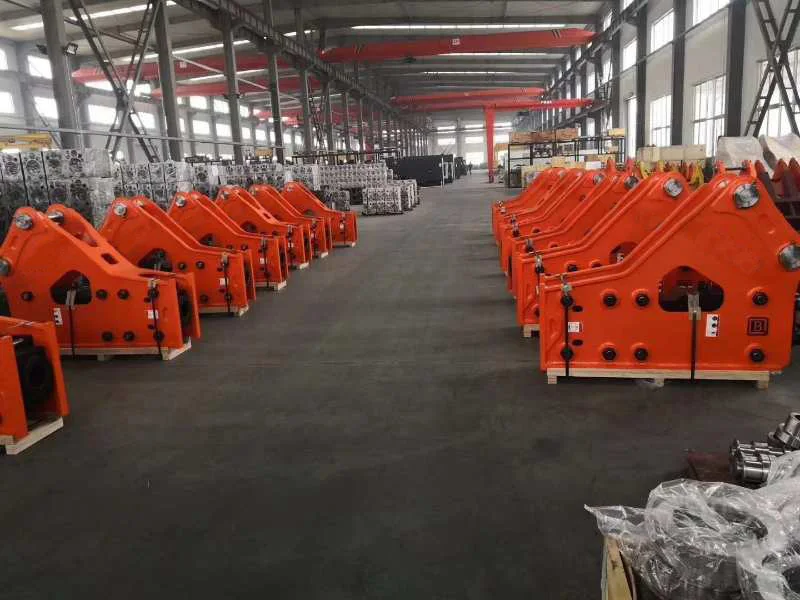

Company Introduction
Const (Shenzhen) Trade CO.,Ltd is located in Hefei, Anhui Province. We are professional in excavators and its spare parts supplying and maintenance for more than 15 years. Now we have 7 branches company in 7 different provinces in China. And we open a new branch in Singapore last year. In the next future, we will continue to expand our business in all over the world.
We are also the general agency of Hitachi excavator in Hubei Province of China. From out factory to your work site, we provide the real one-stop shopping service to reduce the middle cost for you. We also have good after-sale service for you.
We are also the general agency of Hitachi excavator in Hubei Province of China. From out factory to your work site, we provide the real one-stop shopping service to reduce the middle cost for you. We also have good after-sale service for you.
FAQ
1. Are you a manufacturer?
Yes, Our factory is located in Yantai, Shandong Province.
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for hydraulic breaker.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, Western Union accepted, other terms can be negotiated.We will provide high quality products with competitive price.
4. How about delivery time?
3-7 working days from the date of receiving full payment.
5. After-sale Service
12 months warranty for hydraulic breakers. 24 hour prompt after-sales service to meet your demands.
6. Impact Test
Every hydraulic breaker will do impact test before sale .
Yes, Our factory is located in Yantai, Shandong Province.
2. Can you produce according to customers' design?
Sure, OEM / ODM service available. We are professional manufacturer for hydraulic breaker.
3. What's the MOQ and payment terms?
MOQ is 1 set. Payment via T/T, Western Union accepted, other terms can be negotiated.We will provide high quality products with competitive price.
4. How about delivery time?
3-7 working days from the date of receiving full payment.
5. After-sale Service
12 months warranty for hydraulic breakers. 24 hour prompt after-sales service to meet your demands.
6. Impact Test
Every hydraulic breaker will do impact test before sale .
