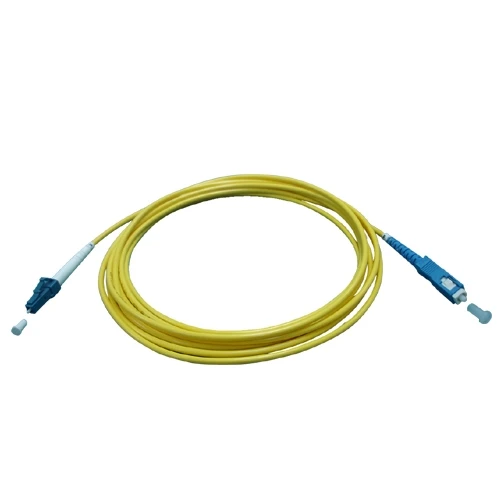

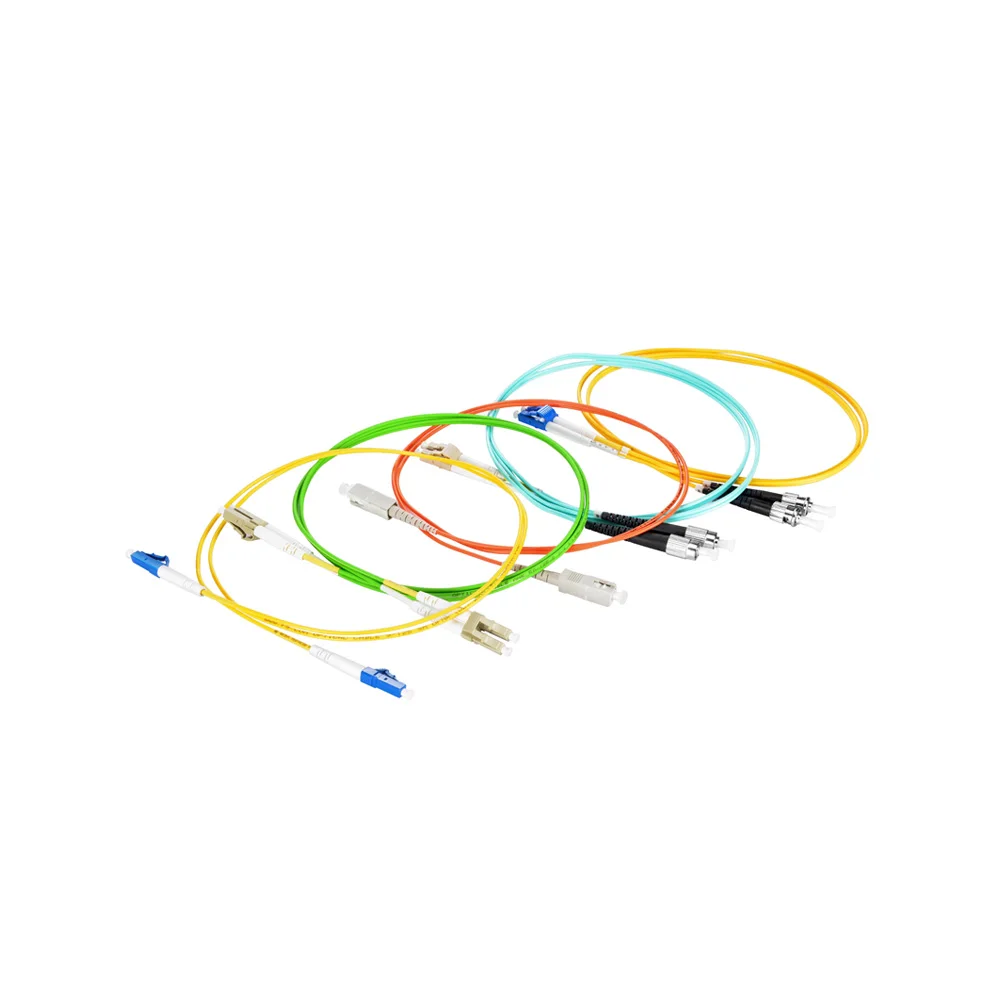

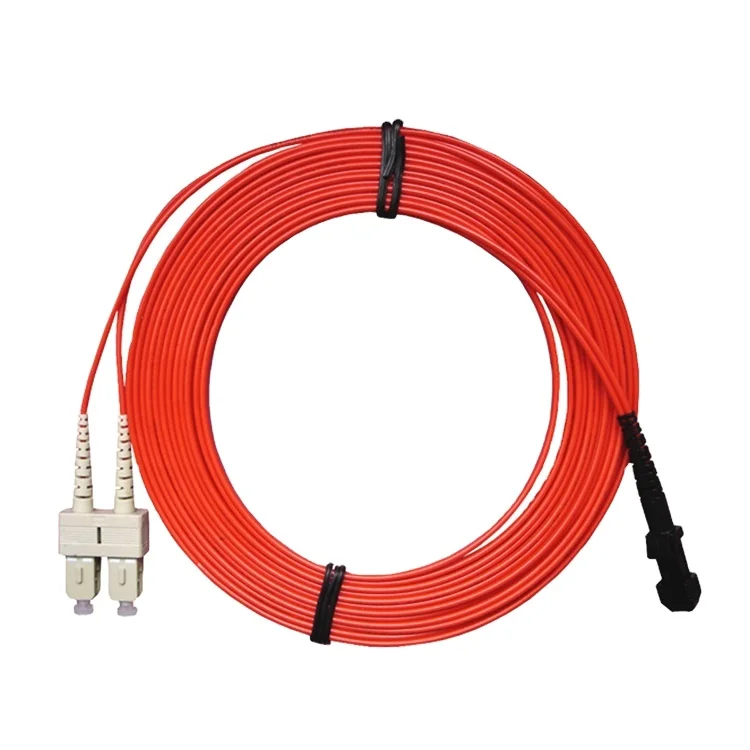

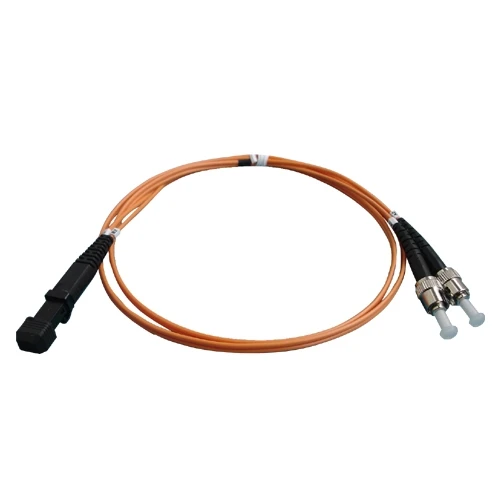

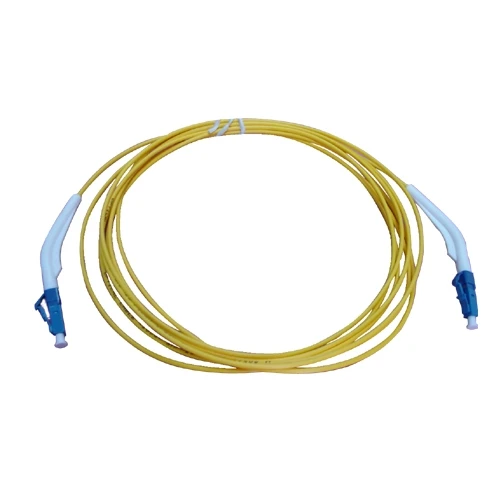

Simplex Or Duplex Multimode OM3 OM4 Or Singlemode Fiber Optical Cable Jumper Patchcord And Pigtail With LC SC FC E2000 APC UPC
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (10000001045573):
Product Overview
Description
Product Specifications
Physical Characteristics | Description |
Connector Types End A | LC/SC/ST/FC/LSH/MTRJ/MU |
Connector Types End B | LC/SC/ST/FC/LSH/MTRJ/MU |
Polish Type | SMF: UPC-UPC; UPC-APC; APC-UPC;APC-APC; MMF: UPC-UPC |
Connector Ferrule | Zirconia Ceramic |
Cable Outside Diameter | 0.9mm/2.0mm/3.0mm |
Interchangeability | ≤0.2dB |
Vibration | ≤0.2dB |
Minimum Bend Radius | SMF: 10mm; MMF: 7.5mm/15mm |
Mechanical Characteristics | Description |
Fiber Type | OS2/OM5/OM4/OM3/OM2/OM1 |
Fiber Count | Simplex/Duplex |
Cable Jacket | PVC (Riser/OFNR)/LSZH/Plenum (OFNP) |
Jacket Color | OM1/OM2: Orange; OM3/OM4: Aqua; OM5: Lime Green; OS2: Yellow |
Fiber Grade | SMF: G.657.A1; OM5/OM4/OM3/OM2: Bend Insensitive;OM1: G.651 |
Optical Characteristics | Description |
Connector Insertion Loss | MMF: LC/SC/ST/FC/MU≤0.3dB; LSH≤0.4dB |
Connector Return Loss | SMF: UPC≥50dB; APC≥60dB; MMF: ≥30dB |
Attenuation at 1310nm | 0.35dB/km |
Attenuation at 1550nm | 0.22dB/km |
Attenuation at 850nm | 3.0dB/km |
Attenuation at 1300nm | 1.0dB/km |
Environmental Characteristics | Description |
Operating Temperature | -20~70℃ |
Storage Temperature | -40~80℃ |
Product Application
1. High quality zirconia ferrules.
2.Good repeatability and interchangeability.
3. LC, SC, ST, FC, LSH, MTRJ, MU connectors are available.
4. Flame-retardant, rugged and durable jacket.
5. Printing helps clarify and recognize different cables.
6. OS2, OM4, OM3, OM2, OM1, OM5 are available.
7. Factory terminated and tested for insertion loss, return loss and end face.
2.Good repeatability and interchangeability.
3. LC, SC, ST, FC, LSH, MTRJ, MU connectors are available.
4. Flame-retardant, rugged and durable jacket.
5. Printing helps clarify and recognize different cables.
6. OS2, OM4, OM3, OM2, OM1, OM5 are available.
7. Factory terminated and tested for insertion loss, return loss and end face.
Recommend Products
Click Here To Get More Details
As a 17 years old company in fiber optic tools field, we can distribute and provide full of your test instruments and tools
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.
related to the fiber optic field. Our products include test instruments like Optic Test Domain Reflectometry, fiber optic power meter, fiber optic light resource, fiber optic identifier, visual fault locator, Passive Optical Network power meter and fiber optic tools like cable slitter, cable stripper, cleaning tools, fusion splicers. We have got I S O 9001 certification in 2020, we promise to ship out the goods within 7days after your order confirmed. We will set up four warehouses which cover Latin countries, east European countries, African countries, southeast Asian countries in order to ship the goods in 2 days after the order confirmed in the near future.

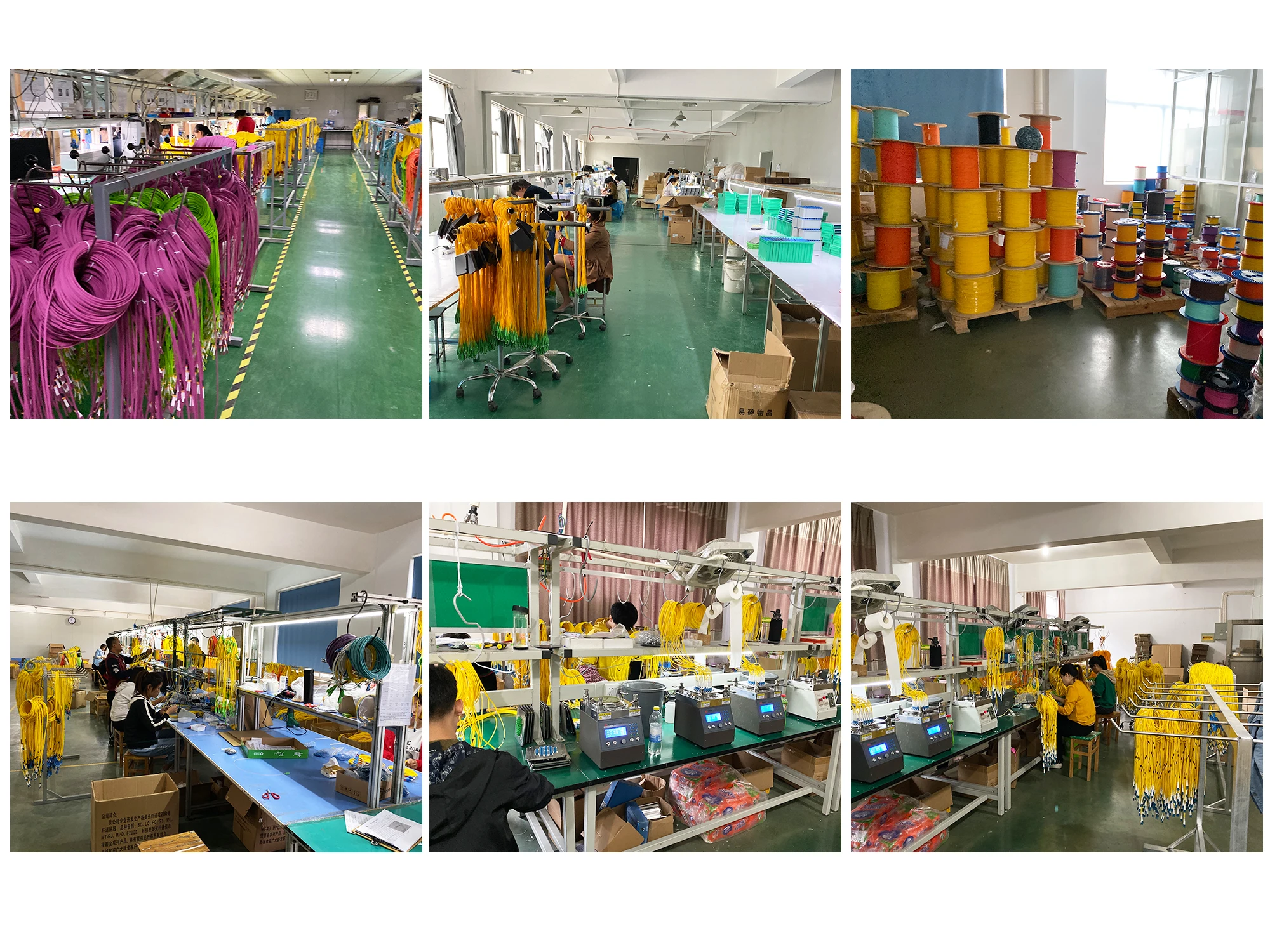

our factory
