Product Overview
Description
Product Description
About this item
● The MTP-8062 thermal image processor board demonstrates the skills of the MI0801 camera module and MI48A0.
● The external interface also provides standard 1.0mm 5-pin USB and1.0mm 6-pin SPI header connectors, which can be easily connected to any system.
● The MI0801 Camera Module Capable of capturing 80x62 (4,960)-pixel images of long wave infrared radiation (LWIR).
● No mechanical shutter is employed nor required.
● Its patented fabrication and wafer-level vacuum packaging ensures low cost of ownership, enabling many new applications to employ LWIR thermal imaging technology.
● The MI48A0 TIP is a 5mm by 5mm QFN32 chip with a bottom thermal pad and s expected to be electronically connected to the corresponding signal pins of the MI0801 Camera Module.
● This companion chip performs all the low-level computations and signal timing required to process the raw data from the MI0801 Camera Module, thus removing this burden from any external processors.
● The MI48A0 TIP also provides the external interface which is made up of common electrical buses and interfaces.
● The serial peripheral interface (SPI) bus is provided to transfer thermal image data with the MI48A0 TIP as a SPI slave device. The Inter-Integrated Circuit (I2C) bus is provided to control MI0801 module parameters.
● The DATA_READY Interrupt is a digital signal output from the MI48A0 TIP to alert the external processor of available image data for reading.
Price: USD$150/pcs not including the shipping cost
Overview of Modul Til Termisk Sensor
The MTP-8062-V1 camera module has a digital interface and no shutter. It can capture long-wave infrared radiation (LWIR) images with a resolution of 80x62 (4,960). It can measure the temperature of a black body with an accuracy of +/- 1°C or one of the detectors. The maximum deviation is less than +/-2°C, and the patented manufacturing and WLVP package ensure serial cost of ownership, allowing many new applications to utilize LWIR sensors instead of body temperature measurement and access control.
Features
●Long wave infrared radiation (LWIR) image with 80x62 (4,960) pixels.
●The longest detection distance can be 3~5M.
●The external interface provides standard 1.0mm 5-pin USB and 1.0mm 6-pin SPI header connectors, which can be easily connected to any system.
●Maximum scene temperature range -40°C to 1000°C
●Operating temperature range -20~65°C
●Storage temperature range -40~85°C
● The MTP-8062 thermal image processor board demonstrates the skills of the MI0801 camera module and MI48A0.
● The external interface also provides standard 1.0mm 5-pin USB and1.0mm 6-pin SPI header connectors, which can be easily connected to any system.
● The MI0801 Camera Module Capable of capturing 80x62 (4,960)-pixel images of long wave infrared radiation (LWIR).
● No mechanical shutter is employed nor required.
● Its patented fabrication and wafer-level vacuum packaging ensures low cost of ownership, enabling many new applications to employ LWIR thermal imaging technology.
● The MI48A0 TIP is a 5mm by 5mm QFN32 chip with a bottom thermal pad and s expected to be electronically connected to the corresponding signal pins of the MI0801 Camera Module.
● This companion chip performs all the low-level computations and signal timing required to process the raw data from the MI0801 Camera Module, thus removing this burden from any external processors.
● The MI48A0 TIP also provides the external interface which is made up of common electrical buses and interfaces.
● The serial peripheral interface (SPI) bus is provided to transfer thermal image data with the MI48A0 TIP as a SPI slave device. The Inter-Integrated Circuit (I2C) bus is provided to control MI0801 module parameters.
● The DATA_READY Interrupt is a digital signal output from the MI48A0 TIP to alert the external processor of available image data for reading.
Price: USD$150/pcs not including the shipping cost
Overview of Modul Til Termisk Sensor
The MTP-8062-V1 camera module has a digital interface and no shutter. It can capture long-wave infrared radiation (LWIR) images with a resolution of 80x62 (4,960). It can measure the temperature of a black body with an accuracy of +/- 1°C or one of the detectors. The maximum deviation is less than +/-2°C, and the patented manufacturing and WLVP package ensure serial cost of ownership, allowing many new applications to utilize LWIR sensors instead of body temperature measurement and access control.
Features
●Long wave infrared radiation (LWIR) image with 80x62 (4,960) pixels.
●The longest detection distance can be 3~5M.
●The external interface provides standard 1.0mm 5-pin USB and 1.0mm 6-pin SPI header connectors, which can be easily connected to any system.
●Maximum scene temperature range -40°C to 1000°C
●Operating temperature range -20~65°C
●Storage temperature range -40~85°C

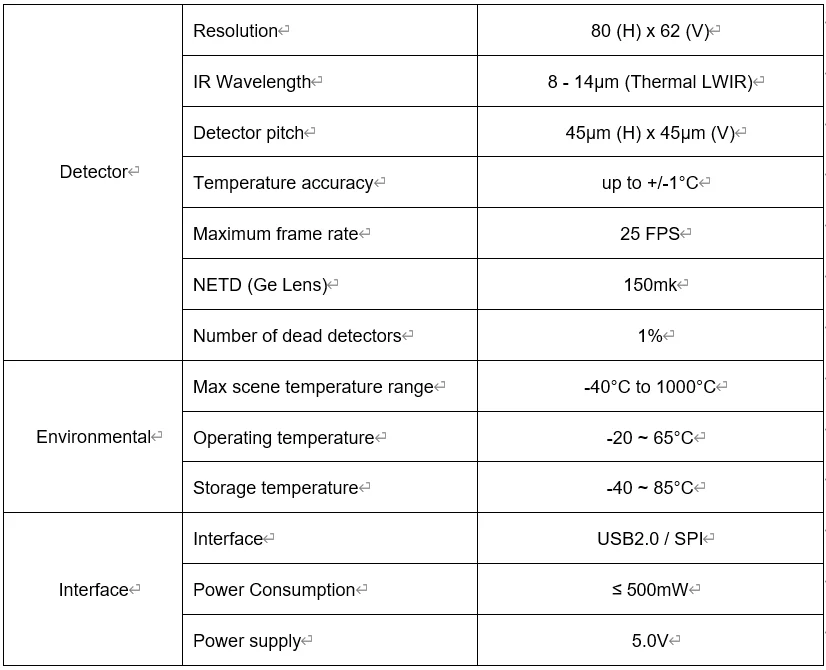

Specification
