3.5 to 5.0 Tons/Hour Capacity Thermal Desorption Unit (TDU) Waste Treatment Machinery
- Category: Waste Management >>>
- Supplier: BEST IN AGENCY
Share on (10000001069388):
Product Overview
Description
Product Description

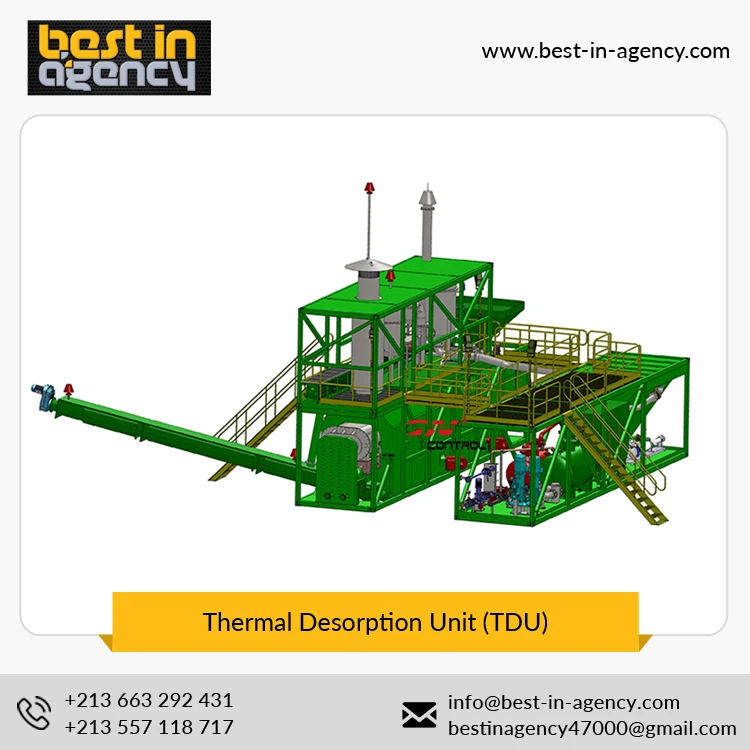

3.5 to 5.0 Tons/Hour Capacity Thermal Desorption Unit (TDU) Waste Treatment Machinery
Thermal Desorption Unit is an ex-situ, non-incineration technology designed to separate hydrocarbons from various matrices including oilfield waste, oil based drilling cuttings, soil, sludge, sand, filter-cake, tank and tanker bottoms, organic-based hazardous waste and contaminated soil in a non-oxidizing atmosphere without destroying the hydrocarbons.
Indirect heated treatment technology; oily waste will be heated firstly. The oil and moisture will gasified, and gases will be quenched and condensed for oil/water separation.
The TDU technology has been used extensively for waste management, and recovery of the oil from the waste material as a sellable product throughout the world.
TDU Features
- Skid mounted modular design makes it be assembled, transported and moved in a quickest way.
- Sensors, PLC system and safety valves and devices make the GN TDU to have the top class safety features.
- Environmental, non-incinerated and permanent solution for oily waste and organic contaminants;
- Vapor dust removal technology to remove the majority of dust from the vapor before condensing.
- Able to separate various hazard wastes or hydrocarbon wastes safely and efficiently, e.g., chlorinated organic pesticide, polychlorinated biphenyl, furan, tank bottom sludge, oil pit sludge, and OBM cuttings, etc.;
- Able to recover the organics with high additional value, such as hydrocarbons, efficiently from pharmaceutical waste, waste plastics, waste painting, oily sludge, and OBM cuttings, etc.;
- No noxious gases emission and reduces Greenhouse gas emission greatly comparing with incineration technology;
- Able to separate, recover and treat safely the wastes with boiling points up to 500 C degree.
- The oil and hydrocarbon gases recovered can be reused as fuel of the unit while water be recycled and the emitted gases are environmental friendly. Finally the overall system can completely realize zero emission;
- Continues to handle the waste with capacity from 3.5 to 5 tons or even higher depends on the moisture of the material, and the discharged TPH can be 0.3%.
Specifications
| Product Name | Thermal Desorption Unit (TDU) |
|---|---|
| Capacity | 3.5 to 5.0 Tons/Hour |
| TPH on treated Solids | 0.3-1 % |
| Total Installed Power | About 150Kw |
| Power Consumption | About 100KW |
| Burner Type | Diesel or Natural Gas made in Italy |
| No. of Burners | 6 (Two font burners, four side burners) |
| Fuel Consumption | About 130Kg/Hour Diesel |
| Ambient Temp. | 0-45 C degree |
| BS&W in Oil recovered | <1% |
