Products Description
DAMMA550L

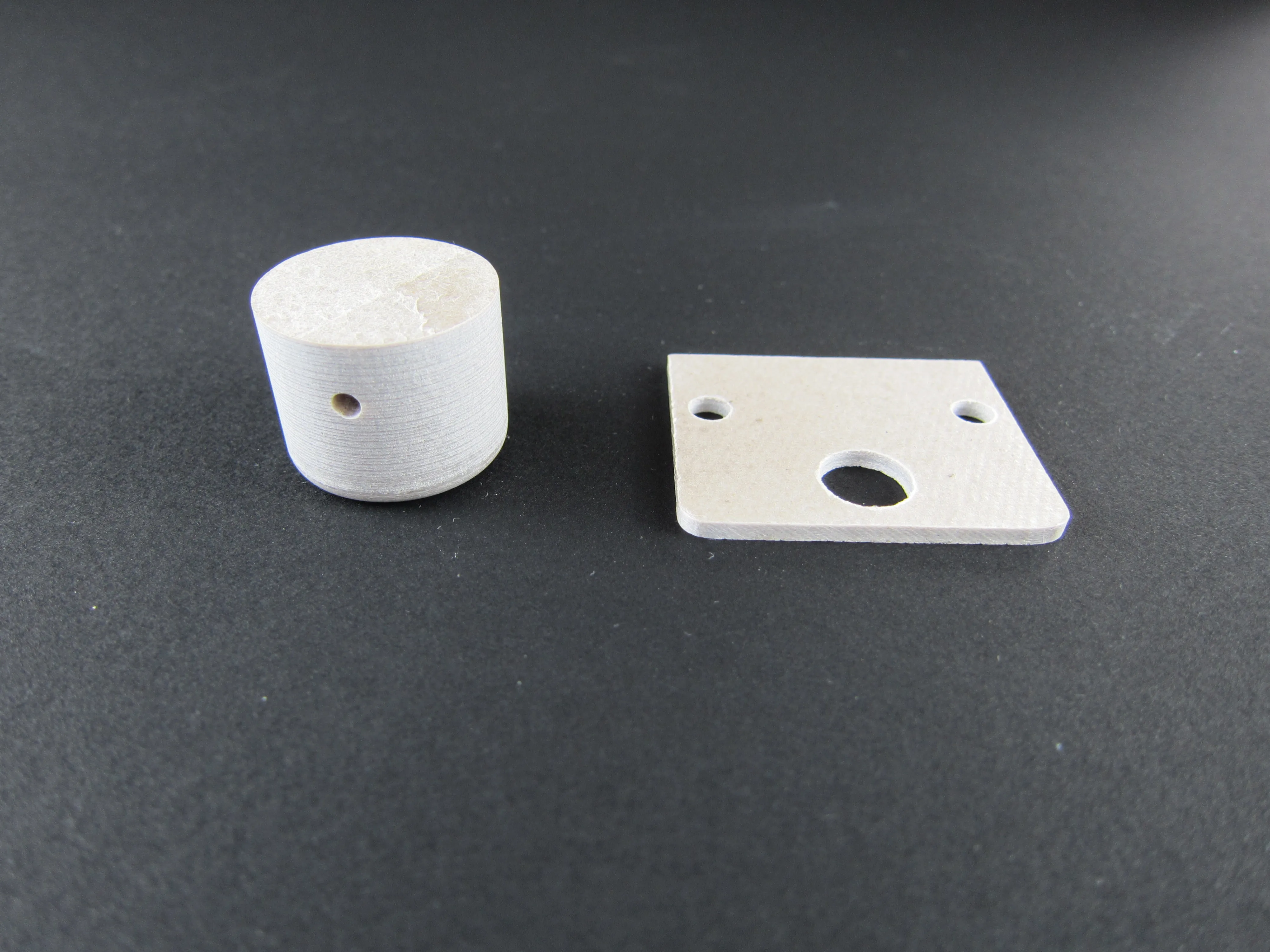

DAMMA550L is a rigid heat insulation board made by combining mica paper with silicone adhesives.
It has high strength and can be used as a structural material.
Since it does not contain asbestos, it can be used as a replacement for asbestos cement board.
Size of Blank Material :
Thickness : 0.2～50mm
Length X Width : 500X1000 mm
Applications :
Heat (Thermal) insulating washers for electrical furnace
Heat (Thermal) insulating plates for induction furnace
Heat (Thermal) Insulating flanges for high-temperature fluid piping
Heat (Thermal) insulation material for heater
Heat (Thermal) insulating machine parts
Delivery Form of DAMMA550L :
Please choose from among the following three types of the delivery form of DAMMA550L.
Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
It has high strength and can be used as a structural material.
Since it does not contain asbestos, it can be used as a replacement for asbestos cement board.
Size of Blank Material :
Thickness : 0.2～50mm
Length X Width : 500X1000 mm
Applications :
Heat (Thermal) insulating washers for electrical furnace
Heat (Thermal) insulating plates for induction furnace
Heat (Thermal) Insulating flanges for high-temperature fluid piping
Heat (Thermal) insulation material for heater
Heat (Thermal) insulating machine parts
Delivery Form of DAMMA550L :
Please choose from among the following three types of the delivery form of DAMMA550L.
Finished Product
Finished product after machining such as cutting, grinding and drilling based on your drawing will be supplied.
Board Cut to Specified Dimensions
Board without machining such as drilling, etc. and in the form of simply cutting the material according to the specified dimensions will be supplied.
Blank Material
Blank material without any machining will be supplied.
Our Advantages
1.MACHINABLECan be machined by using Machining Centers and NC lathes
2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 550 degrees celsius
3.HIGH MECHANICAL STRENGTH
Compressive strength : 500MPa Bending strength : 145MPa
2.HIGH HEAT RESISTANT TEMPERATURE
Heat resistant temperature : 550 degrees celsius
3.HIGH MECHANICAL STRENGTH
Compressive strength : 500MPa Bending strength : 145MPa
Product Paramenters
Units | DAMMA550L | |
Heat Resistant Temperature | degrees celsius | 550 |
Coefficient of Thermal Conductivity | W/m・k | 0.18 |
Thermal Expansion Rate | 1/degrees celsius | 1.1X10-5 |
Compressive Strength | Mpa | 500 |
Bending Strength | Mpa | 145 |
Specific Gravity | 2.2 |
Listed values are measured, it is not a guaranteed value.
Heat resistant temperature is for reference only, and varies depending on the operating conditions.
