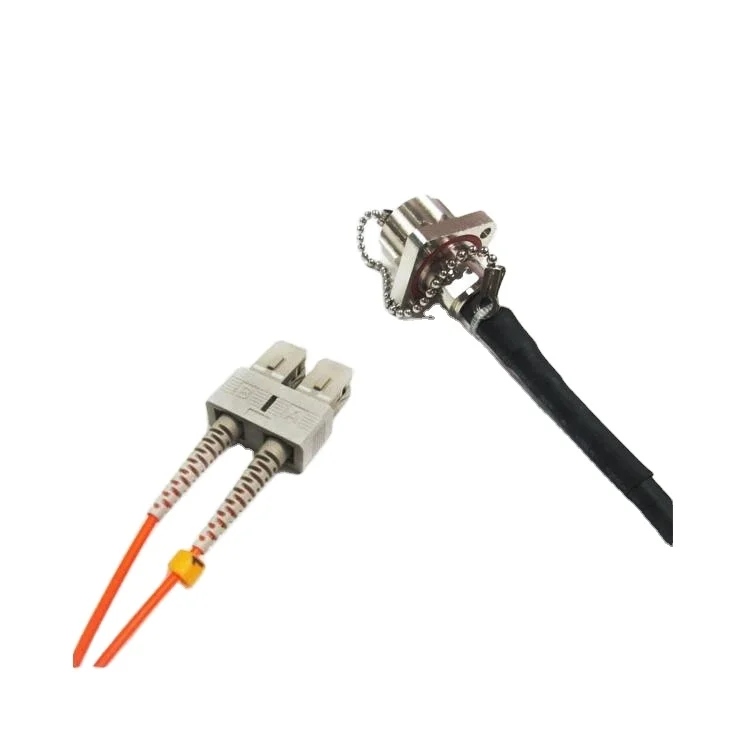

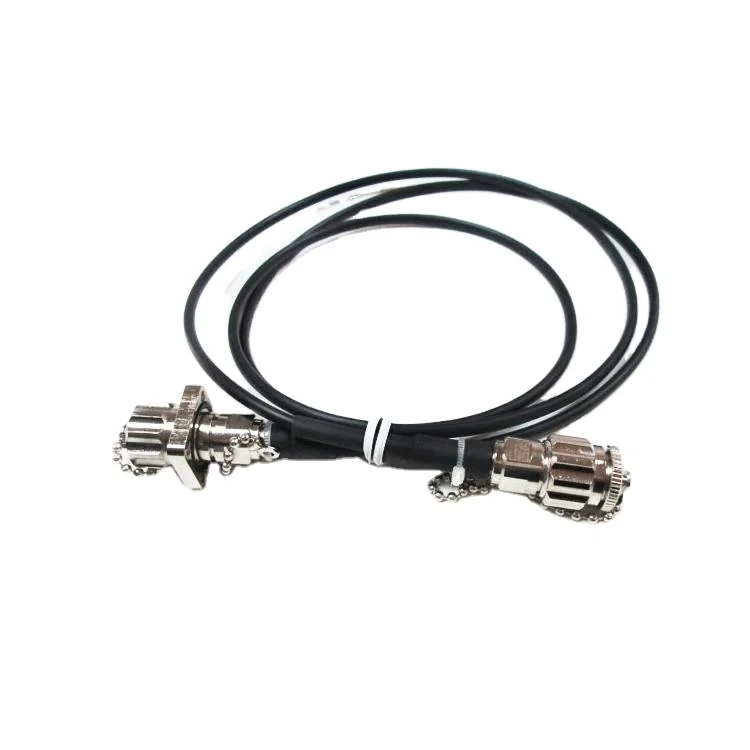

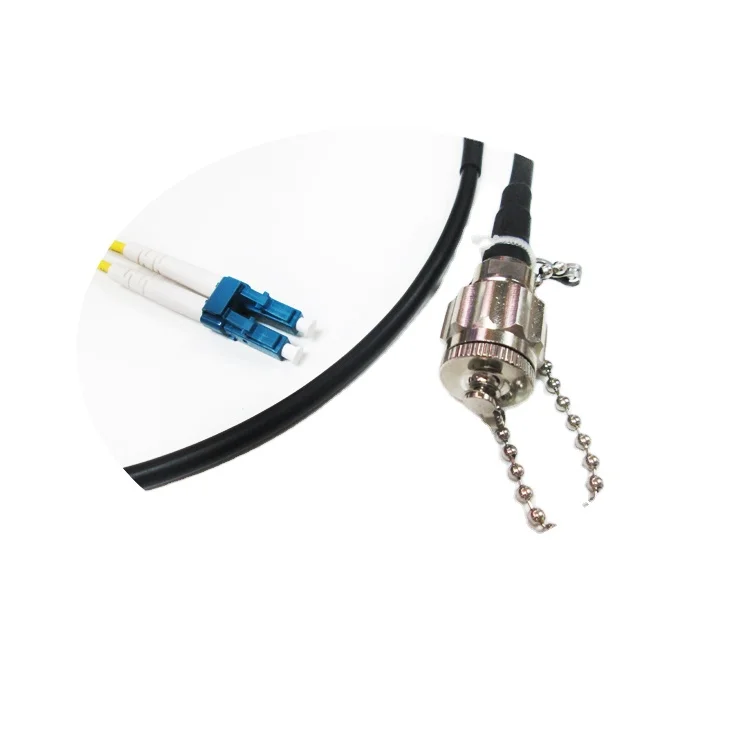

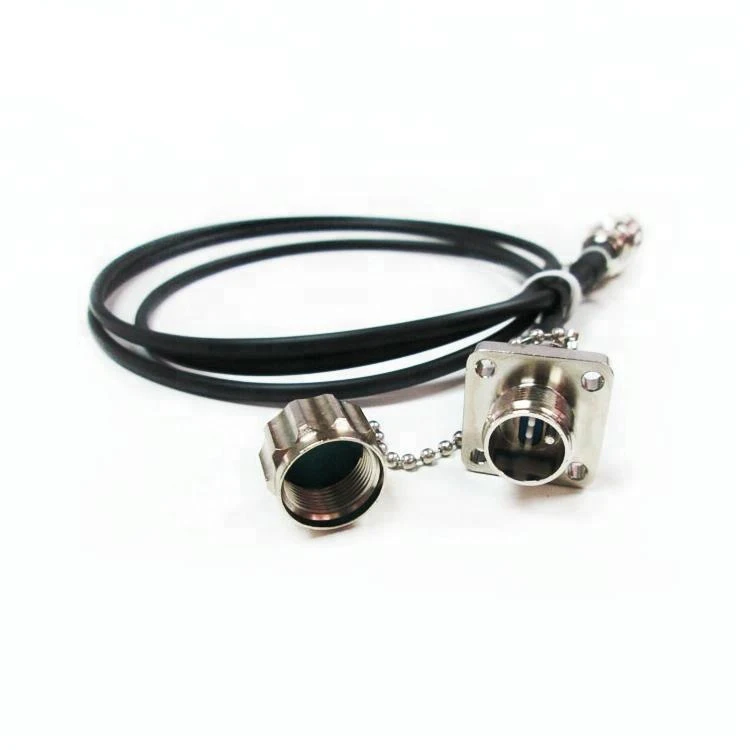

Outdoor 2F 4Core ODC SX MM Fiber Optic 3M Patch Cord With Female And Male Connector For FTTA And Broadcast Network
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd
Share on (10000001074586):
Product Overview
Description
Product Specifications
Item | Insertion loss(dB) | Insertion loss(dB) | Return loss(dB) | ||||||||||
ODC-4 fibers (Single-mode) | Typical:≤0.20 | ≤0.45 | ≥50 | ||||||||||
ODC-4 fibers (Multi-mode) | Typical:≤0.20 | ≤0.50 | ≥50 | ||||||||||
Specification | Parameter | ||||||||||||
Technology | full ceramic ferrule and sleeve | ||||||||||||
Housing material | nickel-plated brass | ||||||||||||
ODC-4 plug | ≤ 800 N tensile load,≤ 30 N | ||||||||||||
Mechanical performance | tensile load | ||||||||||||
ODC-4 socket | ≤ 30 N static side load,≤ 30 N | ||||||||||||
tensile load | |||||||||||||
Installation torque force | min. 1 Nm, | max. 2 Nm | |||||||||||
Operating temperature( °C) | IEC 61300-2-22 | – 40 °C up to + 85 °C | |||||||||||
Ingress protection (mated) | IEC 60529 | IP 68 | |||||||||||
Salt mist | IEC 61300-2-26 | 30 days passed | |||||||||||
Vibration | IEC 61300-2-1 | passed 10 – 500 Hz / 10g | |||||||||||
Shock | IEC 61300-2-9 | passed 100 g | |||||||||||
1) depending on cable type | 2) with repeated cleaning | ||||||||||||
Product Application
1. Compact design with 4 x 1.25 mm ferrules
2. Built-in socket with square or hexagonal flange
3. Extension connector for cable chaining
4. Screwed locking mechanism
5. Easy and safe installation
6. Waterproof, dust proof and corrosion resistant
7. Waterproof protection caps
8.EMI protected
9. RoHs compliant
10. Full compatibility with previous version
2. Built-in socket with square or hexagonal flange
3. Extension connector for cable chaining
4. Screwed locking mechanism
5. Easy and safe installation
6. Waterproof, dust proof and corrosion resistant
7. Waterproof protection caps
8.EMI protected
9. RoHs compliant
10. Full compatibility with previous version
