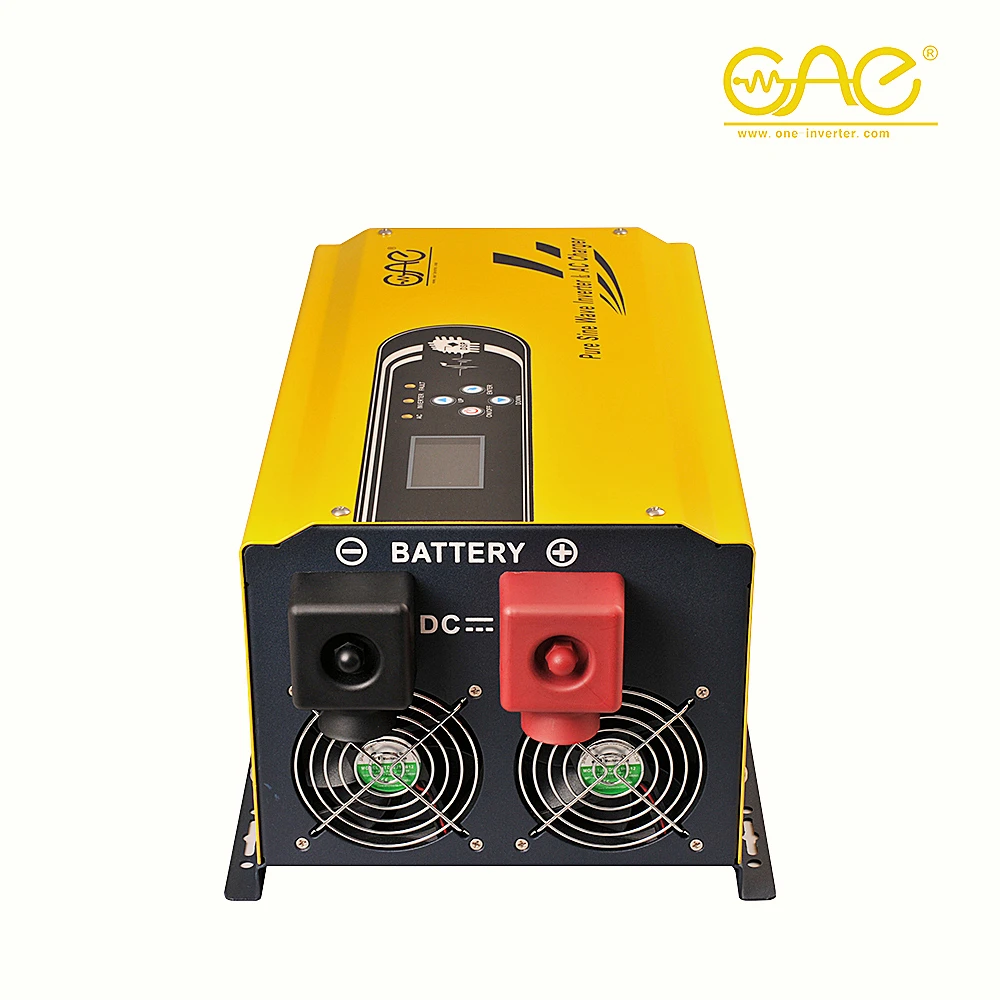

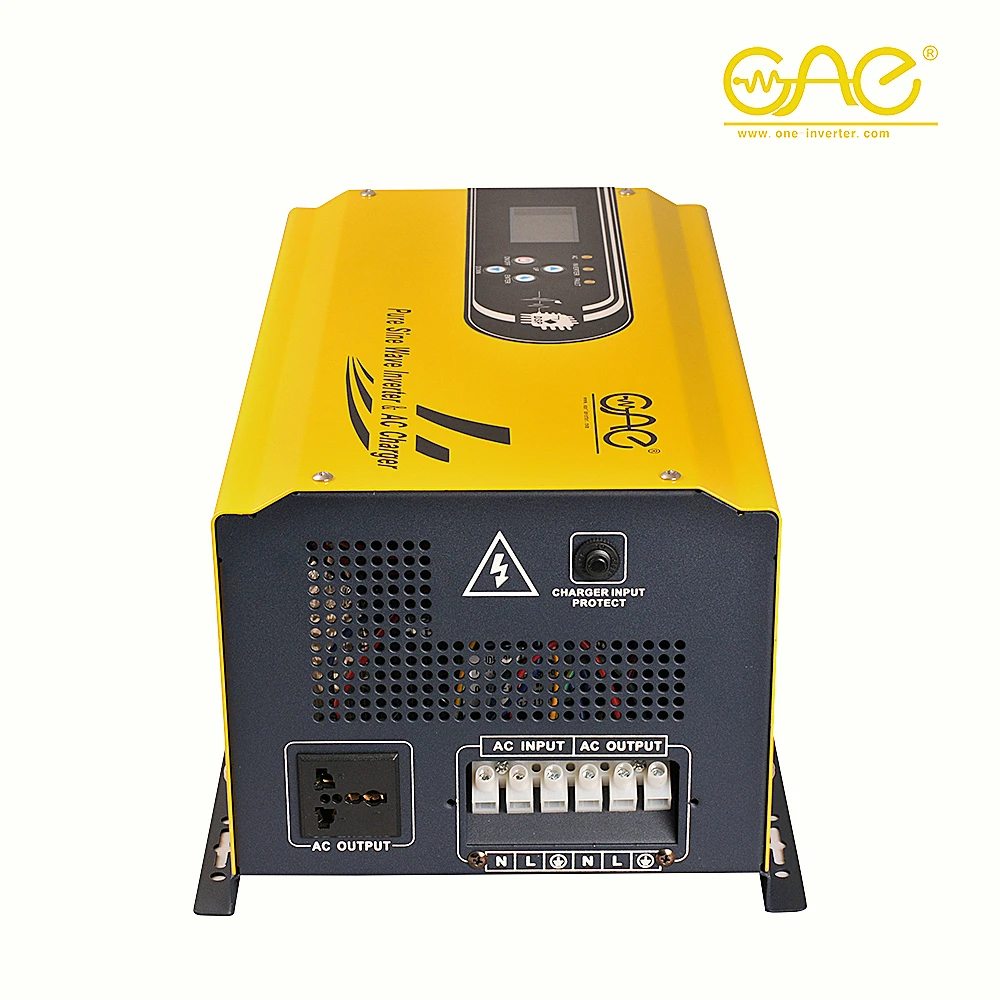

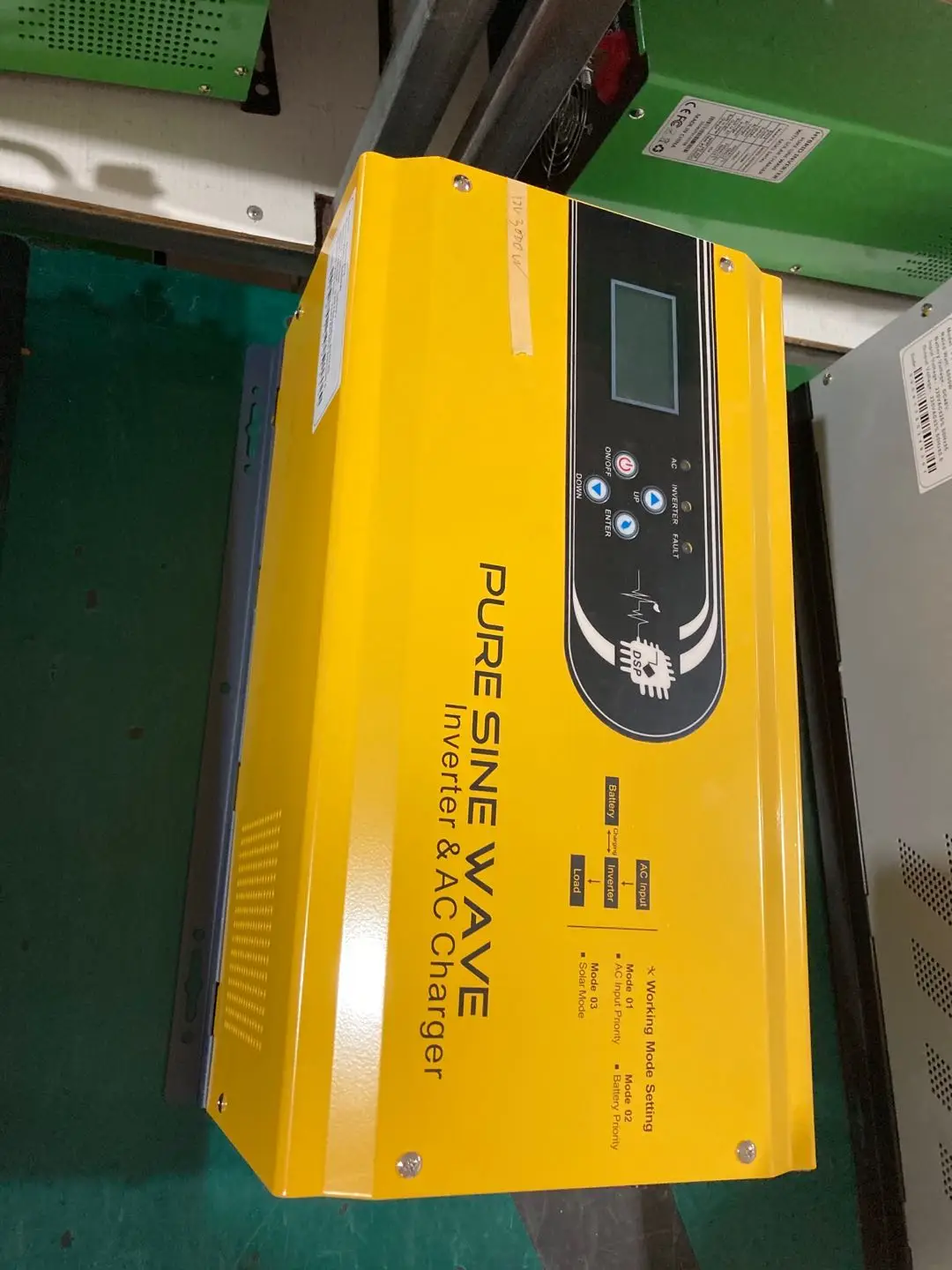

3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter
3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter
3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter
3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter
3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter
3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter
3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter

3kw Dc To Ac Inverter single Phase 3000W 3KW Gridtie Inverter High Voltage Inverter

Share on (10000001137424):


Price:

Quantity:


Product Overview

Description



Products Description




Specification


MODEL
GI-102
GI-152
GI-202
GI-302
GI-402
GI-502
GI-602
GI-702
RATED POWER
1KW
1.5KW
2KW
3KW
4KW
5KW
6KW
7KW
SURGE POWER
3KW
4.5KW
6KW
9KW
12KW
15KW
18KW
21KW
INPUT
VOLTAGE
220VAC
SELECTABLE VOLTAGE RANGE
145-265VAC
170-265VAC
FREQUENCY RANGE
50HZ/60HZ±5HZ
OUTPUT
AC VOLTAGE REGULATION(BATT. MODE)
(DC BATT.MODE)220VAC±3%
TANSFER TIME
≤5ms
WAVE FORM
PURE SINE WAVE
BATTERY
BATTERY VOLTAGE
12V/24V
24V/48V
FLOATING CHARGE VOLTAGE
13.8V(12V)/27.6V(24V)/55.2V(48V)
OVERCHARGE PROTECTION
17V(12V)/34V(24V)/68V(48V)
AC CHARGER
STANDBY POWER COMSUMPTION
15W
MAXIMUM AC CHARGE CURRENT
35A
PHYSICAL
DIMENSION,D*W*H(MM)
530*335*250MM
740*335*275MM
G.W.(KGS)
12
14
15.6
20.3
26.9
30
34.4
35
ENVIRONMENT
HUMIDITY
0~95%（NO CONDESNSATION)
OPERATING TEMPERATURE
0~60℃
STORAGE TEMPERATURE
0~60℃
*PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE

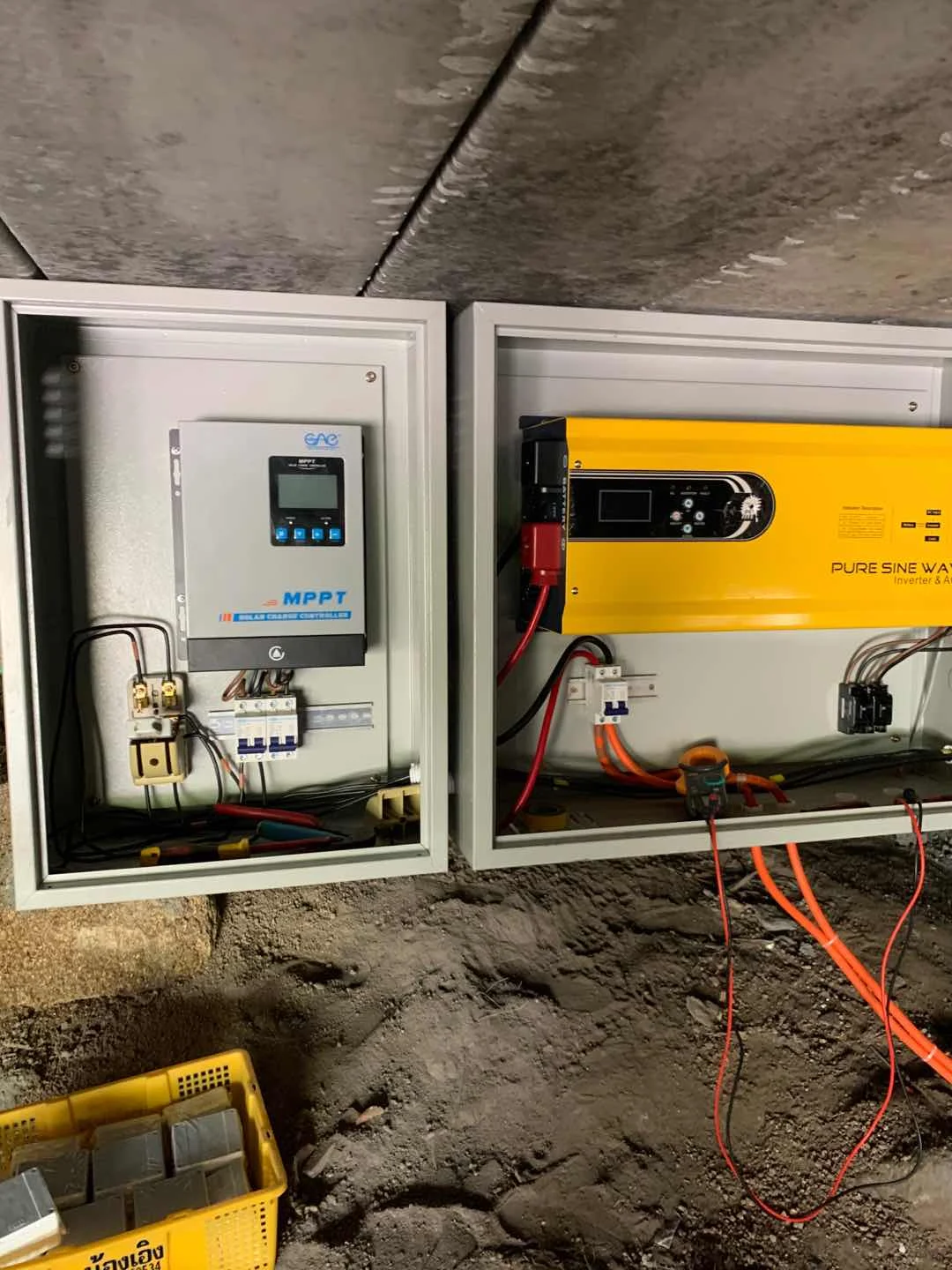

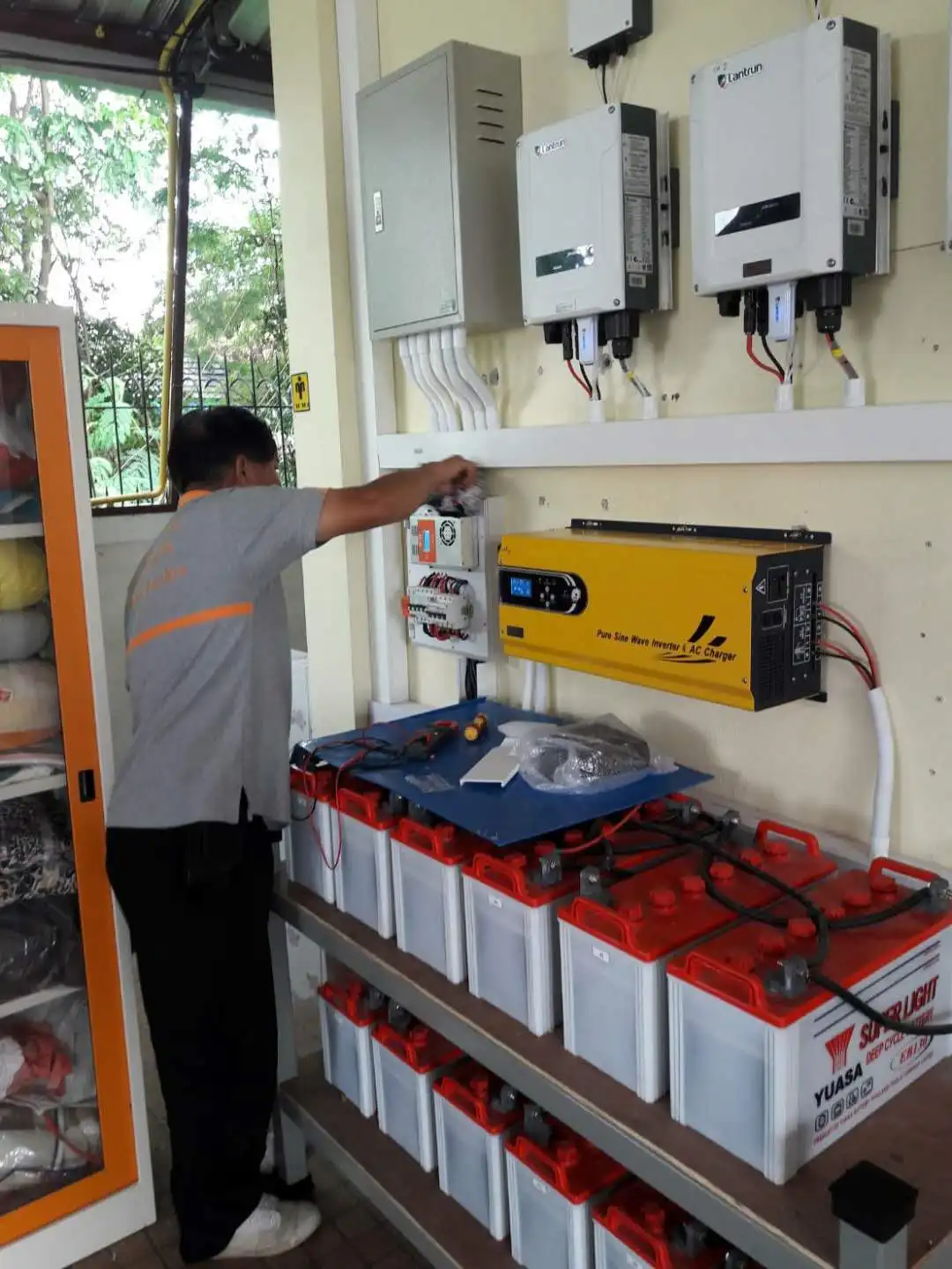

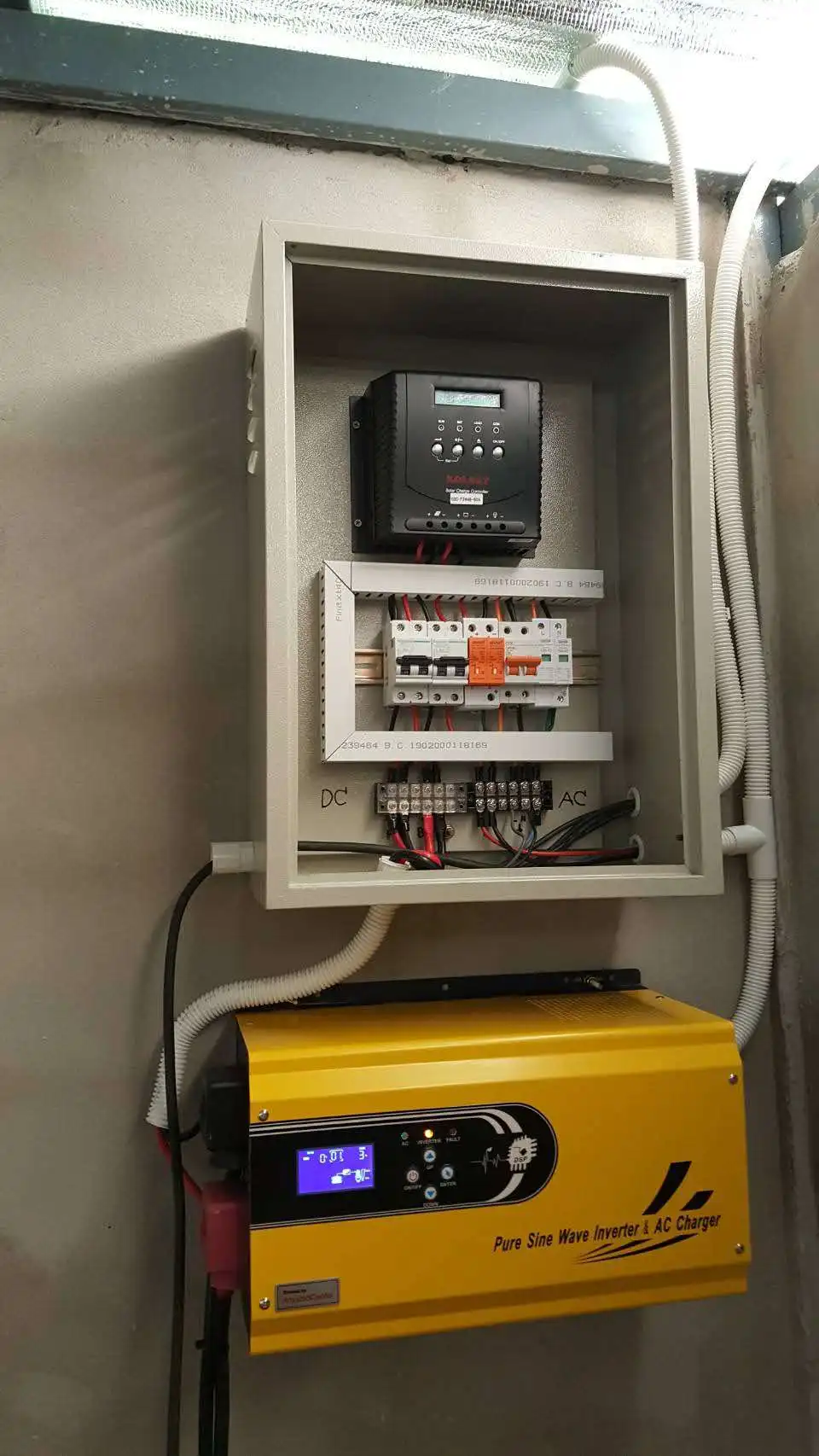

Customer Photos




Company Profile




Certifications




FAQ


Q1: Does your company also provide other solar products ?
A1: Yes, we also provide solar inverter/ups inverter/ solar system/ pump inverter/MPPT controller/Mono panel/Gel battery etc.

Q2: How to choose a right products?
A2: Tell us your demand, then our sales will recommend a suitable productsto you.

Q3: How about the delivery time?
A3: 5 days for sample; 7-15 days for bulk order.

Q4: What is the warranty of inverter?
A4: 1 year warranty.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
