Модуль USB камеры Sony 4K для онлайн конференции | Modulo fotocamera USB 4K
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000001143894):
Product Overview
Description
Product Description
Overview of Modulo fotocamera USB 4K

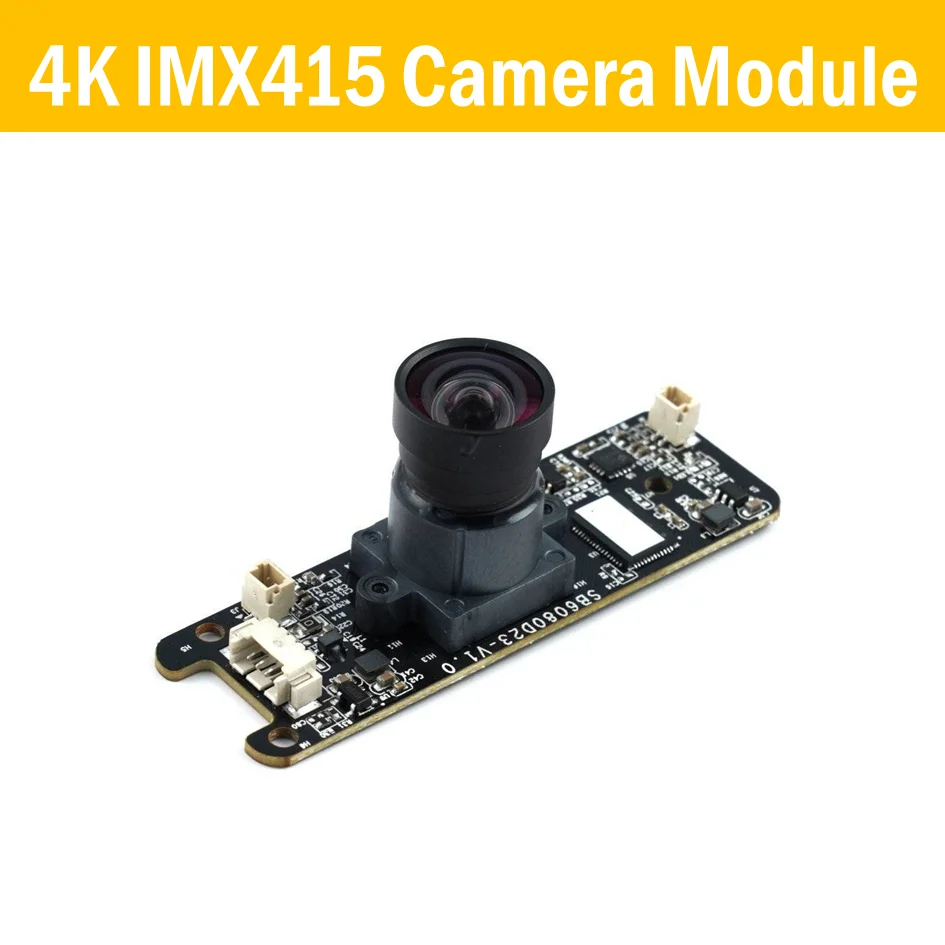

MCY-6080 s an USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio feature, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit, connector and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through USB interface to PC.
MCY-6080 not only offers up to 4K resolution (3840X2160) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, 4K resolution up to 30fps at MJPG mode. It also provides stereo audio input by two
microphones.
MCY-6080 builds in AE, AWB and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end user well tune image by property page.
MCY-6080 not only offers up to 4K resolution (3840X2160) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, 4K resolution up to 30fps at MJPG mode. It also provides stereo audio input by two
microphones.
MCY-6080 builds in AE, AWB and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end user well tune image by property page.
I/O ports (Front) | ||
Size(LWH/mm) | 38.0 x 38.0 x 32.0±0.2 mm (include PCB Thickeness) | |
PCB Thickeness | 1.0 mm | |
Output Interface | USB 3.0 | |
Image/Video Format | 1x Power On/Off Button | |
HD | 1280x720 | |
FHD | 1920x1080 | |
2K | 2048x1536 | |
2.7K | 2688x1512 | |
QSXGA | 2592x1944 | |
UHD | 3840x2160 | |
Frame Rate | 8.29 M – 30FPS | |
Video Class Compliant | YES | |
LED Indicate | N/A | |
Operating Temperature | -10℃ to +65℃ | |
Power Consumption | ||||||
Min | Type | Max | ||||
Input Supply Voltage | 4.85V | 5V | 5.25V | |||
Un-configured Current | - | - | - | |||
Operating Current | - | - | - | |||
Suspend Current | - | - | - | |||
Backend IC Specification | ||
Type | AIT8589D Backend IC with USB3.0 interface | |
Compatibility | USB Video class Compliant, Microsoft WHQL Certified | |
Support Sensor Size | Support Most popular CMOS sensors | |
OS Supported | Win10, Linux, Android | |
Sensor Specification | ||
Optical format | SONY IMX415 1/2.5-inch 8M CMOS Sensor | |
Active resolution | 3840H×2160V | |
Unit pixel size | 1.62μm x 1.62μm | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
Lens Specification | ||
F/No. | 2.2 土 5% | |
Field of View | 120° (Diagonal) 112(H) 75(V) | |
Focus Distance | 50cm | |
