Cast Aluminum PCB Unsolder Electric Board Set Without Welding From Vietnam Manufacturer
- Category: >>>
- Supplier: DTDAUTO VIETNAM COMPANY LIMITED [Vietnam]DTDAUTO
Share on (10000001155932):
Product Overview
Description
Specification
Place of Origin | Vietnam |
Brand Name | DTDAuto |
Model Number | EC1006 |
Product name | PCB |
Type | PCB Unsolder |
Net Weight | 2.5 kgs |
Design | Assemble Component |
Dimension | 23x19x26 cm |
Material | Cast Aluminum |
Logistics mode | Air transportation |
Product Description

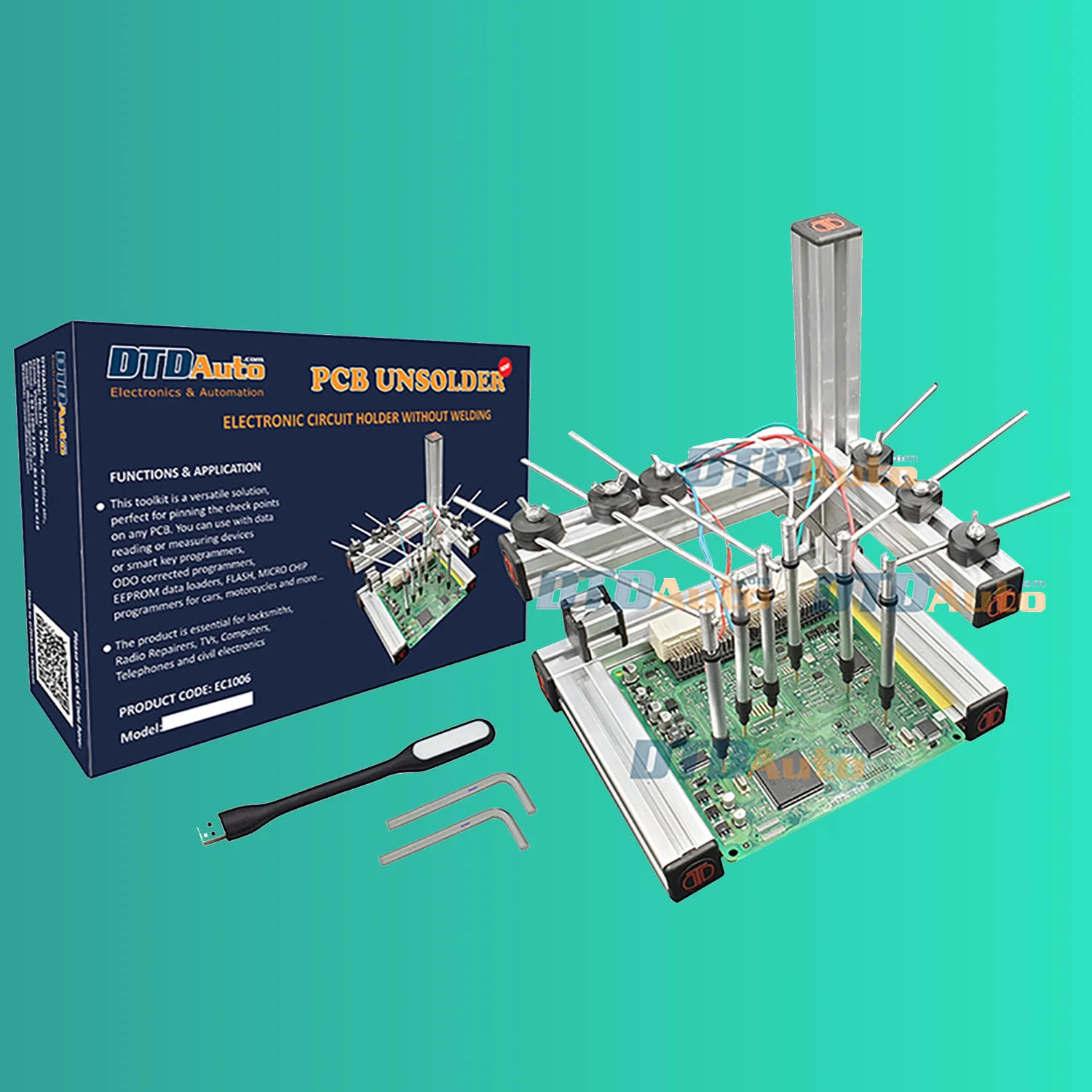

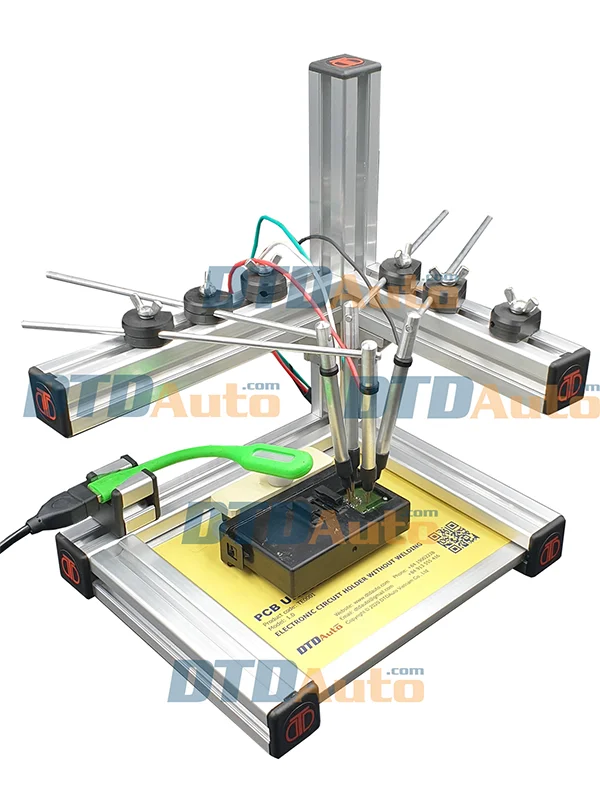

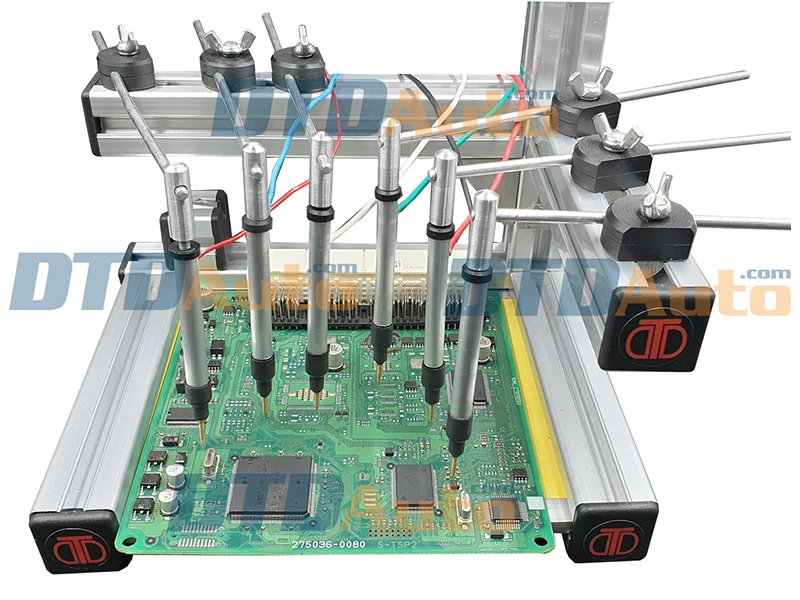

PCB UNSOLDER is the name of the toolkit used to connect multiple electrical points on the types of electronic printed circuit boards in the interim period to operate: measuring, diagnosing, testing, loading software, reading and writing data... without the
need to solder on the circuit, without leaving traces of interference, repair, convenient for the repairer.
Specifications

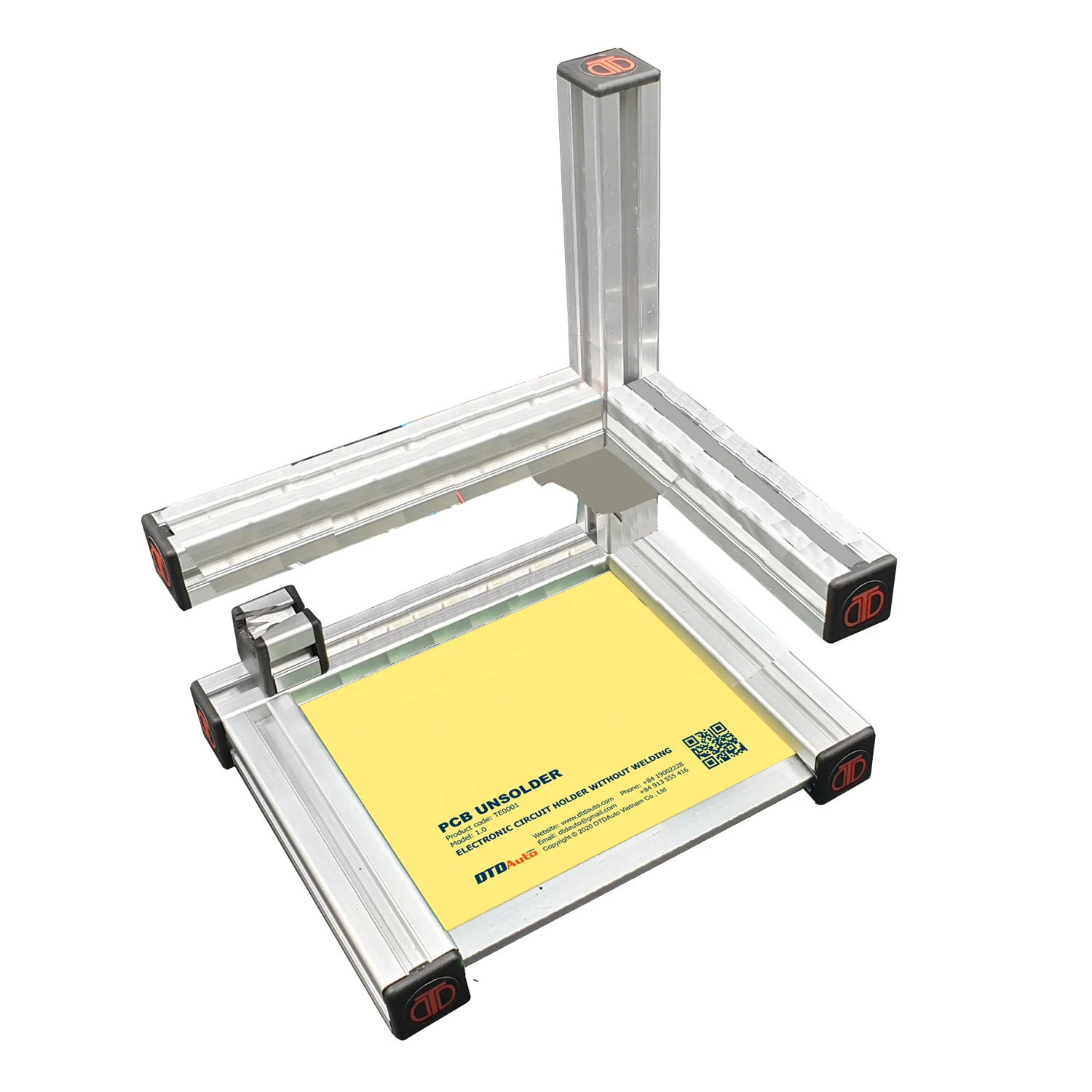

- Designing style is assembly of separate components
- Materials: Cast aluminum
- Size: 23x19x26 cm
- Weight: 2.5 kg
need to solder on the circuit, without leaving traces of interference, repair, convenient for the repairer.
Specifications
- Designing style is assembly of separate components
- Materials: Cast aluminum
- Size: 23x19x26 cm
- Weight: 2.5 kg
Classification
Common type
Points to be pinned on the horizontal plane
Wide PCB type
Check points need to be pin far apart on a large area
Thick PCB type
Check points need to be monolithic on a thick whole

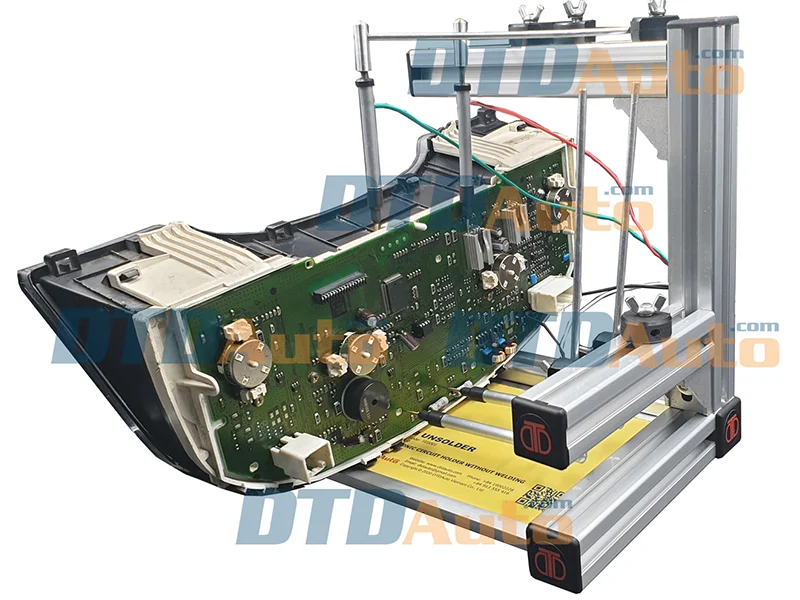

Non-plane PCB type
The points to pin are not the same plane

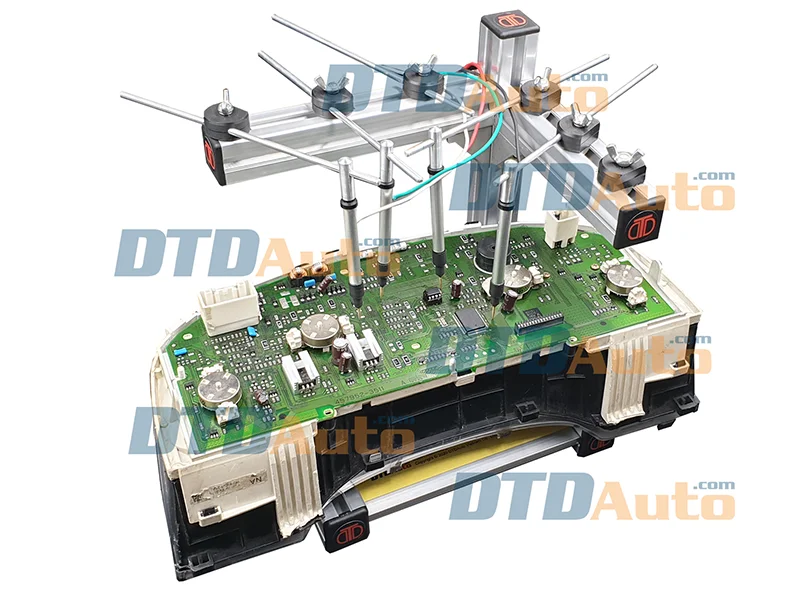

Complex type
Very close electric points, not on the same plane, with inclined sides and electric points to be pinned on the top of undulating components
WHAT ARE THE ADVANTAGES OF THE PRODUCT?

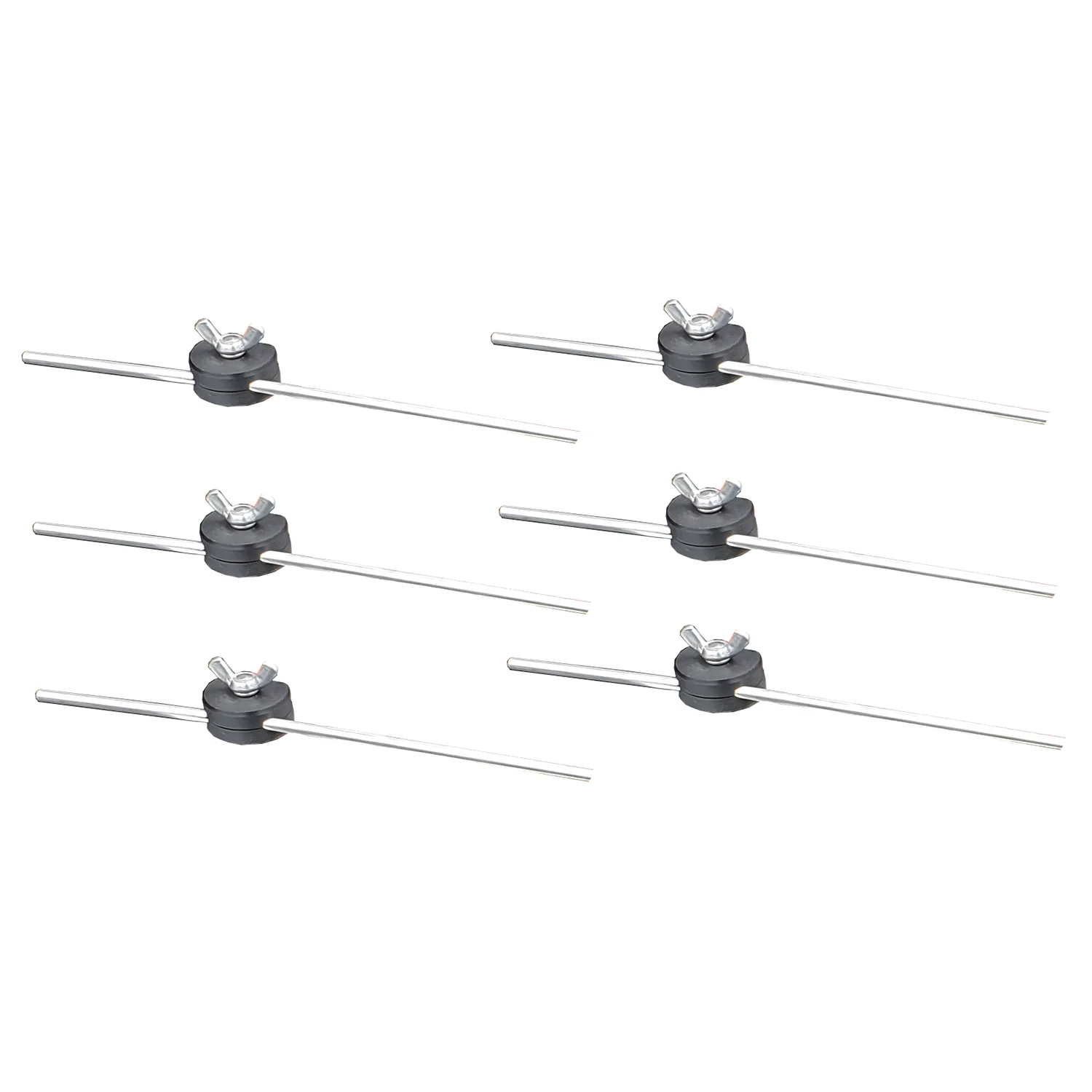

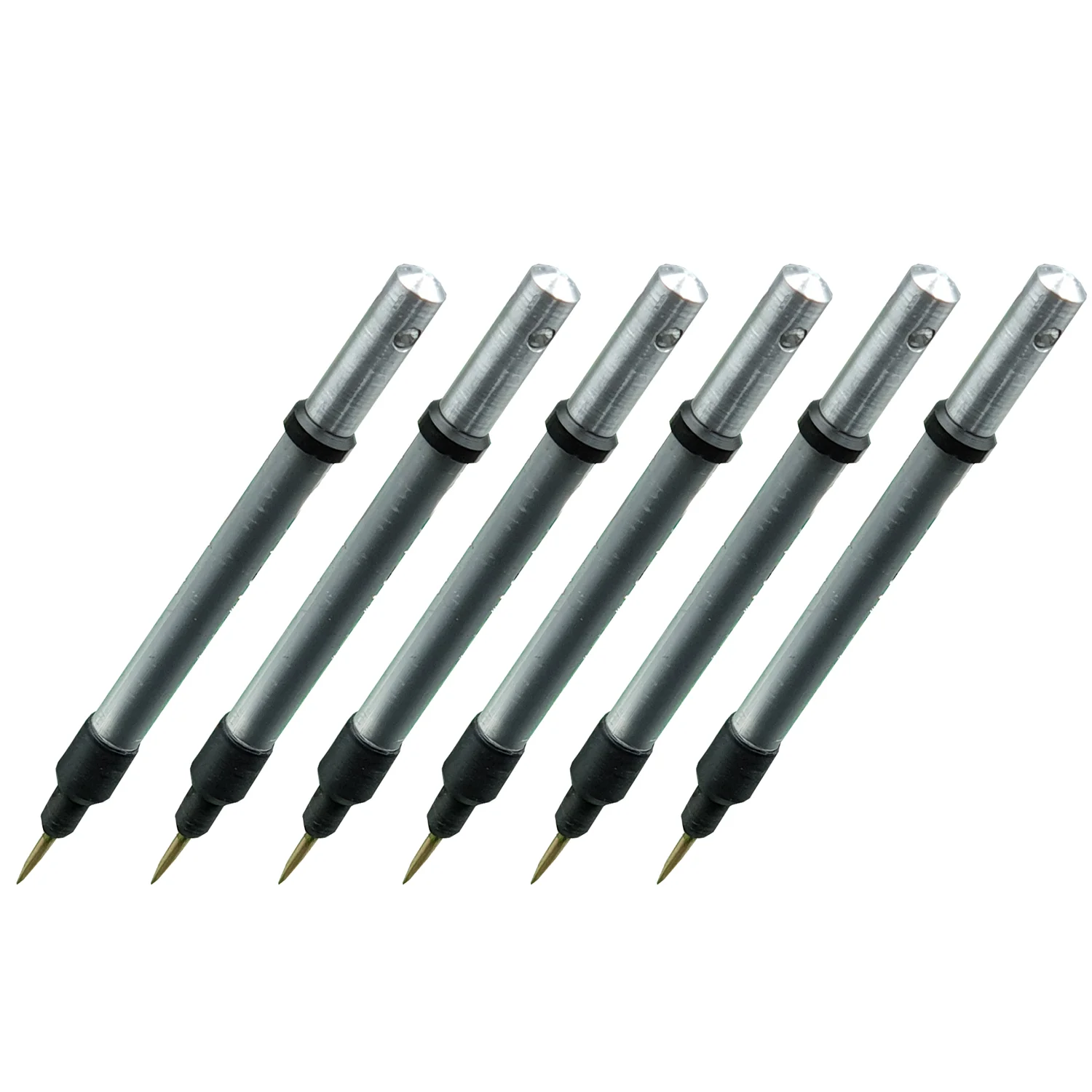

Unlike conventional low-cost products and home-made products of workers, PCB UNSOLDER is studied, meticulously designed, precise, sophisticated, durable, versatile and reliable and address most of the disadvantages of other products on the market. In particular, the product is designed to be capable of flexible multi-directional adjustment (3D) independently of each pressured point and has the ability to adjust the needle pressure independently according to the user's wishes and can also give an needle additional option as desired. You can pin custom electrical contacts according to your actual circuit such as:
- Common type: points to be pinned on the horizontal plane
- Wide PCB type: check points need to be pin far apart on a large area
- Thick PCB type: check points need to be monolithic on a thick whole
- Non-plane PCB type: the points to pin are not the same plane
- Complex type: very close electric points, not on the same plane, with inclined sides and electric points to be pinned on the top
of undulating components ...
- Common type: points to be pinned on the horizontal plane
- Wide PCB type: check points need to be pin far apart on a large area
- Thick PCB type: check points need to be monolithic on a thick whole
- Non-plane PCB type: the points to pin are not the same plane
- Complex type: very close electric points, not on the same plane, with inclined sides and electric points to be pinned on the top
of undulating components ...
Specification
ITEM | VALUE |
Type | Smart electronics pcba |
Place of Origin | Vietnam |
Supplier Type | DtDAuto Company Limited |
Product Name | PCB Unsolder |
Product Code | EC1006 |
Origin | DtDAuto |
Net Weight | 2.5 kgs |
MOQ | 1 unit |
Design | Assemble Component |
Material | Cast Aluminum |
Dimension | 23x19x26 cm |
Company Profile
"DTDAuto" is the abbreviated name of Center for researching and manufacturing Technology equipments for automotives, Institute of Physics, Institute of Science and Technology of Vietnam (DTDAuto Technology Center).
Since 2002, DTDAuto is a laboratory where we have researched, designed and manufactured high-tech equipment used for workshops and vocational schools with updated modern technique.
Since 2002, DTDAuto is a laboratory where we have researched, designed and manufactured high-tech equipment used for workshops and vocational schools with updated modern technique.
DTDAuto members are researchers, university lecturers and students from Institute of Science & Technology of Vietnam, Military Technology Academy, Hanoi University of Technology, Aptech Training Center and Hanoi Robotcon candidates.
Since 2002 to present, products manufactured by DTDAuto always have high standards of science, technique and job-training at commercialization level and used in many vocational schools, training center and workshops in the world.
Since 2002 to present, products manufactured by DTDAuto always have high standards of science, technique and job-training at commercialization level and used in many vocational schools, training center and workshops in the world.
