Online Conference UHD Web Camera Module, 30FPS, with IMX415 Sensor is the best 4K Camera Module
- Category: >>>
- Supplier: MIDAS TOUCH SOLUTIONS INC.
Share on (10000001160831):
Product Overview
Description
Product Description
Overview of 4K USB-kameramodul

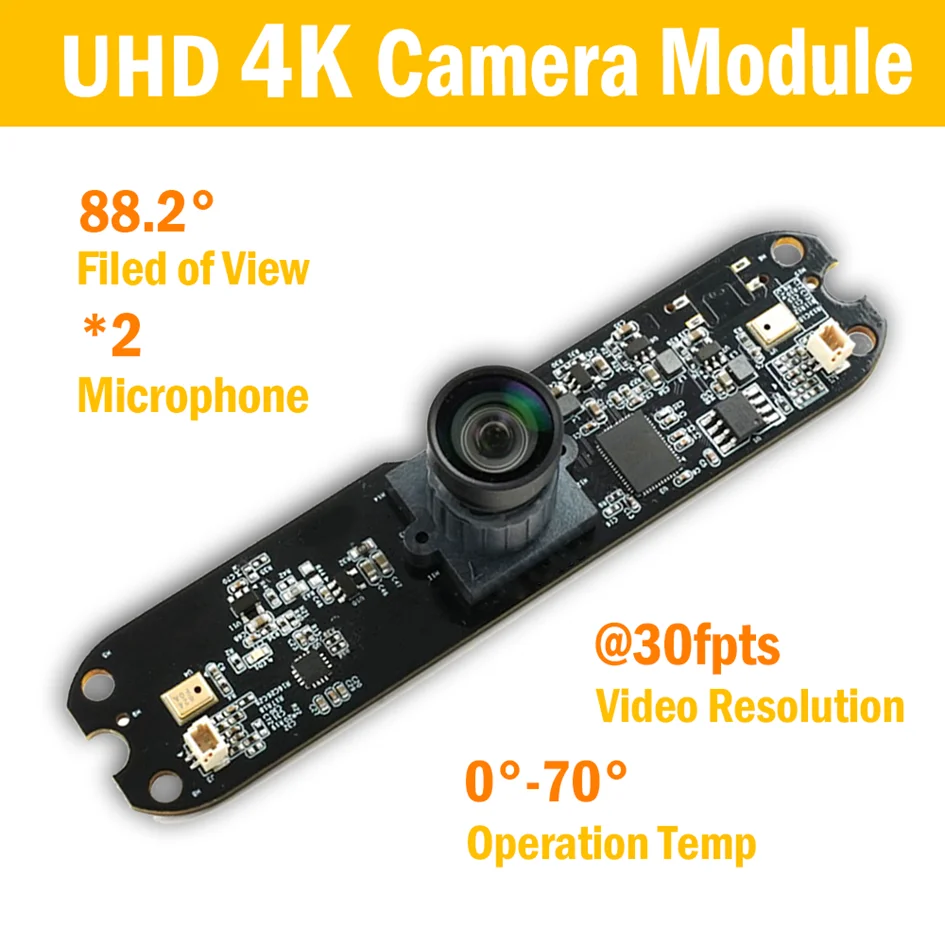

MCY-1180 is an USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio feature, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processingn circuit, connector and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through USB interface to PC.
MCY-1180 not only offers up to 4K resolution (3840X2160) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, 4K resolution up to 30fps at MJPG mode. It also provides stereo audio input by two microphones.
MCY-1180 builds in AE, AWB and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end user well tune image by property page.
MCY-1180 is an USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio feature, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processingn circuit, connector and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through USB interface to PC.
MCY-1180 not only offers up to 4K resolution (3840X2160) for image applications to take still image, but also offers video stream for end user to preview/record motion image through USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, 4K resolution up to 30fps at MJPG mode. It also provides stereo audio input by two microphones.
MCY-1180 builds in AE, AWB and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end user well tune image by property page.
I/O ports (Front) | ||
Size(LWH/mm) | 38.0 x 38.0 x 32.0±0.2 mm (include PCB Thickeness) | |
PCB Thickeness | 1.0 mm | |
Output Interface | USB 3.0 | |
Image/Video Format | 1x Power On/Off Button | |
HD | 1280x720 | |
FHD | 1920x1080 | |
2K | 2048x1536 | |
2.7K | 2688x1512 | |
QSXGA | 2592x1944 | |
UHD | 3840x2160 | |
Frame Rate | 8.29 M – 30FPS | |
Video Class Compliant | YES | |
LED Indicate | N/A | |
Operating Temperature | -10℃ to +65℃ | |
Power Consumption | ||||||
Min | Type | Max | ||||
Input Supply Voltage | 4.85V | 5V | 5.25V | |||
Un-configured Current | - | - | - | |||
Operating Current | - | - | - | |||
Suspend Current | - | - | - | |||
Backend IC Specification | ||
Type | AIT8589D Backend IC with USB3.0 interface | |
Compatibility | USB Video class Compliant, Microsoft WHQL Certified | |
Support Sensor Size | Support Most popular CMOS sensors | |

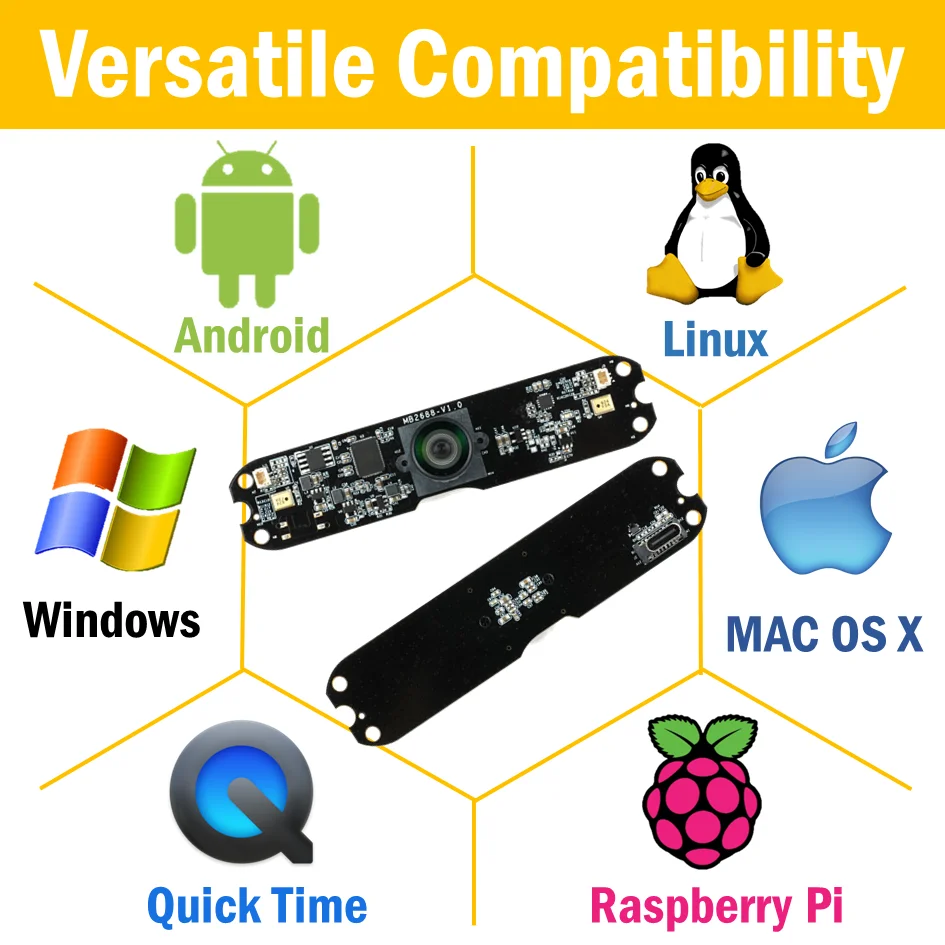

OS Supported | Win10, Linux, Android | |
Sensor Specification | ||
Optical format | IMX317 1/2.5-inch 8M CMOS Sensor | |
Active resolution | 3840H×2160V | |
Unit pixel size | 1.62μm x 1.62μm | |
0°C to 40°C (with standard HDD/SSD/SATA‐Slim/DRAM) | ||
Lens Specification | ||
F/No. | 2.2 土 5% | |
Field of View | 120° (Diagonal) 112(H) 75(V) | |
Focus Distance | 50cm | |
Note: All specifications are subject to change without furthur notice.
Company Profile
Our Advantages
Exhibition
Winning experience
Oversea Extend
Certificates
FAQ
Q1:Why we should choose you?
1). Reilable-we provided the quality products to meet your requriement.
2). Professional: Our expert can fully support your special requests.
3). Service: Our team is with PMP certificated so can well control the project schedule and cost for you.
Q2:How about the shipping cost?
A2:For the sample, we provide the DHL/Fedex/UPS. For the large quantity, we can provide the forwarder for you.
Q3:How about the price?
A3:The price depends on the quantity you want.Finally quotation according to your specifications.
Q4:How about the sample lead time? What is the payment?
A4:The lead time for the sample is about 3-5 working days after receipt of your payment. We accept the sample amount less than USD$1000 pay by PayPal.
Q5: Can you OEM/ODM camera module?
2). Professional: Our expert can fully support your special requests.
3). Service: Our team is with PMP certificated so can well control the project schedule and cost for you.
Q2:How about the shipping cost?
A2:For the sample, we provide the DHL/Fedex/UPS. For the large quantity, we can provide the forwarder for you.
Q3:How about the price?
A3:The price depends on the quantity you want.Finally quotation according to your specifications.
Q4:How about the sample lead time? What is the payment?
A4:The lead time for the sample is about 3-5 working days after receipt of your payment. We accept the sample amount less than USD$1000 pay by PayPal.
Q5: Can you OEM/ODM camera module?
A5: Yes, we can offer OEM camera modules according to customer's different requirement.
Q6: Can you provide SDK for secondary development?
A6: Yes, We can offer Linux, Windows, Android SDK.
Q7: What's your USB cameras' production cycle?
A7: We can supply the camera module for a long time. as long as customers need it.
Q8: Are you manufacturer?
A8: Yes, we are designer and manufacturer for USB camera module.
Q9: Does the camera support Raspberry Pi? If support Linux system?
A9: Yes, all our USB cameras support Raspberry Pi system and Linux system.
Q10: Does the camera support OTG?
A10: Most of our USB cameras support OTG function.
