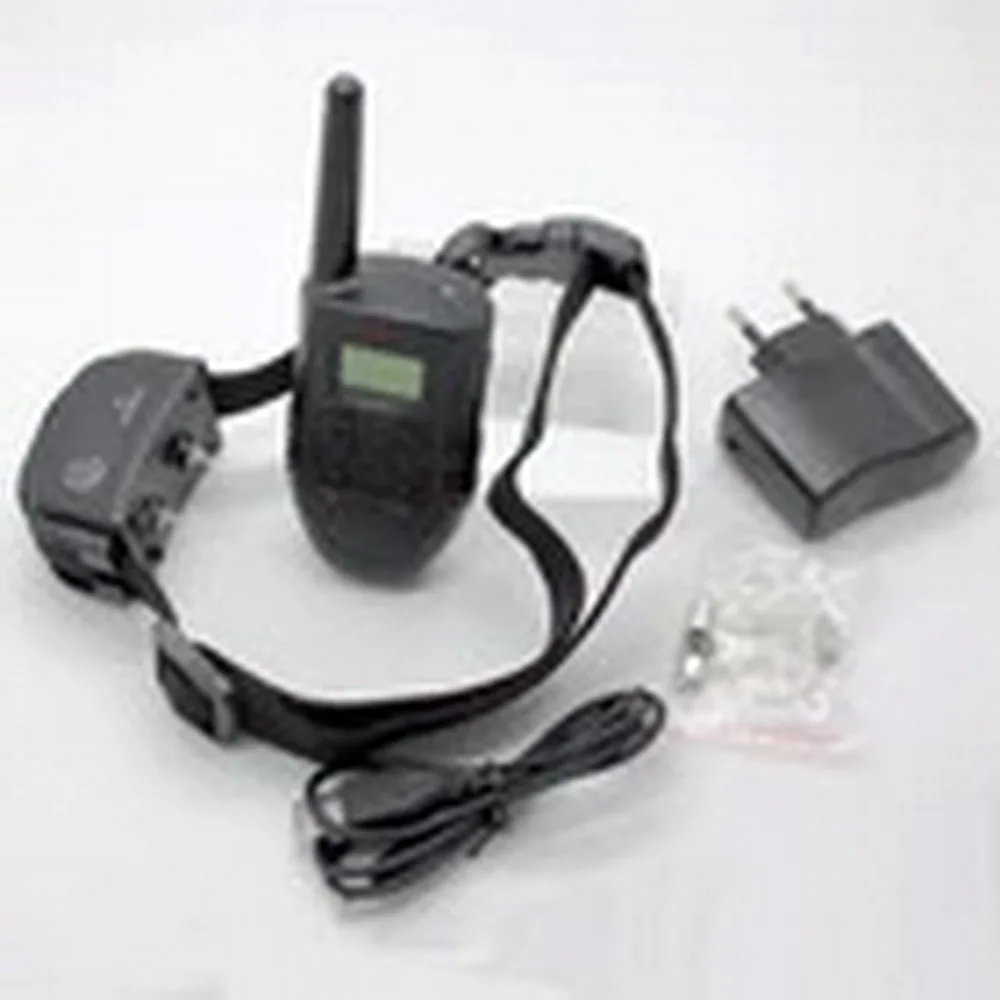

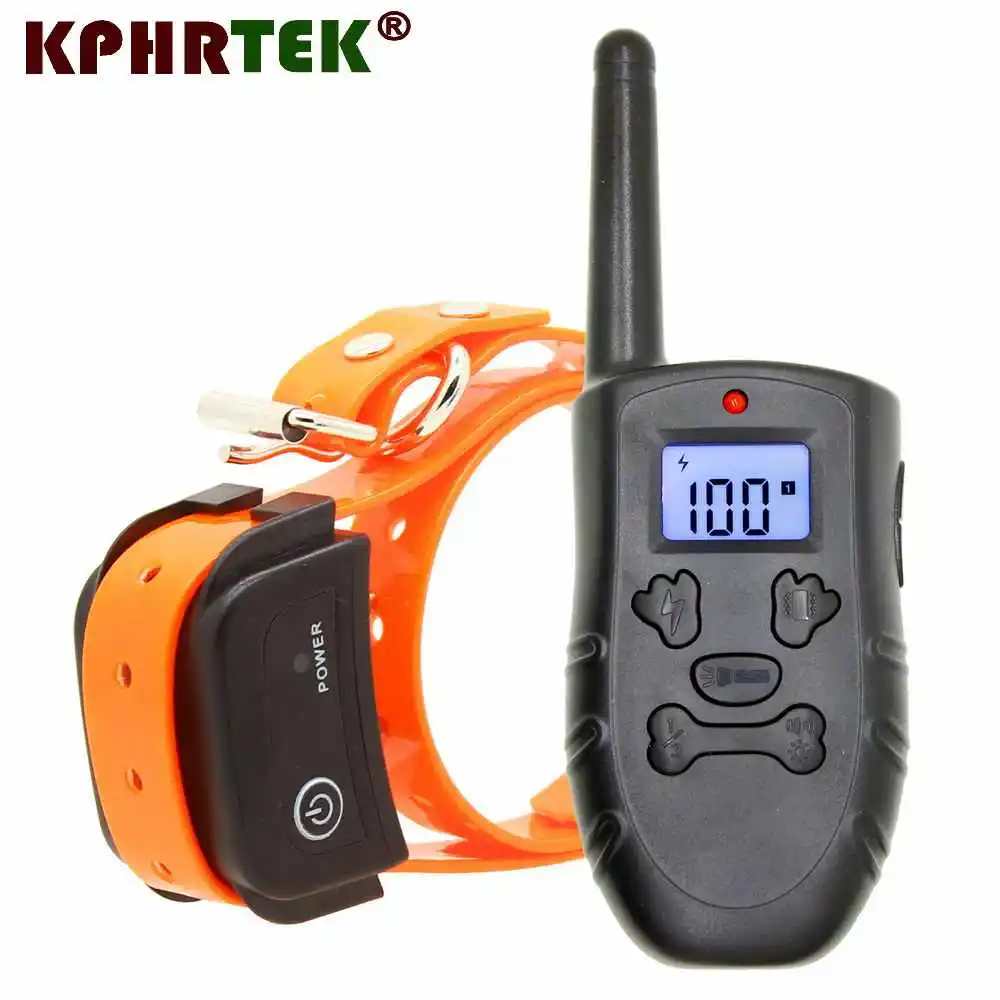

H183 Rechargeable Electronic Dog Training Collar Remote Dog Pet Stop Barking Dog Collar

Product Overview

Description

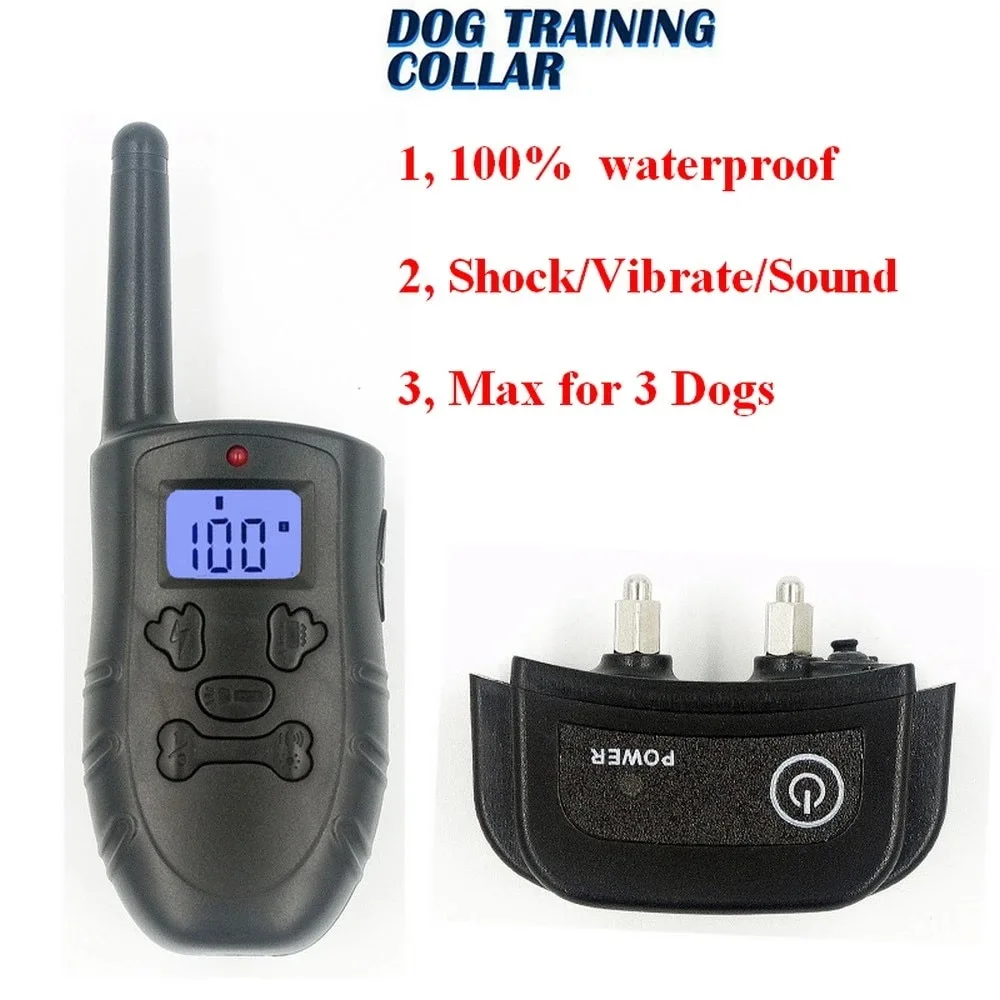

Features:

1  Waterproof receiver : Your pet can swim or walk in the rain with him

2. Rechargeable: Rechargeable remote control and Rechargeable receiver

3. Stable Levels: You can adjust the Vibration and Shock mode mode level from 1-100. ( This does not work with 000 )

4  Four Training mode: Shock / Vibration / Light / Sound

5. Three Channels: Choose the channel of max 3 receivers With a remote control

6. Auto Power Save : The Remote Control and Receiver will go into standby mode if there is no operaiton within mintues 5



Tips

1. Please charge before first use

2. eliminate bad behavior or teach an obedience command at the same time, if the training gets too fast, your pet may be confused and repel

3. Before using the sock mode for your pet, you shold try the vibration for your pet first.

4. watching the dog's reaction, make sure that the intensity training intensity not too much.

5. check your dog's skin, don't hurt him by shock.

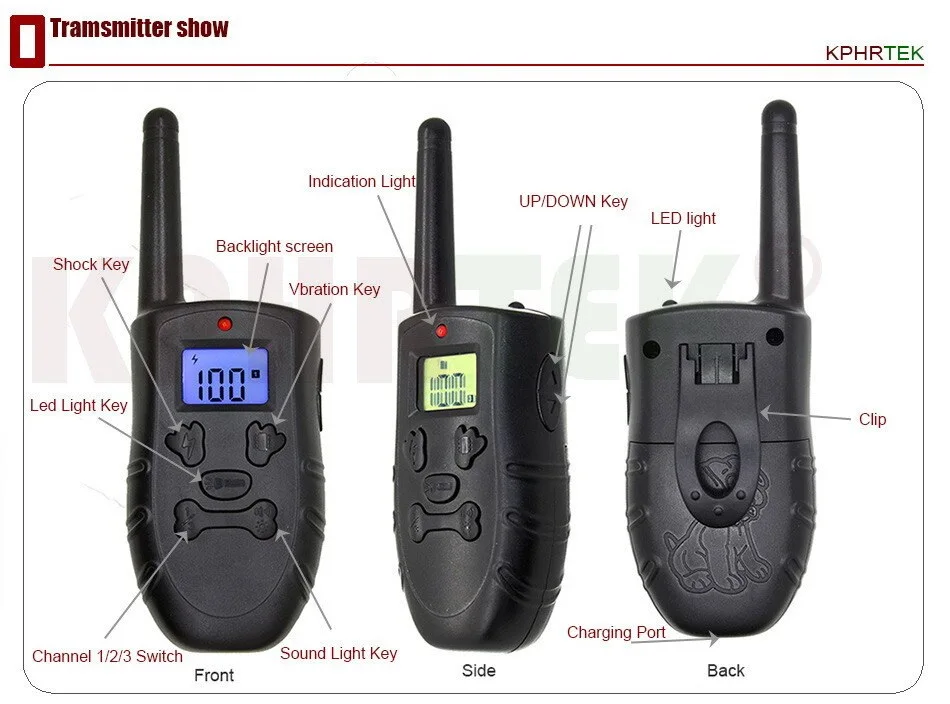

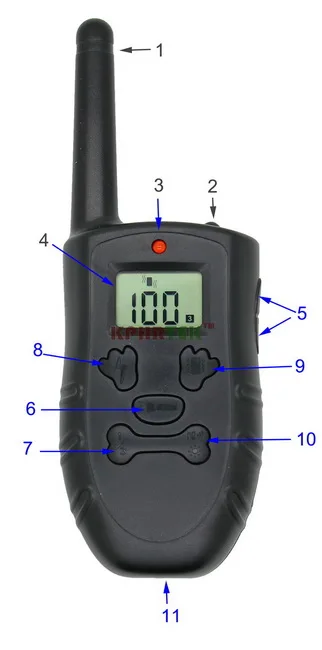

Key definition

1 antenna: transmit the signal strongly

2 LED light: Press 6 to turn it on

3 light indicator: the light starts to flash when you press the shock or vibration button; when loading, it is in

4 LCD screen: Show modes, levels and channels

5. Up and Down button: to adjust Vibration or shock levels

6. LED button light: press for LED light

7. the channel button: choose your channel turn between 1/2/3 by pressing the button

8. shock button: press shock to make the receiver, be sure to adjust the level above 001

9. vibration button: press to make the receiver bibrate, make sure to adjust the level above 001

10 Sound light / button: Press to flash the receiver's power light or sound as a beep. It is a 2 in 1 button, you could change the way howling step: press and holding this button, do not release, and then press the 1/3 button (Channel button), you could find the switching mode on the screen.

11. Remote charing hole Power button

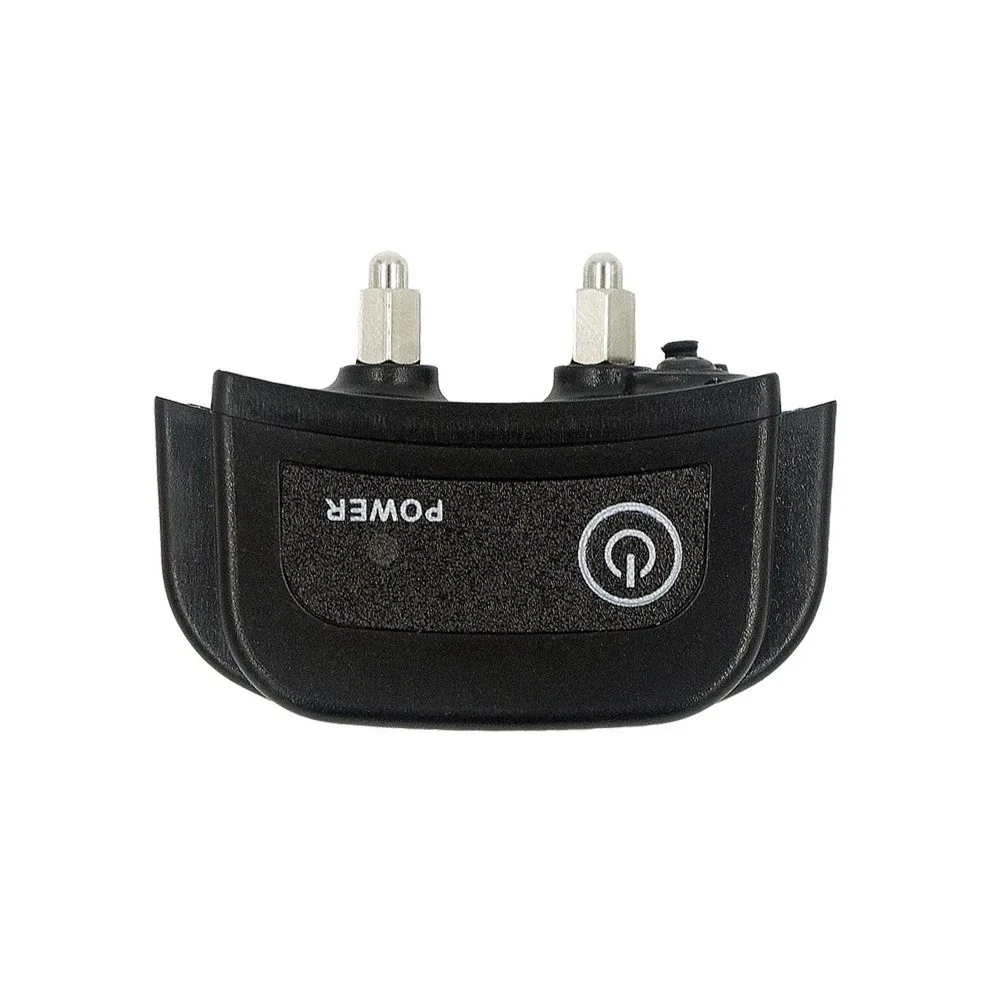

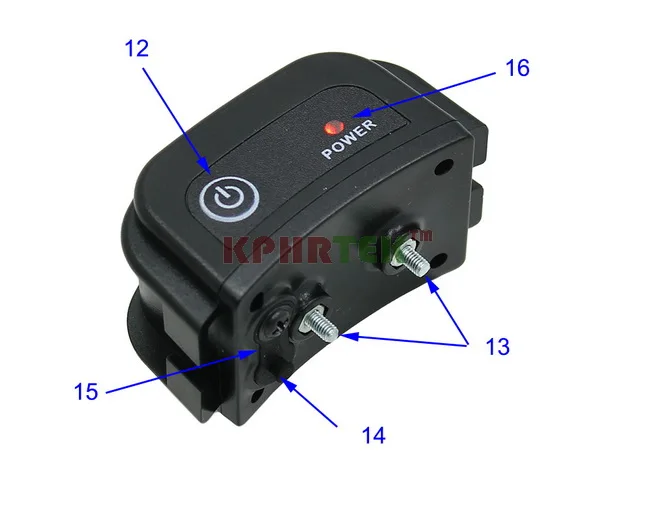

12: press to turn on the receiver, press 3 seconds to turn it off

13. Contact points: to install the metal screw cap, reach the pet's skin, carry out static insurance.

14 Receiver loading hole

Rubber cap 15

16 power light: it is about when charging the receiver.



Pair the remote and receiver

1. press the button to turn on the remote shock or vibration button

2. choose a Channel 1 or 2 or 3 by pressing the 1/3 button

3. press the vibration button, adjust the level by pressing the button up / down, make sure the level above001

4. Press the power button on the receiver, you hear a sound like Bee ~, and the power light is on.

5. press the vibration button within 10 s after the Bee sound ~, you can hear a Bee sound ~ again, it means the successful pairing

6. if you have 2 or 3 receivers, just choose the different channels and pair as above same steps.



Note: Remember the channel you choose to pair, if you use another channel without a pair, you cannot control the receiver.

Please charge the remote control and the receiver before first use.



Charge the Remote Control:

1. connect the cable to the charging hole

2. connect the adapter and plug it into the usb charge socket

3. the indicator light will be on; after the charge is complete, the indicator light will turn off.



Load the Receiver:

1. open the cover of the charging hole rubber receiver

2. connect the cable to the charging hole

3. plug in the adapter and plug it into the usb charge socket

4. the light will be on; after full charge, the light will be turned off



Test the Joint Training Necklace (after successfully paired)

Test the Shock function

Remove the test lamp and place it over the contact point of the Receiver press the shock button (make sure the level above 001) the test lamp will be in

Test the funciton vibration

Press the Vibbration button (make sure the level above 001) the receiver will vibrate

Function test and Sound light function

Press the sound button / button light, do not adjust the level, the Bee receiver ~ light or flash sound. It is 2 in1 button, you could change the sound or light step the way howling: press and holding the button, do not release, and then press the 1/3 button (Channel button), you could find the switching mode on the screen .



How to use the receiver for you pet

1. place the receiver on the neck

2. the contact point reaches for the dog's skin, you need to choose the suitable metal with screw cap.

3. adjust the collar belt, make your dog comfortable



FAQ

Q: The Length of the nylon leash belt?

A: The lenth of the necklace is 27.5IN (70 CM)

Q: How weight do dogs this training collar suits for?

A: We suggest Above 20lb .

Q: Is the receiver waterproof

A: Yes, it is totally waterproof , Yur dog can swim with it.

Q: How long does my dog start training at a time?

A: 10-15 min.

Q What should I do if the joint training collar does not work?

A: 1. Check the battery charge of the remote and receiver, if battery low, charge them

2. Check the Level, if you choose the vibration or shock mode mode, set the above 001

3. check the Receiver, if you do not turn on, press the powe receiver button.

4. check the channel, if you choose the different channel, press the 1/3 button to adjust

5. repair the remote control and the receiver.

6. check the metal screw cap if they are too short, change to install the cap no longer

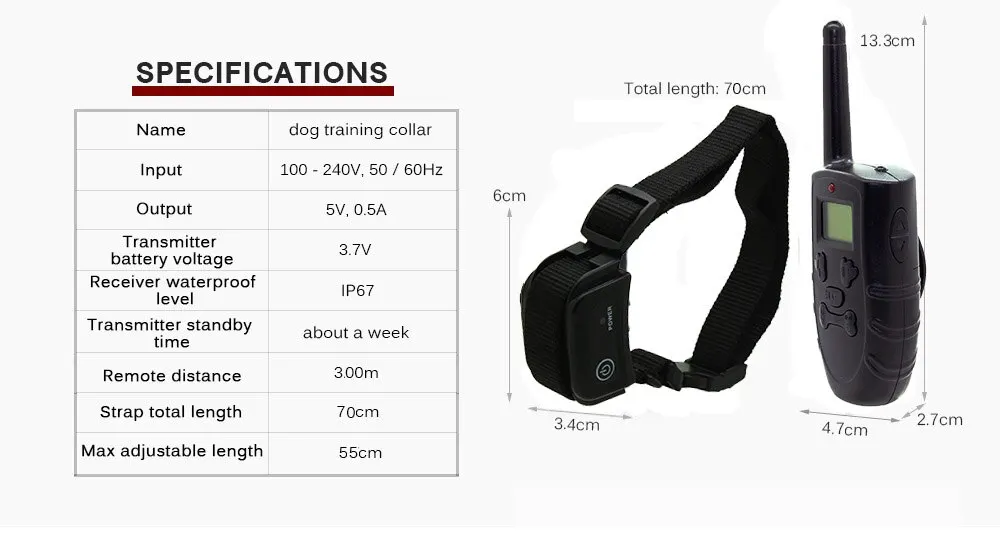

Frequency: 433,825 Mhz

Transmitter: 3.7V 550ma Lip

 Receiver: 3.7 V 550ma Lip
