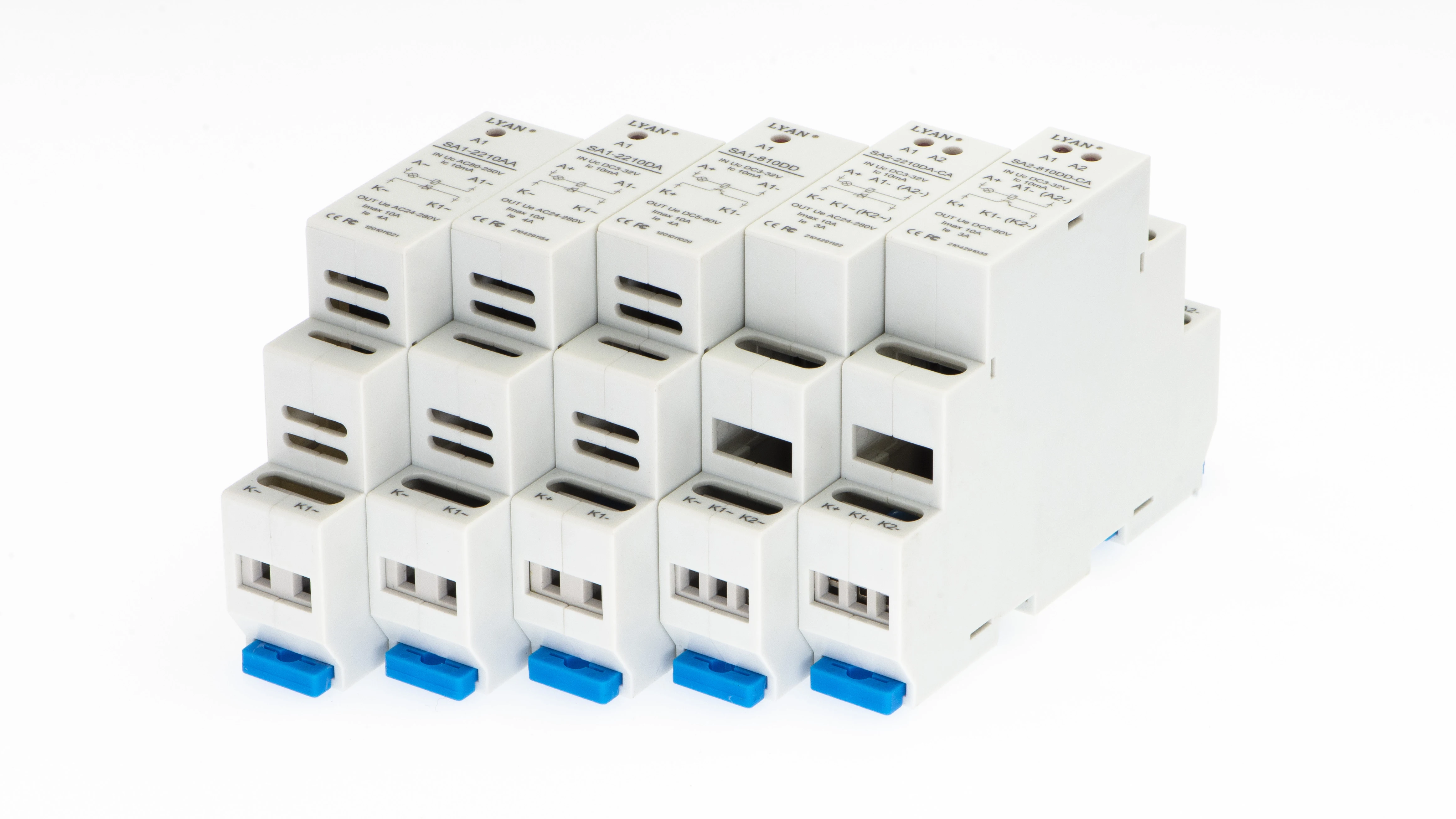

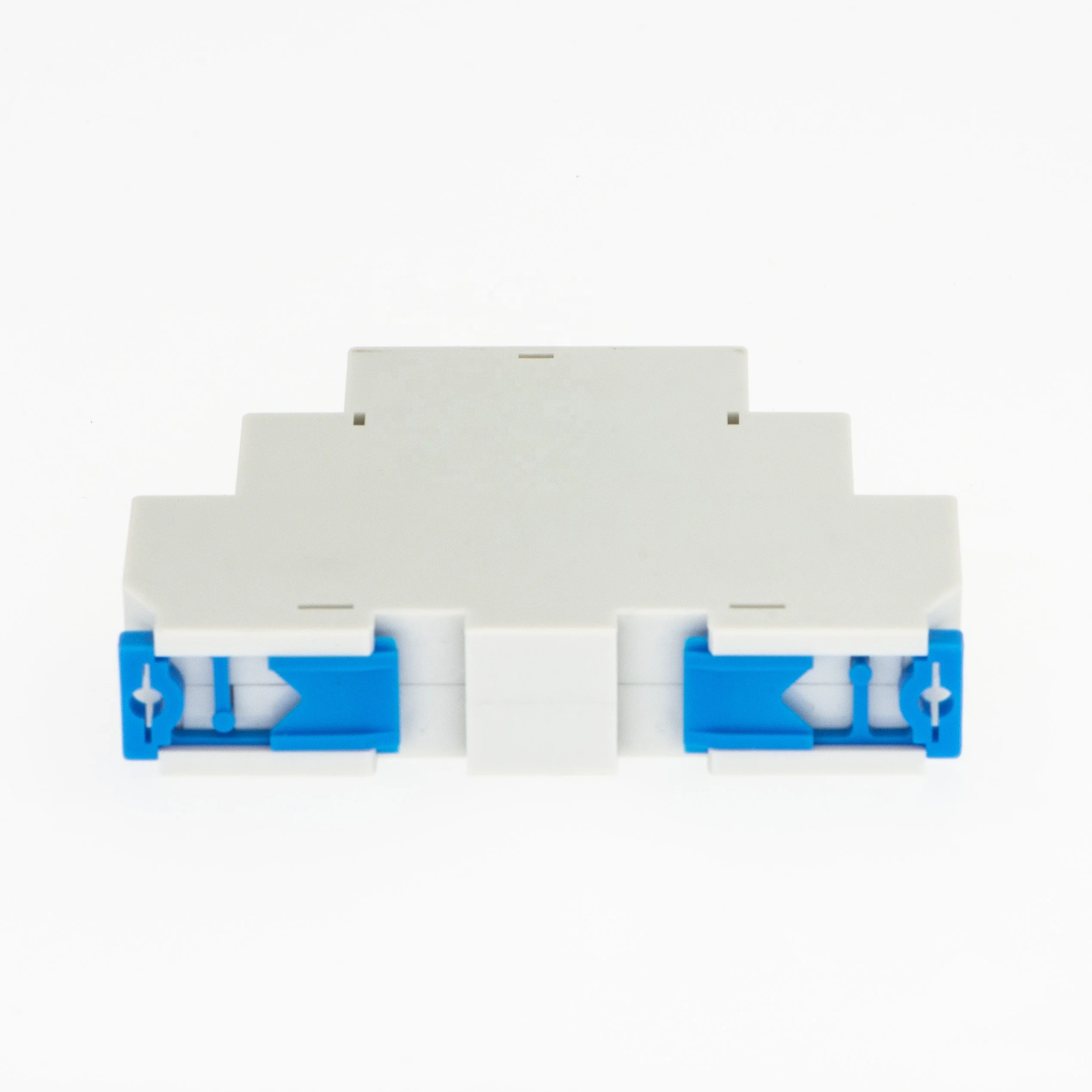

LYAN product one channel, AC24 280V/10A, AC to AC, rail type, screw, high quality solid state relay,SA1 2210AA
- Category: >>>
- Supplier: Shanghai Leyan Automatic Control Technology Co. Ltd.
Share on (10000001176149):
Product Overview
Description
| brand | LYAN |
| product description | Solid State Relay |

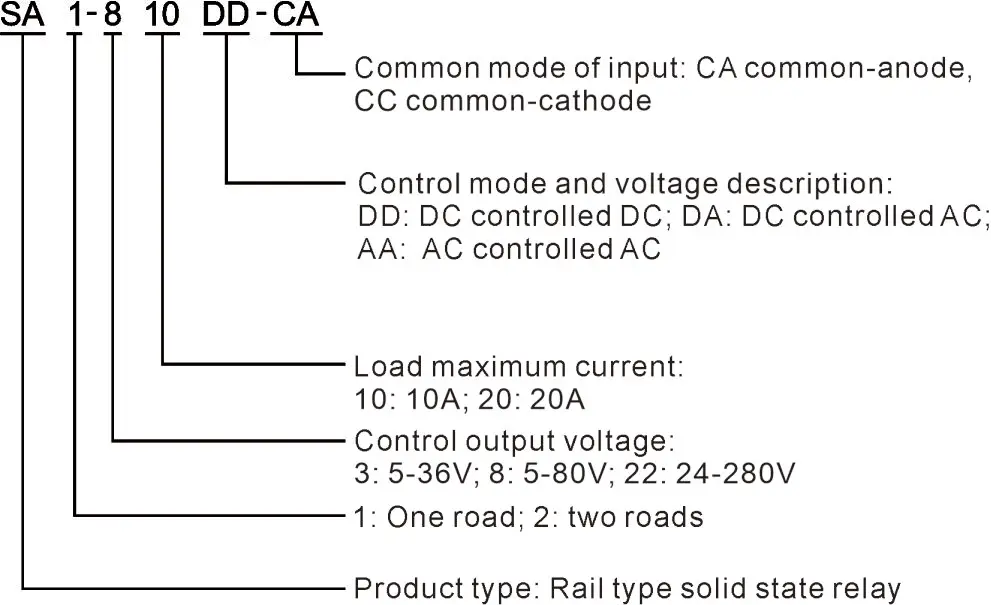

| part number | SA1-2210AA |
| Number of roads | One road |

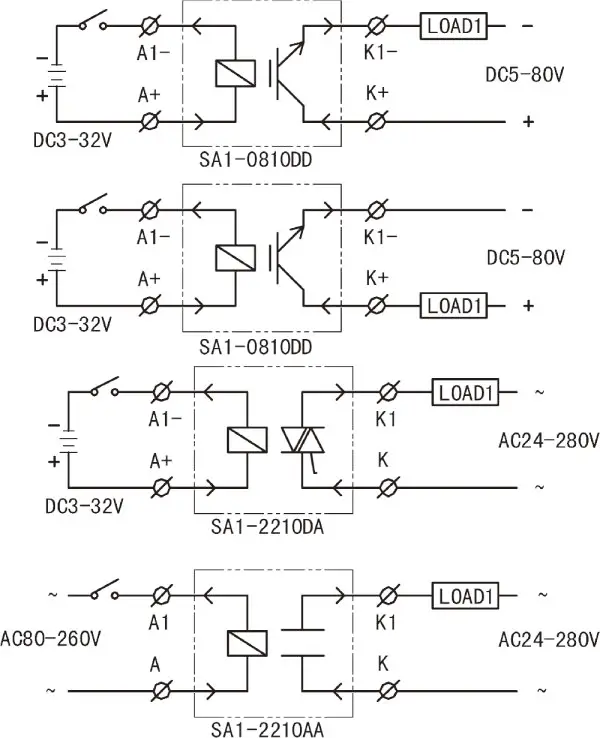

| control mode | AC controlled AC |
| Input control voltage | AC80-250V |
| Input control current | <10mA Built-in constant |
| Input on-off voltage | ON>2.6V, OFF<2V |
| Output rated voltage | AC24-280V |
| Output rated current | 4A |
| Output maximum load current | 10A |
| Output design current of internal parts | 30A,18A |
| Output driving mode | Electromagnetic, zero-cross |
| Output on-state pressure drop | <=1.2DC |
| Output fault leakage | <=1mA |
| Output isolation voltage | >=2500V AC |
| Output absorption voltage | Voltage Sensitive, RC |
| Output on-off time | 2ms |
| Action status indication | LED red |
| Testing organization certification | CE, FCC |
| Input/output outlet M2.5 tightening force | 0.4 appropriate |
| Stripping length | 6-7mm |
| Ambient temperature | -30~+60℃ |
| Relative humidity | +20℃ 98% |
| Vibration freq. atthe fixed position | 3G, 1~50Hz amplitude 0.5mm |
| Concussion | (60~100) time/minute, acceleration<=4g |
| Altitude | 2000m |
| Installation direction | Random |
| Protective degree | IP20 |
Pls contact me to confirm the product details before ordering.
For large qty,we could give you more discount!
