Product Overview
Description

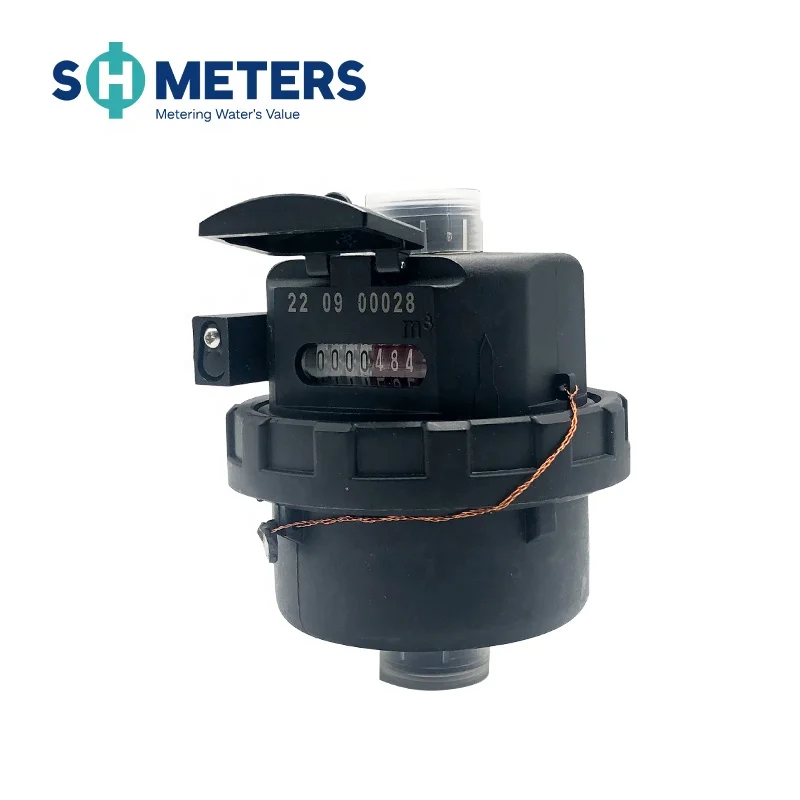

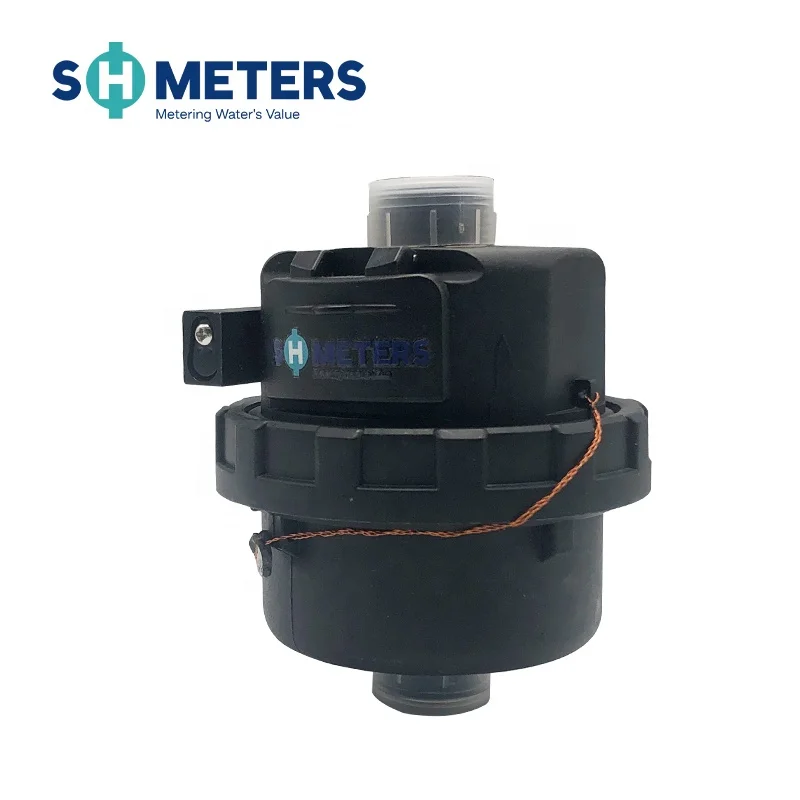

DN15~DN40 Class C horizontal water meter for residence brass body reed switch screw type
Volumetric water met
Application
Measuring the volume of cold portable water passing through the pipeline. Also suitable for pure water
Operating Condition
The Max.Admissible water pressure 1.6MPa.
Resisting water temperature: 50℃.
Features
Low start-up flow rate.

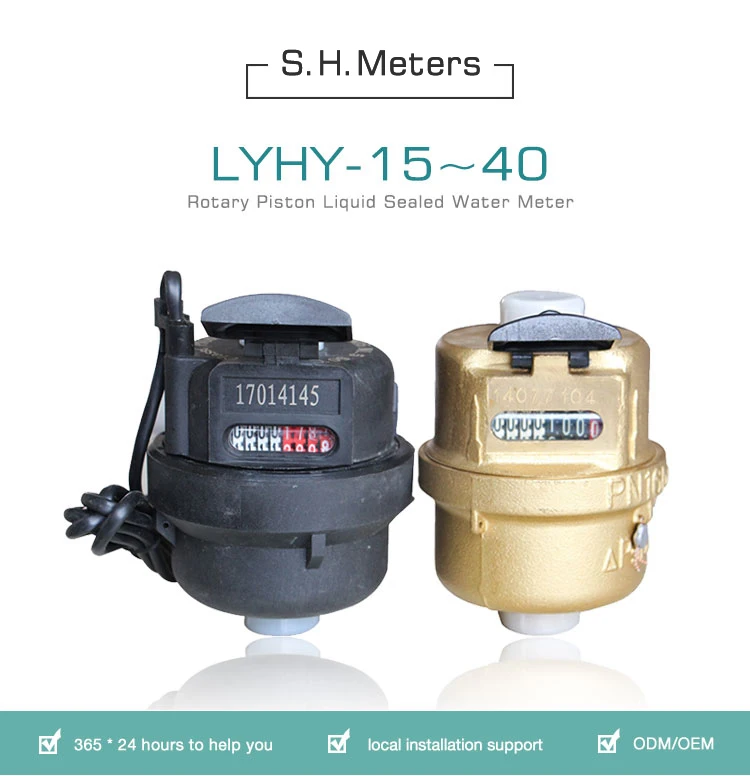

Volumetric rotary piston principle of measurement.
·LXHY-15~20 is no location limitation for installation. Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline.
Register is sealed with a special liquid to keep a clear reading in long term service.
Mechanism use of high-quality material to ensure a stable characteristic.
Accurate measurement with conformity to ISO 4064 class C.
On request, the series can be equipped with a kind of remote transmission device.
Pulse Position
| Magnet Position | Liter/Pulse |
| *0.0001 | 1 |
*0.001 | 10 |
Note

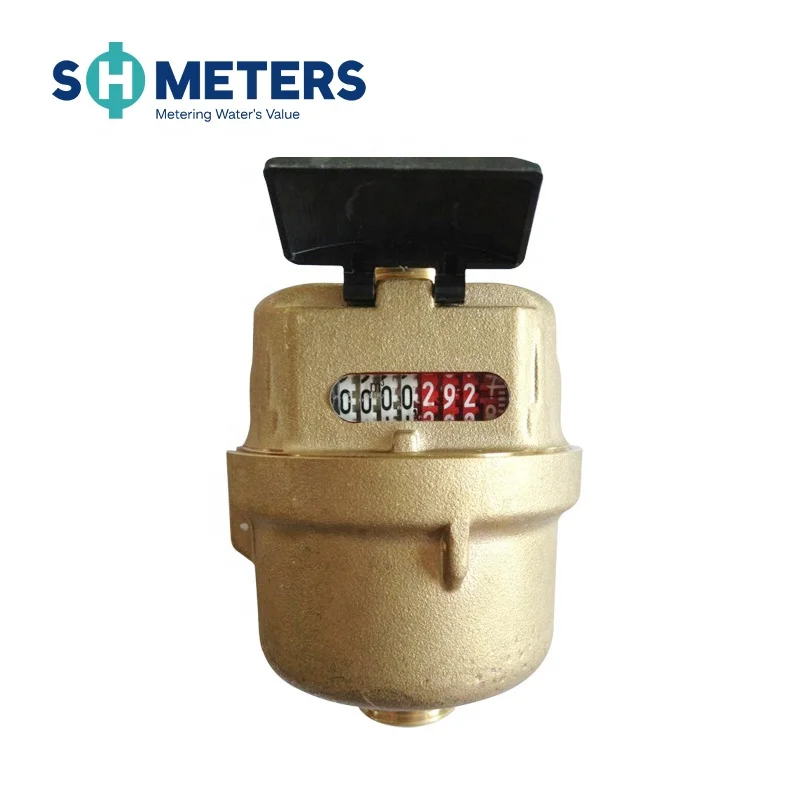

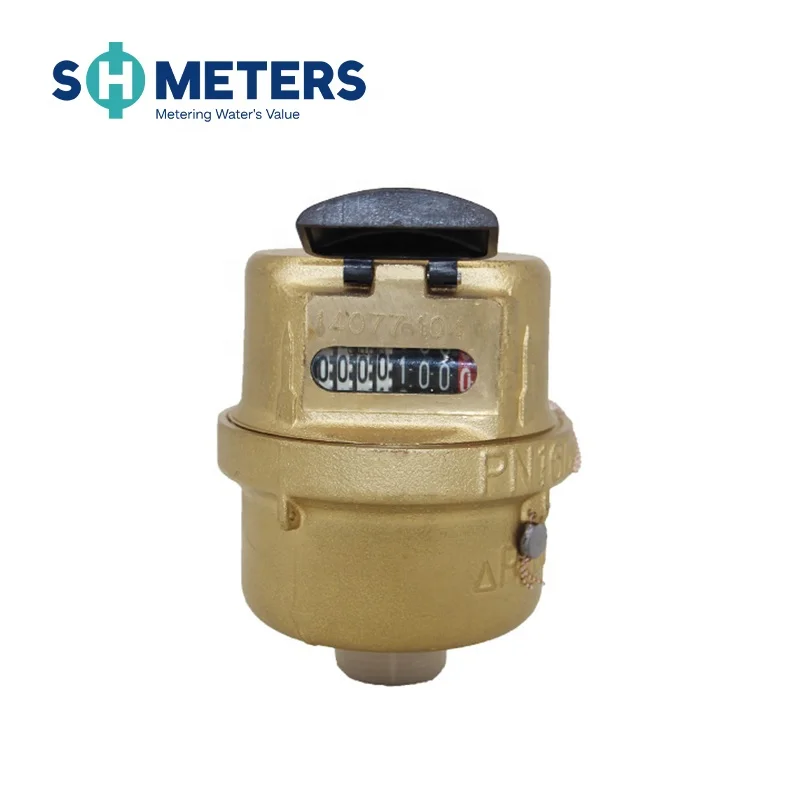

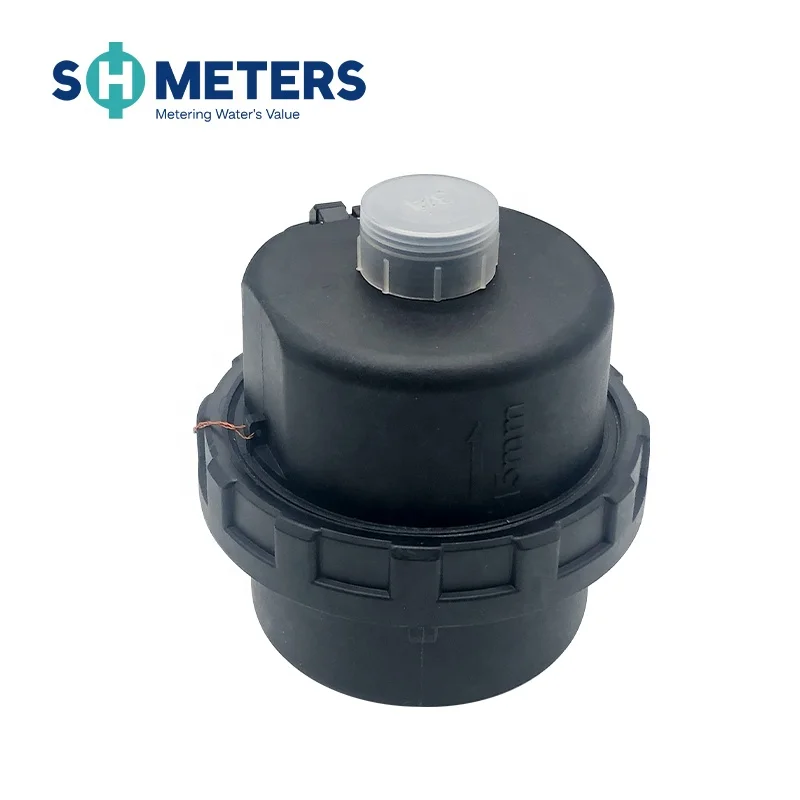

Body material: Brass body / Plastic body.
Size: Plastic body: DN15-20; Brass body: DN15-40.
Different register can be choose
| Dial Picture | Measure Unit |
 | Measure Unit: CBM 8 WHEELS Four red, four white wheel. The minimum reading: 1L |
 | Measure Unit: CBM 8 WHEELS Three red,five white wheel. The minimum reading: 1OL |
 | Measure Unit:UK Gallon 8 WHEELS One red,seven white wheel The minimum reading: 1 UK/Gallon |
 | Measure Unit:UK Gallon 8 WHEELS All white wheel The minimum reading: 10 UK Gallon |
 | Measure Unit:US Gallon 8 WHEELS One red,three black,four white wheel The minimum reading: 1 US Gallon |
Dimensions
| Description | Unit | Hydraulic Data And Dimensions | |||||
| Nominal Size | mm(inch) | DN15(1/2) | DN20(3/4) | DN(1) | DN32(1-1/4) | DN40(1-1/2) | |
| Q4 Error Limit ±2% | m³/h | 3.125 | 5 | 7.875 | 12.5 | 20 | |
| Q3 Error Limit ±2% | m³/h | 2.5 | 4.0 | 6.3 | 10 | 16 | |
| Q2 Error Limit ±2% | l/h | 25 | 40 | 63 | 100 | 160 | |
| Q1 Error Limit ±5% | l/h | 15.6 | 25 | 39.4 | 62.5 | 100 | |
| Min.Reading | l | 0.05 | 0.05 | 0.05 | 0.5 | 0.5 | |
| Max.Reading | m³ | 9999.9999 | 9999.9999 | 9999.9999 | 99999.999 | 99999.999 | |
| MAP | MPa | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | |
| Press Loss ΔP AT | MPa | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | ≤0.063 | |
| L | mm | 115 | 165 | 199 | 260 | 300 | |
| B | mm | 43 | 43 | 53 | 60 | 77 | |
| weight | Without Connections | Kg | 1.14 | 1.56 | 2.48 | 3.47 | 5.65 |
| With Connections | Kg | 0.97 | 1.3 | 2.05 | 2.75 | 4.7 | |
Maximum Permissible Error
