Product Overview

Description





TiMOTION’s TA38M series linear actuator is specially designed for medical applications where a compact linear actuator is needed. The TA38M features a very slim design with a small installation size of only stroke plus 115mm, providing manufacturers great freedom during the design process. The palm-sized motor with up to 2000N force is excellent for all kinds of space-limited products.






General Features




  • Max. load: 2,000N (push); 1,500N (pull)



  • Max. speed at max. load: 6.2mm/s

  • Max. speed at no load: 20mm/s

  • Retracted length: ≥ Stroke + 115mm

  • IP rating: IP66

  • Stroke: 45~200mm

  • Options: Hall sensors

  • Voltage: 12/24V DC; 12/24V DC (PTC)

  • Color: Black or grey

  • Operational temperature range: +5°C~+45°C

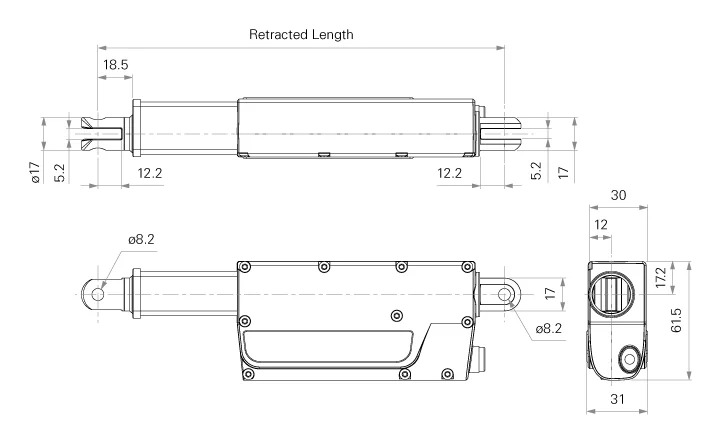

Standard Dimension (mm)
