Electrospinning and printing nanofibers with high aspect ratio to prepare nanowire batteries
- Category: >>>
- Supplier: Foshan Nanofiberlabs Co. Ltd
Share on (10000001318238):

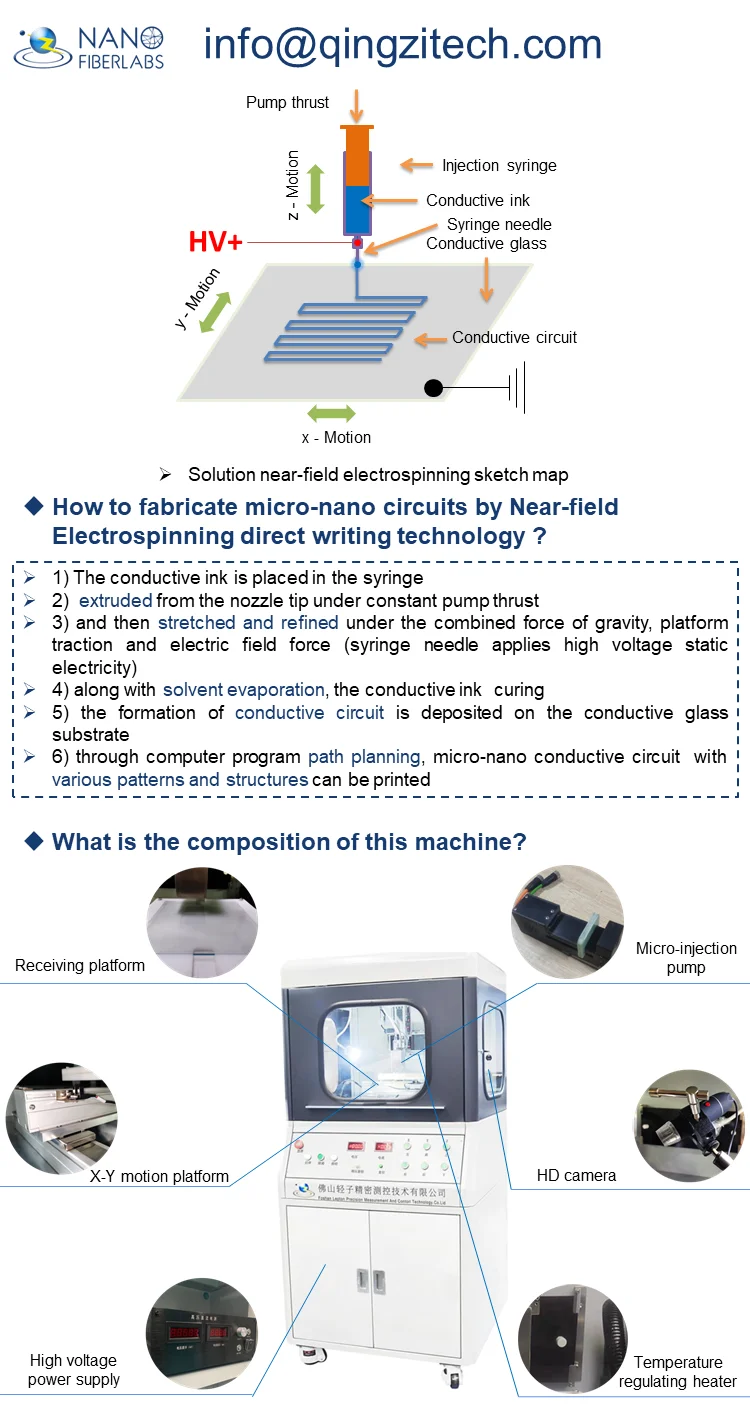

Product Overview
Description

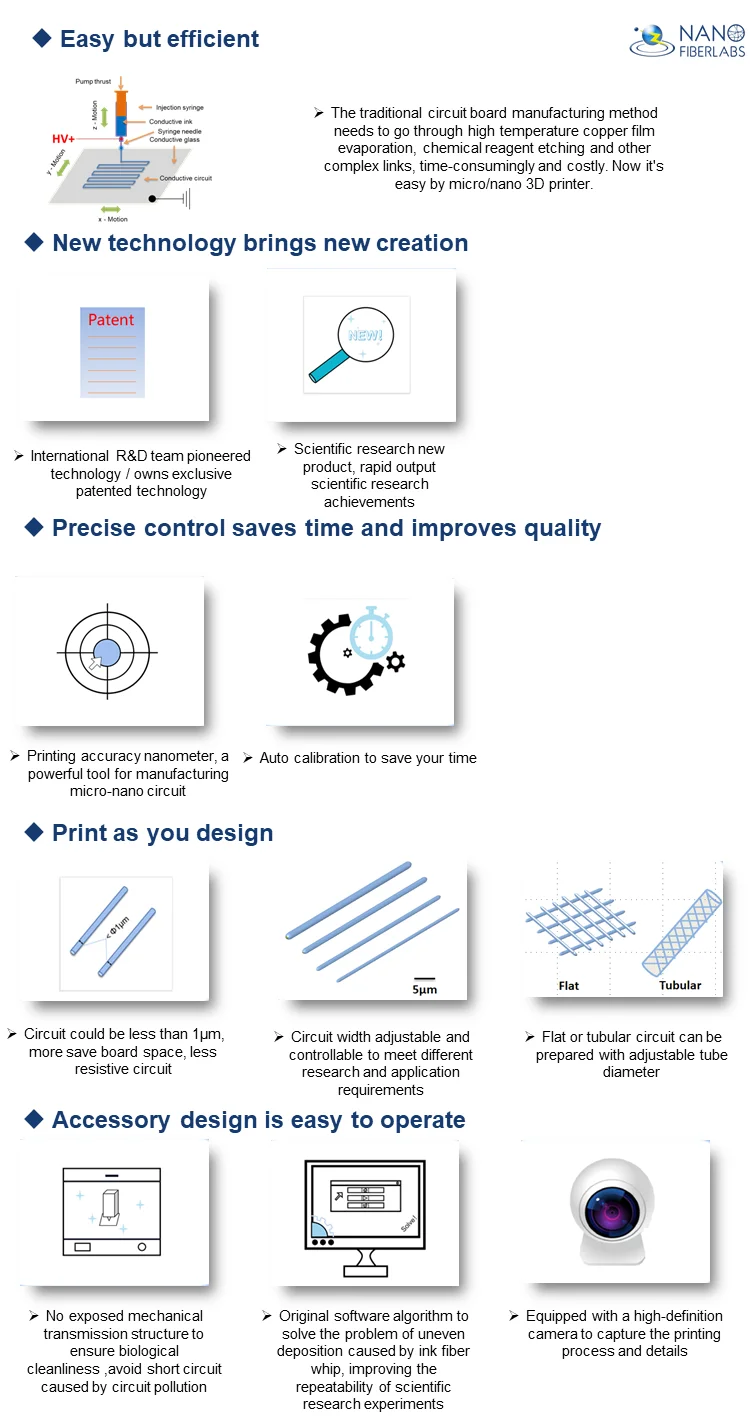

Brief Introduction
Product Features

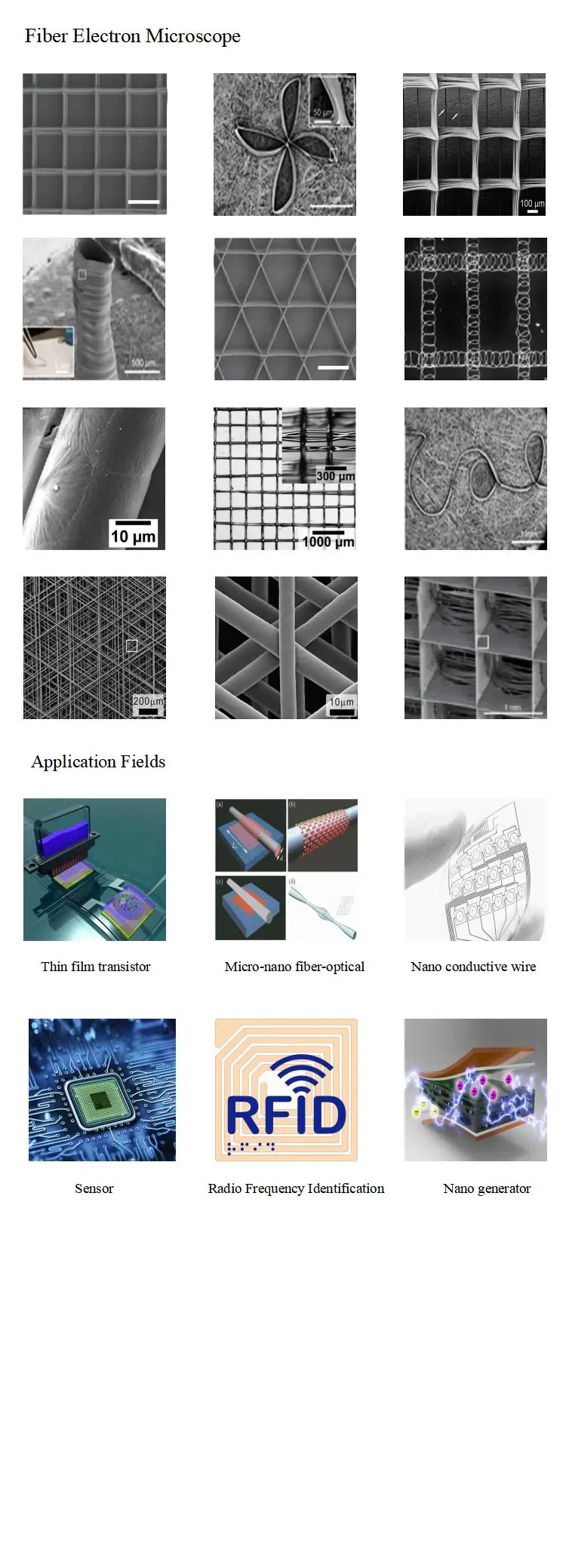

Application Fields
Product Parameters
NFES01-001 Parameters | ||||||||
No. | Item | Parameters and Configuration | ||||||
1 | High Voltage Power Supply | -Output voltage DC: 0~-30KV, current<1mA | ||||||
2 | Precision injection pump | 1. Applicable syringe specifications: 10mL 2. Liquid supply speed: minimum 10uL/h 3. Single needle nozzle, 13-34G needle can be replaced at will | ||||||
3 | Z axis motion system | 1.Stroke:80mm,applied for height adjustment of nozzle with range of 0~80mm 2.Precision:5μm | ||||||
4 | X-Y axis motion system | 1.X,Y axis effective stroke:200mmX200mm 2.Collection speed:0~200mm/s 3.Square wave track collection and custom track collection 4.Precision:≤2μm | ||||||
5 | Collection platform | 1.Collected by conductive glass 2.Effective collecting area:100mmX100mm | ||||||
6 | Environmental control | Temperature control: room temperature～50℃. Note: The external environment requires 10~40℃, and the relative humidity is not more than 85%RH | ||||||
Company Introduction
Packaging and shipping
When the machines are finished, we would inform the customers and ask them to come our factory to check the machines. We also provide the test report of the machine. Before the machine leaving our factory, we need to receive the balance . The machines would be wrapped by the waterproof membrane and packed in the wooden box. Our long-term cooperative shipping company to send to the machine to your country in time.
FAQ
Q: What material is suitable ?
A: Conductive paste, Conductive ink, conductive polymer, etc
Q: What is the minimum wire diameter, model size, and maximum height?

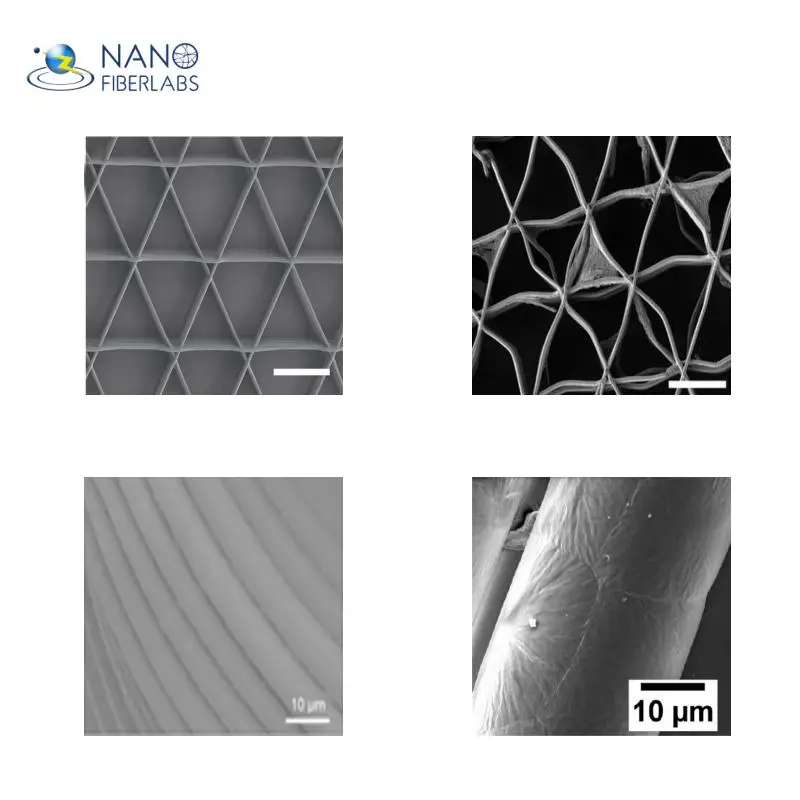

A: Generally 2~50 microns, the current PCL materials we commonly use can reach 1 micron, and the solution direct writing can reach 500 nanometers; effective spinning area: 100*100mm; height 1mm.
Q: The smallest fiber distance?
A: The platform movement accuracy is 5μm, the smallest distance can reach 10μm.
Q: Can the aperture and custom pattern be set?
A: It is possible to design patterns required by customers through CAD software.
Q: Can the diameter be continuously reduced, similar to a conical model?
A: No, we use a multi-layer stacked spinning method. Because the fiber diameter is very thin, it is easy to collapse, which is different from 3D printing.
Q: How does this machine print tubular scaffolds ?
A: An optional tubular collector can be selected to print tubular support.
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.3.Logistics used UPS DHL TNT and so on.
