CENTRIFUGAL CAR PARKS VENTILATION FANS FOR CAR PARK SMOKE CONTROL & VENTILATION CJF SERIES
- Category: >>>
- Supplier: TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY
Share on (10000001362327):
Product Overview
Description

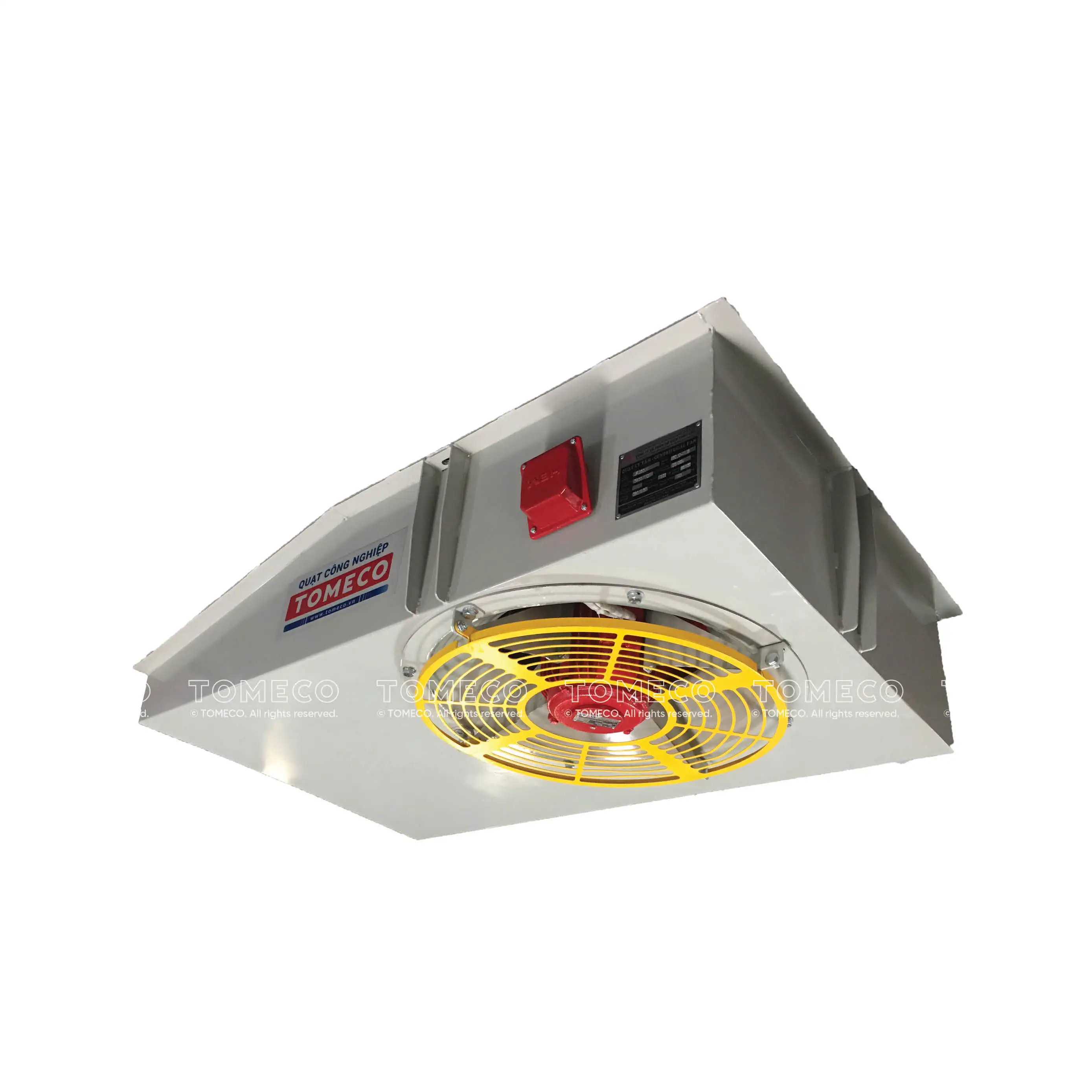

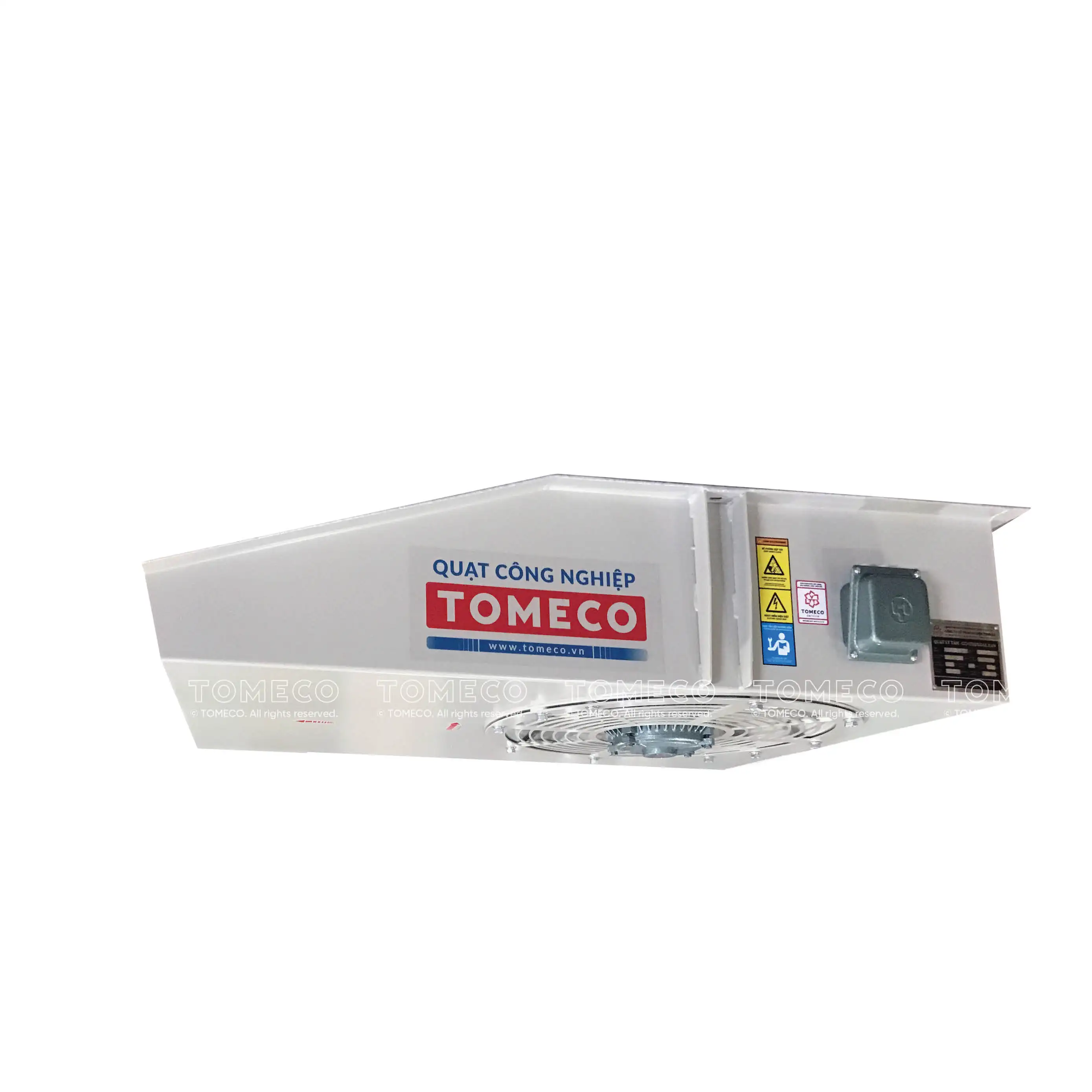

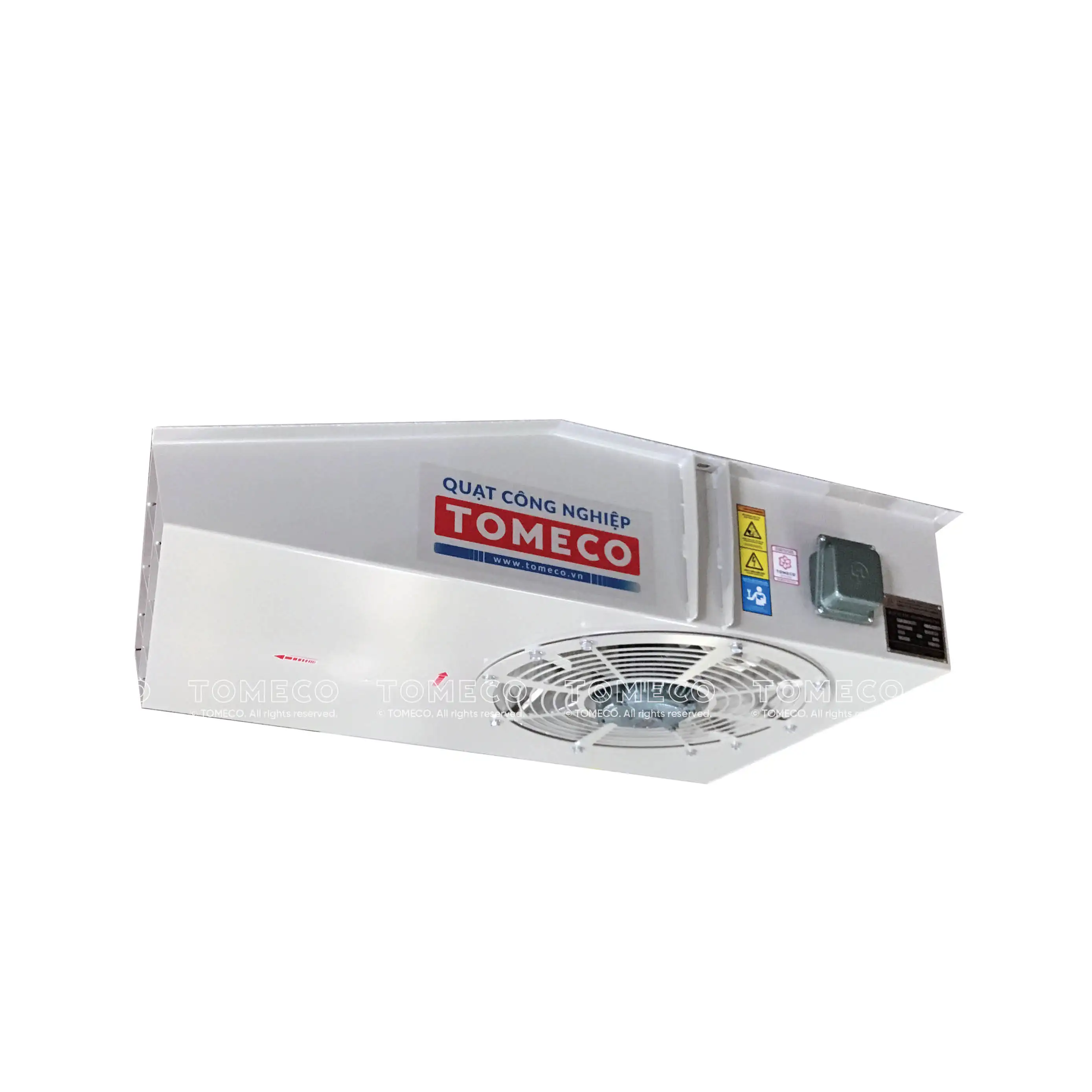

Product Photo

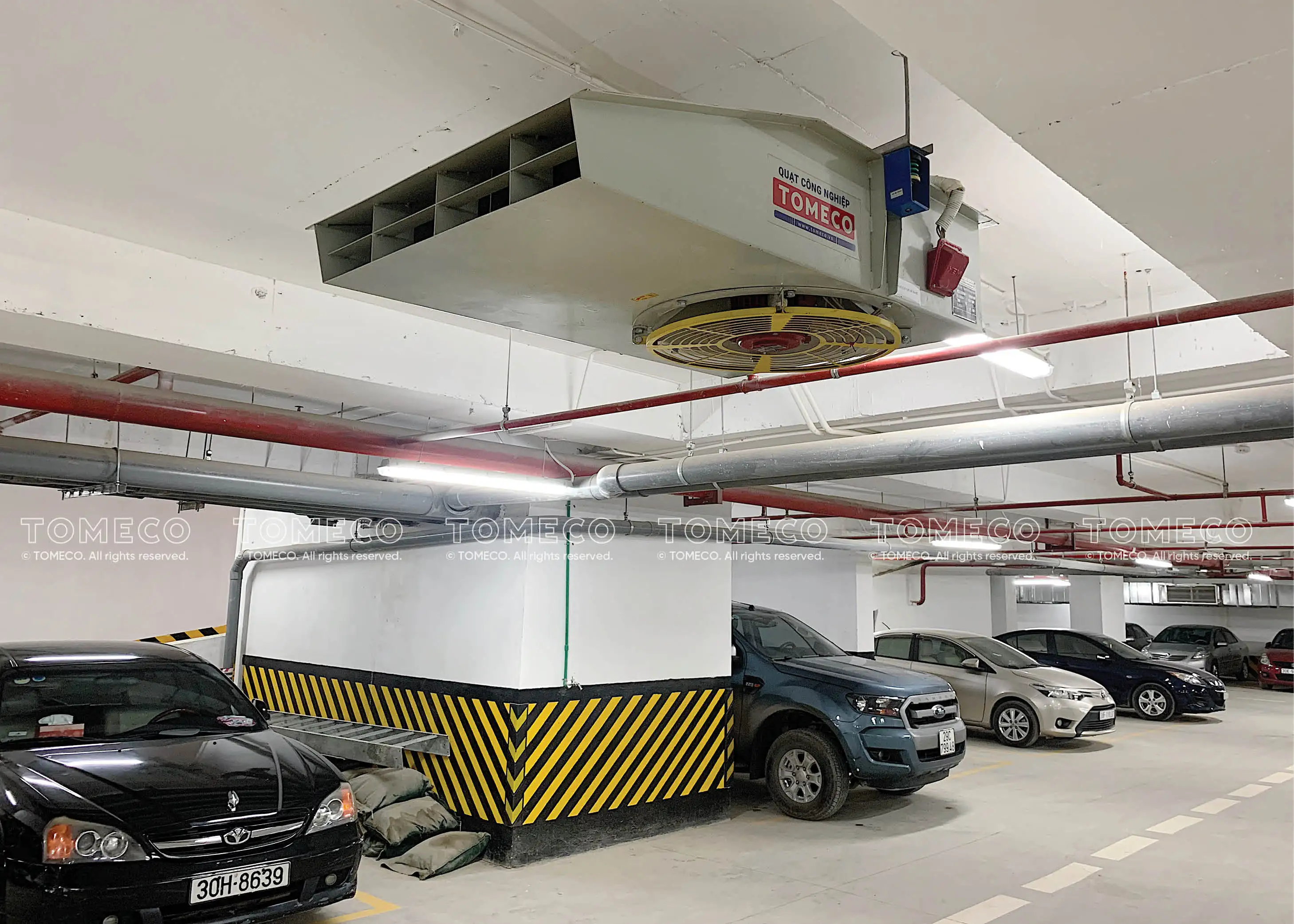

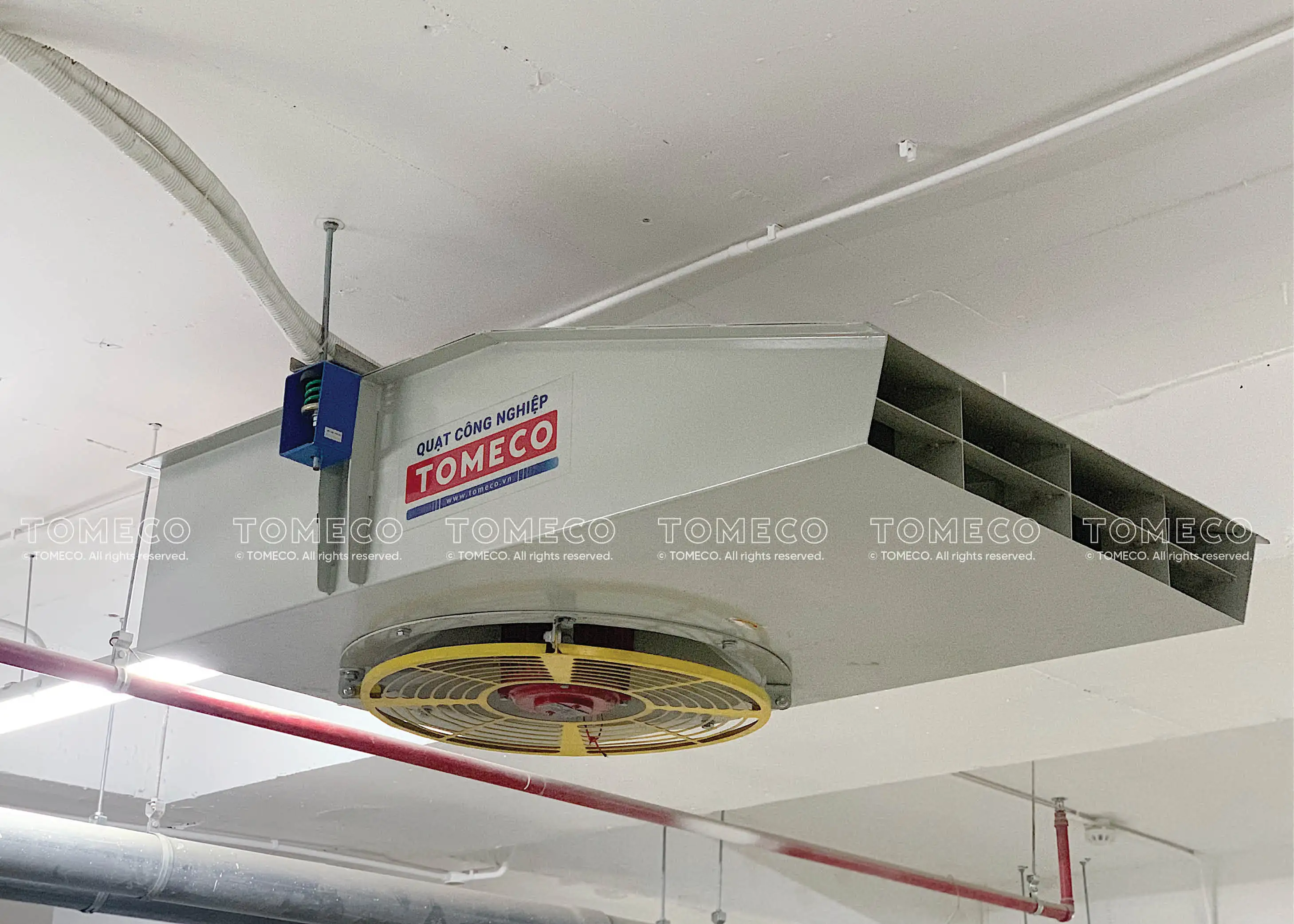

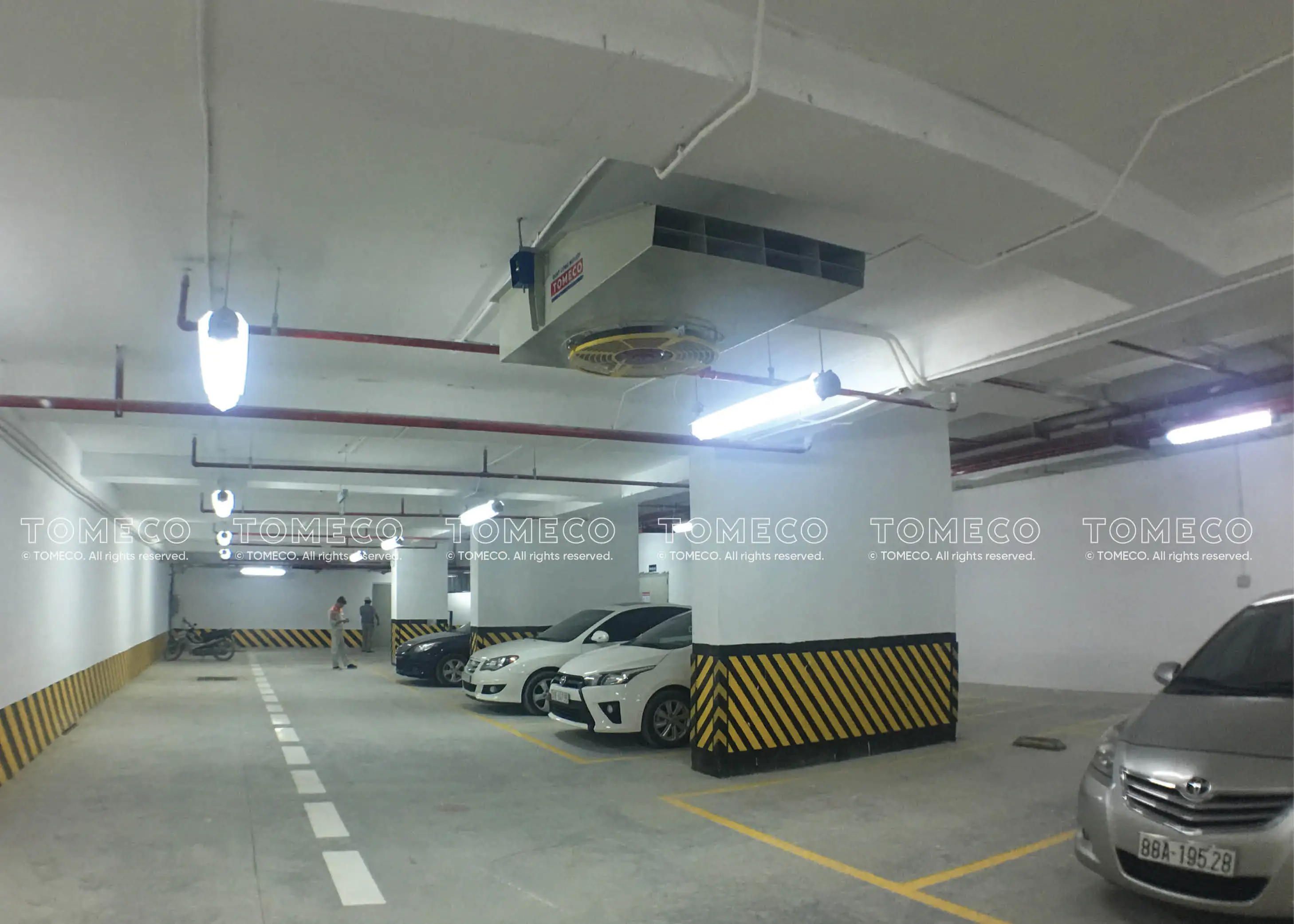

Application
CJF centrifugal Car parks ventilation fans series designed and manufactured by TOMECO are widely used for:
- Car park smoke control, fire protection.
- Car park smoke control, fire protection.
- Car park and traffic tunnel ventilation.
Technical Specifications
Air volume | 3.000 - 10.000 | m3/h |
Thrust Force | 10 - 1000 | N |
Motor power | 0,37-3 | kW |
Speed | 720-1.450 | Rpm |
Motor Rating | 300 deg C per 2 hours | Class H-IP55 |
Impeller diameter | 400-1000 | mm |
Voltage | 220/1/50 or 380/3/50 | V/Ph/Hz |
CONFIGURATION
Material | SS400/SUS201/SUS304/SUS316 |
Drive type | Direct |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Body Mount |
Impeller design | Backward Curved |
Finish | Powder coated, Epoxy coated, hot dip galvanized |

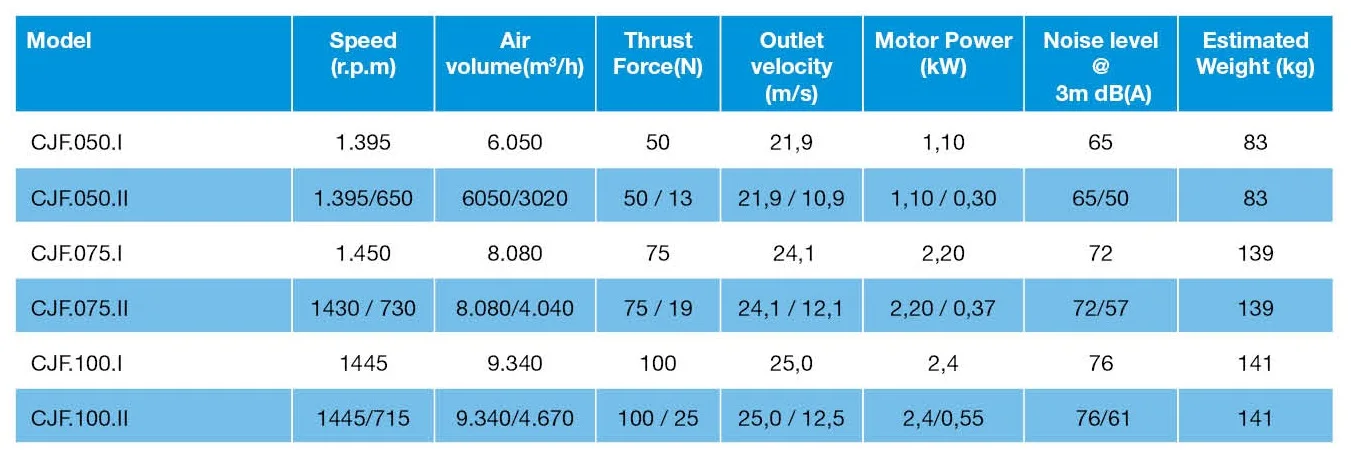

TECHNICAL DATA TABLE

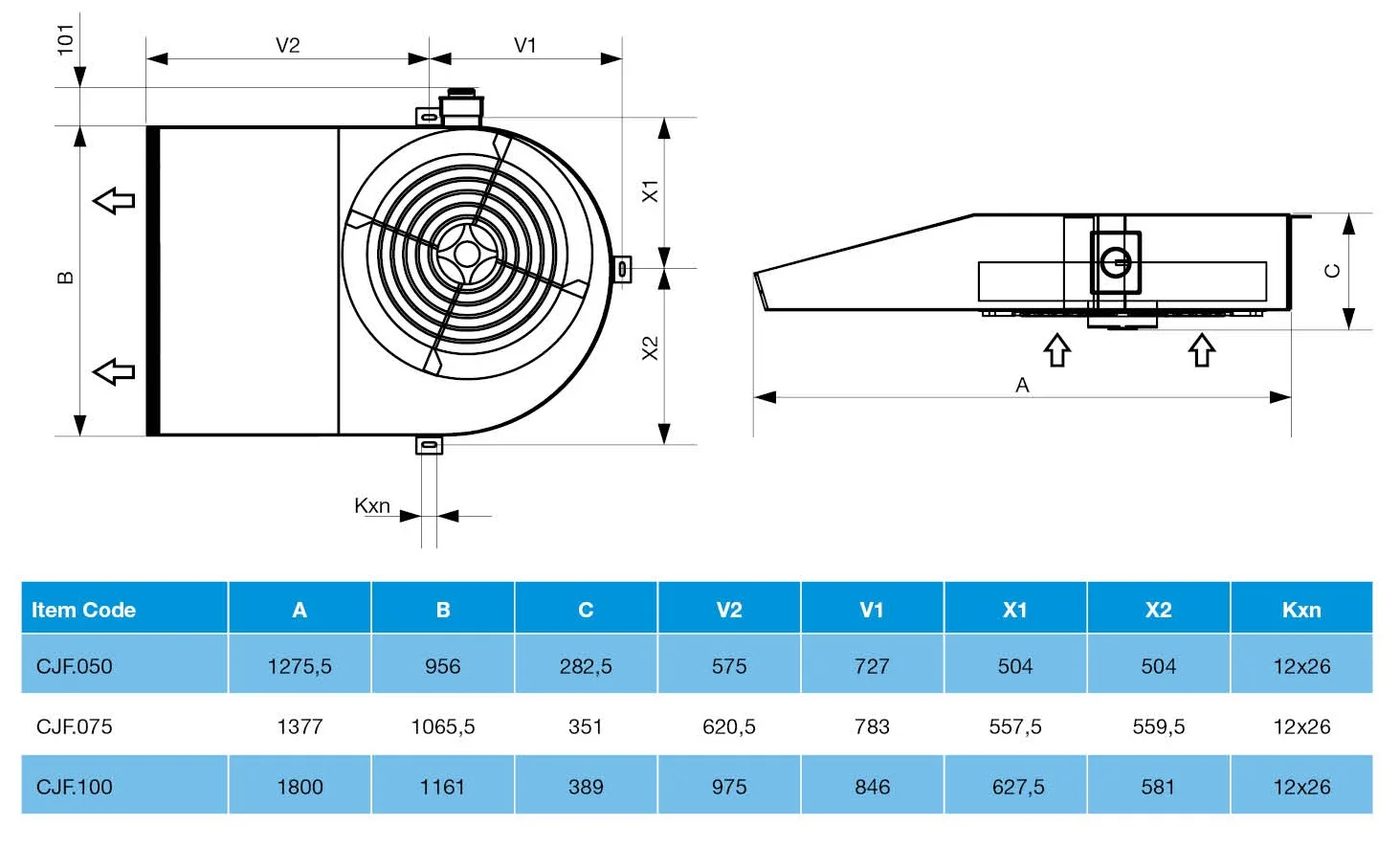

GENERAL INSTALLATION DIMENSIONS
Accessories
Inlet & outlet flexible duct
Spring vibration isolator
Inlet & outlet silencer
Inlet & outlet damper
Company Profile
TOMECO is a leading company in Vietnam in the field of researching, designing and manufacturing industrial fans. With great diversity, industrial fans manufactured by TOMECO can serve from small products, small capacity to large capacity, specific requirements to mass production to meet the demand of the Vietnamese market as well as foreign counterparts . We are known as a professional unit, knowledgeable about the system and own absolute technology solutions. TOMECO's mission is to bring customers the perfect experience, beyond expectation, with the motto of "Prestige and quality in every detail.
