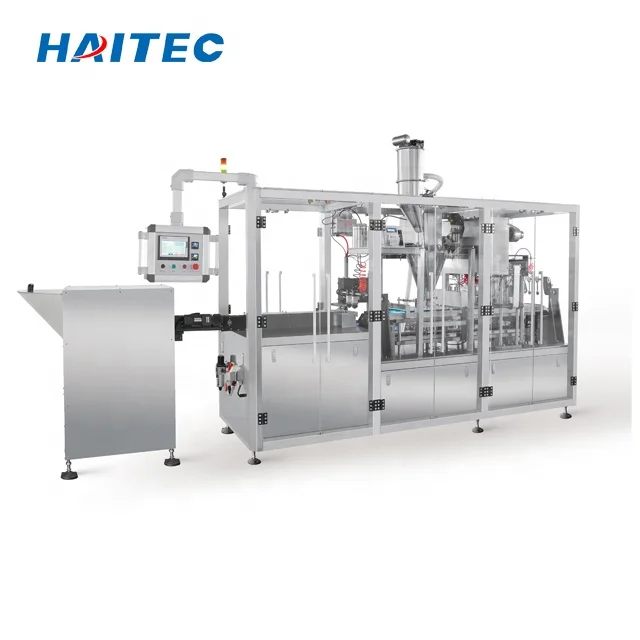

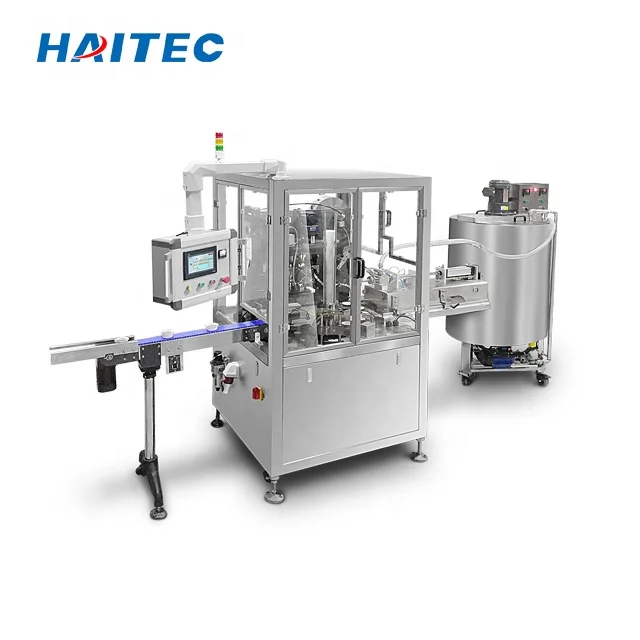

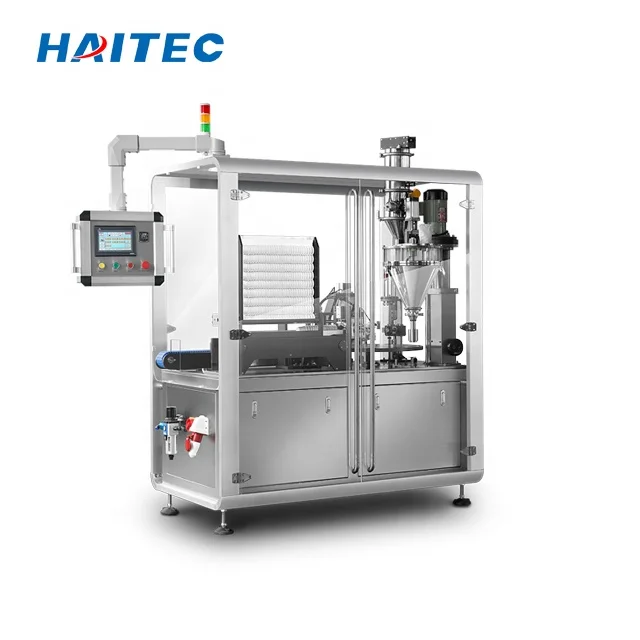

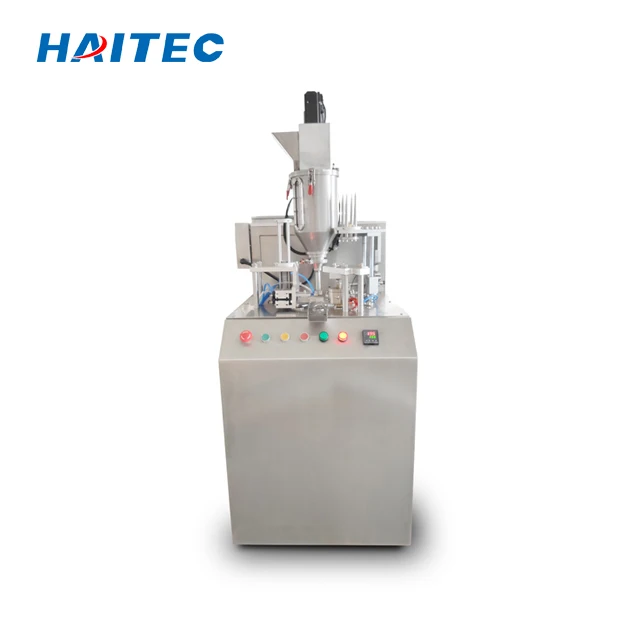

HT-KJ100RS Automatic High Speed Coffee Capsule Filling and Sealing Machine
Machine Application
This is a fully-automatic capsule filling sealing machine. It can produce almost all compatible capsules, such as Keurig k cup, Nespresso, Dolce Gusto, Lavazza, paper cup and custom-shaped, etc. This machine is the highest speed model with highest level of quality in China now. We successful achieved machine parts mechanical linkage that gurantee the machine with long running stability and service life of the machine have obvious advantages, which reach the top design concept in Europe. Supported by our company's sophisticated design team, this machine has the most advanced technology and leading-edge performance, with many unique patents.
Model | HT-KJ100RS |
Product | ground coffee |
Parts Contact With Product | Foodsafe Stainless Steel AISI 304 |
Capacity | 35-80 capsules/minute |
Feeding | servo driven auger filling |
Filling Weight | 0-20g |
Filling Accuracy | ± 0.05g |
Power | 3Phase 220/380V 50/60HZ 1.5KW |
Air Supply | ≥ 0.6Mpa |
Air Consumption | 0.1m ³ /min |
Certification | CE |
Weight | 800Kg |
Dimension | 1590 × 870 × 1983mm |
Product Display

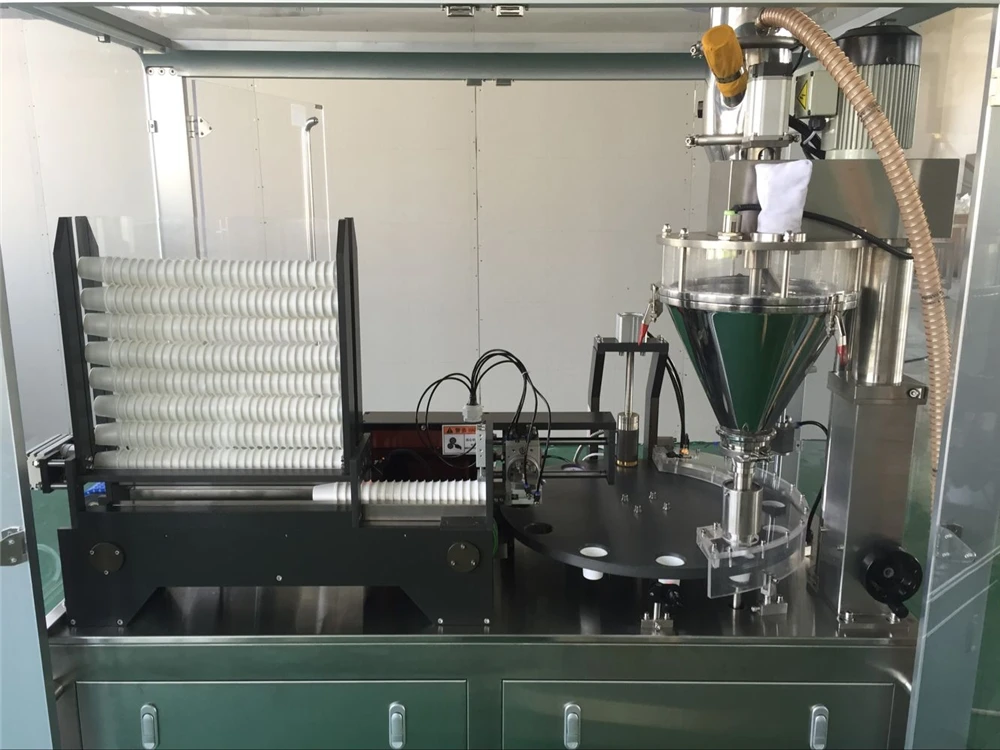

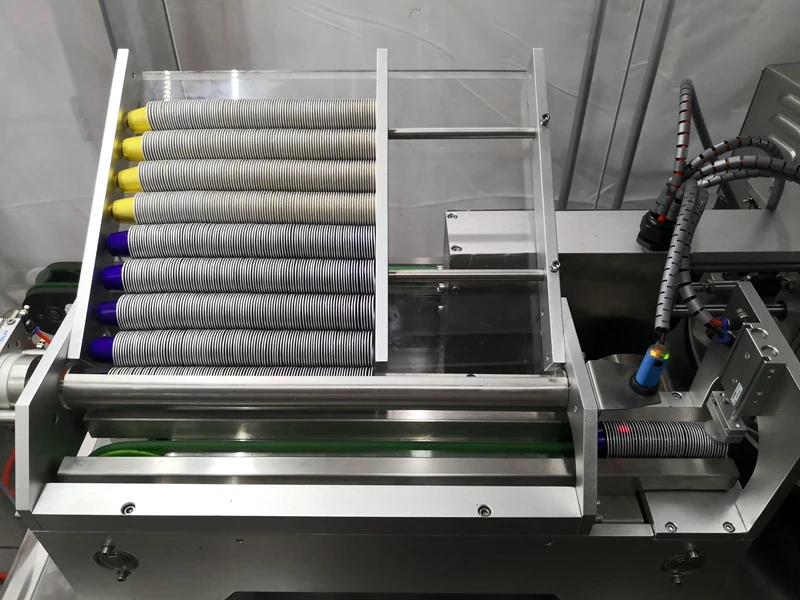

Special storage designs that can stockpile a large number of cups per time and automatically feed the cups to the packaging line. In addition, putting the capsules is very easily, it reduces the labor cost and time for filling capsules manually. Likewise, this system completely solves the common problem of stuck capsules and damaged capsules. ( Patented design, counterfeiting not allowed! )
|

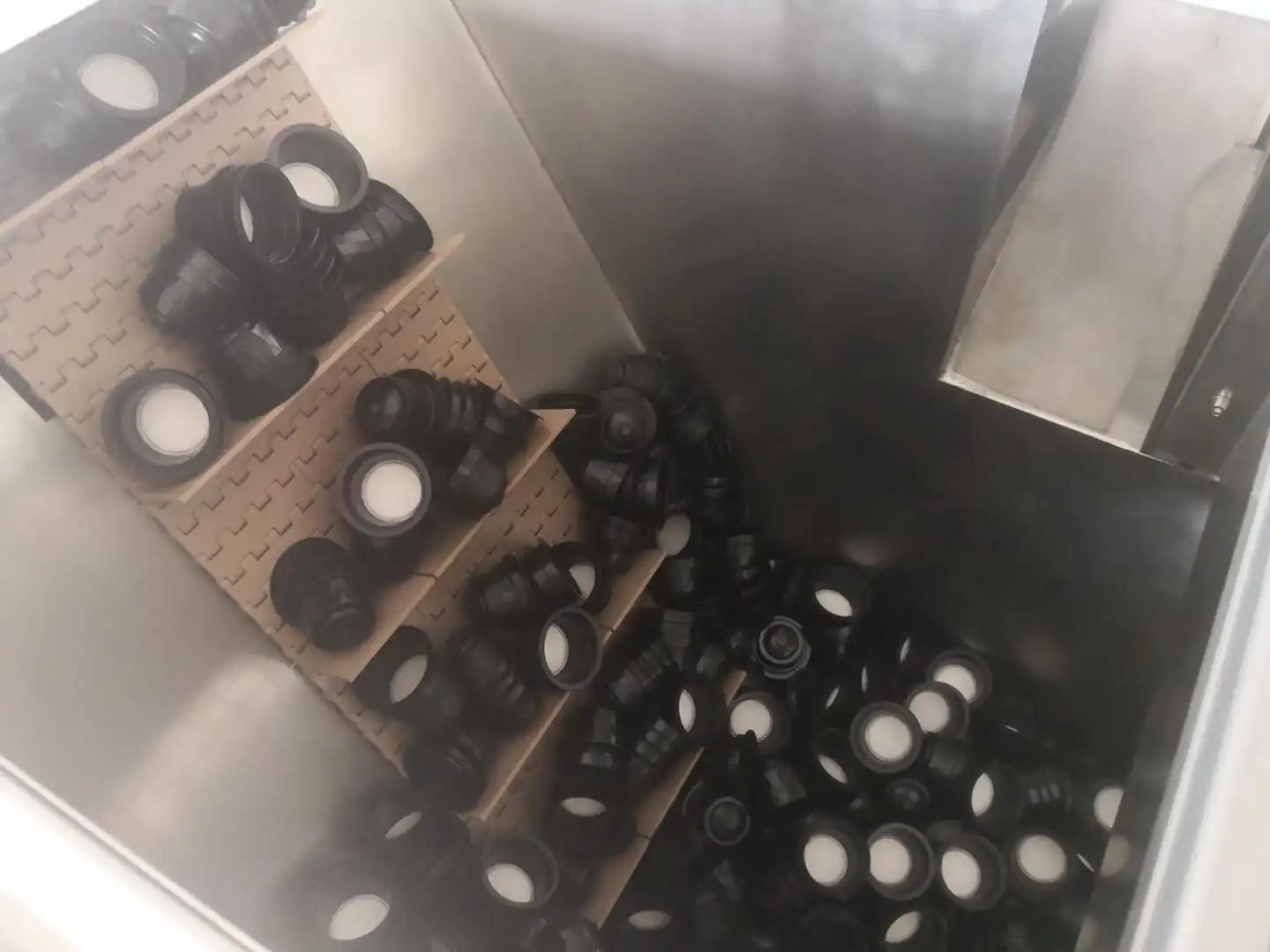

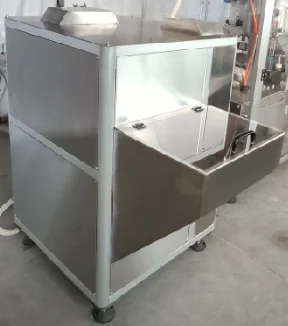

Independently developed an advanced sorting cup system. It can store up to 10,000 empty capsules each time. This machine achieves automatic high-speed, which greatly saves labor costs, completely free your hands. Likewise, this system completely solves the common problem of stuck capsules and damaged capsules. ( Patented design, counterfeiting not allowed! ) |

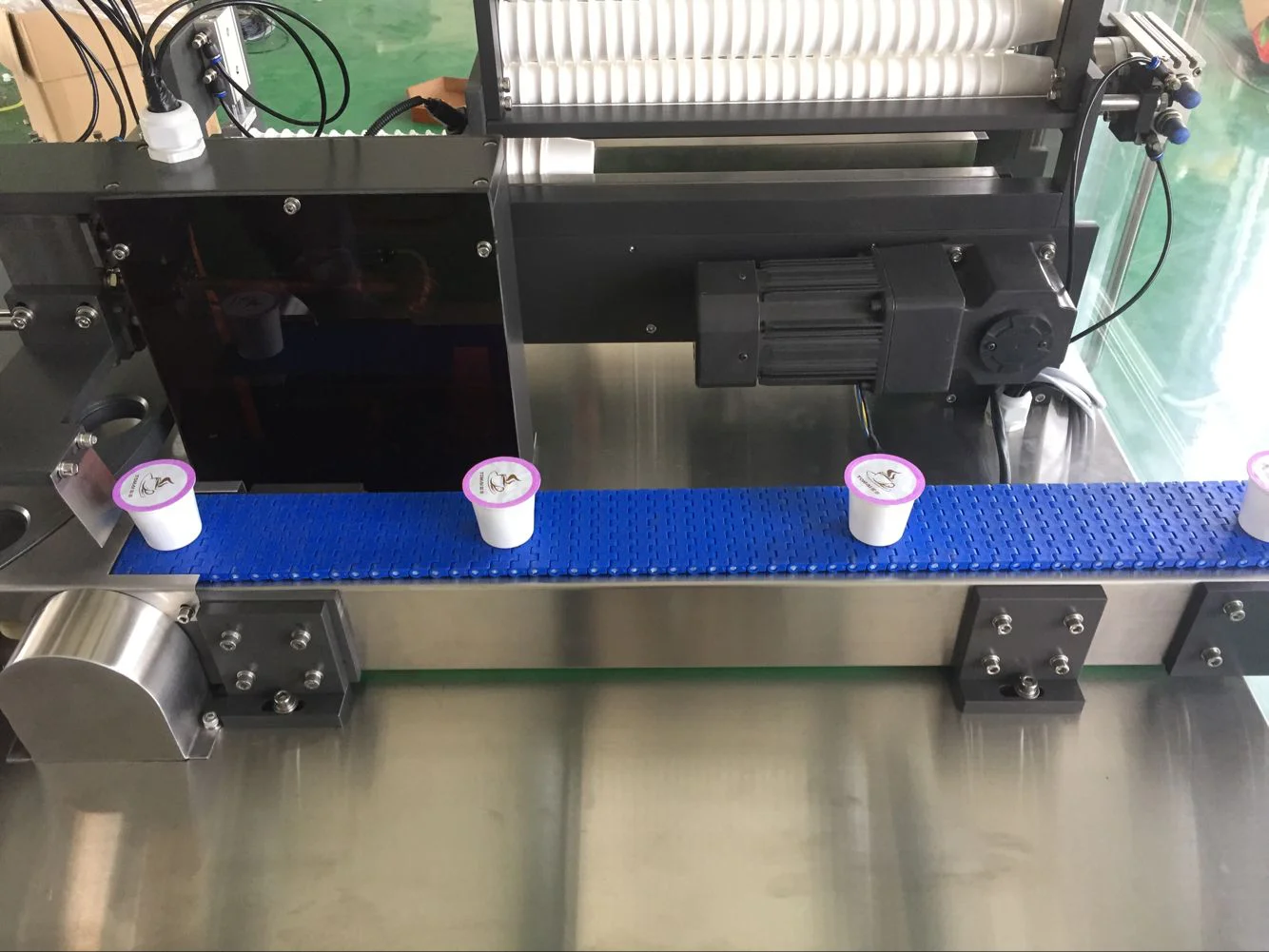

The conveyor comes with the machine serves protection to the finished products and facilitation for collecting.To add accessories such as a coding machine on the conveyor belt, it's as easy as pie. Through it, you can connect the capsule machine to a bagging machine or cartooning machine convenientl
|

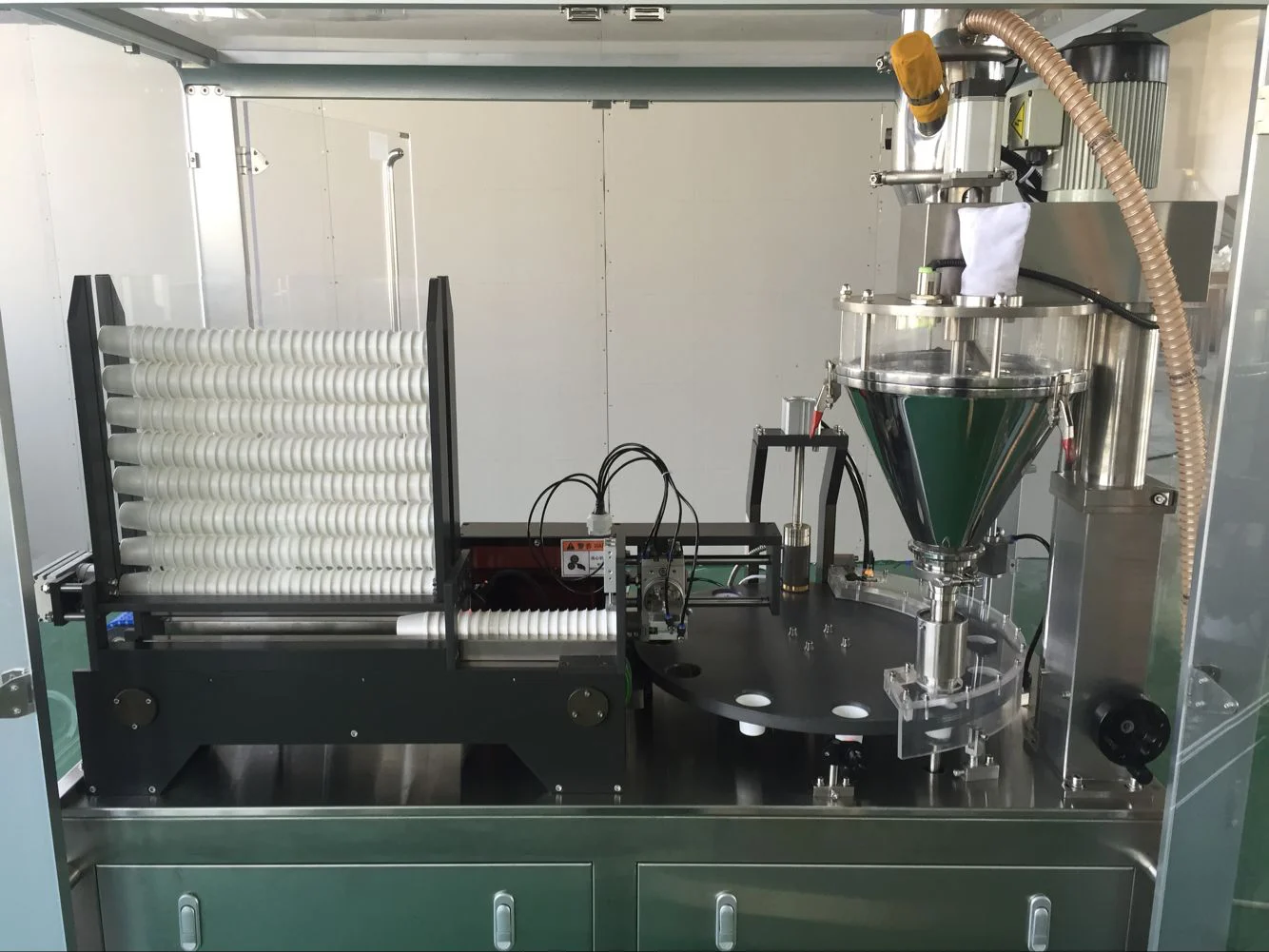

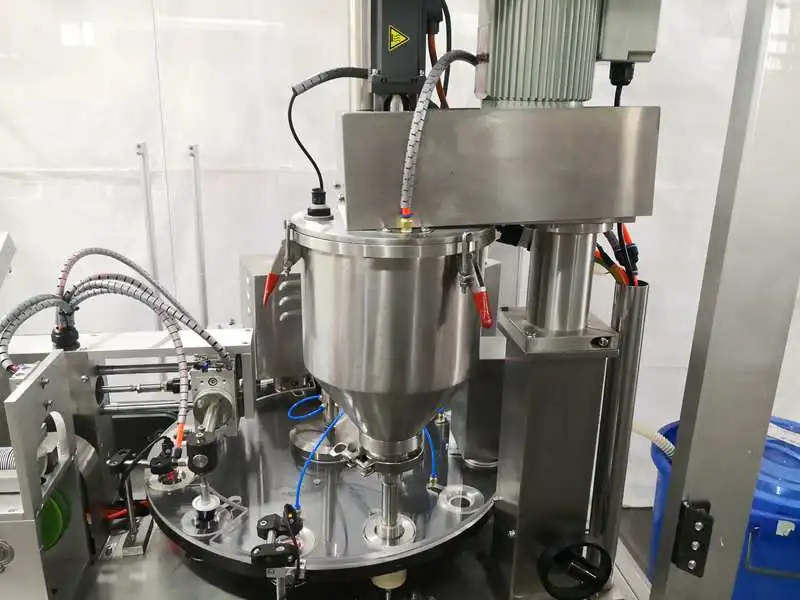

The auger filler in this machine has world highest precision that can reach 0.05 grams, furthermore it is leak-proof, which helps seal better. The material contact machine is all SS304; it meets the medical hygiene standards. Also, the barrel can be quickly disassembled and purified. The material of the barrel is stainless steel, it has the advantages of being resistant to cleaning, break and scratching.
|
Original designed capsule rim completely cleaning system, which can achieve nearly 100% none dust on rim. ( Patented design, counterfeiting not allowed! )
|

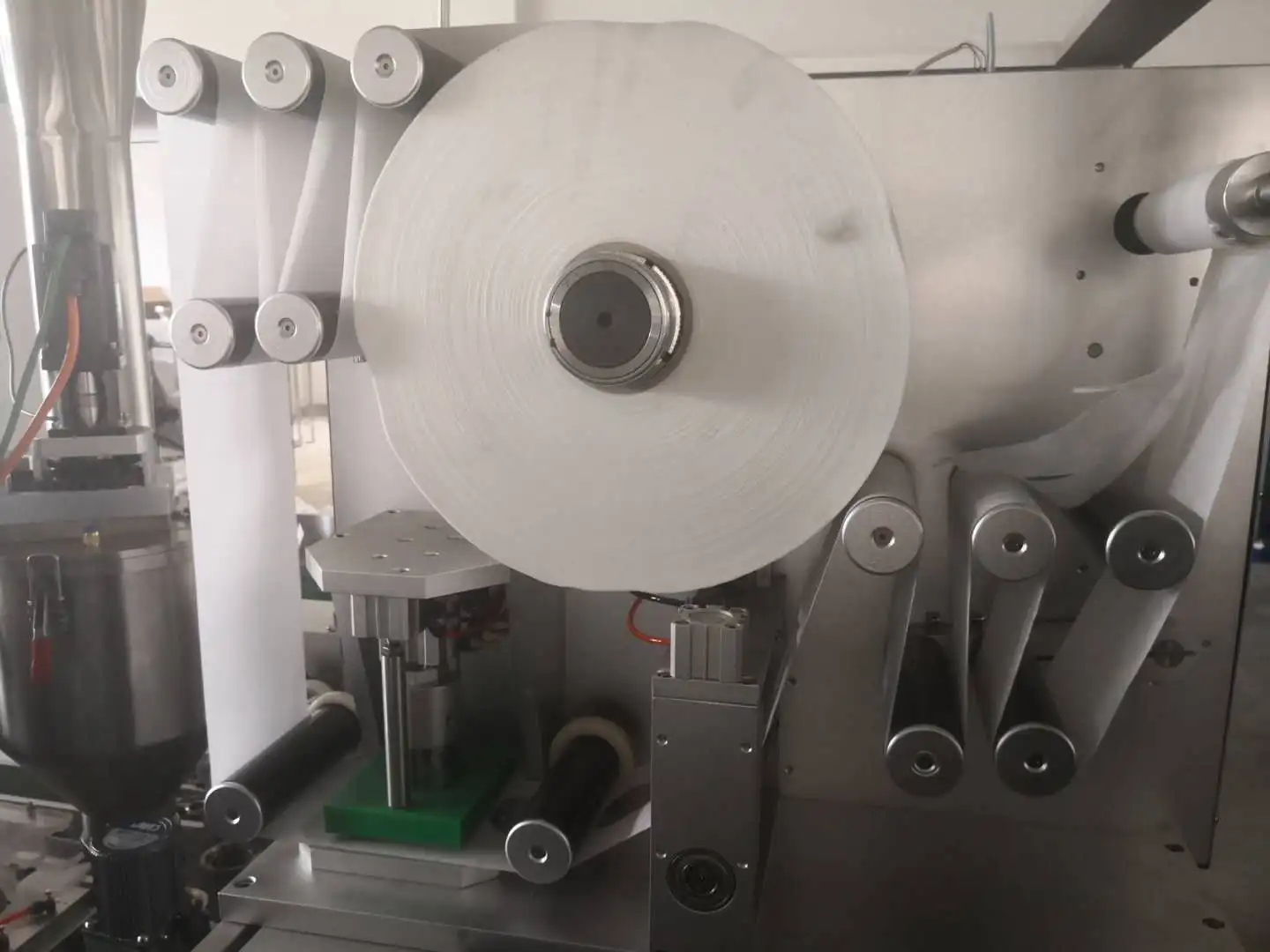

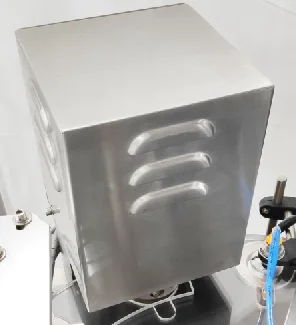

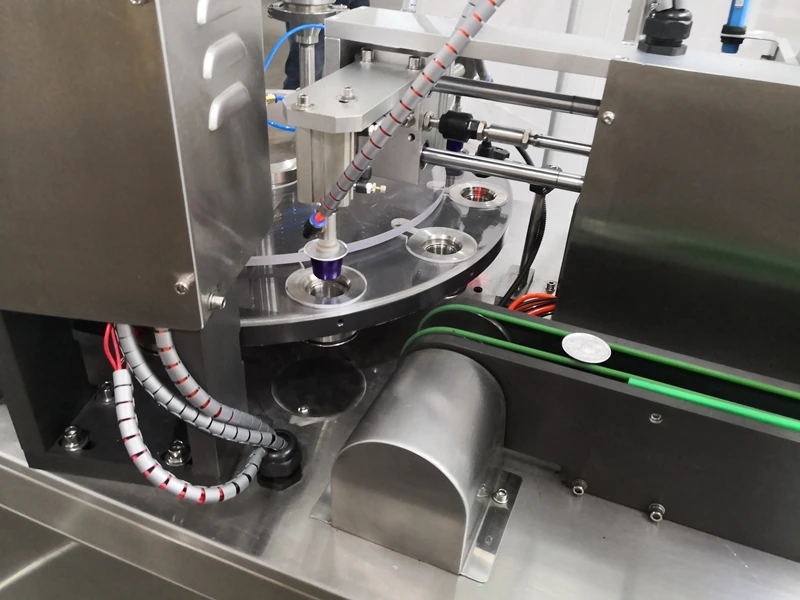

Servo controlled independent sealing and cutting station guarantees a tight and pretty seal. The biggest advantage of this station is the cutting lid without edge waste. That is we can cut the lid diameter from roll film exactly as the same as the cup diameter. Such stations are designed inside the machine frame, save a lot of space for customers.
|

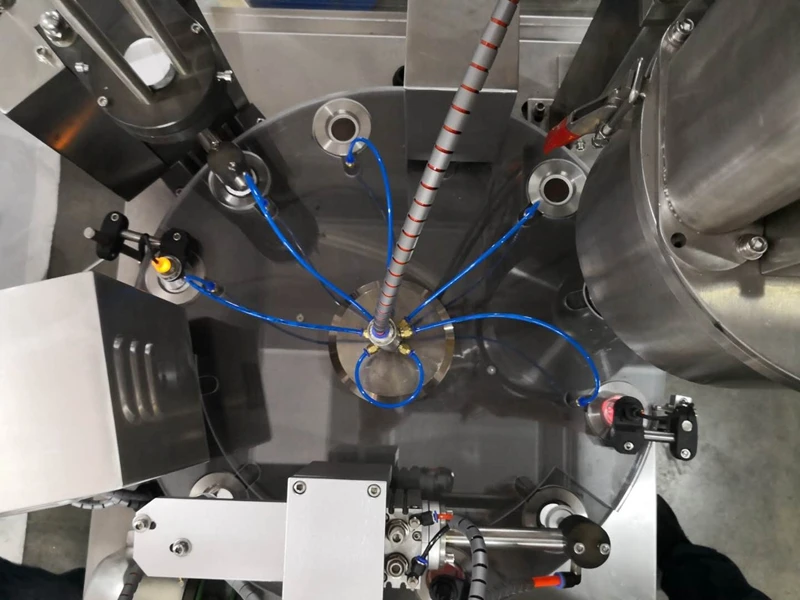

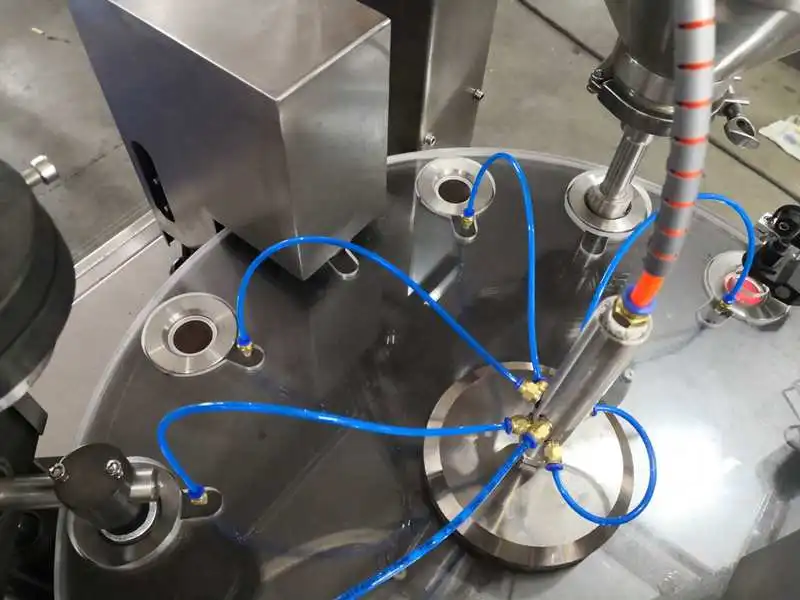

Super nitrogen filleing system. From the beginning of the coffee to the end of the packaging, it is exposed to nitrogen gas, and keep the oxygen almost none.
|

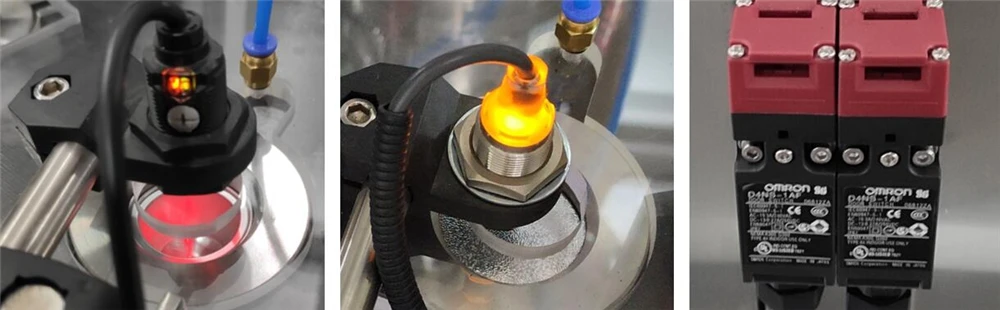

Equipped with detecting devices. No cup no filling, no film no sealing, rejecting waste, safety door, etc.
|
Original designed sealing device guarantees a tight and pretty seal. |

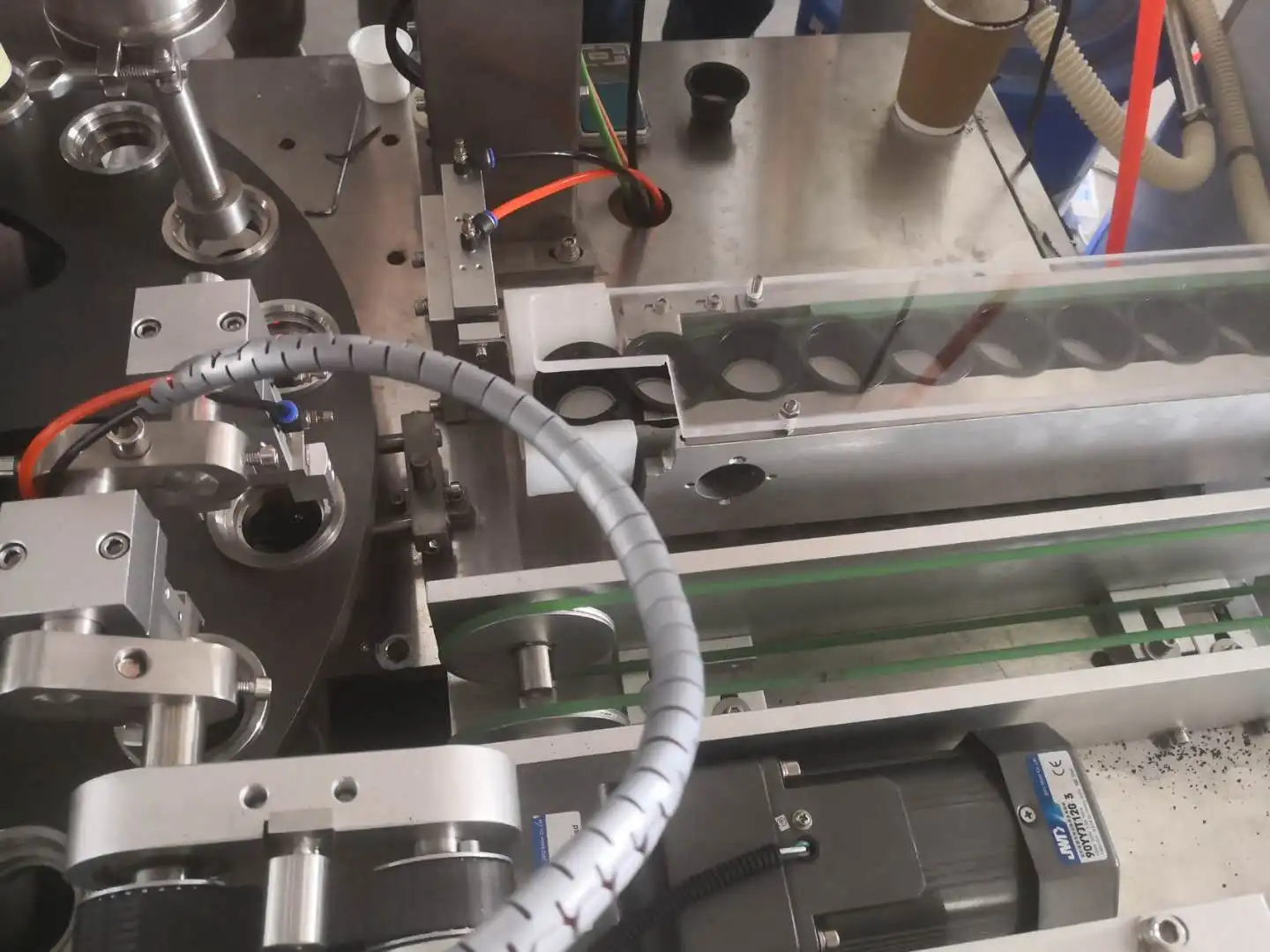

Adopt robotic arm to pick and release capsule that instead of old vertical cylinder type capsule feeding . It solves the problem of the dropping cup. This technology is far ahead of the industry.
|

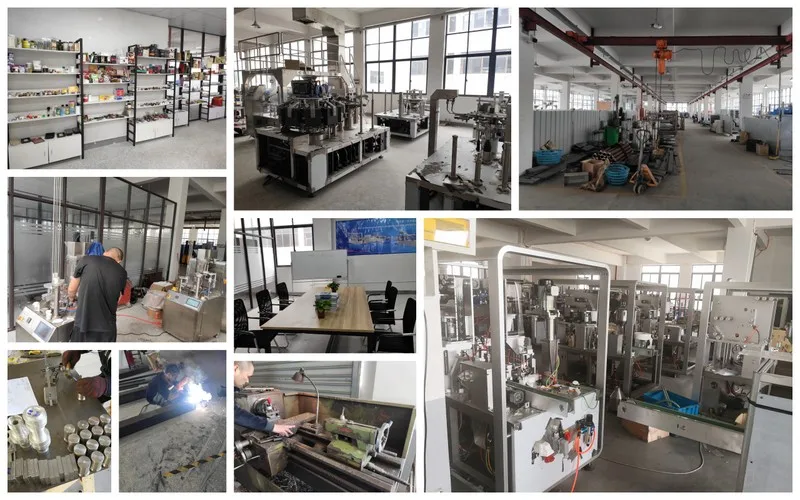

Company Information
Shipment & Payment
FAQ
1) How can I place order? A: You can contact us by email about your order details, or place order on line.
2) How can I pay you? A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What's the order procedure? A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 60days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
