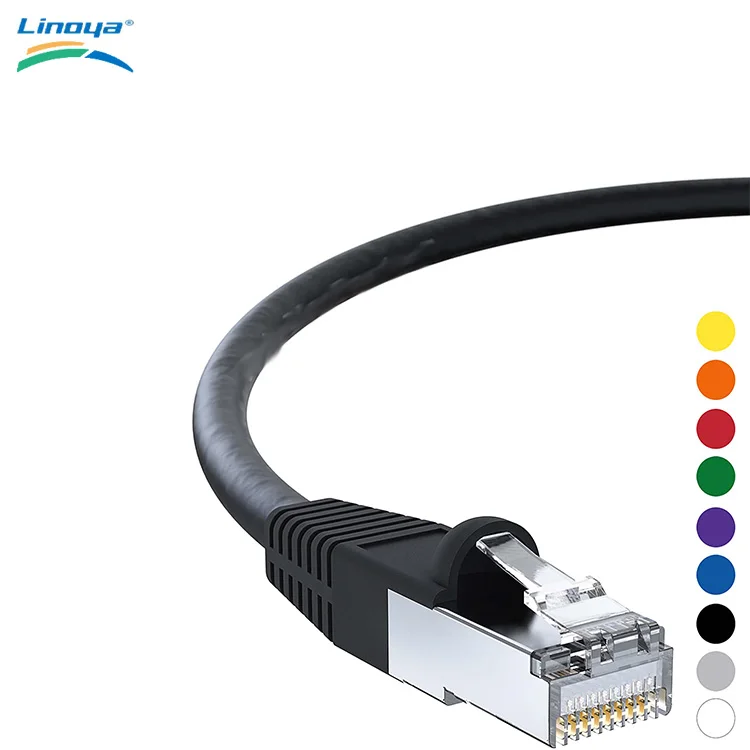

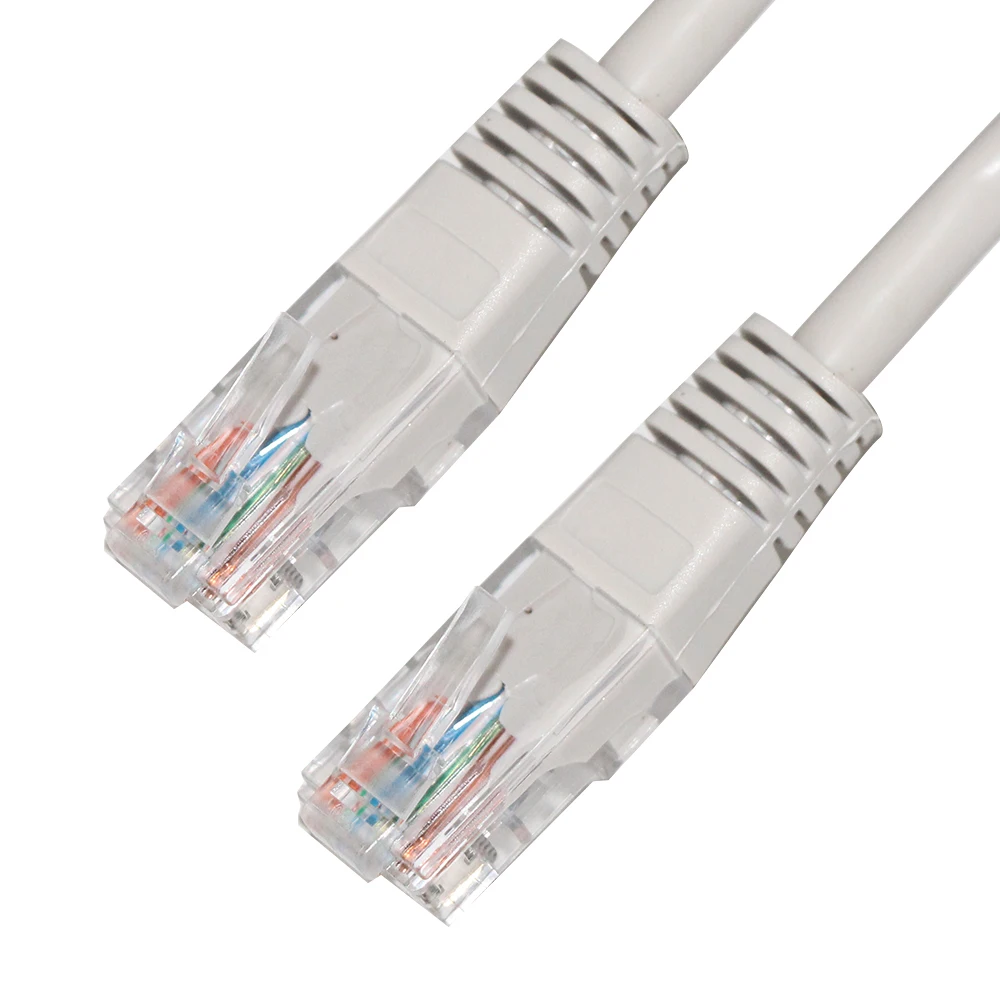

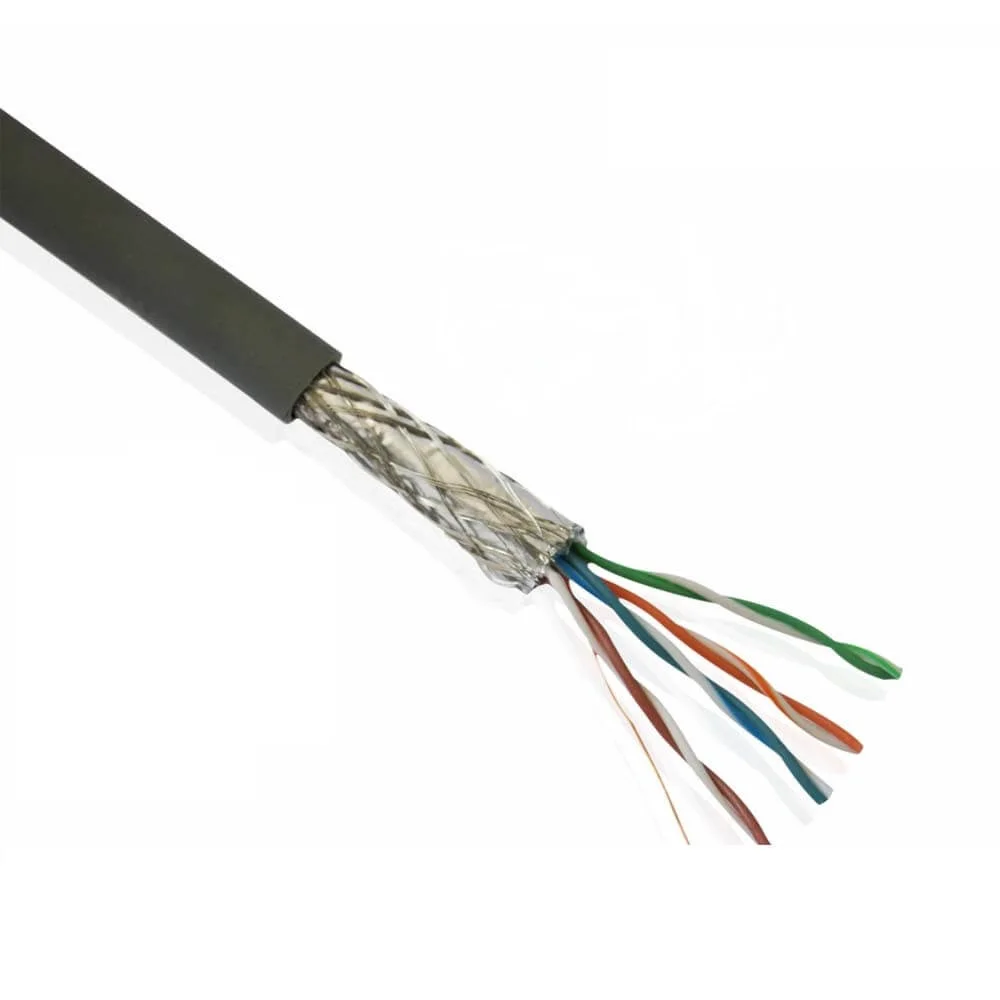

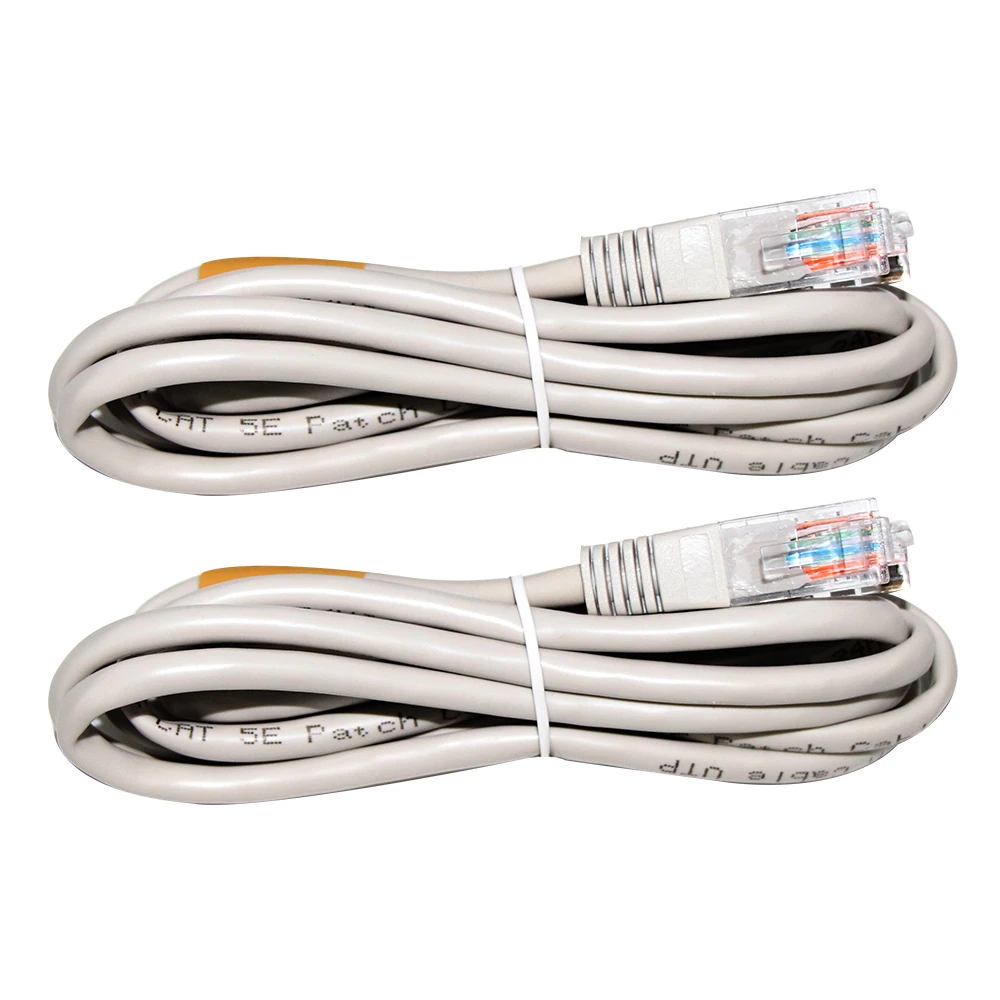

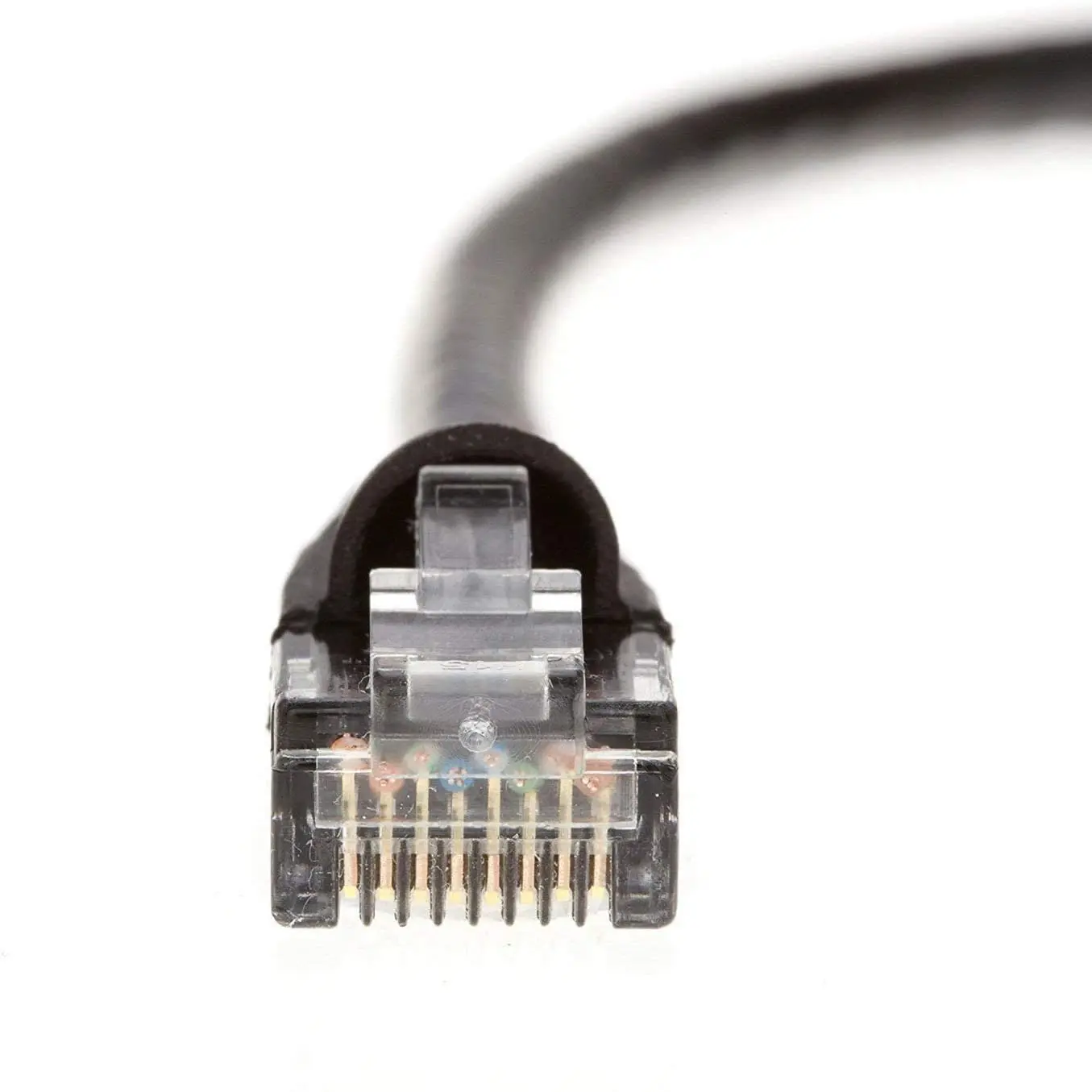

Factory Direct Customized UTP LAN Computer Connector Cable CAT5e Patch Cord
- Category: >>>
- Supplier: Dongguan Linoya Data Technology Co. Ltd.
Share on (10000001592613):
Product Overview
Description
Products Description
Specification
Model | CAT 5e | Insolation | Jacket | No. Of pairs | |||
Conductor | 24AWG, 26AWG, 28AWG | ||||||
Type | UTP | ||||||
Material | PVC, LSZH | ||||||
Length | 1FT, 2FT, 3FT, ..., 328FT | ||||||
Plug | Customized | ||||||
Color | Customized | ||||||
Packaging | Customized | Skin-Foam-Skin 1.45 | PVC/LSZH 8.5 | 4 | |||
Certifications
To keep a high production standard, we only manufacture pure copper wires and cables from the very beginning.
The comprehensive control and monitor system guarantee the production and delivery.
The timely after-sales services enable us to maintain a sound relationship with our partners.
The timely after-sales services enable us to maintain a sound relationship with our partners.
Company Profile
Linoya was founded in 1997 and nowadays it is the one of biggest cable manufacturers in China. There are over 3000 employees in 5 subsidiaries and USA branch office.As a leading cable OEM&ODM munufacture. Linoya's product over CAT.5e, CAT.6, CAT.6A, CAT.7, CAT.7A, CAT.8 and patch cord to Fiber Optical Cable and HDMI etc.Linoya's cable are UL, CM, CMR,CMP, CSA, ETL etc. certificated company which meet most certificate requirements from different areas.
Located in Dongguan City, it gives us much convenience to handle and collaborate the shipment, EXW, FOB or CIF.
Production Review

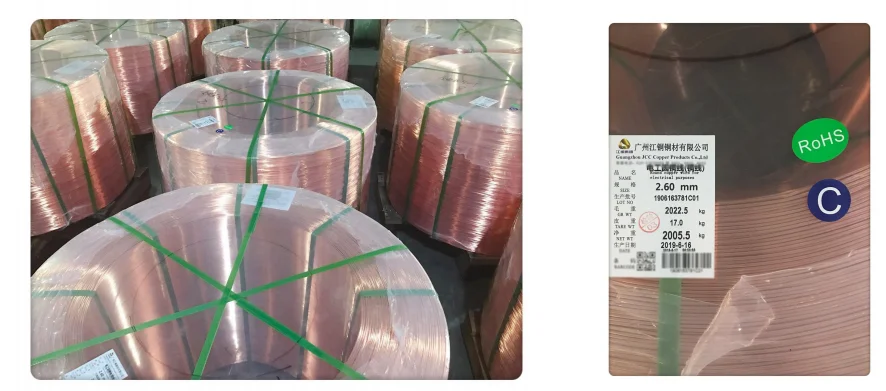

As we are focused on bare copper lan cables, so copper’s selection is the most basic requirement.
We purchase oxygen-free copper (OFC), less oxygen content (<10ppm) and high purity (>=99.99%, not 98%),
which affect much the current resistence then the transmission of the signal.
We purchase oxygen-free copper (OFC), less oxygen content (<10ppm) and high purity (>=99.99%, not 98%),
which affect much the current resistence then the transmission of the signal.

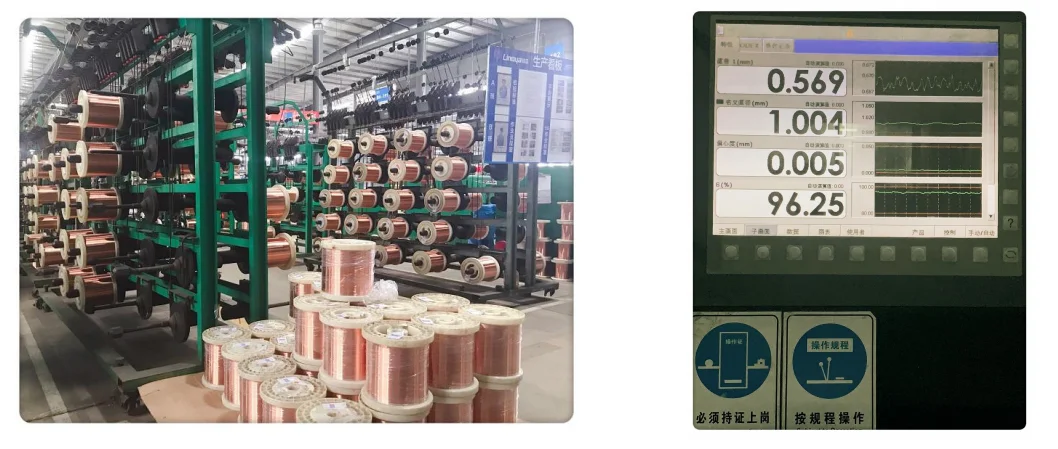

To stretch pure copper into certain diameter, there will be an electronic detector for each single cord
Insolation

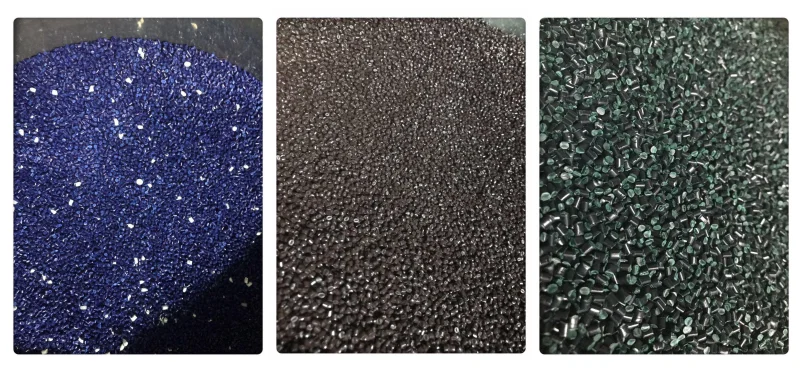

Outside of the pure copper is the insulation.
The raw material is imported from U.S.A. or other foreign countries.
The cost is higher but the quality is much better.
It helps better meet the performance standard during production.
The raw material is imported from U.S.A. or other foreign countries.
The cost is higher but the quality is much better.
It helps better meet the performance standard during production.

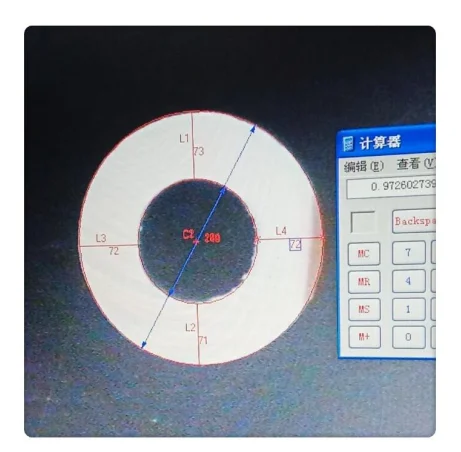

To guarantee the performance, there are at least 2 fundamental parameters for the copper and insulation:
1) concentricity;
2) ellipticity.
1) concentricity;
2) ellipticity.
Note
For each roll of wires, a note is attached to trace the production.
Twisting
After insulation, the wires will be twisted together, which requires more techniques and experiences.
Because the lay of each pair of wire is different, so is the capacitance.
Because the lay of each pair of wire is different, so is the capacitance.
The production can only be continued when the resemblance is more than 95% in above factors among the 4 pairs.
The twisting directly affects the balance of the signals among the four pairs.
So we have regular inspection and upgrading.
The twisting directly affects the balance of the signals among the four pairs.
So we have regular inspection and upgrading.
OUTER JACKET
Regarding the outer jacket, we have our own plant to produce.
So the production and quality are under control.

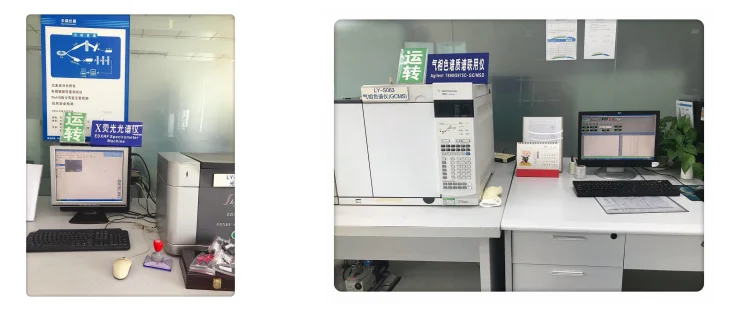

Each kind of material will be tested at our laboratories.
All meet the standards of RoHS2.0 and Reach.
The easiest way to check the quality is that the inferior cables have bad
feel and acid smell.
So the production and quality are under control.
Each kind of material will be tested at our laboratories.
All meet the standards of RoHS2.0 and Reach.
The easiest way to check the quality is that the inferior cables have bad
feel and acid smell.
