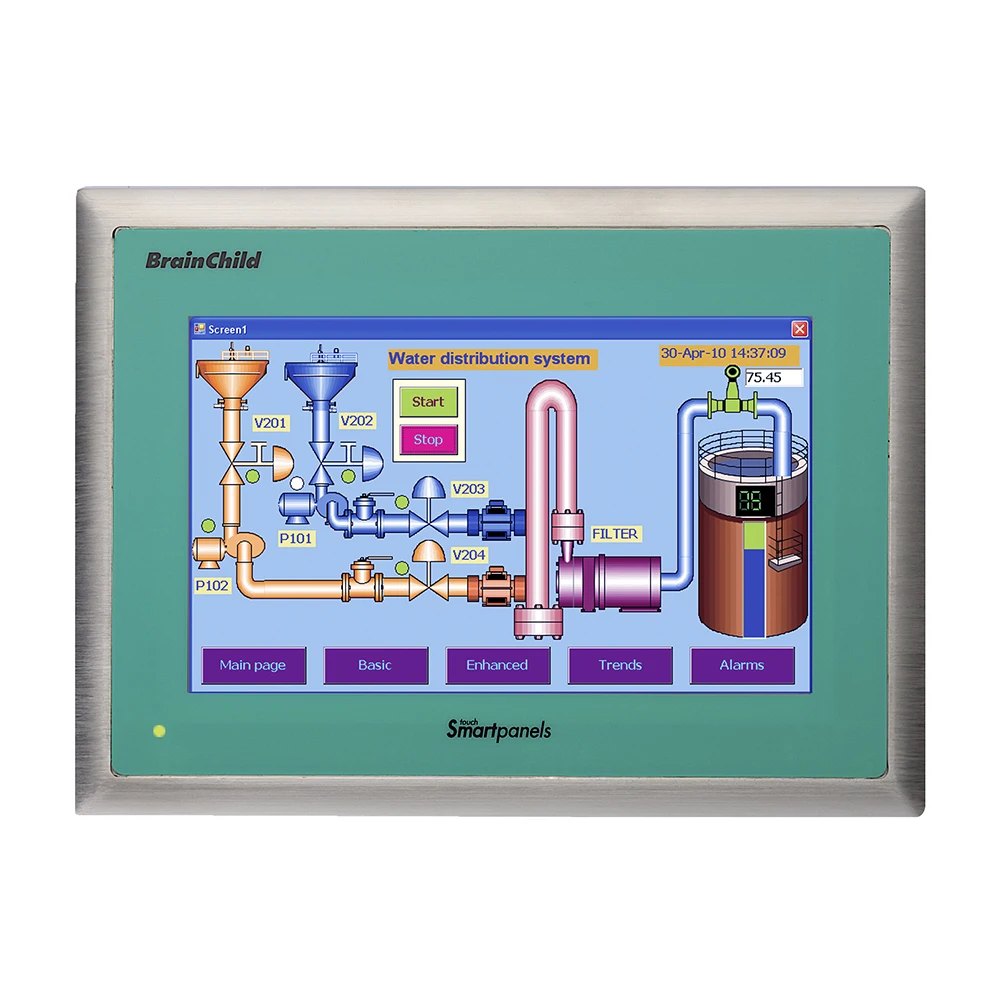

Plc HMI Touch Screen HMI750
- Category: Touch Screen Monitors >>>
- Supplier: BRAINCHILD ELECTRONIC CO. LTD.
Share on (10000001625399):
Product Overview
Description
Display | ||
Size | 7" | |
Resolution (W x H in pixels) | 800 x 480 | |
Display type | TFT wide touch screen | |
Colors | 65,536 | |
Touch screen Type | Resistive analog | |
Active Display Area ( W x H mm ) | 152 x 91 | |
Display position | Both horizontal & vertical | |
MTBF backlight at 25 °C | 50,000 hrs | |
Backlight | LED | |
Brightness Adjustment | Yes | |
Screen Saver | Yes | |
Language Fonts | Unicode including Simplified and Traditional Chinese, Japanese & Korean | |
Main Hardware | Action Reverse (heating) | |
Processor, CPU speed | ARM Cortex-A8, 667Mhz | |
Flash Memory (ROM) | 128 MB | |
SDRAM (RAM) | 256 MB | |
Operation System | WinCE 6.0 | |
Real Time Clock | Yes | |
Buzzer | Yes | |
Sound Input+Output,3DI+3DO | Option | |
SD card slot | Yes | |
Interfaces | ||
RS232C, DB9 Male | 1 | |
RS232C/ RS422/ RS485, DB25 Female | 1 | |
Ethernet 10/100 Mbps, RJ45 | 1 | |
USB Host | 1 | |
