Super HOT of ELO 1739L 1939L SAW Touch Screen Monitor Energy Saving Self Service Terminal Compact Kiosk Touch Screen Display
- Category: >>>
- Supplier: KeeTouch Co. Ltd.
Share on (10000001640220):
Product Overview
Description
Product Description
Infrared Touch Monitor 32 15 10 8 inch Game Casino POS
Open Frame Ultra Wide Touch Panel Screen LCD Display
FEATURE
- Open Frame Touch Monitor
- Integrated with Keetouch IR touch panel for the ultimate in image quality
- Future generation panels phased-in without external changes
- High quality panel with high brightness, contrast ratio and broad viewing angle
- Worldwide agency approvals
HOT Points
- HD Wide Viewing Angle , Multi-angle viewing, give you different visual enjoyment
- Brightness optiones , Apply to different environment, monitor with the brightness of 300/1000/1500 nits are available
- High and low temperature resistant design
- Green low consumption , 24 hours operation continuously to apply in public space in various industries to save energy and cost
- Easy to install and maintain, Open frame structure then install easily, VESA, Mount Bracket, Horizontal & Vertical mount for your option
- Cost Effectivec Supply OEM ODM , A stong R&D team offer you varisty solutions on your request.
MOQ is 100pcs , sample can be accepted.
Applications
Gaming/Casino Systems Entertainment
Outdoor/Indoor Kiosks , Transport and Ticket ,
Medical Hospital , Banking ATM POS , Customized Solutions
Specification
| Complete Machine | |

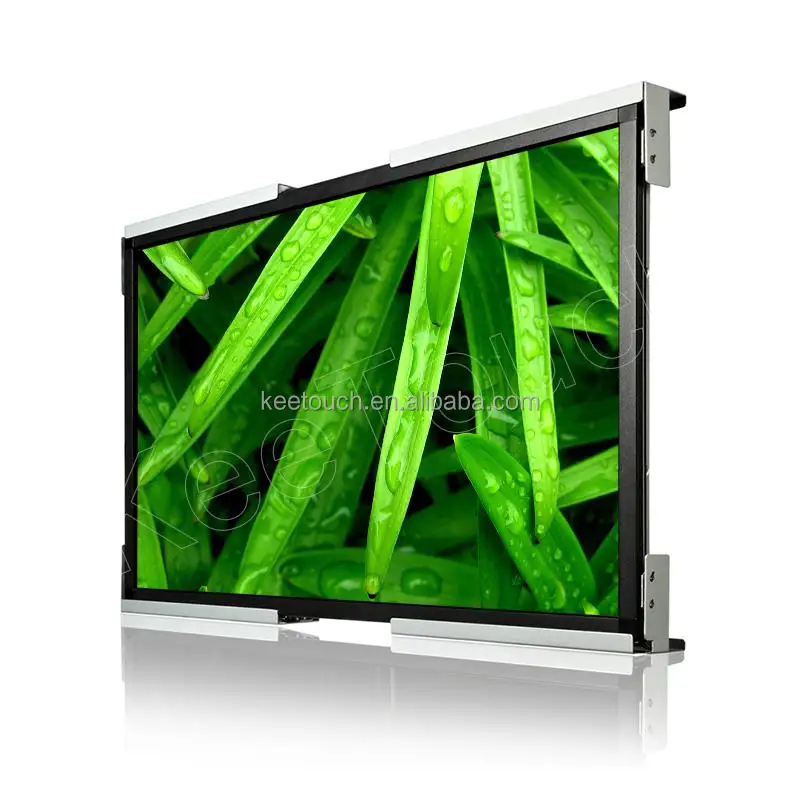

| Model No. | KOT-0320U-IR4P (P/N:KOT-320P-010) |
| Series | OT |
| Display Type | 16:9 Ratio 32" TFT-LCD |
| Active Area | 698.4*392.85 (mm) |
| Monitor Dimensions (W*H*D) | 756*453*75.7 (mm) |
| Suggested Resolution | 1920x1080 @ 60Hz |
| Support Colors | 16.7M |
| Brightness (Typ.) | Pure LCD Panel 280cd/m2 |
| With Touch Monitor 250cd/m2 | |
| Response Time (Typ.) | 6 ms |
| Viewing Angle(Typ.at CR>10)) | Horizontal(left/right) 85°/85° |
| Vertical(up/down) 80°/80° | |
| Contrast Ratio (Typ.) | rate 1000:1 |
| Video Input | VGA\\DVI\\HDMI |
| Frequency (H/V) | 37.9~80KHz / 60~75Hz |
| Power Supply | Type: External brick |
| Display voltage: DC 12V±5% | |
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |
| Environment | Operating Temp. 0~50°C |
| Operating RH 20%~80% | |
| Storage Temp. | -0~50°C |
| Storage RH | 20%~80% |
| MTBF | ≥30,000 Hours |
| LED Back Light Life (Typ.) | ≥30,000 Hours |
| Weight(N.W/G.W) | 13Kg(1pcs)/15Kg (1pc in one package) |
| Package dimensions | 851*153*553 (mm)(1pc in one package) |
| Power Consumption | Standby Power: ≤2W / Operating Power: ≤40W |
| Mount Interface | 1.VESA 75mm and 100mm |
| 2.Mount bracket, horizontal or vertical mount | |
| OSD Control | Buttons: AUTO,+,POWER,-,MENU |
| Function: Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | |
| Agency approvals | CCC, ETL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
| Touch Screen | |
| Touch Type | 32" Capacitive touch screens |
| Touch input | USB |
| Response Time | ≤32 ms |
| Hardness | 7H |
| Light Transmittance | ≥90% |
| Support System | XP,WIN7,WIN8,WIN10,Linux,Android |
| Active Area | 702.6*395.8±0.5 (mm) |
| Thickness | <5 (mm) |
| Touch Test | ≥50,000,000 times |
| Input Voltage | DC 5V±5% |
| NOTE : | |
| (1) The display SPEC. are adjusted according to the selected LCD screen and touch screen | |
| (2) The support system is adjusted according the specific system and version. | |
Product Prictures
Company Information
KeeTouch Co., Ltd., as the leading provider of touch screen products and touch solutions, is specialized in R&D, manufacturing, marketing and selling SAW&IR touch screen, touch monitor, touch computer and also other value-added touch screen products.
Due to continuous over 16years , the registered trademark of 'KeeTouch' has become a well-known brand in the global touch screen filed. KeeTouch products were certificated by CCC, UL, ETL, FCC, CE, CB and RoHS. Furthermore, we have already built up and operated in accordance with ISO9001 quality system, ISO14001 environment management system and OC080000 limit harmful material management system.
Nowadays, our branch offices has been widely spreaded in Russian, Brazil, Germany and India, with clients around the world. In the future, KeeTouch will strive ahead for the company vision 'touch facilitate the life.
Our Services
Why Choose KeeTouch ?
16 years experience
Founded in 2006 with an authorized capital of 14 million yuan (2.33 Million USD), keetouch is a professional touch screen,Touch monitor manufacturer for over 16 years mature factory experience.
Factory Quality you can trust
KeeTouch has passed the quality management standards ISO 9001 and environmental management ISO 14001. In 2012 KeeTouch was awarded the high and new technology enterprise of china and recognized by the chinese government. Products with FCC , ETL , UL , RosH , CE , CB , ISO9001 and ISO14001 Authorised .
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
Strict QC Before delivery
The shipment you receive is inspected by strict QC,Such as burn-in test, anti-vibration test and working temperature test to ensure quality.
Packaging & Shipping
For QTY less than 200pcs:
Fast delivery methods include UPS/DHL/FEDEX/TNT/UPS/EMS and so on (door to door service) and it takes 3-7 working days to reach your office.
For QTY more than 200pcs:
By Air Seais available.so please let us know your favorite shipping method,we are devoted to save more freight for you.
Payment methods
About Payment We accept T/T,LC,Western Union,Pay Later,Boleto, Credit card, paypal,Alipay and e-Checking .
FAQ
Questions and answers
Q: What is your company type, trade company or manufacturer?
A: We are a manufacturer of industrial display monitors with a factory in Shenzhen,China.
Q: Does the touch screen require soft wares to enable it to work on my Pc? A: Our Touch
products supports Microsoft Windows7/8/10/XP,Linux and Android operating systems and
it's pnp. lf you are using any other operating system, our engineer manager will discuss this
with you and ensure all the systems meet all of your requirements.
Q: When l use the touchscreen, the mouse cursor doesn't follow my touch, how can I fix that?
A: If the mouse cursor doesn't correspond to the location of your touch, then you will need to
run calibration or upgrade the firmware. if the issue is still cann't be dealt with, our engineer will
figure it out for you and discuss with you to solve this problem to your satisfactory.
Q: Will these touch screens connect to any Pc?
A: Yes, the touchscreen connects to any Pc with a standard VGA/DVI/ HDMI video port and a
serial (RS-232) or USB port.
Q: What is your warranty period?
A:A12-month waranty is a standard for all the products sold to customers.
Q; What payment method your company accept?
A: WeacceptT/TWestern Union, Pay Later, Boleto, Credit Card and E-checking.For bulk orders,
deposit T/T in advance, and balance before shipment.
Q: What's your minimum order quantity?
A: We have no limit for MOQ, so you can take a sample for you check quality and function.
Q: Do you provide OEM service?
A: Sure,we supply OEM service. Just offer us your design or the other customized requirement
you want!
Q: What's the delivery time of your company
A: Well, they depend on the quantity of your order and our production schedule. but mostly ,
3-5 working days for inventory order.7-15 business days for Bulk production.
