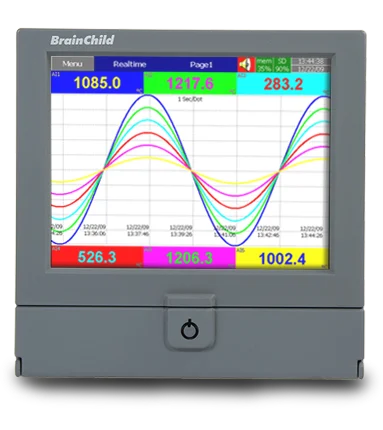

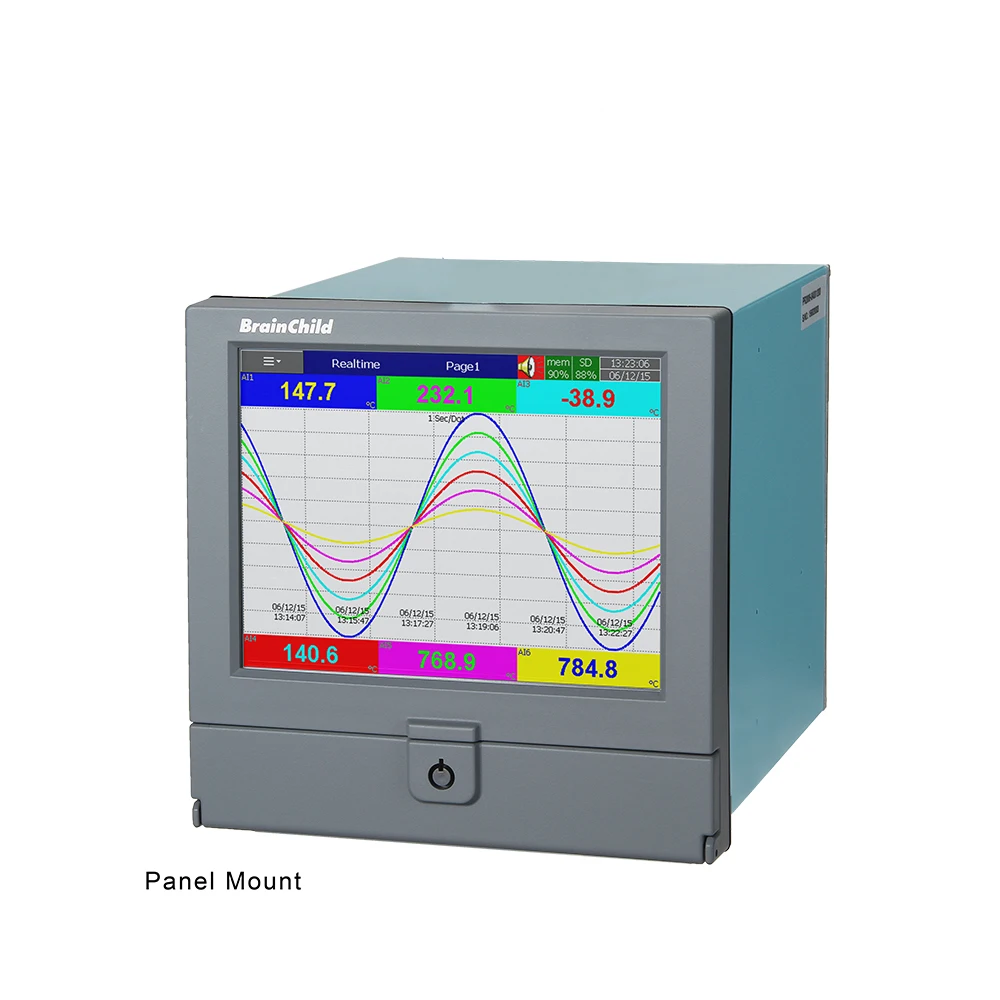

Digital Paperless Recorder PR20
- Category: >>>
- Supplier: BRAINCHILD ELECTRONIC CO. LTD.
Share on (10000001646261):
Product Overview
Description
Product Model | PR10 | PR20 | PR30 | ||
Input Numbers | 3, 6 channels | 3, 6, 12, 18, 24channels | 6, 12, 18, 24, 30, 36, 42, 48 channels | ||
Display | 4.3" TFT wide touch screen | 5.6" TFT wide touch screen | 12.1" TFT touch screen | ||
Resolution | 480 x 272 | 640 x 480 | 1024 x 768 | ||
MTFB Backlight At 25°C | 30,000 hrs | 30,000 hrs | 60,000 hrs | ||
Backlight | LED | LED | LED | ||
Screen Saver, Email | Yes | Yes | Yes | ||
A Faster CPU | ARM Cortex-A8, 1Ghz | ARM Cortex-A8, 1Ghz | ARM Cortex-A8, 1Ghz | ||
Internal Flash Memory | 256 MB | 256 MB | 256 MB | ||
RAM | 256 MB | 256 MB | 256 MB | ||
Ethernet | Modbus TCP/IP | Modbus TCP/IP | Modbus TCP/IP | ||
Power Supply | 90-250VAC or 11-36VDC | 90-250VAC or 11-36VDC | 90-250VAC or 11-36VDC | ||
Outer Dimensions (W x H x L mm) | 144 x 144 x189 | 144 x 144 x189 | 288 x 288 x 189 | ||
Shorter Mounting Depth (mm) | 171 | 171 | 171 | ||
DIN Panel Cutout (W x H mm) | 137 x 137 | 137 x 137 | 281 x 281 | ||
Protection | IP65 front, IP20 rear | ||||
Operating Temperature | 0°C to 50°C | ||||
Storage Temperature | -30°C to 70°C | ||||
Safety Standards | CE, cULus, RoHS | CE, cULus, RoHS | RoHS | ||
